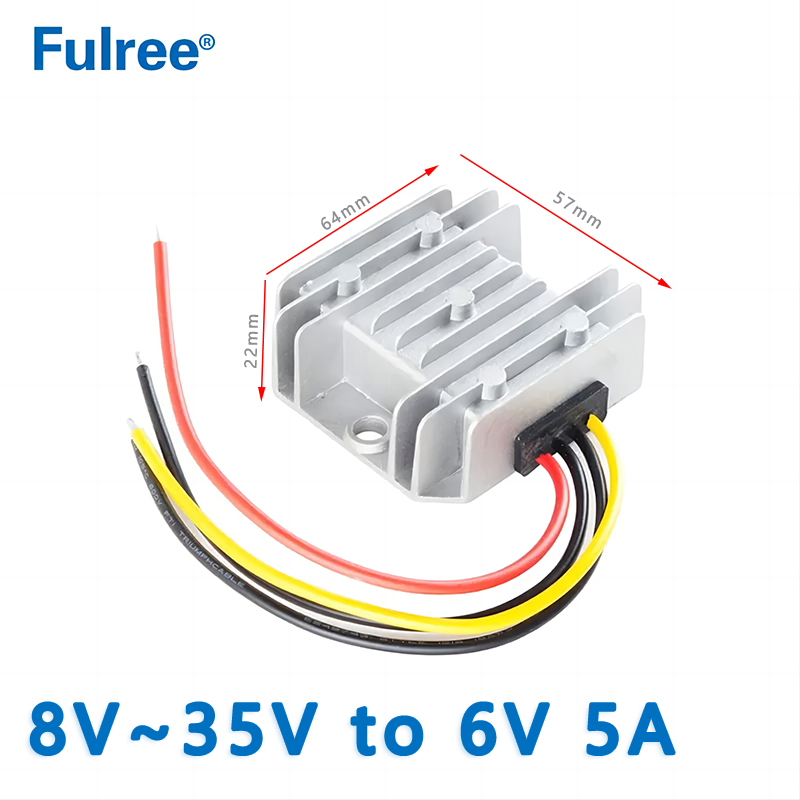

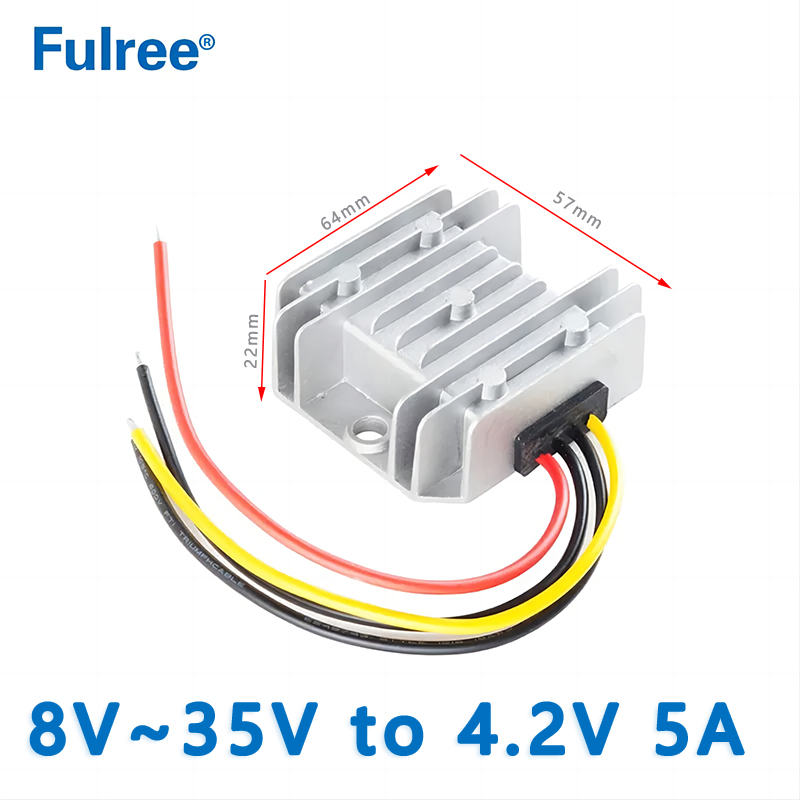

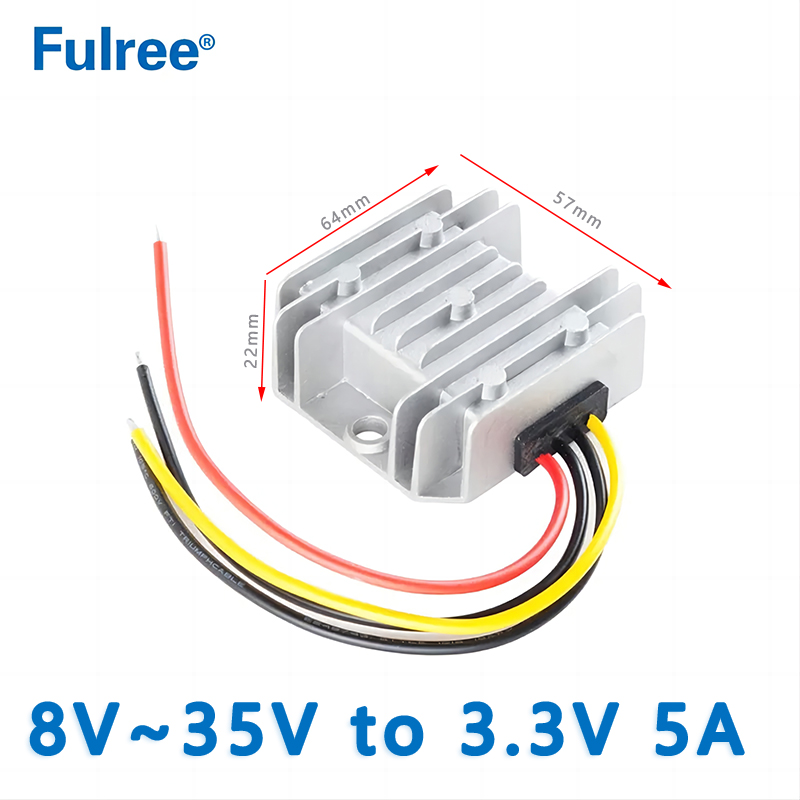

Input DC 12V 24V(8-35V) to Output DC 5V 6V 9V 3.3V 3.7V 4.2V 7.5V 5A MAX DC DC Step Down Buck Voltage Car Power Converter

4.5 (37)

$5.74

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

3% OFF WITH PURCHASE OVER 10 UNITS
6% OFF WITH PURCHASE OVER 50 UNITS
10% OFF WITH PURCHASE OVER 100 UNITS

Quantity:

Availability: In Stock

Description

Input DC 12V 24V(8-35V) to Output DC 5V 6V 9V 3.3V 3.7V 4.2V 7.5V 5A MAX DC DC Step Down Buck Voltage Car Power Converter

Product Overviews

Model	F35JV5A4L (Old:2405)
Input rated voltage	DC 12V 24V
Input voltage range	DC 8-35V (Minimum differential pressure 3V)
Efficiency	96%
Output voltage	3.3V 3.7V 4.2V 5V 6V 7.5V 9V
Output current	5A Max
Output rated power	16.5W 18.5W 21 W 25W 30W 37.5W 45W Max
Voltage regulation	< 1%
Load regulation	< 2%
Working temperature	-20°c ~+85°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Module Properties	non-isolate module
Rectification	synchronous rectification
Waterproof rating	IP67
Full load temperature rise:	45°c
Protection	Over-current, Over-temperature protection,Output Reverse Polarity Protection
Input Reverse Polarity Protection	None (Please Series diode at the input port.)
NW	approx 100G
Product size	666022mm
Other output current option DC DC Converter 12V24V TO 3.3-9V	3A/8A/10A/15A (pls contact with our sales manager if need)
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged >To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
