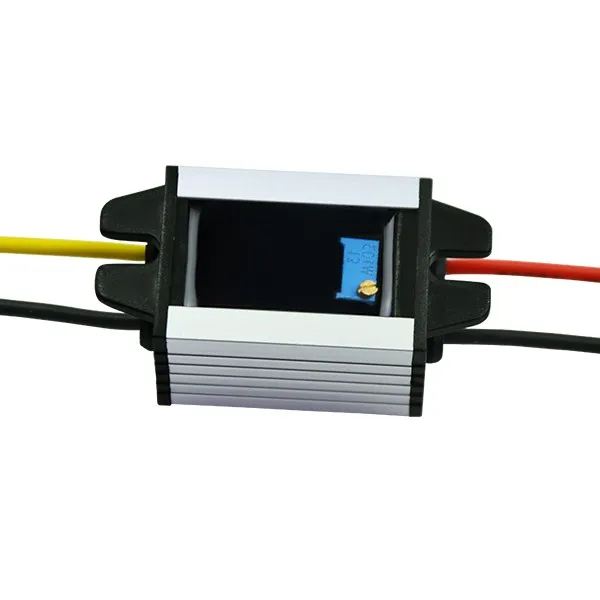

Input DC 12V（8-22V） to Output DC 3.3V 3.7V 4.2V 5V 6V 7.5V 9V （3-15V ）3A Max DC-DC Buck Converter Voltage Regulator Module

5.0 (58)

$4.07

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

3% OFF WITH PURCHASE OVER 10 UNITS
6% OFF WITH PURCHASE OVER 50 UNITS
10% OFF WITH PURCHASE OVER 100 UNITS

Please select the information you want X

model:

12V（8-22V）-3.3V（3-15V ）-3A

12V（8-22V）-3.7V（3-15V ）-3A

12V（8-22V）-4.2V（3-15V ）-3A

12V（8-22V）-5V（3-15V ）-3A

12V（8-22V）-6V（3-15V ）-3A

12V（8-22V）-7.5V（3-15V ）-3A

12V（8-22V）-9V（3-15V ）-3A

Quantity:

Availability: In Stock

Description

Input DC 12V（8-22V） to Output DC 3.3V 3.7V 4.2V 5V 6V 7.5V 9V （3-15V ）3A Max DC-DC Buck Converter Voltage Regulator Module

Model	DC 12V（8-22V） to DC 3.3V 3.7V 4.2V 5V 6V 7.5V 9V （3-15V ）3A
Input rated voltage	DC 12V
Input voltage range	DC 8-22V
Efficiency	93% (half load), 91% (full load)
Output voltage	DC 3-15V adjustable(minimum pressure difference:3V)
Output current	3A Max
Voltage regulation	< 1%
Load regulation	< 2%
Working temperature	-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Module Properties	non-isolated buck module(buck)
Rectification	synchronous rectification
Waterproof rating	IP68
Full load temperature rise:	50°c
Protection	Over-current, Over-temperature, Short-circuit protection, Input Reverse Polarity Protection, Auto-recovery when device is back to normal operating, waterproof IP68 design, anti-shock protection
NW	30G
Product size	582420MM

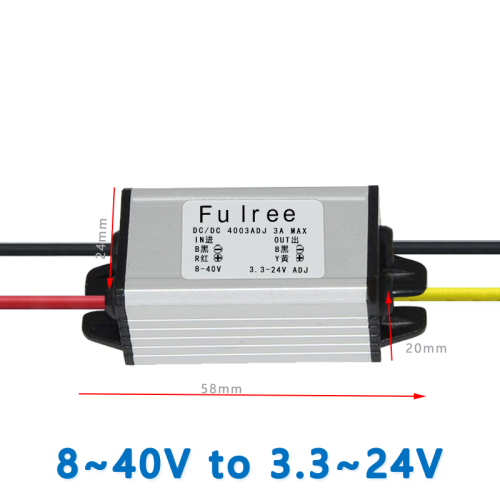

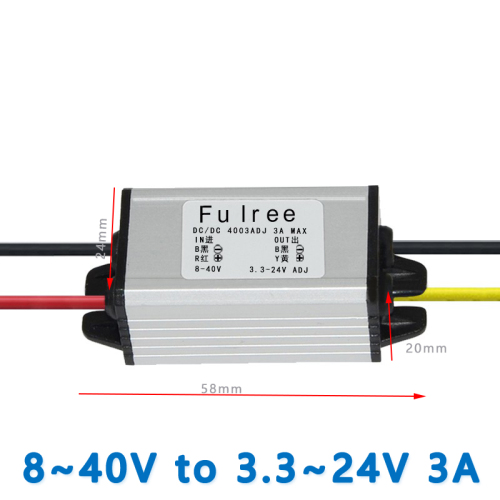

Other DC-DC adjustable converter recommend	1) 8-40v to 3.3-24v 3A max 2)8-35v to 1.5-24v 5A max (pls contact with our sales manager if need)
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed if you want to add fuse on the input side, or the module and device might be damaged >To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
