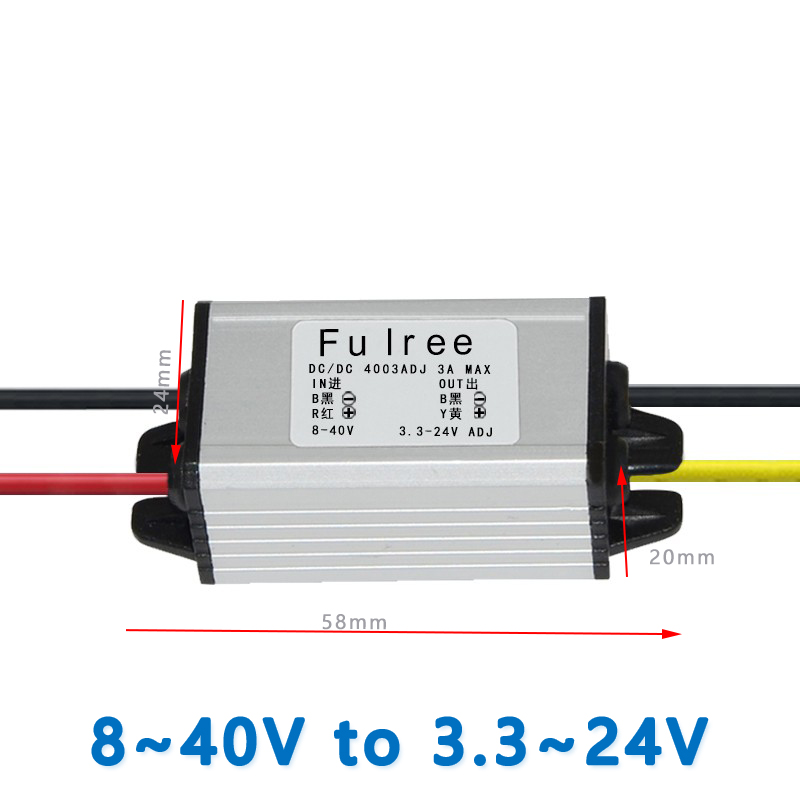

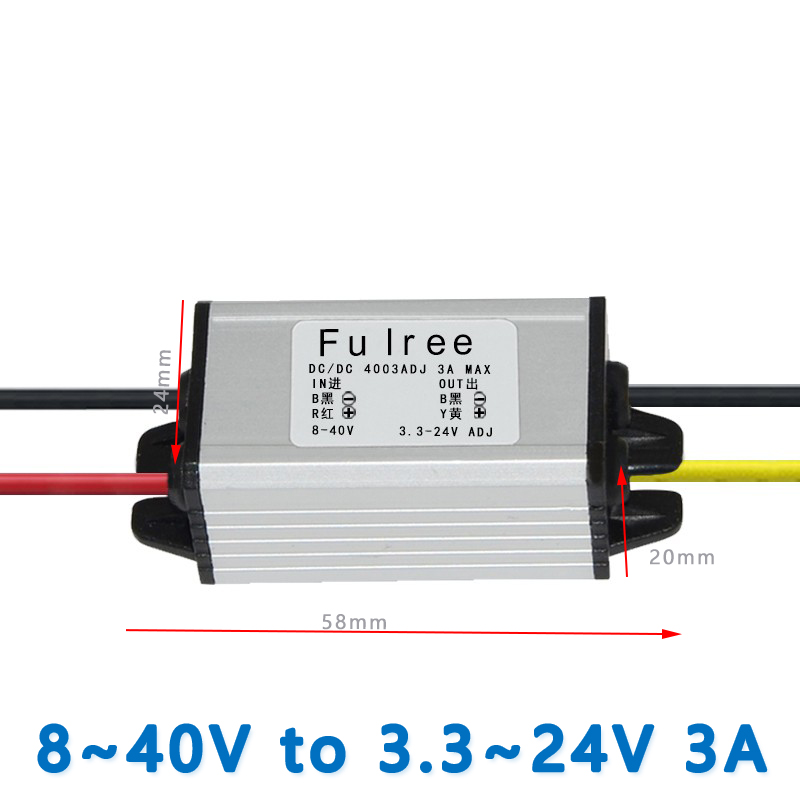

| Model |
4003ADJ |
| Input rated voltage |
12V24V |
| Input voltage range |
8-40V |
| Efficiency |
93% (half load), 91% (full load) |
| Output voltage |
3.3-24V adjustable(minimum pressure difference:3V) |
| Output current |
3A MAX |
| Output rated power |
15W |
| Output peak power |
18W |
| Voltage regulation |
< 1% |
| Load regulation |
< 2% |
| Working temperature |
-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use,
or to enhance heat dissipation)
|
| Module Properties |
non-isolated buck module(buck)
|
| Rectification |
synchronous rectification |
| Waterproof rating |
IP68 |
| Full load temperature rise: |
50°c |
| Protection |
Over-current, Over-temperature, Short-circuit protection,
Auto-recovery when device is back to normal operating,
waterproof IP68 design, anti-shock protection
|
| Input Reverse Polarity Protection |
NONE( (Please Series diode at the input port.) |
| NW |
50G |
| Product size |
45*25*21mm |
|
Other DC-DC adjustable converter recommend
|
1) 8-22v to 1.5-15v 3A max
2)8-35v to 1.5-24v 5A max
(pls contact with our sales manager if need)
|
|
Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
|
