Input DC 12V(6.3-22V) to Output DC 3.3V 3A Max 9.9W Step Down Voltage Buck PVC /ALU DC to DC Converter Regulator Car CCTV Camera Power Supply Module
Product Description
|
Product Name
|
Fulree DC DC Converter 12V to 3.3V 3A 9.9W Max
|
|
Brand
|
Fulree
|
|
Model No.
|
F23J3.3V3A1S / F23J3.3V3A1L / F23J3.3V3A4S (Old:C1203303) |
|
Module Properties
|
non-isolated buck module
|
|
Rectification
|
synchronous rectification
|
|
Input (13-14cm)
|
|
Input Voltage
|
DC 12V
|
|
Input Voltage Range
|
DC 6.3-22V
|
|
Output (13-14cm)
|
|
Output Voltage
|
DC 3.3V
|
|
Output Current
|
3A Max
|
|
Output Power
|
9.9W Max
|
|
Conversion Efficiency
|
>95% |
|
Voltage regulation
|
±1%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
< 150mV
|
|
No-load current
|
<100mA
|
|
Working Temperature
|
-40~80℃
|
|
Waterproof Rating
|
IP68
|
|
Protection
|
Over-current protection
|
|
Overheat protection
|
|
Output Short-circuit protection
|
|
Input Reverse Polarity protection
|
|
Application
|
Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts |
|
Certification
|
CE/RoHS
|
|
Case Material
|
ABS Plastic / Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on
|
|
Product Size (L x W x H)
|
ABS:46*27*14mm / 37*26*22mm / AL:35*24.5*20mm
|
|
Product Weight
|
ABS: 35g / AL:40g
|
|
Warranty
|
12 months, lifetime up to 100,000 hours
|
|
Cooling Way
|
Free air convection
|
|
OEM&ODM Service
|
Accept |
Product Picture

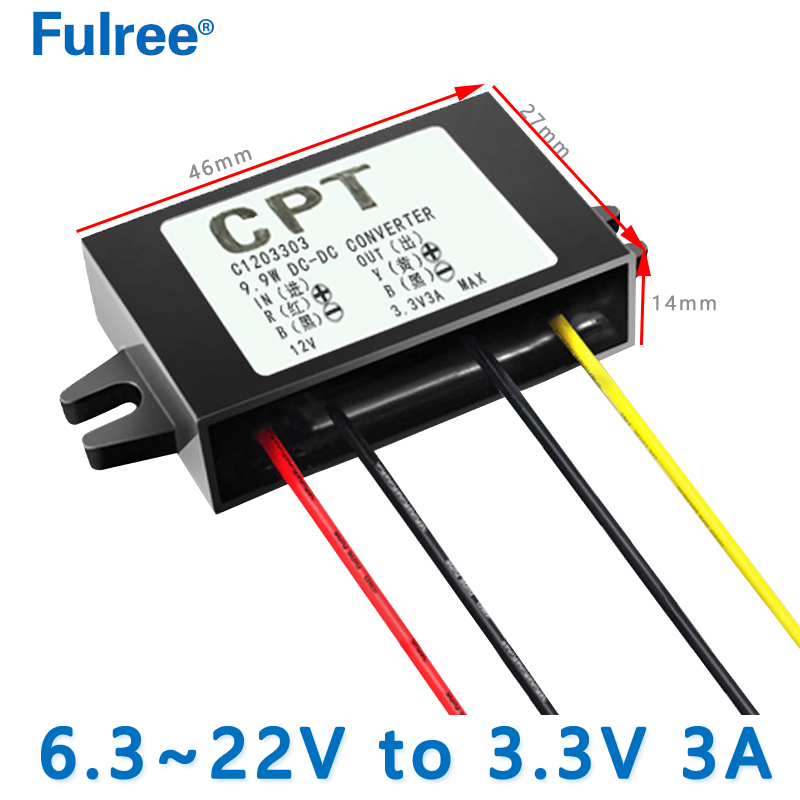

ABS Plastic Case 1S - 46*27*14mm

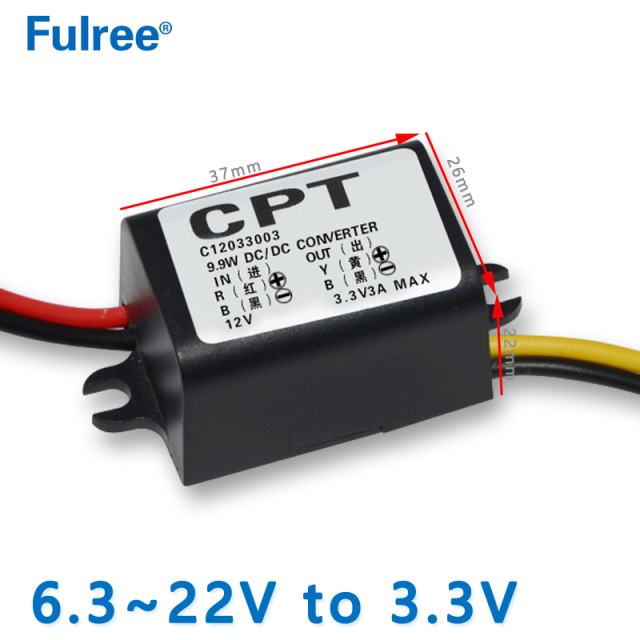

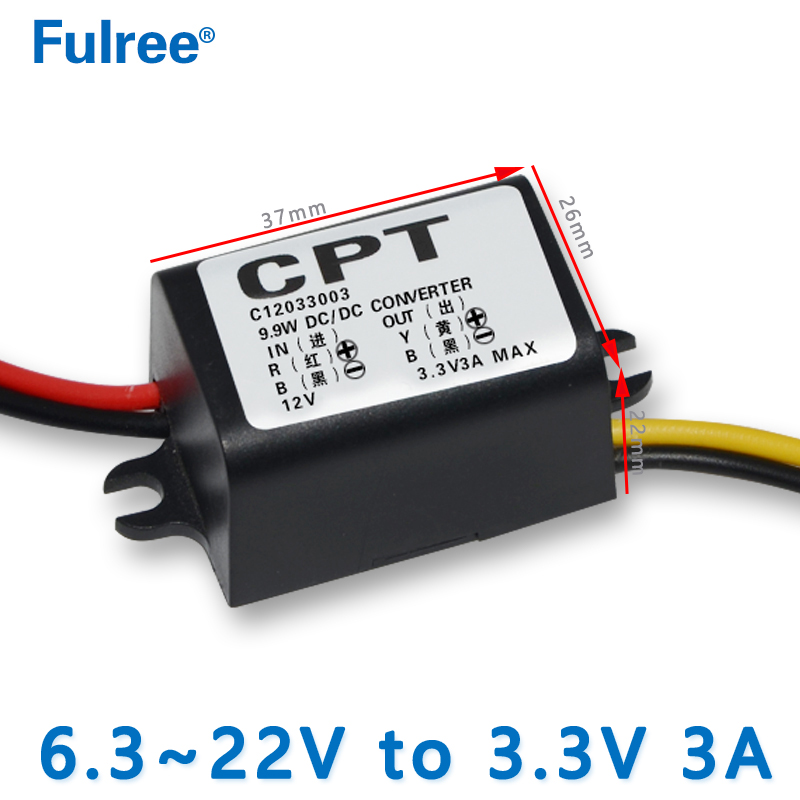

ABS Plastic Case 4S - 37*26*22mm

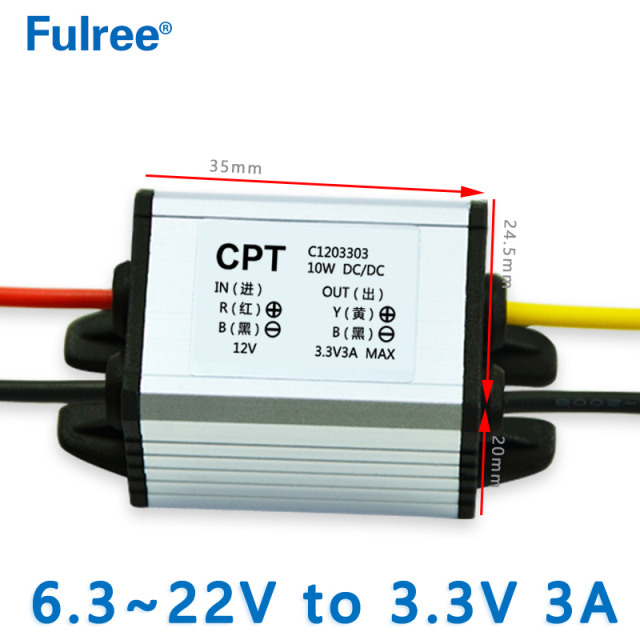

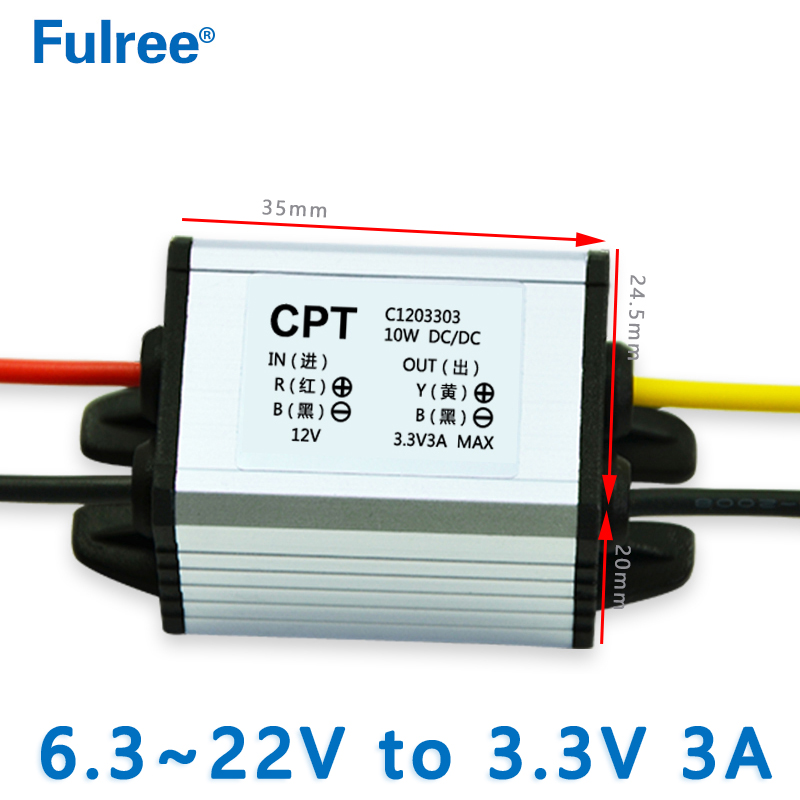

Aluminum Case 1L - 35*24.5*20mm
