Input DC 24V(18v-35v)/ 36V 48V(35-60V) to output DC 12v 40A 50A 60A 150A 165A 200A DC DC Converter Step Down Buck High Power Supply

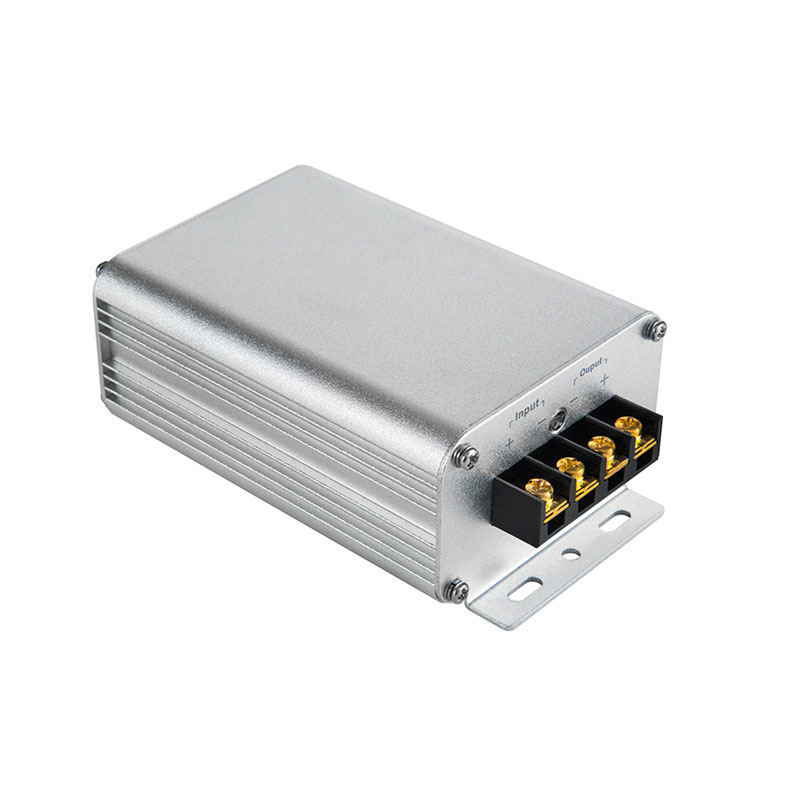

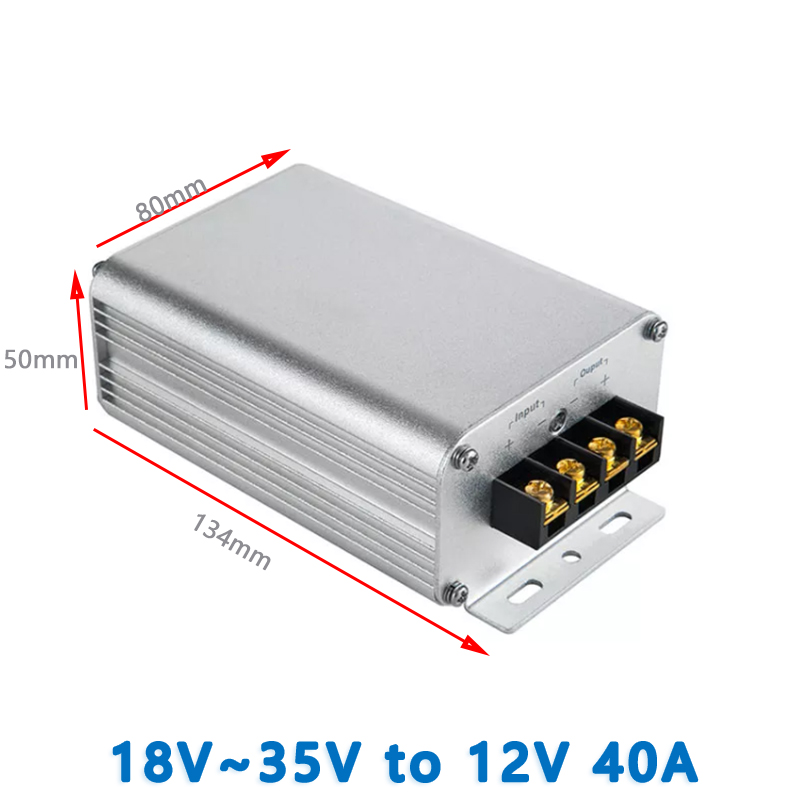

Input DC 24V(18v-35v) to output DC 12v 40A DC DC Converter

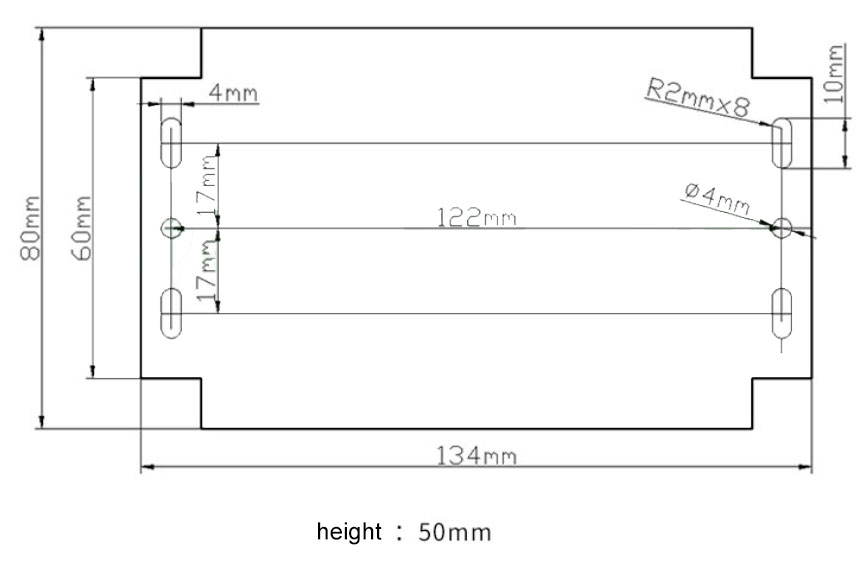

Product installation structure diagram
parameter
| input voltage |
18-35V DC |
| output voltage |
12V DC |
| Waterproof grade |
IP68 |
| working temperature |
-40~85°C |
| Rated output current |
40A |
| No load current |
0.01A |
| efficiency |
95% |
| Ripple |
lOOmVp |
| Product size |
134*80*50mm |
| Product weight |
0.7kg |
| Voltage accuracy |
±1.5% |
| Load regulation rate |
±0.2% |
| Linear regulation rate |
±0.2% |
| Warranty |
1 year |
|
Product Name
|
24V to 12V 50A 60A DC DC Converter
|
|
Brand
|
Fulree
|
|
Module Properties
|
non-isolated buck module
|
|
Rectification
|
synchronous rectification
|
|
Input
|
|
Input Voltage
|
DC 24V
|
|
Input Voltage Range
|
DC 18-35V
|
|
Output
|
|
Output Voltage
|
DC 12V
|
|
Output Current
|
50A / 60A Max
|
|
Output Power
|
600W / 720W Max
|
|
Conversion Efficiency
|
93% |
|
Voltage regulation
|
±1%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
< 100mV
|
|
No-load current
|
50-60mA
|
|
Working Temperature
|
-40~80℃
|
|
Waterproof Rating
|
IP68
|
|
Protection
|
Over-current protection
|
|
Over-voltage protection
|
|
Overheat protection
|
|
Short-circuit protection
|
|

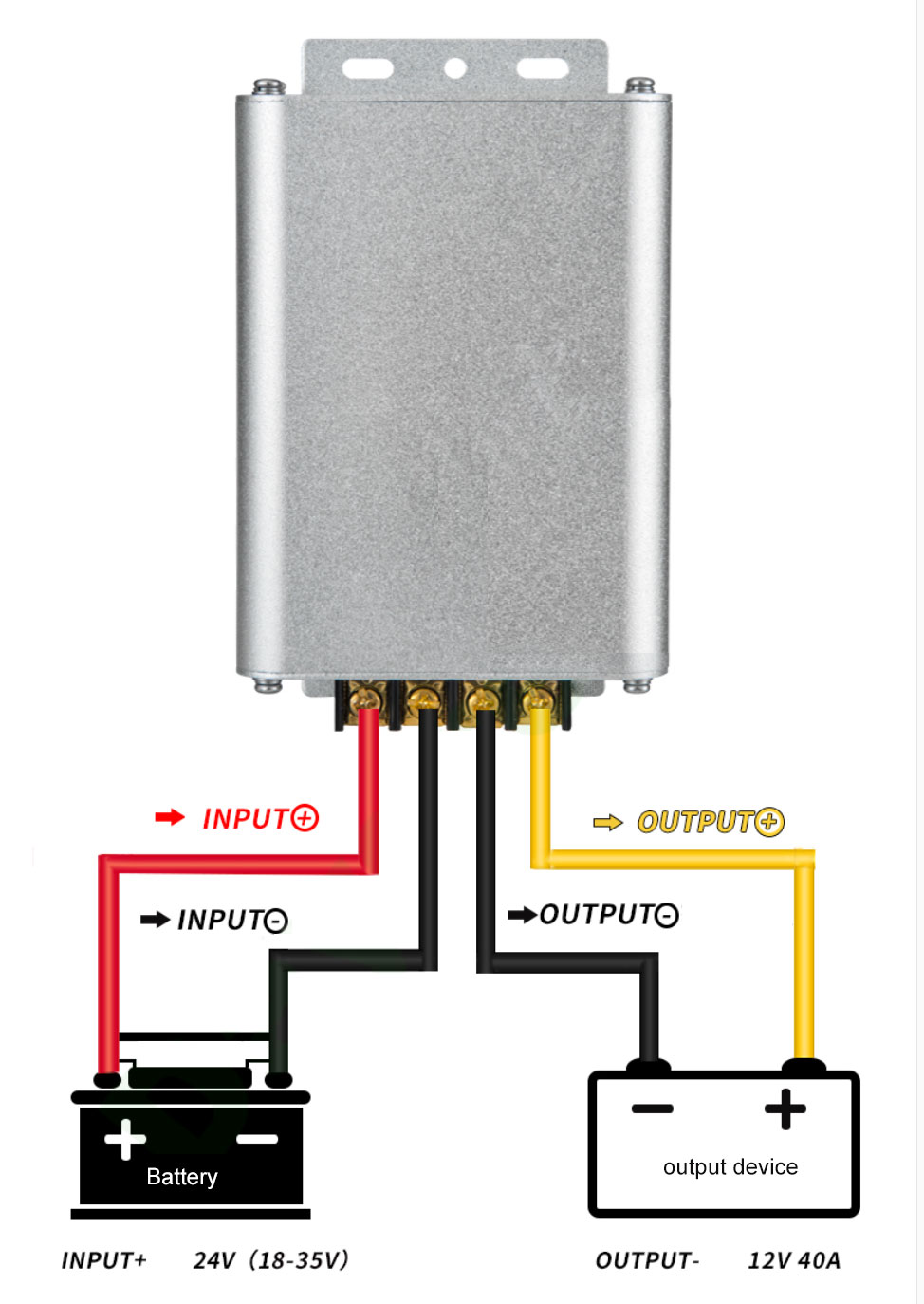

Input/Output Installation
|
INPUT---------Input Positive“+”
GND------Input/Output Negative "-"
OUTPUT------Output Positive "+" |
|
Application
|
Audio, Trucks, Golf Carts ,Forklifts,GPS Navigation, Monitoring and so on
|
|
Certification
|
CE/RoHS
|
|
Case Material
|
Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on
|
|

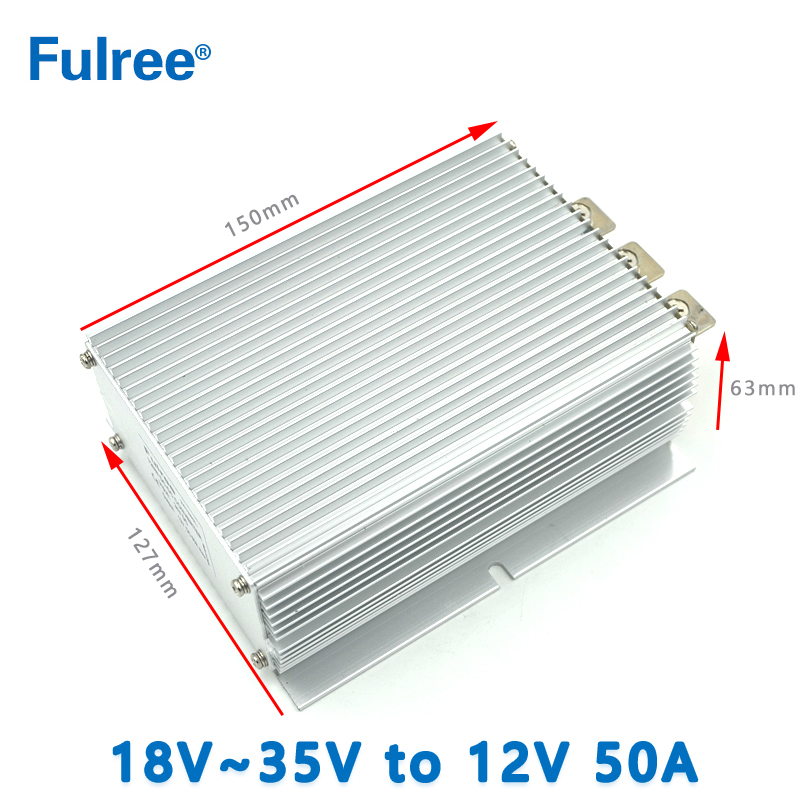

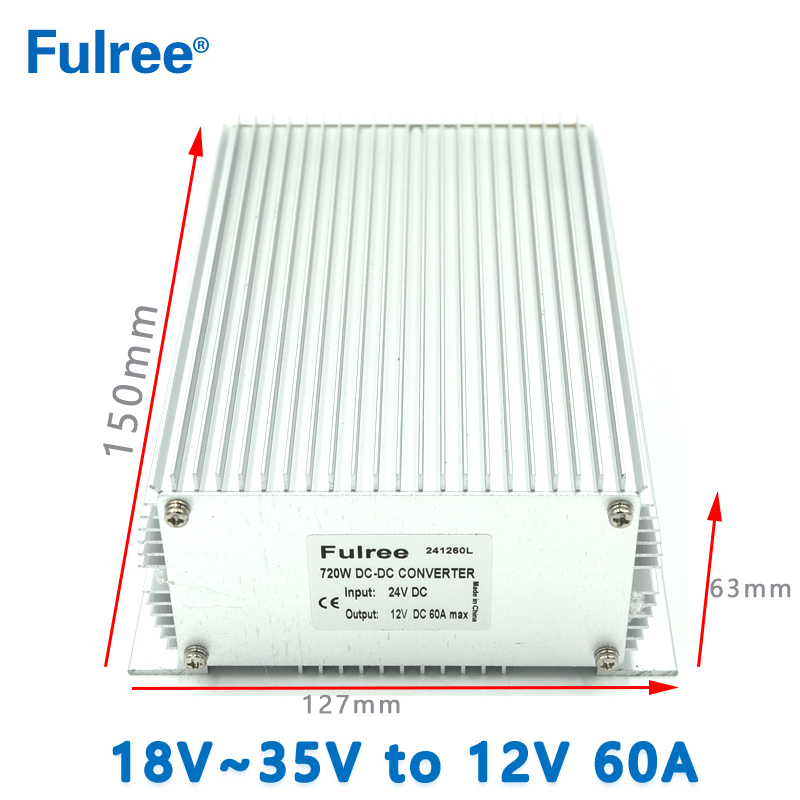

Product Size (L x W x H)
|
150*127*63mm
|
|
Product Weight
|
1.78kg
|
|
Packing Information
|
12PCS/CTN, Carton Size:46.5*31.3*32.8CM, G.W 21.50KG/CTN
|
|
Warranty
|
12 months, lifetime up to 100,000 hours
|
|
Cooling Way
|
Free air convection
|

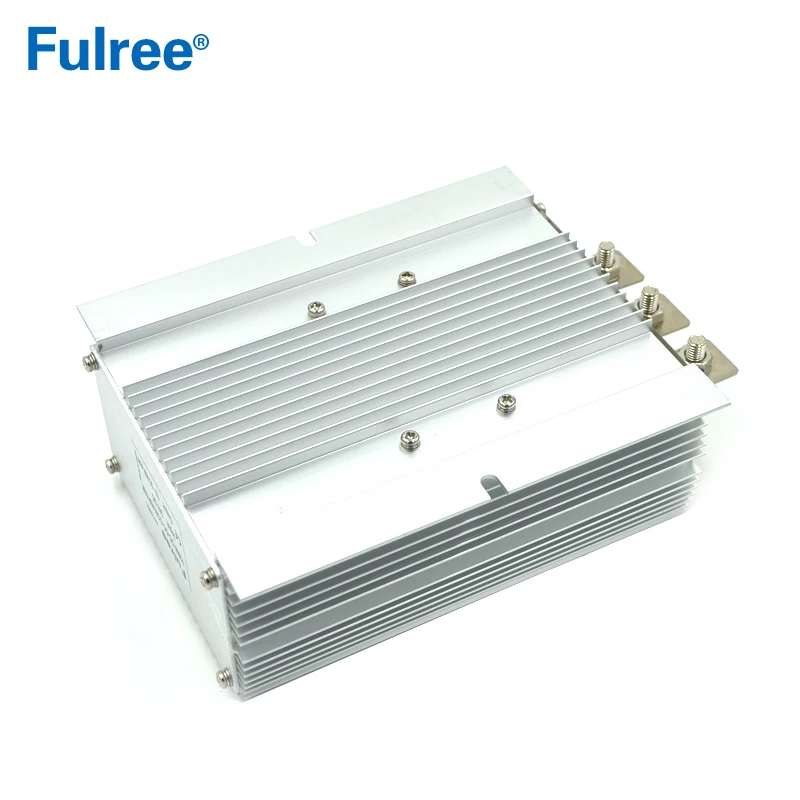

Product Picture
Input DC 24V ( 18-35V)to Output DC 12V 150A 165A 200A Max DC DC Converter
|
Product Name
|
24V to 12V 150A / 165A / 200A DC Step Up Converter
|
|
Brand
|
Fulree
|
|
Model No.
|
2412150 / 2412165 / 2412200 |
|
Module Properties
|
non-isolated buck module
|
|
Rectification
|
synchronous rectification
|
|
Input
|
|
Input Voltage
|
DC 24V
|
|
Input Voltage Range
|
DC 18-35V
|
|
Output
|
|
Output Voltage
|
DC 12V
|
|
Output Current
|
150A / 165A / 200A Max
|
|
Output Power
|
1800W / 1980W / 2400W Max
|
|
Conversion Efficiency
|
95% |
|
Voltage regulation
|
±1%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
120mV
|
|
No-load current
|
50-60mA
|
|
Working Temperature
|
-40~80℃
|
|
Waterproof Rating
|
IP68
|
|
Protection
|
Over-current protection
|
|
Over-voltage protection
|
| Overheat protection |
|
Input/Output Installation
|
INPUT---------Input Positive“+”
GND------Input/Output Negative "-"
OUTPUT------Output Positive "+" |
|
Application
|
Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts
GPS Navigation, Monitoring, Air conditioning
LED car display, DVD, LED bulb lights
Wind Power System, Solar Panel Power System
Electrical appliances, water pumps, industrial equipment, telecommunications and so on.
|
|
Certification
|
CE/RoHS/FCC
|
|
Case Material
|
Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on
|
|

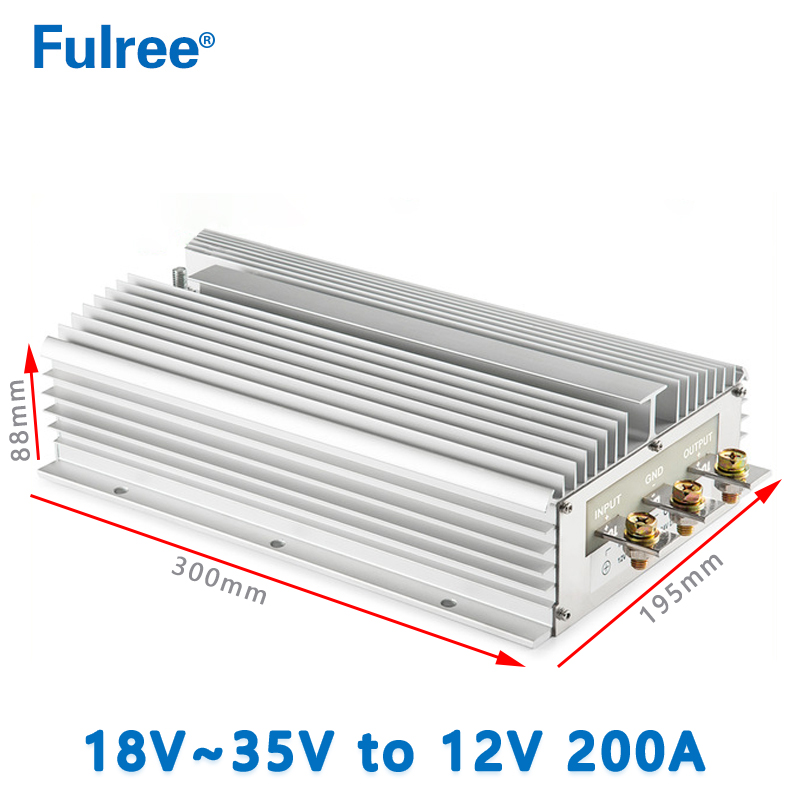

Product Size (L x W x H)
|
300*195*88mm
|
|
Product Weight
|
6kg
|
|
Warranty
|
12 months, lifetime up to 100,000 hours
|
|
Cooling Way
|
Free air convection
|
|
OEM&ODM Service
|
Accept |

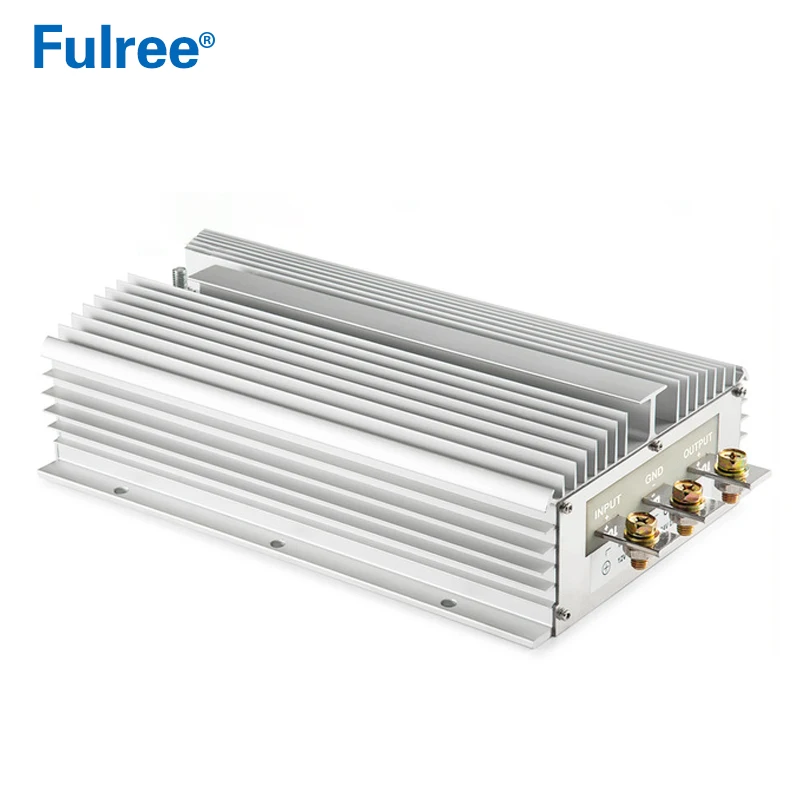

Product Picture

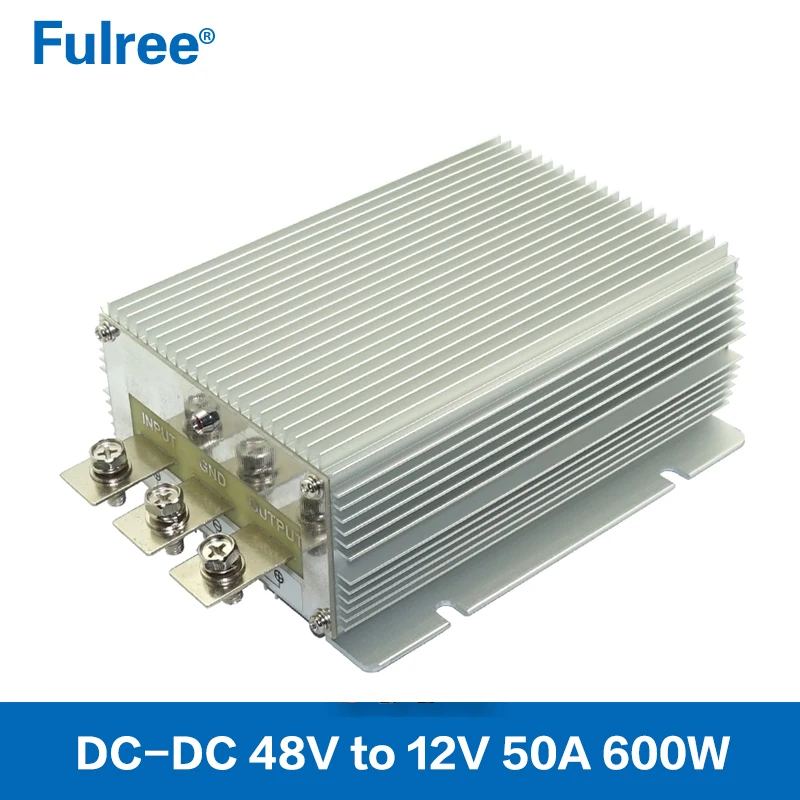

Input DC 36V 48V(35-60V) to Output DC 12V 50A 60A DC to DC Buck Power Converter
Product Description
|
Product Name
|
Fulree DC DC Converter 48V to 12V 50A / 60A
|
|
Brand
|
Fulree
|
|
Model No.
|
481250 / 481260 |
|
Module Properties
|
non-isolated buck module
|
|
Rectification
|
synchronous rectification
|
|
Input
|
|
Input Voltage
|
DC 48V
|
|
Input Voltage Range
|
DC 35-60V
|
|
Output
|
|
Output Voltage
|
DC 12V
|
|
Output Current
|
50A / 60A Max
|
|
Output Power
|
600W / 720W Max
|
|
Conversion Efficiency
|
96% (half load), 95% (full load) |
|
Voltage regulation
|
±1%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
< 100mV
|
|
No-load current
|
50-60mA
|
|
Working Temperature
|
-40~80℃
|
|
Waterproof Rating
|
IP68
|
|
Protection
|
Over-current protection
|
|
Over-voltage protection
|
|
Overheat protection
|
|
Short-circuit protection
|
|
Input/Output Installation
|
INPUT---------Input Positive“+”
GND------Input/Output Negative "-"
OUTPUT------Output Positive "+" |
|
Application
|
Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts
GPS Navigation, Monitoring, Air conditioning
LED car display, DVD, LED bulb lights
Wind Power System, Solar Panel Power System
Electrical appliances, water pumps, industrial equipment, telecommunications and so on.
|
|
Certification
|
CE/RoHS/FCC
|
|
Case Material
|
Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on
|
|
Product Size (L x W x H)
|
150*127*63mm
|
|
Product Weight
|
1.65kg
|
|
Warranty
|
12 months, lifetime up to 100,000 hours
|
|
Cooling Way
|
Free air convection
|
|
OEM&ODM Service
|
No |
Product Picture
