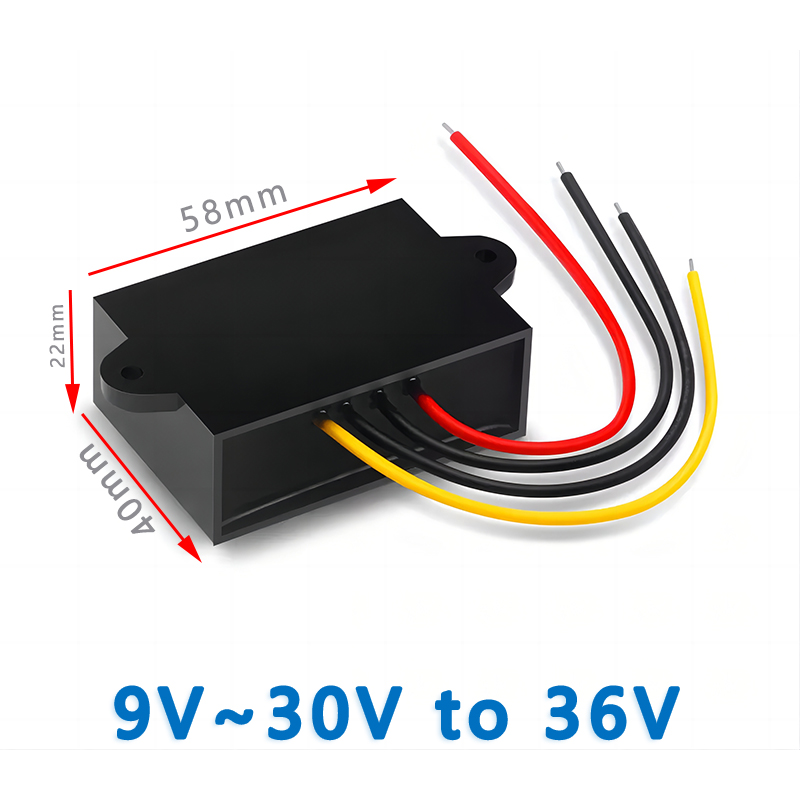

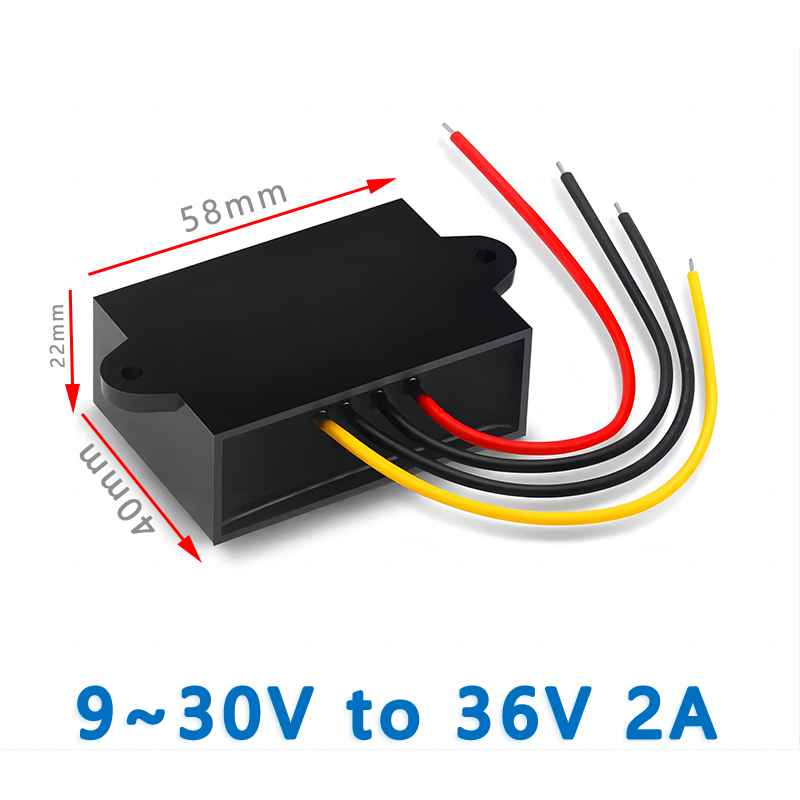

Input DC 12V/24V (9~30V) to Output DC 36V 1A 2A Boost DC to DC Converter

Input DC 12V/24V (9~30V) to Output DC 36V 1A 2A plastic shell DC converter
| Product Name |
DC 12V/24V (9~30V) to DC 36V 1A 2A plastic shell DC converter |
| Input rated voltage |
DC 12V/24V (9~30V) |
| Efficiency |
93% (half load), 91% (full load) |
| Output voltage |
DC 36V |
| Output current |
1A 2A |
| Output rated power |
36W 72W |
| Voltage regulation |
< 1% |
| Load regulation |
< 2% |
| Working temperature |
-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use,
or to enhance heat dissipation)
|
| Module Properties |
non-isolated boost module
|
| Rectification |
synchronous rectification |
| Waterproof rating |
IP68 |
| Full load temperature rise: |
50°c |
| Protection |
Over-current, Over-temperature,Instant absorption of high voltage protection
waterproof IP68 design, anti-shock protection
|
| Short-circuit protection |
NO, if need pls add fuse on the positive pole on input |
| Input Reverse Polarity Protection |
None (Please Series diode at the input port.) |
| NW |
100G |

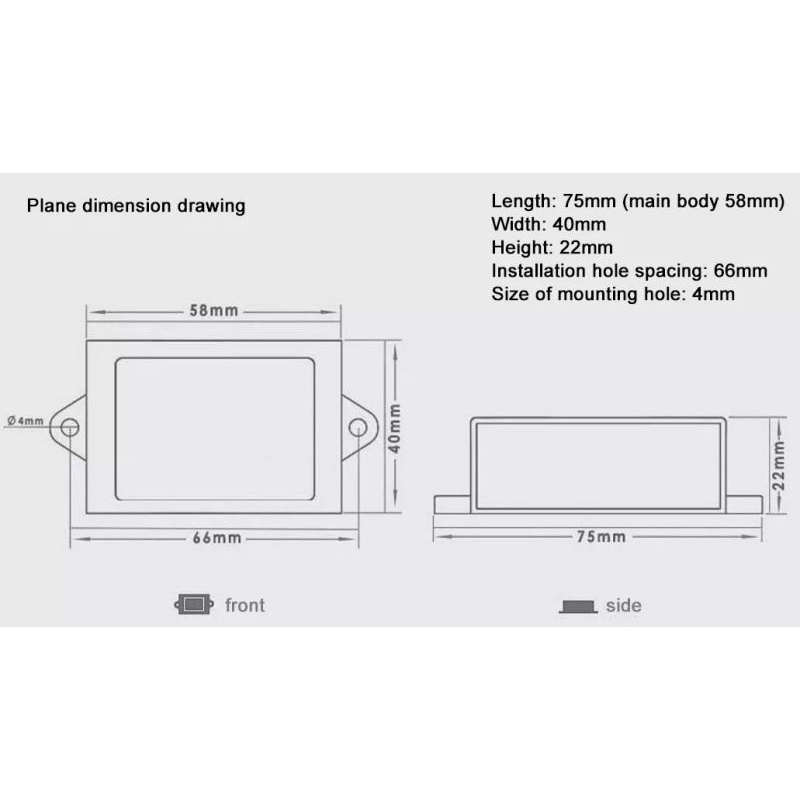

| Product size |
58*40*22MM |
|
Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
|
