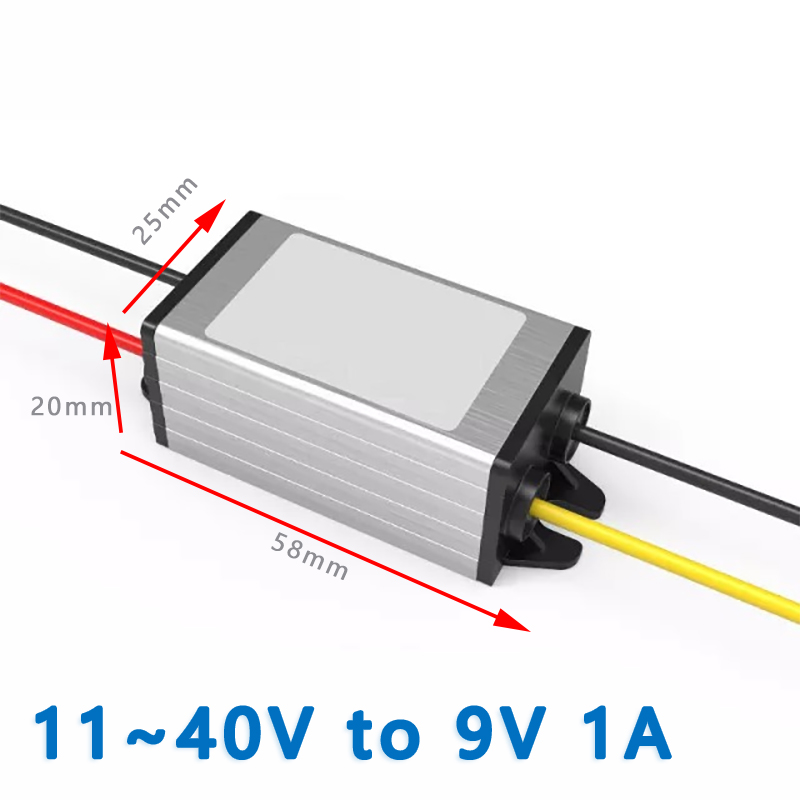

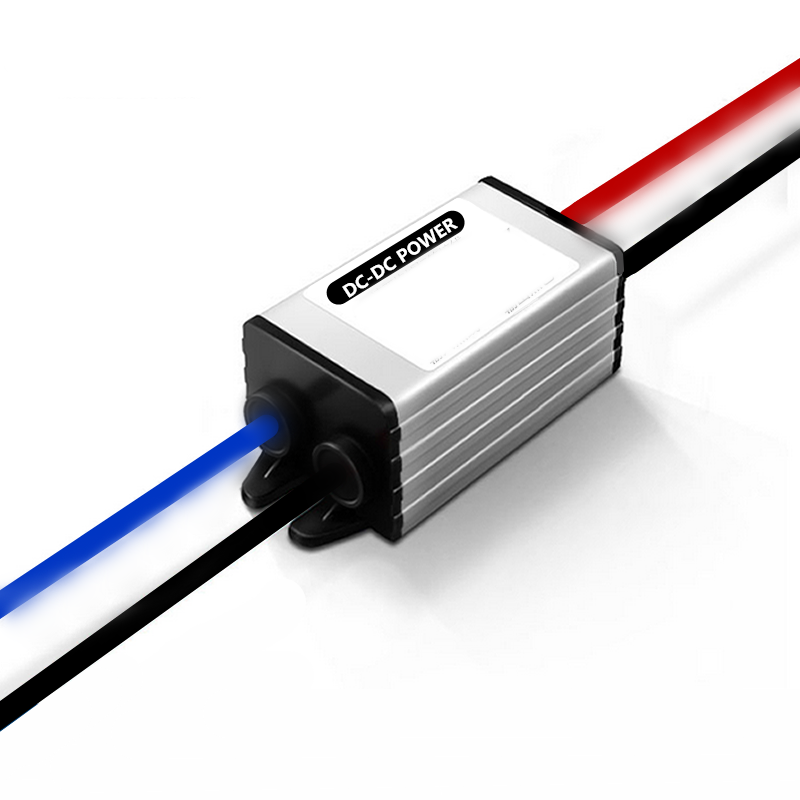

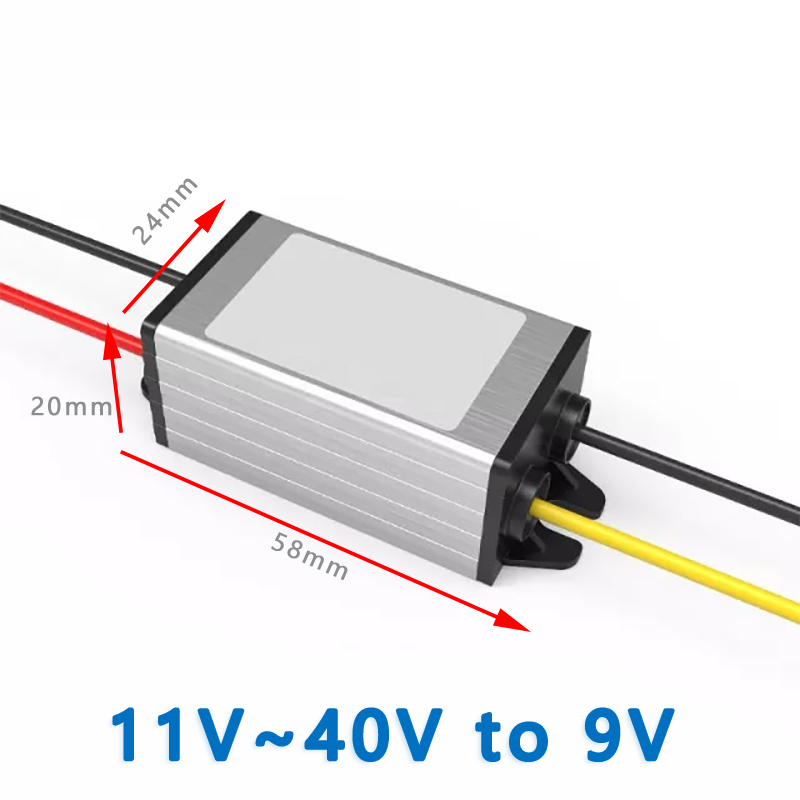

Input DC 12V 24V(11V ~ 40V) to Output DC 9V 1A 2A 3A 5A DC to DC converter
Product features
1. It is made of imported chips with high quality and low price.
2. Synchronous rectification technology, the conversion rate is more than 96%, and the calorific value is very low.
3. Automatic braking protection functions such as overvoltage, overcurrent, overtemperature and short circuit, and work normally after the conditions are restored.
4. Epoxy resin potting, waterproof, shockproof, moisture-proof and dust-proof.
5. Small volume and convenient installation.
6. Imported components are adopted with quality assurance. Glue filling and packaging, moisture-proof and waterproof, anti vibration and anti rejection, low heating, stable performance, suitable for long-term work.
parameter

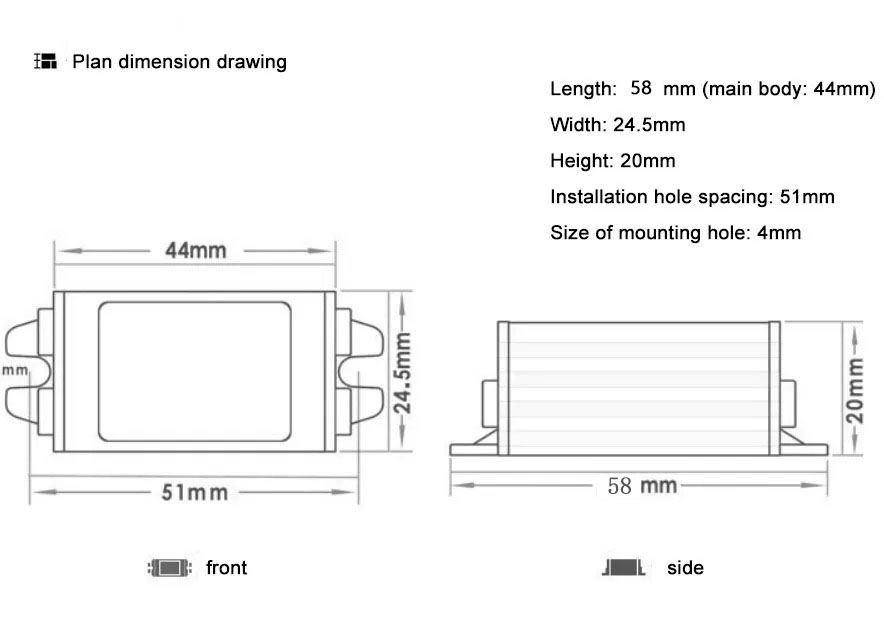

| Shell material: profile aluminum |
Length: 58mm |
| Potting material: epoxy resin |
Width: 24mm |
| Waterproof grade: IP68 |
Height: 20mm |
| Operating temperature: ・ 20~80 ° |
Installation hole diameter: 4mm |
| Conversion efficiency: 95% |
Wire length: 13~14cm |
| Static power consumption: 10~15ma |
Net weight of product: 50g |
