| Product Name | DC 12V 24V(8V~40V) to DC 5V 10A 15A 20A 25A 30A DC to DC converter |
| Input rated voltage | 12V 24V(8V~40V) |
| Input voltage range | 12V 24V(8V~40V) |
| Efficiency | 93% (half load), 91% (full load) |
| Output voltage | 5V |
| Output current | 10A 15A 20A 25A 30A |
| Output rated power | 50W~150W |
| Protection | Over-current,Over-temperature Protection
|
| Short-circuit protection | NO, if need pls add fuse on the positive pole on input |
| Input Reverse Polarity Protection | None (Please Series diode at the input port.) |
| NW | 280G |

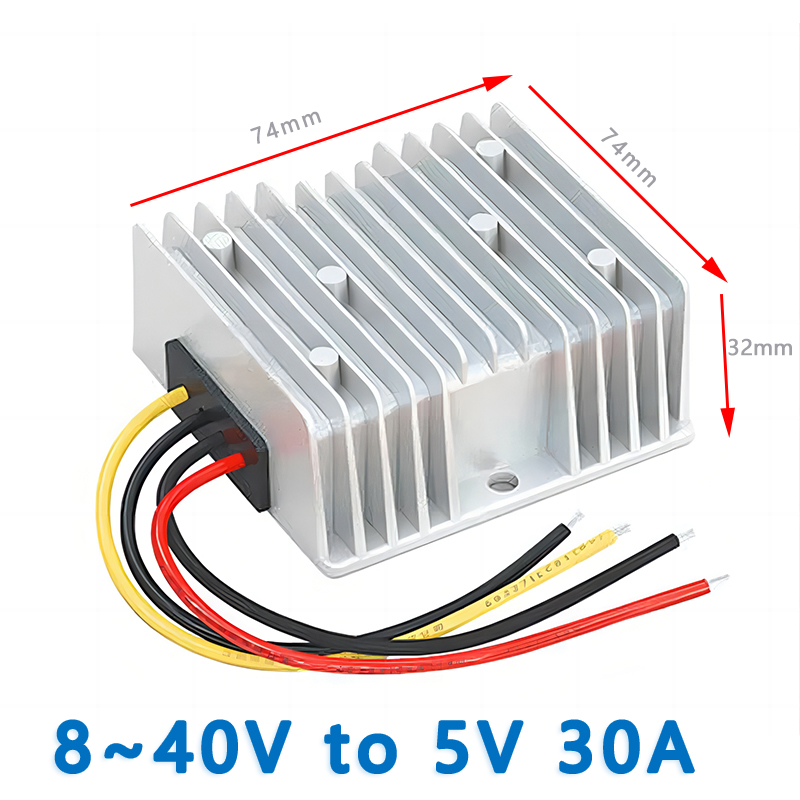

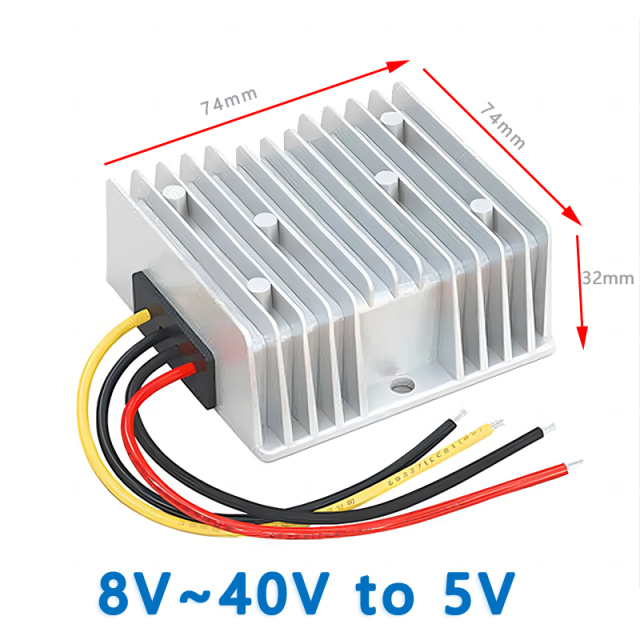

| Product size | 74*74*32MM |
|
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged |
|
