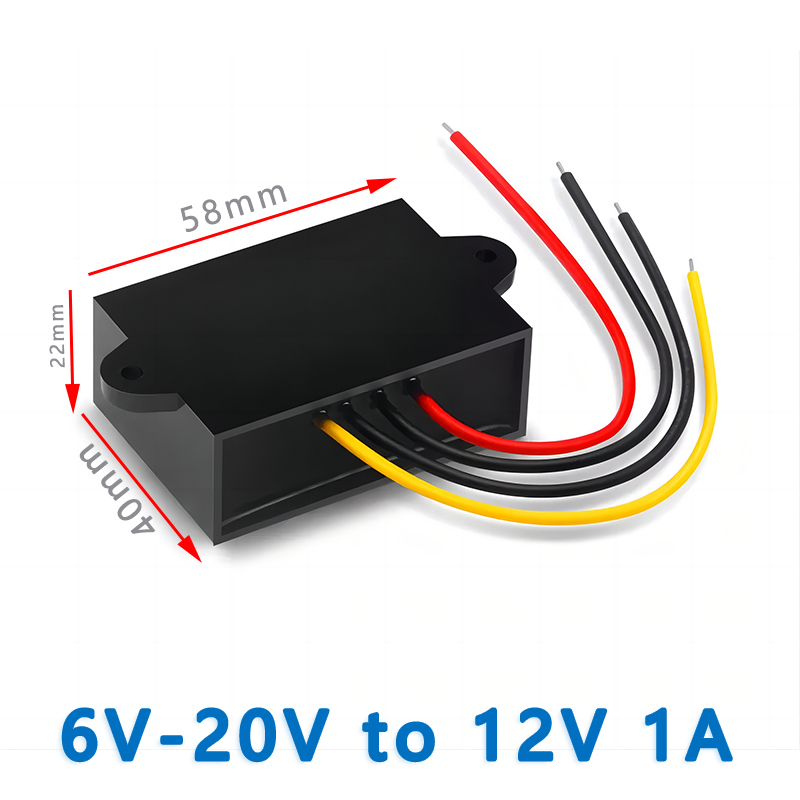

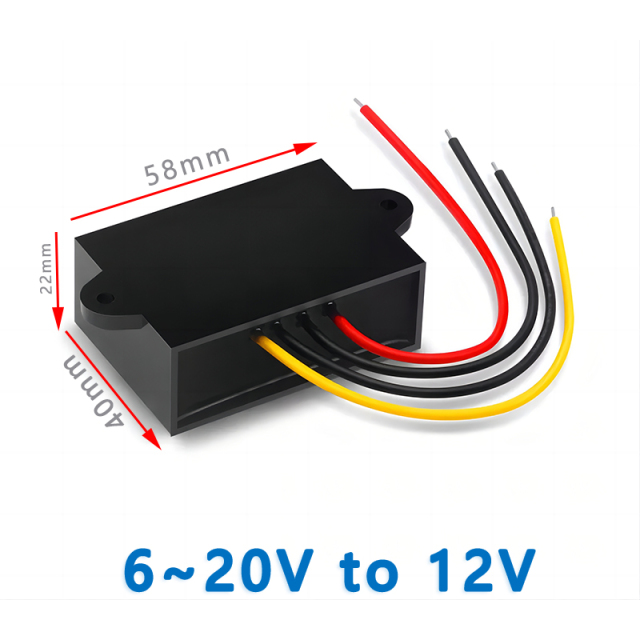

| Product Name | Input DC 6V-20V to Output DC 12V 1A 2A plastic shell DC converter |
| Input rated voltage | DC 6V-20V |
| Input voltage range | 6V-20V |
| Efficiency | 93% (half load), 91% (full load) |
| Output voltage | DC12V |
| Output current | 1A / 2A Max |
| Output rated power | 12W 24W Max |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Working temperature |
-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Module Properties |
non-isolated boost module |
| Rectification | synchronous rectification |
| Waterproof rating | IP68 |
| Full load temperature rise: | 50°c |
| Protection | Over-current, Over-temperature,Instant absorption of high voltage protection
waterproof IP68 design, anti-shock protection |
| Short-circuit protection | NO, if need pls add fuse on the positive pole on input |
| Input Reverse Polarity Protection | None (Please Series diode at the input port.) |
| NW | 100G |
| Product size | 58*40*22MM |
|
Attention: |
|
