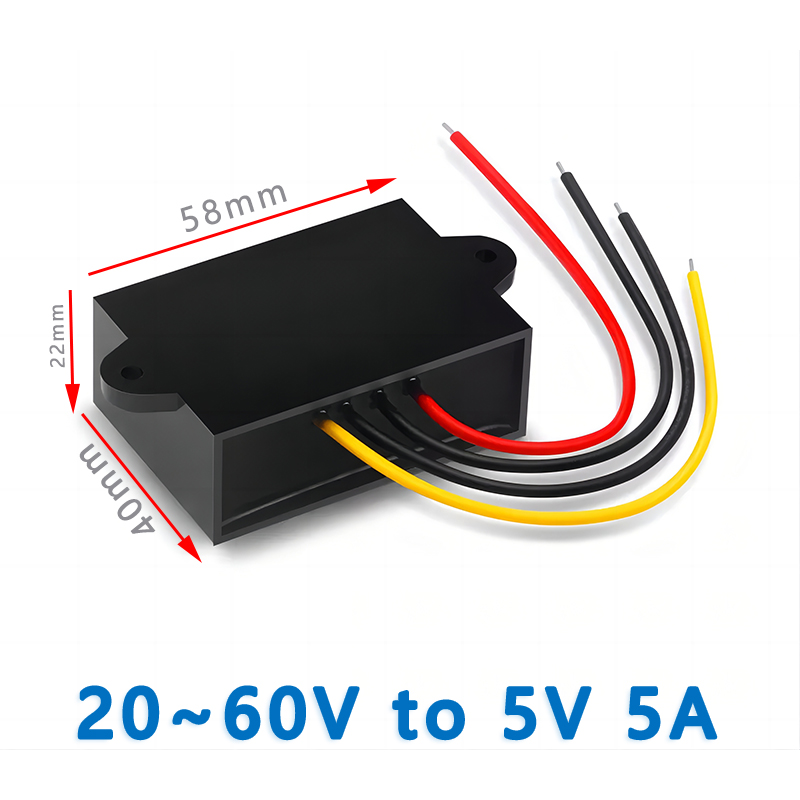

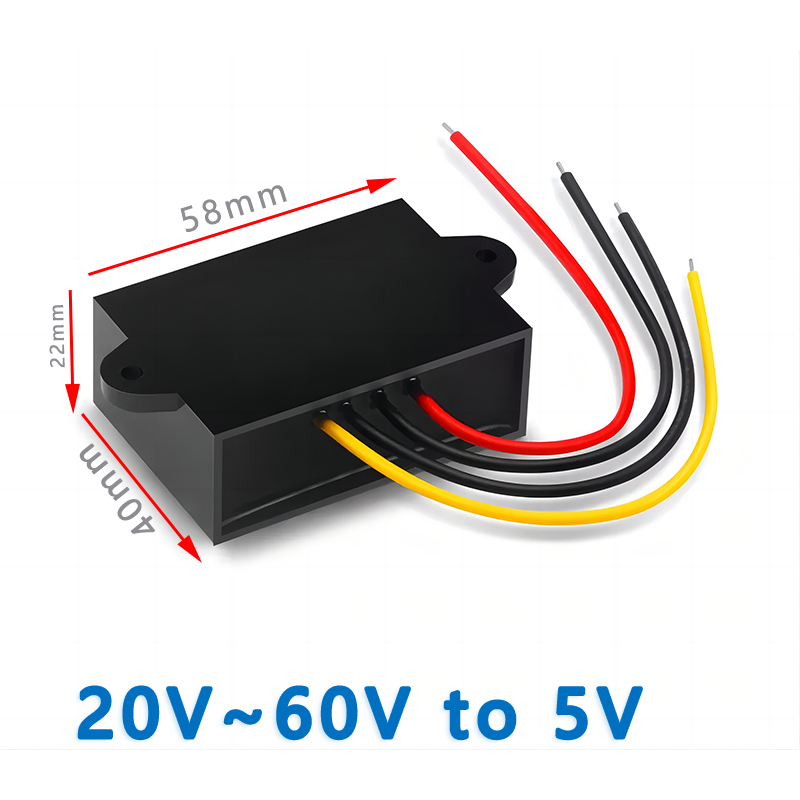

Input DC 36V 48V(20V~60V) to Output DC 5V 5A 8A 10A DC to DC converter
(6)
$11.86
| Product Name | DC 36V 48V(20V~60V) to DC 5V 3A 5A 8A 10A DC to DC converter |
| Input rated voltage | DC 36V 48V(20V~60V) |
| Input voltage range | DC 36V 48V(20V~60V) |
| Efficiency | 93% (half load), 91% (full load) |
| Output voltage | DC 5V |
| Output current | 5A 8A 10A Max |
| Output rated power | 25W 40W 50W Max |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Working temperature |
-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Module Properties |
non-isolated boost module |
| Rectification | synchronous rectification |
| Waterproof rating | IP68 |
| Full load temperature rise: | 50°c |
| Protection | Over-current, Over-temperature,Instant absorption of high voltage protection
waterproof IP68 design, anti-shock protection |
| Short-circuit protection | NO, if need pls add fuse on the positive pole on input |
| Input Reverse Polarity Protection | None (Please Series diode at the input port.) |
| NW | 100G |
| Product size | 58*40*22MM |
|
Attention: |
|
