| Product name | DC DCConverter 20-60V to 12V |
| Model | F60J12V*A2S |
| Type | DC DC Converter |
| Input rated voltage | 24V 36V 48V DC |
| Input voltage range | 20-60V DC |
| Efficiency | 90% |
| Output voltage | 12V |
| Output current | 1A / 2A / 3A / 5A / 8A Max |
| Output rated power | 12W / 24W / 36W / 60W / 96W Max |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Working temperature |
-40°c ~+85°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Module Properties |
non-isolated buck module(buck) |
| Rectification | synchronous rectification |
| Waterproof rating | IP68 |
| Full load temperature rise: | 50°c |
| Protection | Over-current, Short-circuit protection, Over-temperature,
waterproof IP68 design, anti-shock protection |
| Input Reverse Polarity Protection | None (Please Series diode at the input port.) |
| NW | 65G |

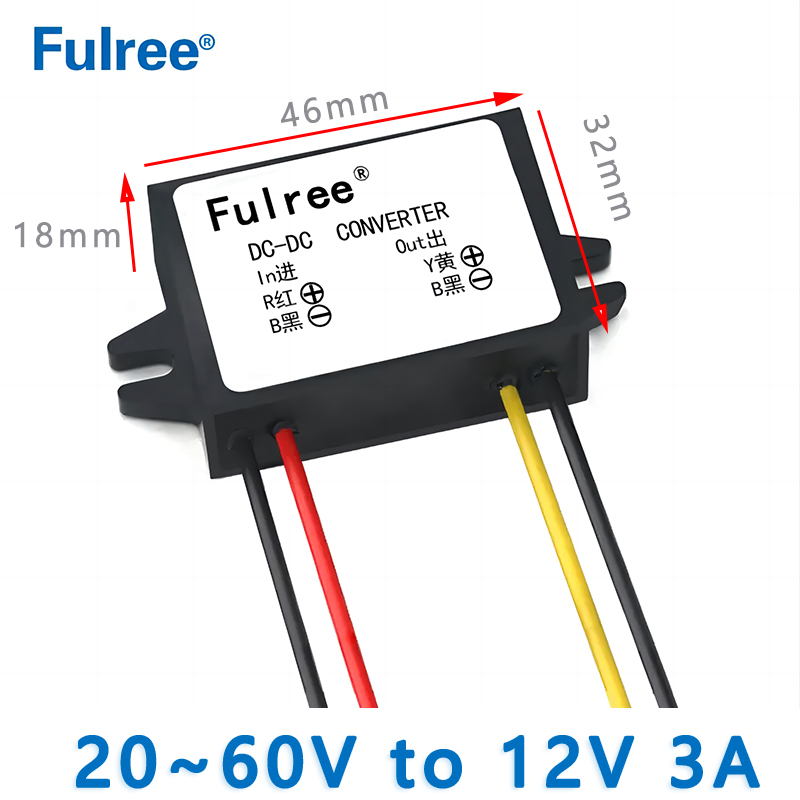

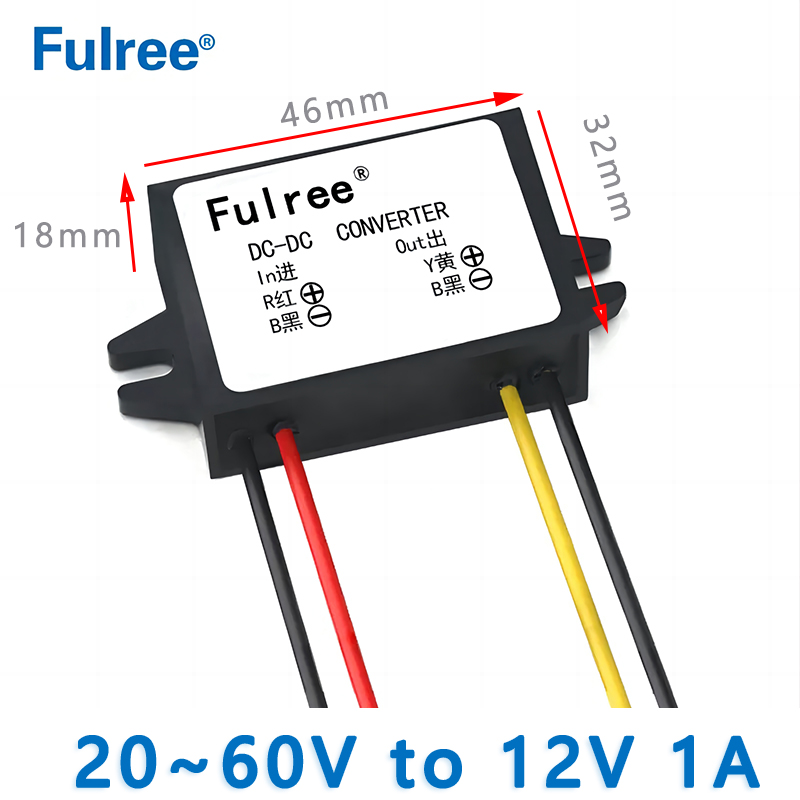

| Product size | 46*32*18MM(case only)/63*32*18MM including install holes |
|
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged |
|
