Product Name |
Fulree DC DC Converter 12V to 24V 1A/2A/3A |
|
|
Brand |
Fulree |
|
|
Model No. |
F12S24V1A4L1 / F12S24V2A4L1 / F12S24V3A4L1 (Old:FS12D24A1 / FS12D24A2 / FS12D24A3) |
|
|
Module Properties |
non-isolated boost module |
|
|
Rectification |
synchronous rectification |
|
|
Input |
||
|
Input Voltage |
DC 12V |
|
|
Input Voltage Range |
DC 9-20V |
|
|
Output |
||
|
Output Voltage |
DC 24V |
|
|
Output Current |
auto-adaption 1A/2A/3A Max |
|
|
Output Power |
24W / 48W / 72W Max |
|
|
Conversion Efficiency |
90% |
|
|
Voltage regulation |
±1% |
|
|
Load regulation |
± 2% |
|
|
Ripple (Full load test) |
< 150mV |
|
|
No-load current |
20-30mA |
|
|
Working Temperature |
-25~65℃ |
|
|
Waterproof Rating |
IP68 |
|
|
Protection |
Over-current protection |
|
|
Overheat protection 150℃ |
||
|
Full waterproof potting |
||
|
Input/Output Reverse Polarity Protection |
No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive. If you need this function, please contact with us to customize it. |
|
|
Certification |
CE/RoHS |
|
|
Case Material |
Aluminum Alloy, anti-shock, anti-drop, anti-moisture, anti-dust and so on |
|
|

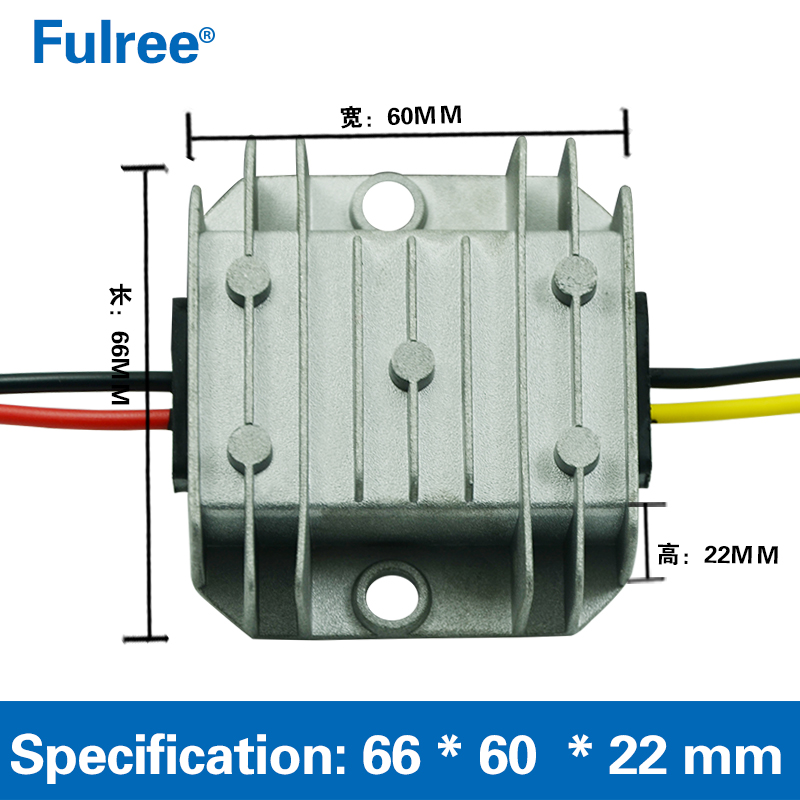

Product Size (L x W x H) |
66*60*22mm |
|
|
Installation Cable Length |
13-15cm |
|
|
Product Weight |
100g |
|
|
Warranty |
12 months, lifetime up to 100,000 hours |
|
|
Cooling Way |
Free air convection |
|
|
OEM Service |
Accept OEM logo/label/manual/packing box, Contact Fulree Now! |
|
|
Customized Service |
Accept customized converter such as input/output voltage, cable, interface and etc, Contact Fulree Now! |
|

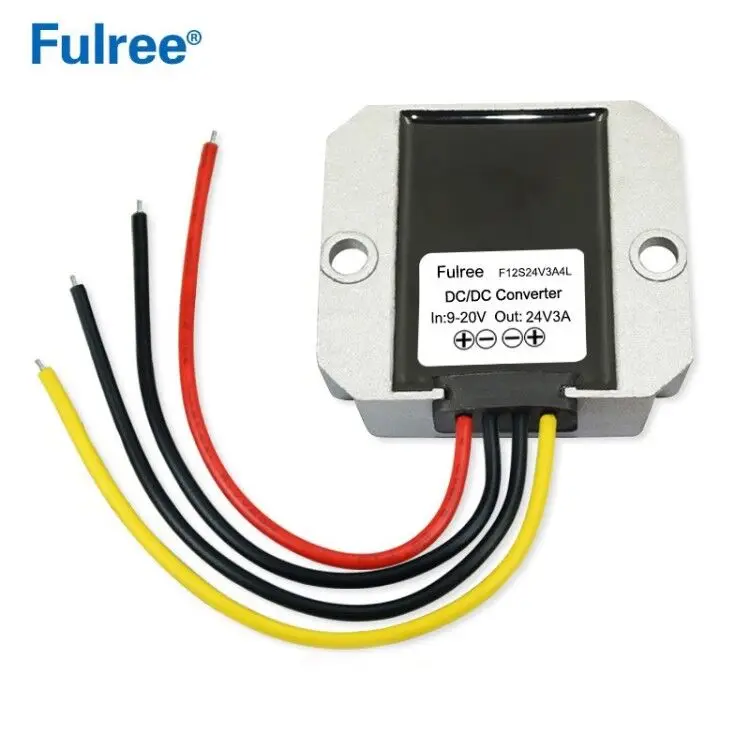

Modle:F12S24V1A4L1 / F12S24V2A4L1 / F12S24V3A4L1
|
Product Name |
Fulree DC DC Converter 12V to 24V 1A/2A/3A |
|
|
Brand |
Fulree |
|
|
Model No. |
F12S24V1A4L / F12S24V2A4L / F12S24V3A4L (Old:FS12D24A1L / FS12D24A2L / FS12D24A3L)
|
|
|
Module Properties |
non-isolated boost module |
|
|
Rectification |
synchronous rectification |
|
|
Input |
||
|
Input Voltage |
DC 12V |
|
|
Input Voltage Range |
DC 9-20V |
|
|
Output |
||
|
Output Voltage |
DC 24V |
|
|
Output Current |
auto-adaption 1A/2A/3A Max |
|
|
Output Power |
24W / 48W / 72W Max |
|
|
Conversion Efficiency |
90% |
|
|
Voltage regulation |
±1% |
|
|
Load regulation |
± 2% |
|
|
Ripple (Full load test) |
< 150mV |
|
|
No-load current |
20-30mA |
|
|
Working Temperature |
-25~65℃ |
|
|
Waterproof Rating |
IP68 |
|
|
Protection |
Over-current protection |
|
|
Overheat protection 150℃ |
||
|
Full waterproof potting |
||
|
Input/Output Reverse Polarity Protection |
No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive. If you need this function, please contact with us to customize it. |
|
|
Certification |
CE/RoHS |
|
|
Case Material |
Aluminum Alloy, anti-shock, anti-drop, anti-moisture, anti-dust and so on |
|
|
Product Size (L x W x H) |
66*60*22mm |
|
|
Installation Cable Length |
13-15cm |
|
|
Product Weight |
100g |
|
|
Warranty |
12 months, lifetime up to 100,000 hours |
|
|
Cooling Way |
Free air convection |
|
|
OEM Service |
Accept OEM logo/label/manual/packing box, Contact Fulree Now! |
|
|
Customized Service |
Accept customized converter such as input/output voltage, cable, interface and etc, Contact Fulree Now! |
|
Case Style A------4L, Modle:F12S24V1A4L / F12S24V2A4L / F12S24V3A4L
