Fulree Input DC 12V ( 10-20V) to Output DC 24V 1A 2A 3A 24W 48W 72W DC DC Boost Converter Car Power Supply
Product Description
|
Product Name
|
Fulree DC DC Converter 12V to 24V
|
|
Brand
|
Fulree
|
|
Model No.
|
F12S24V1A2S / F12S24V2A2S / F12S24V3A2S
F12S24V1A3S / F12S24V2A3S / F12S24V3A3S
(Old: FS12D24S1/FS12D24S2/FS12D24S3)
|
|
Module Properties
|
non-isolated boost module
|
|
Rectification
|
synchronous rectification
|
|
Input
|
|
Input Voltage
|
DC 12V
|
|
Input Voltage Range
|
DC 10-20V
|
|
Output
|
|
Output Voltage
|
DC 24V
|
|
Output Current
|
1A / 2A / 3A Max
|
|
Output Power
|
24W / 48W / 72W Max
|
|
Conversion Efficiency
|
90% |
|
Voltage regulation
|
±1%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
< 150mV
|
|
No-load current
|
< 100mA
|
|
Working Temperature
|
-25~65℃
|
|
Waterproof Rating
|
IP68
|
|
Protection
|
Over-current protection
|
|
Overheat protection
|
|
Over-voltage protection
|
|
Input/Output Reverse Polarity Protection
|
No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive. If you need this function, please contact with us to customize it.
|
|
Application
|
Electric motor, fans, Audio, Trucks, Golf Carts ,Forklifts
GPS Navigation, Monitoring, Air conditioning
LED car display, DVD, LED bulb lights
Wind Power System, Solar Panel Power System
water pumps, industrial equipment, telecommunications and so on.
|
|
Certification
|
CE/RoHS
|
|
Case Material
|
Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on
|
|

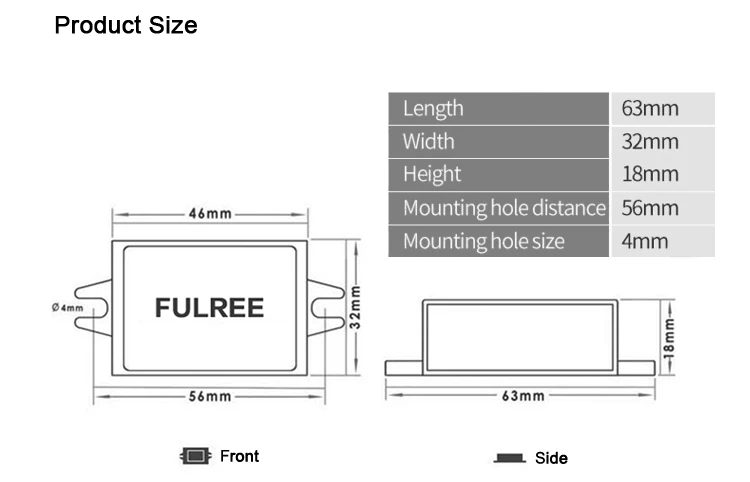

Product Size (L x W x H)
|
46*32*18mm / 58*40*22mm
|
|
Installation Cable Length
|
13-14cm
|
|
Product Weight
|
65g / 97g
|
|
Warranty
|
12 months, lifetime up to 100,000 hours
|
|
Cooling Way
|
Free air convection
|
|
OEM Service
|
Accept OEM logo/label/manual/packing box, Contact Fulree Now!
|
|
Customized Service
|
Accept customized converter such as input/output voltage, cable, interface and etc, Contact Fulree Now!
|
Product Picture

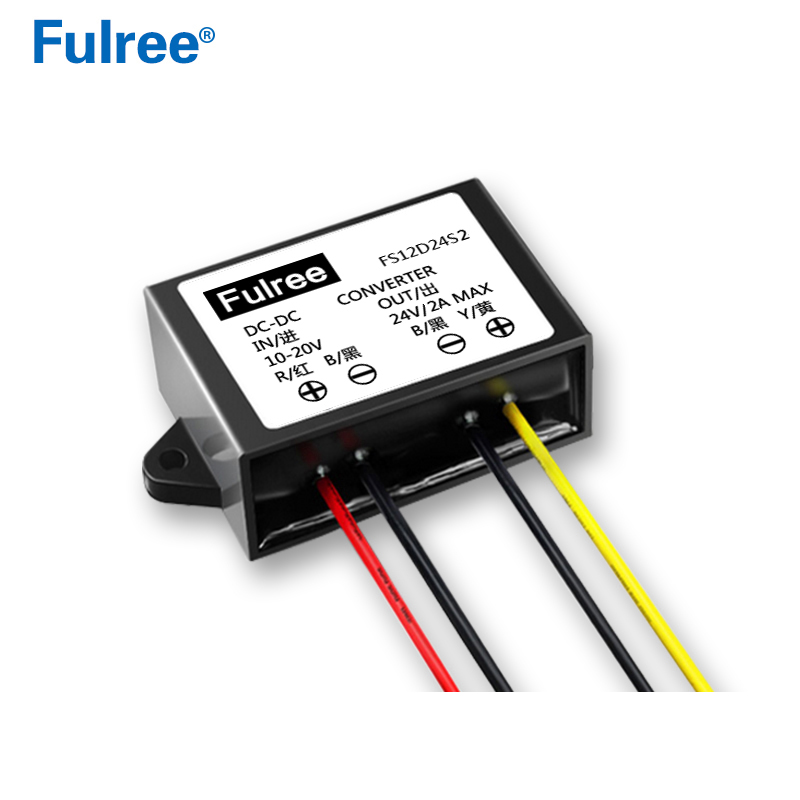

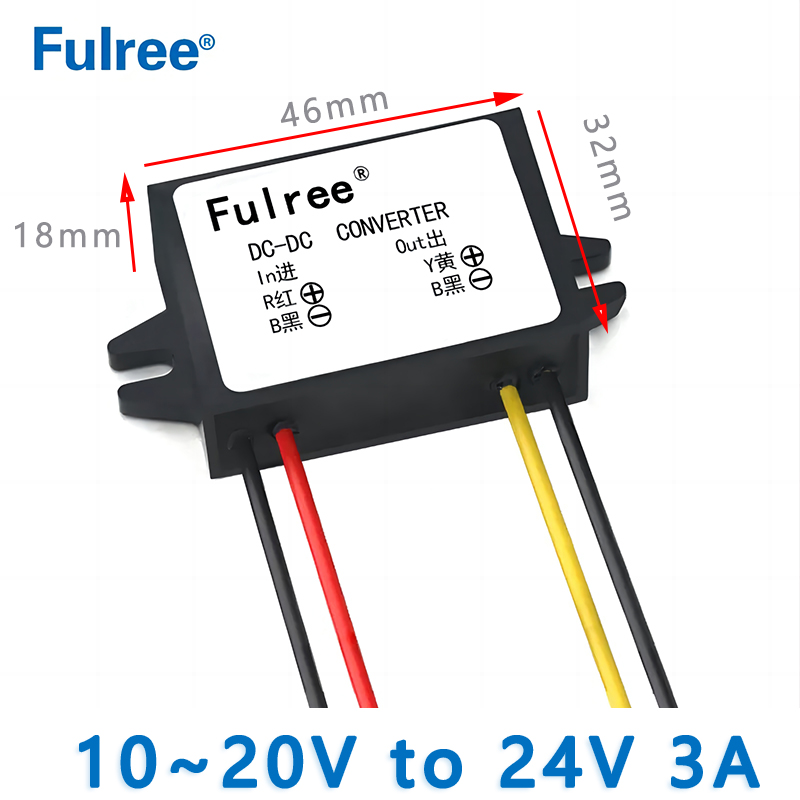

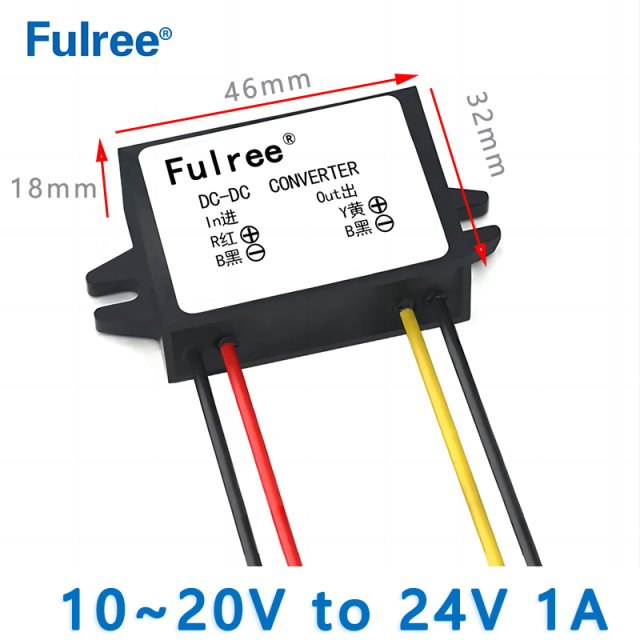

Middle ABS Plastic Case-----2S, Modle:F12S24V1A2S / F12S24V2A2S / F12S24V3A2S

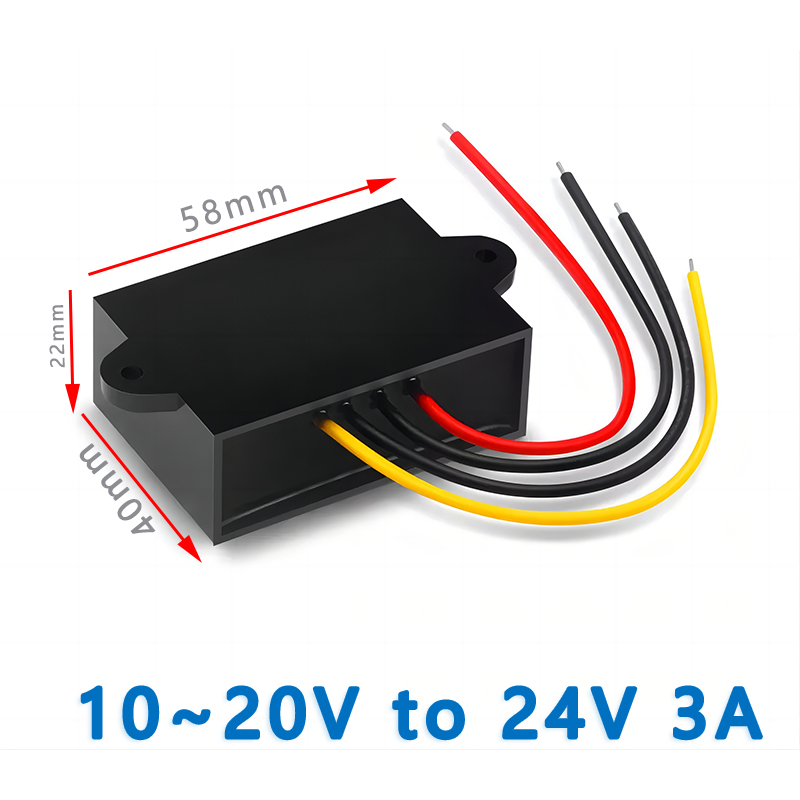

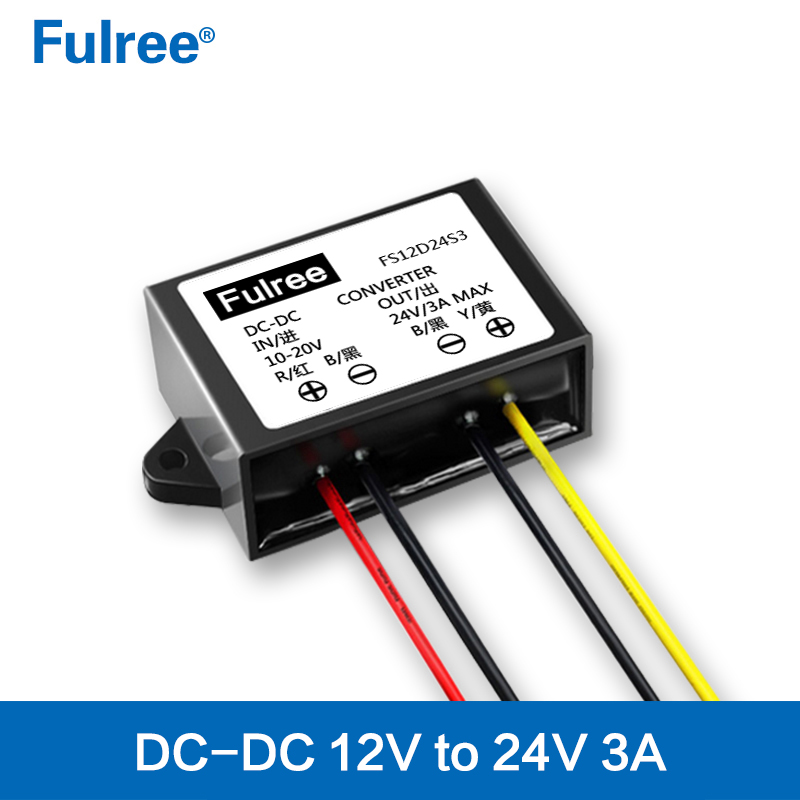

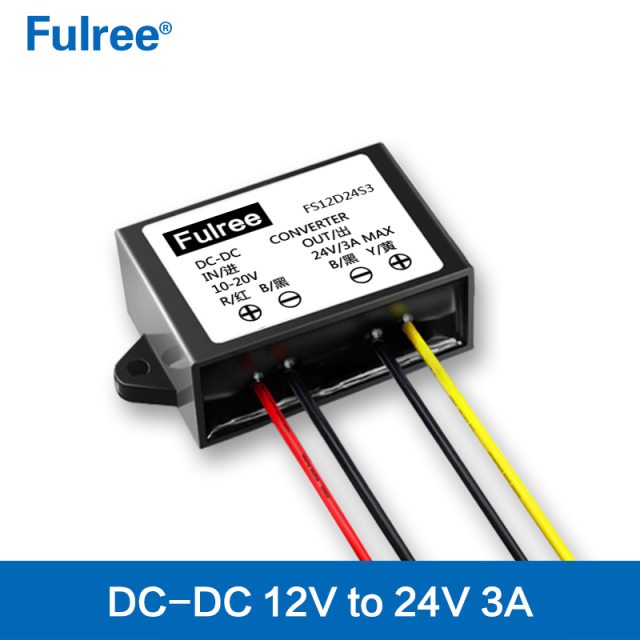

Large ABS Plastic Case-----3S, Modle:F12S24V1A3S / F12S24V2A3S / F12S24V3A3S (Old:FS12D24S1/FS12D24S2/FS12D24S3)
Packaging & Delivery
1. We pack each item with OPP bag individually, then put all items in export cartons (around 50-300pcs per carton). The export cartons will be taped to protect the parcel from water stains or something others, it's not easy to break or damage during the shipment by air or sea.
2. We make shipment between 3-15 days for normal order and 3 to 5 days for samples.
3. We can offer you express like FedEx, DHL, UPS & TNT when you make a relatively small order like samples. The ocean shipping is also available when you place a big order. The customers can use their own freight forwarder account.
4. If you need some special request on shipment, please note us before placing order.
Why Choose Fulree?
Service ......... RMA(24/7 Technical Support), OEM, ODM
Quality...........100% full inspection before delivery, Less than 0.5% of failure rate!
Warranty....... Up to 12 months!
Price..................Competitive Factory Price!
Professional......Produce security DC DC converter for 8 years in China!
Reliable.............One of the largest power supply business manufacturers in China!
Assurance.........Any problem of quality, Fulree would refund the payment!
Payment.............T/T bank wire transfer, Escrow, West Union and Paypal!
Delivery...............Fast! After receive payment 3-15 days for normal small orders!
Privacy …….....Protect your sales area, designs, ideas and all your private information!
Fulree................Your best DC DC Converter Solution Choice! We Design and support!
