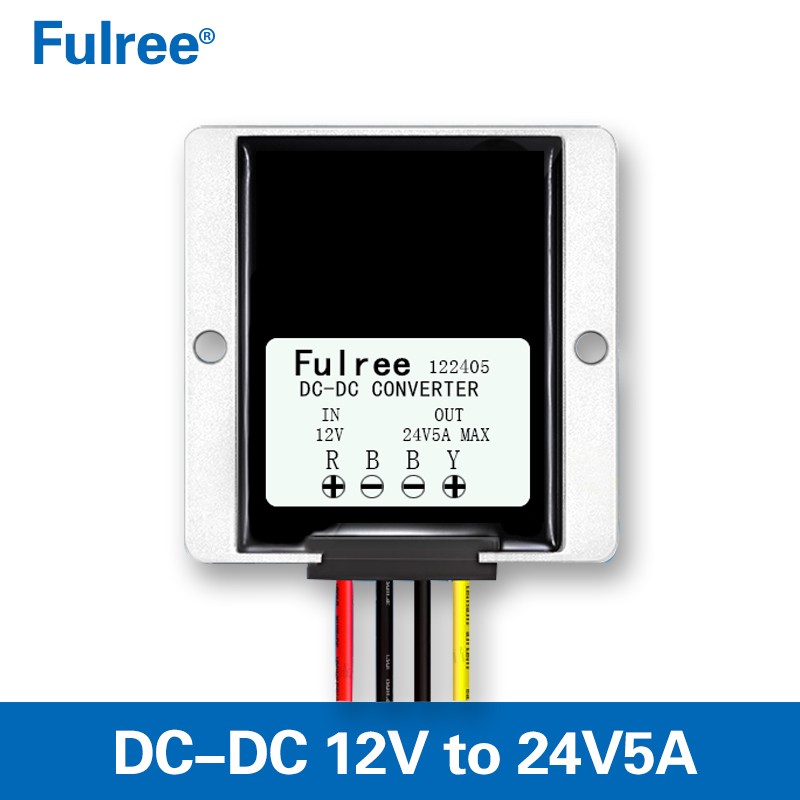

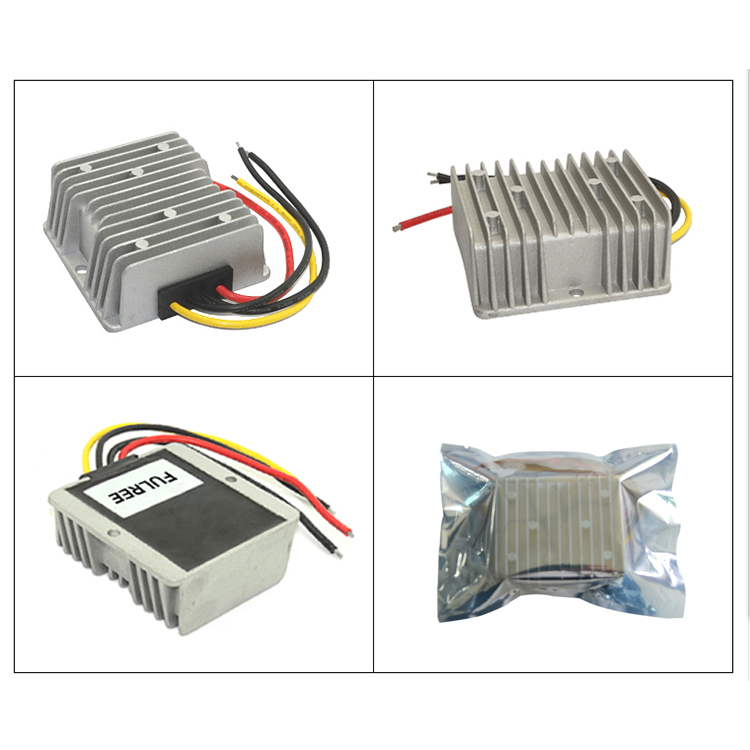

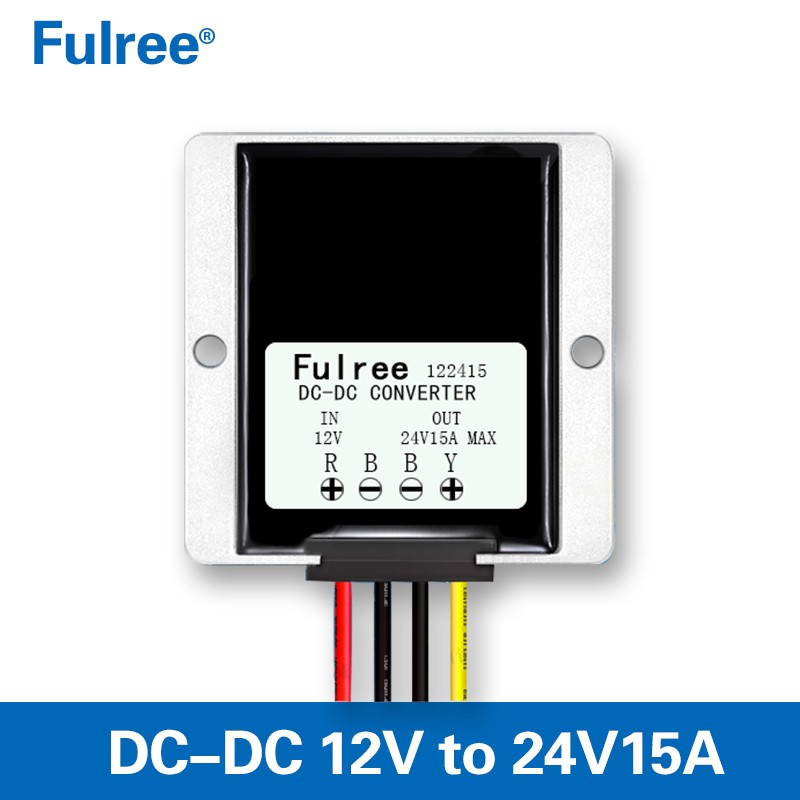

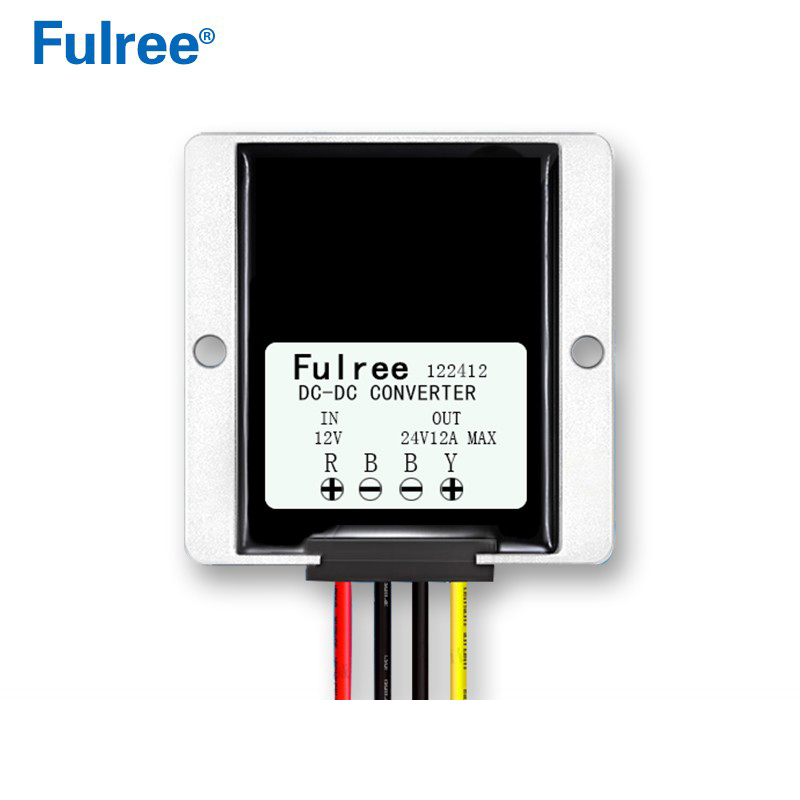

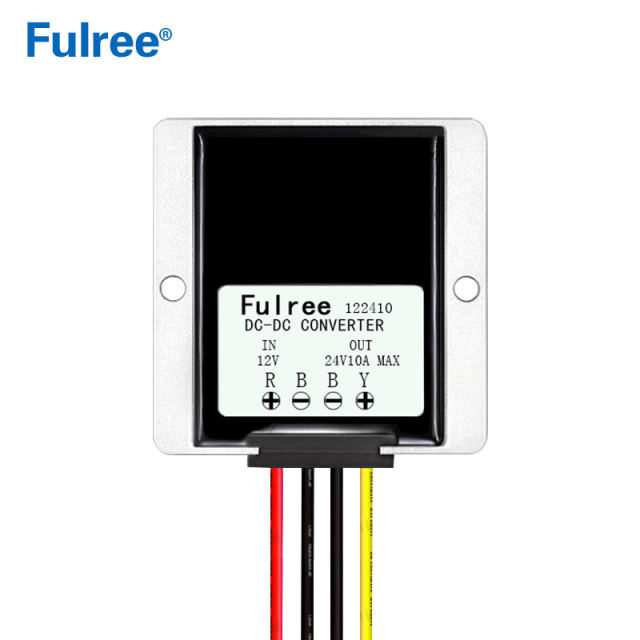

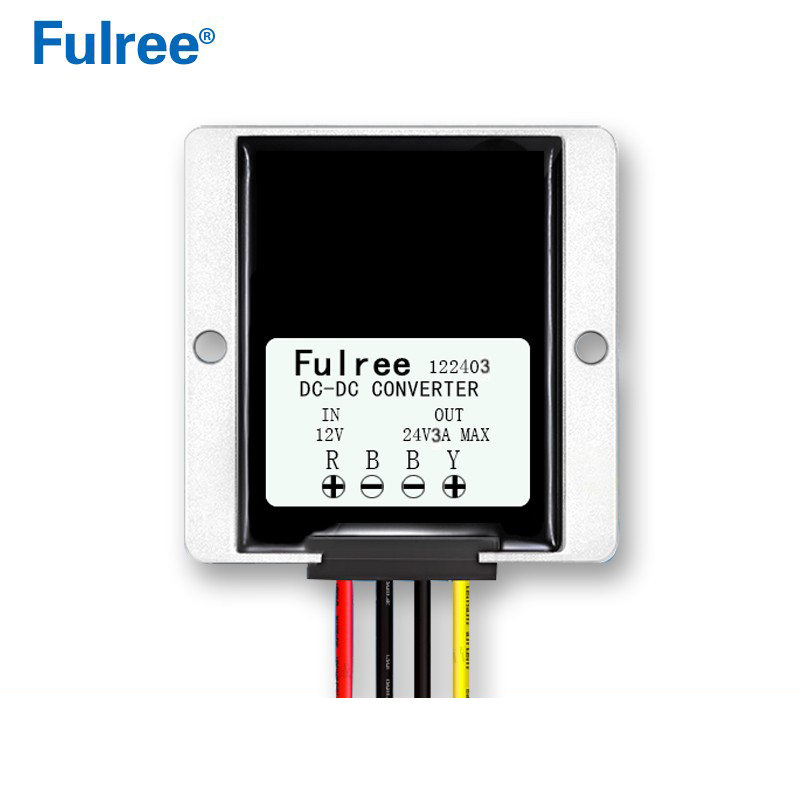

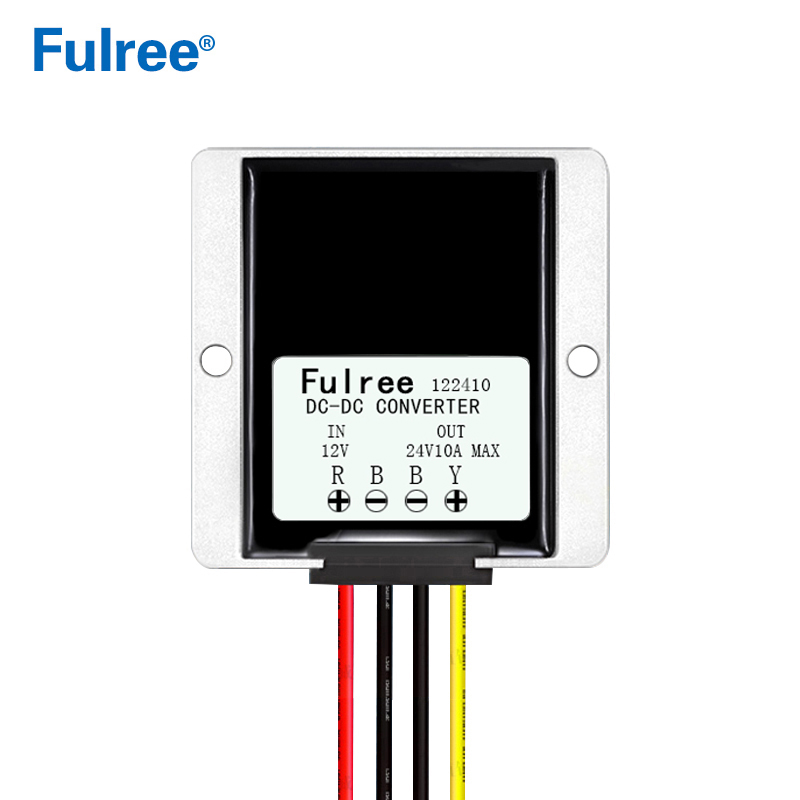

| Product Name | 12V to 24V dc step up converter |
| Model | F12S24V*A5L |
| Type | DC DC Converter |
| Input rated voltage | DC 12V |
| Input voltage range | DC 10-20V |
| Efficiency | 96% |
| Output voltage | DC 24V |
| Output current | 3A / 5A / 10A / 12A / 15A Max |
| Output rated power | 72W /120W /240W / 288W / 360W Max |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Working temperature |
-25°c ~+65°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Module Properties |
non-isolate module |
| Rectification | synchronous rectification |
| Waterproof rating | IP68 |
| Full load temperature rise: | 45°c |
| Protection |
Over-current, Over-temperature protection |
| Input Reverse Polarity Protection | None (Please Series diode at the input port.) |
| Net Weight | Approx 250G |

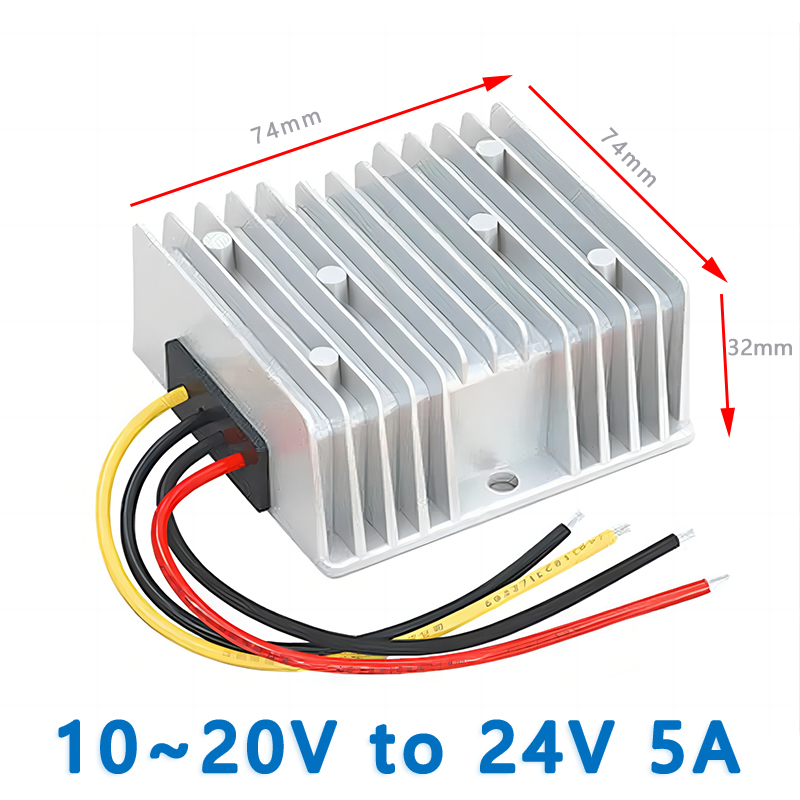

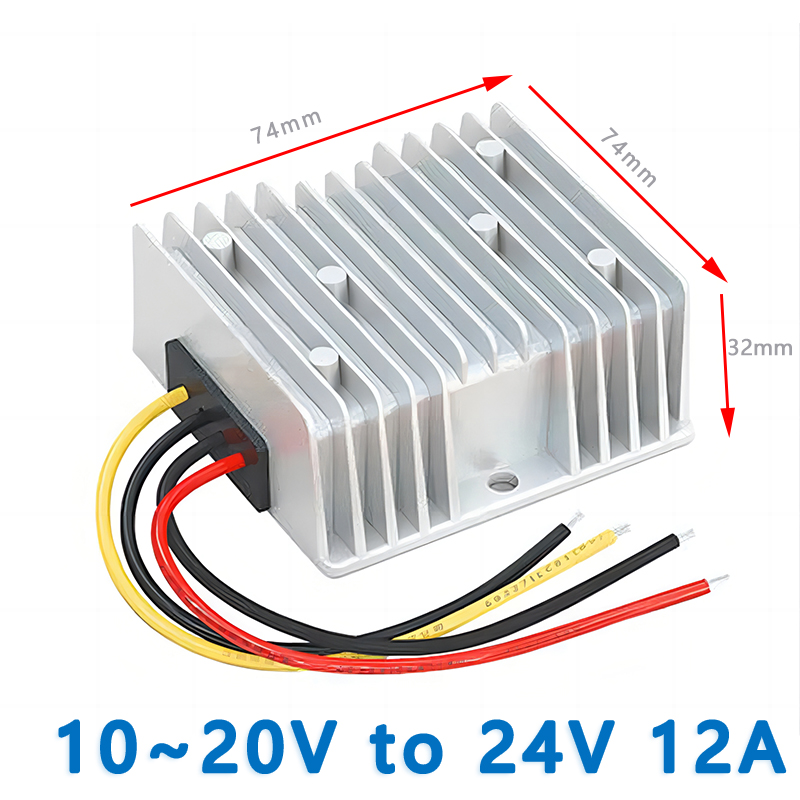

| Product size | 74*74*32mm |
|
Other output current option for DC 12V to 24V |
2A/3A/5A/8A/10A/12A/20A(pls contact with our sales manager if need) |
|
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged |
|
