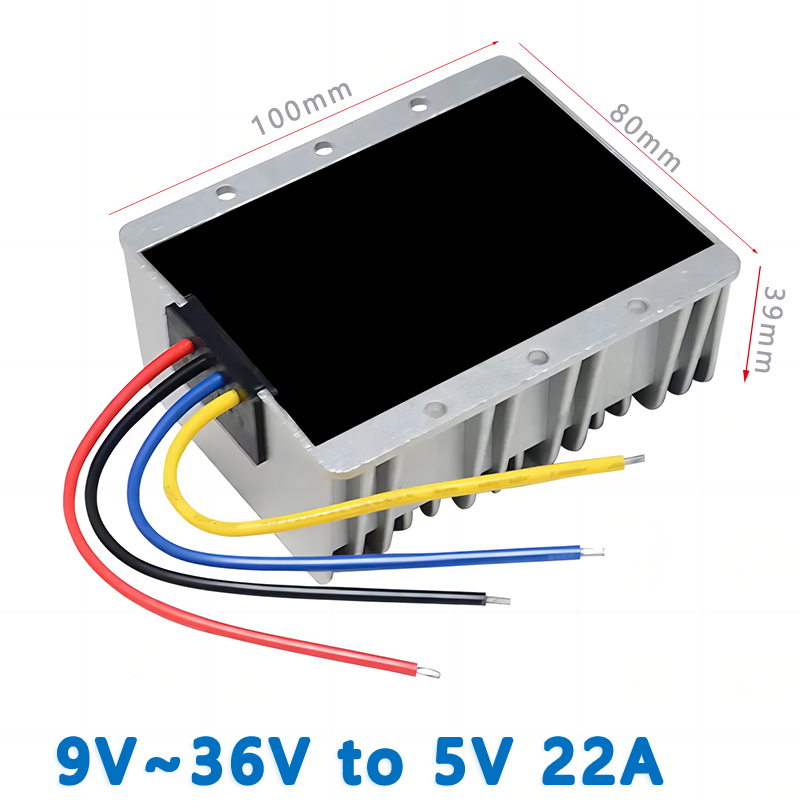

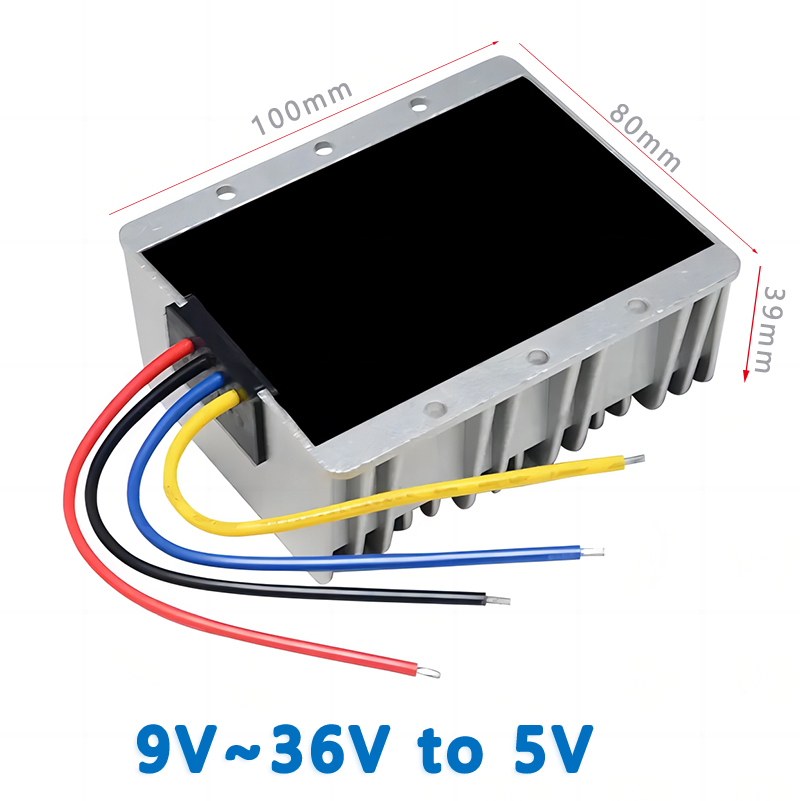

Input DC 12V/24V(9-36V)) to Output DC 5V 20A 22A 24A Isolated DC to DC Converter
|
Product Name |
DC DC Buck Boost Converter 12V/24V(9-36V)to 5V |
|
|
Brand |
Fulree |
|
|
Module Properties |
isolated buck module |
|
|
Input |
||
|
Input Voltage |
DC 12V/24V(9-36V) |
|
|
Input Voltage Range |
DC 12V/24V(9-36V) |
|
|
Output |
||
|
Output Voltage |
DC 5V |
|
|
Output Current |
15A 20A 22A 24A |
|
|
Output Power |
75W 100W 110W 120W |
|
|
Conversion Efficiency |
95% (@ 12V in) | |
|
Protection |
Over-current protection |
|
|
Over-voltage protection |
||
|
Overheat protection |
||
|
Short-circuit protection |
||
|
Application |
Trucks,Golf Carts,Forklifts,Buses,Loaders,Logging Vehicles Wind Power System,Solar Power System, Electromotor,Telecommunications,Boat & Yacht and so on... |
|
|
Certification |
CE/RoHS/FCC |
|
|
Case Material |
Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on |
|
|
Product Size (L x W x H) |
100*80*39mm |
|
|
Product Weight |
500g |
|
|
Warranty |
12 months, lifetime up to 100,000 hours |
|
|
Cooling Way |
Free air convection |
|
|
OEM&ODM Service |
Accept | |
