| Product |
DC DC Converter 12V 24V to 48V |
| Model |
F**S48V*A5L |
| Input rated voltage |
DC 12V 24V |
| Input voltage range |
DC 9-30V |
| Efficiency |
95% |
| Output voltage |
48V |
| Output current |
1A / 2A / 3A / 5A / 6A Max |
| Output rated power |
48W / 96W / 144W / 240W / 288W Max |
| Voltage regulation |
< 1% |
| Load regulation |
< 2% |
| Working temperature |
-40°c ~+85°c( If ambient temperature exceeds 40°c, lower power use,
or to enhance heat dissipation)
|
| Module Properties |
non-isolate module
|
| Rectification |
synchronous rectification |
| Waterproof rating |
IP68 |
| Full load temperature rise: |
45°c |
| Protection |
Over-current, Over-temperature protection
|
| Input Reverse Polarity Protection |
None (Please Series diode at the input port.) |
| NW |
approx 280G |

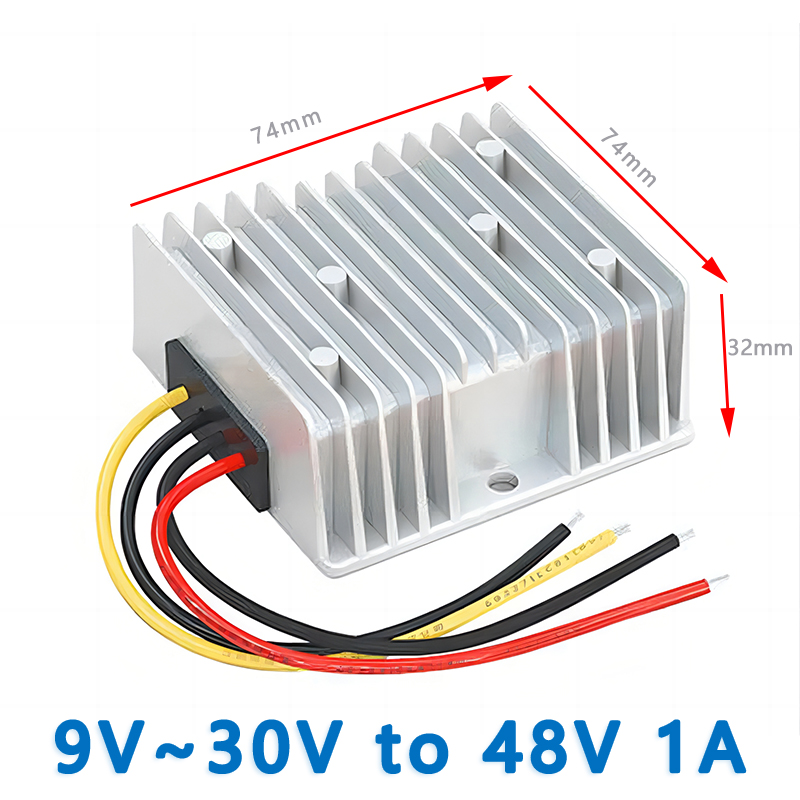

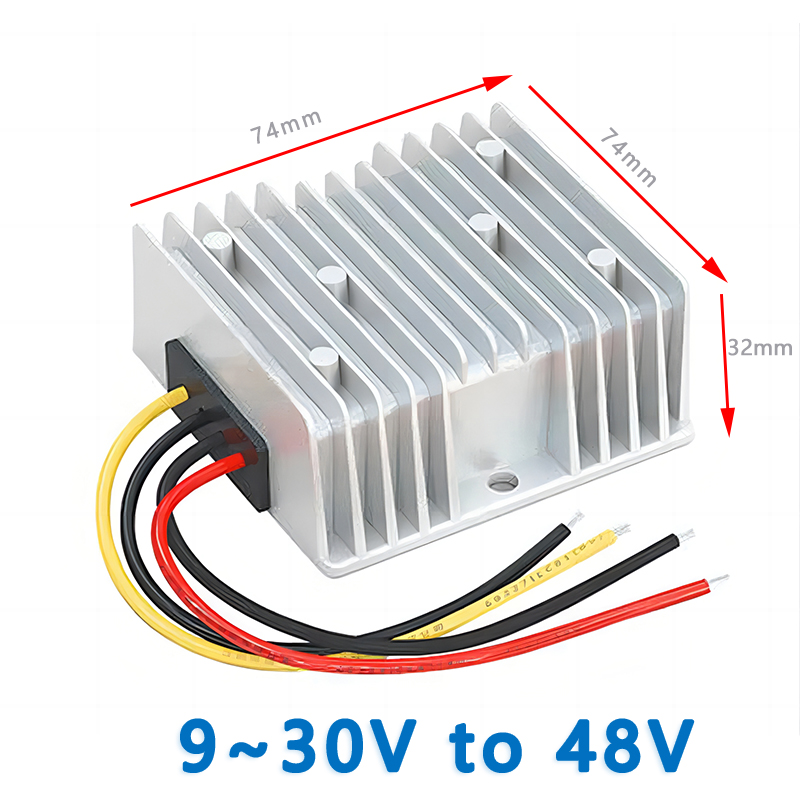

| Product size |
74*74*32mm |
|
Other output current
option for DC 12V to 24V
|
2A/3A/5A/8A/10A/12A/15A/20A(pls contact with our sales manager if need) |
|
Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
|
