India Hot Selling Fulree Input DC 12V 24V ( 10-30V) to Output DC 48V 10A 15A 20A 21A 30A DC DC Step Up Converter
India Hot Selling Fulree Input DC 12V 24V ( 10-30V) to Output DC 48V 10A 15A DC DC Step Up Converter
Product Description
|
Product Name
|
Fulree DC DC Converter 12V to 48V 10A 15A
|
|
Brand
|
Fulree
|
|
Model No.
|
124810 / 124815 |
|
Module Properties
|
non-isolated boost module
|
|
Rectification
|
synchronous rectification
|
|
Input
|
|
Input Voltage
|
DC 12V
|
|
Input Voltage Range
|
DC 10-30V
|
|
Output
|
|
Output Voltage
|
DC 48V
|
|
Output Current
|
10A / 15A Max
|
|
Output Power
|
480W / 720W Max
|
|
Conversion Efficiency
|
97% (half load), 96% (full load) |
|
Voltage regulation
|
±1%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
< 180mV
|
|
No-load current
|
<30mA
|
|
Working Temperature
|
-40~80℃
|
|
Waterproof Rating
|
IP68
|
|
Protection
|
Over-current protection
|
|
Over-voltage protection
|
|
Overheat protection
|
|
Input/Output Installation
|
INPUT---------Input Positive“+”
GND------Input/Output Negative "-"
OUTPUT------Output Positive "+" |
|
Application
|
Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts
GPS Navigation, Monitoring, Air conditioning
LED car display, DVD, LED bulb lights
Wind Power System, Solar Panel Power System
Electrical appliances, water pumps, industrial equipment, telecommunications and so on.
|
|
Certification
|
CE/RoHS
|
|
Case Material
|
Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on
|
|
Product Size (L x W x H)
|
150*127*63mm
|
|
Product Weight
|
1.65kg
|
|
Warranty
|
12 months, lifetime up to 100,000 hours
|
|
Cooling Way
|
Free air convection
|

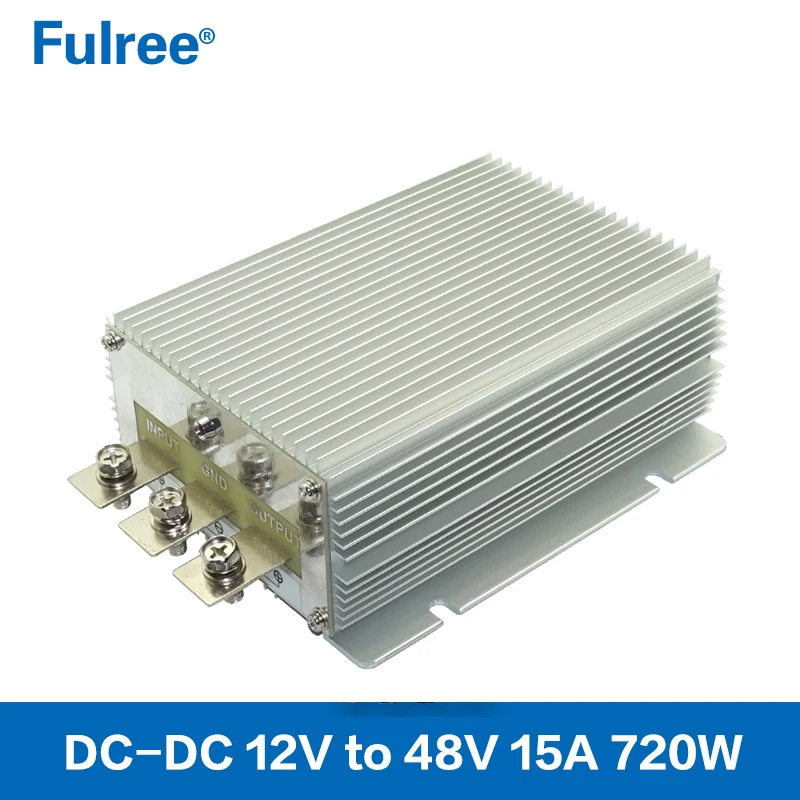

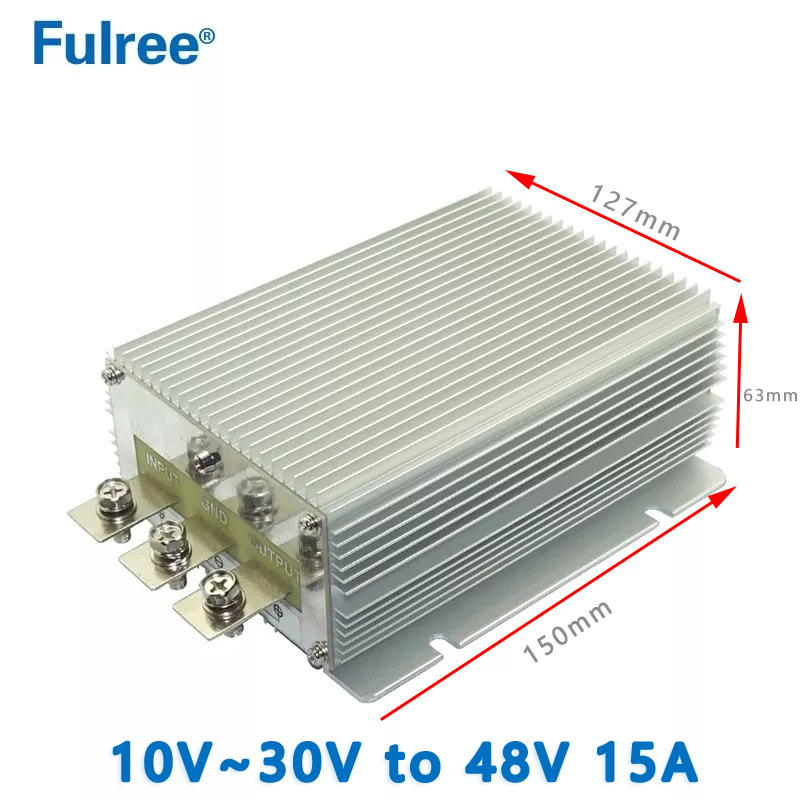

Product Picture
India Hot Selling Fulree Input DC 12V 24V ( 10-30V) to Output DC 48V 20A 21A 30A DC DC Step Up Converter
|
Product Name
|
Fulree DC DC Converter 12V to 48V 20A 21A 30A
|
|
Brand
|
Fulree
|
|
Module Properties
|
non-isolated boost module
|
|
Rectification
|
synchronous rectification
|
|
Input
|
|
Input Voltage
|
DC 12V
|
|
Input Voltage Range
|
DC 10-30V
|
|
Output
|
|
Output Voltage
|
DC 48V
|
|
Output Current
|
20A 21A 30A
|
|
Output Power
|
960W/1008W/1440W
|
|
Conversion Efficiency
|
97.5% (half load), 96% (full load) |
|
Voltage regulation
|
±1%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
< 180mV
|
|
No-load current
|
50-60mA
|
|
Working Temperature
|
-40~80℃
|
|
Waterproof Rating
|
IP68
|
|
Protection
|
Over-current protection
|
|
Over-voltage protection
|
|
Overheat protection
|
|
Input/Output Installation
|
INPUT---------Input Positive“+”
GND------Input/Output Negative "-"
OUTPUT------Output Positive "+" |
|
Application
|
Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts
GPS Navigation, Monitoring, Air conditioning
LED car display, DVD, LED bulb lights
Wind Power System, Solar Panel Power System
Electrical appliances, water pumps, industrial equipment, telecommunications and so on.
|
|
Certification
|
CE/RoHS/FCC
|
|
Case Material
|
Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on
|
|
Product Size (L x W x H)
|

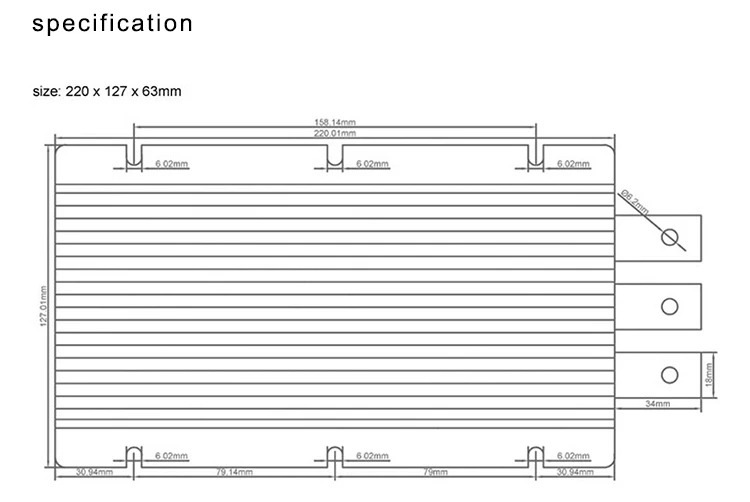

220*127*63mm (Machine Size:265*127*63mm/Packing Size:300*152*100mm)
|
|
Product Weight
|
2.5kg
|
|
Warranty
|
12 months, lifetime up to 100,000 hours
|
|
Cooling Way
|
Free air convection
|
|
OEM&ODM Service
|
Accept |

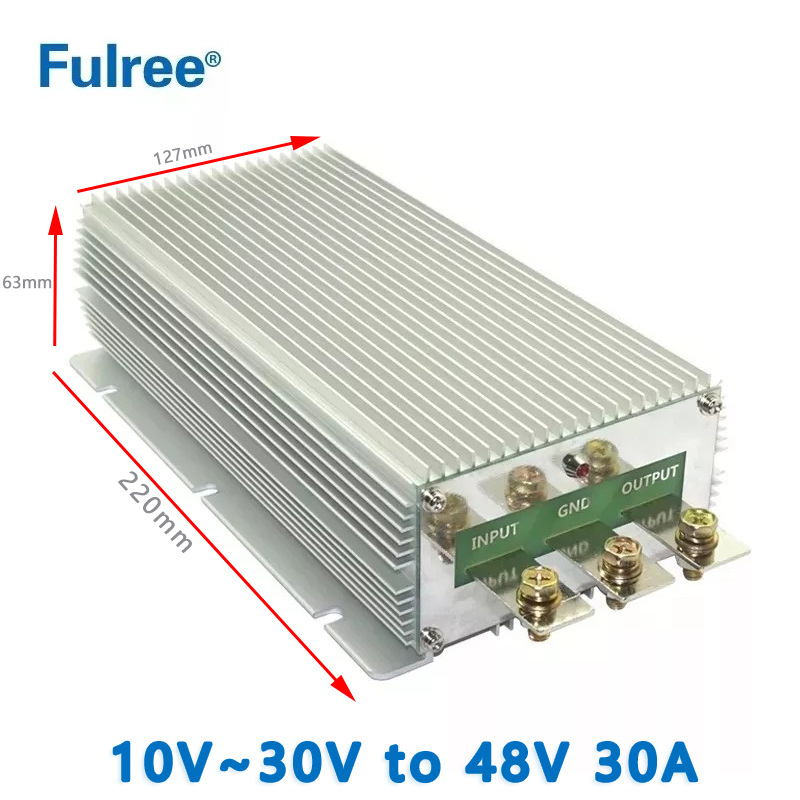

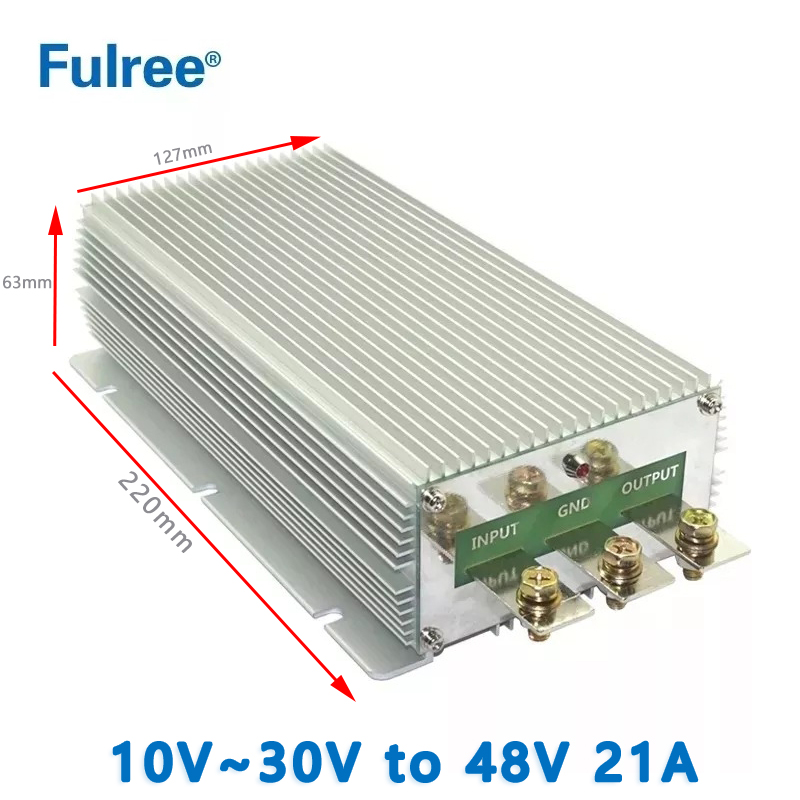

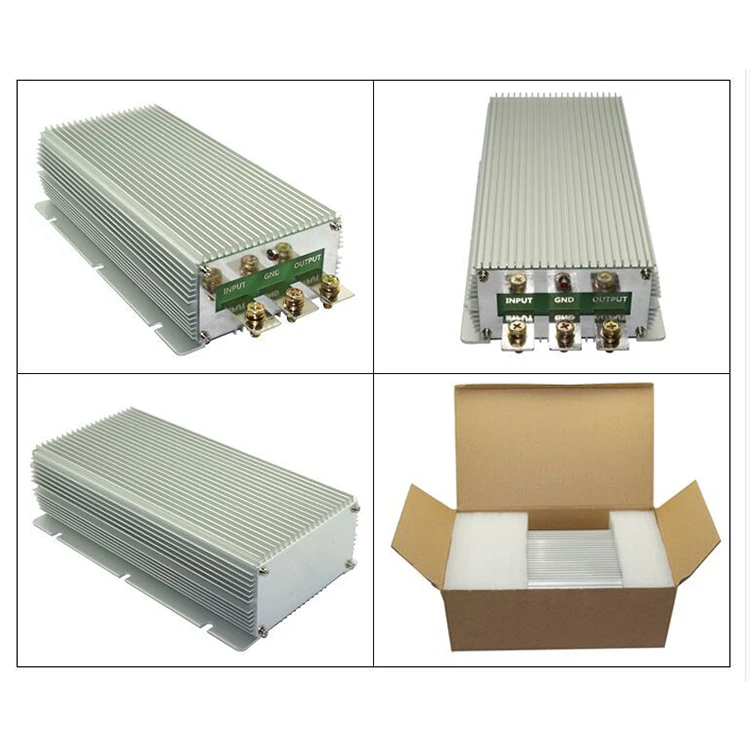

Product Picture
