Product Name |
Fulree DC DC Converter 24V to 48V 10A 15A |
|
|
Brand |
Fulree |
|
|
Model No. |
244810 / 244815 | |
|
Module Properties |
non-isolated boost module |
|
|
Rectification |
synchronous rectification |
|
|
Input |
||
|
Input Voltage |
DC 24V |
|
|
Input Voltage Range |
DC 18-35V |
|
|
Output |
||
|
Output Voltage |
DC 48V |
|
|
Output Current |
10A / 15A Max |
|
|
Output Power |
480W / 720W Max |
|
|
Conversion Efficiency |
96% (half load), 94% (full load) | |
|
Voltage regulation |
±1% |
|
|
Load regulation |
± 2% |
|
|
Ripple (Full load test) |
< 150mV |
|
|
No-load current |
<30mA |
|
|
Working Temperature |
-40~80℃ |
|
|
Waterproof Rating |
IP68 |
|
|
Protection |
Over-current protection |
|
|
Over-voltage protection |
||
|
Overheat protection |
||
|
Input/Output Reverse Polarity Protection |
No, please follow label instructions wiring strictly: red for input positive, black is negative, white for output positive. If you need this function, please contact with us to customize it. |
|
|
Application |
Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts GPS Navigation, Monitoring, Air conditioning LED car display, DVD, LED bulb lights Wind Power System, Solar Panel Power System Electrical appliances, water pumps, industrial equipment, telecommunications and so on. |
|
|
Certification |
CE/RoHS |
|
|
Case Material |
Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on |
|
|

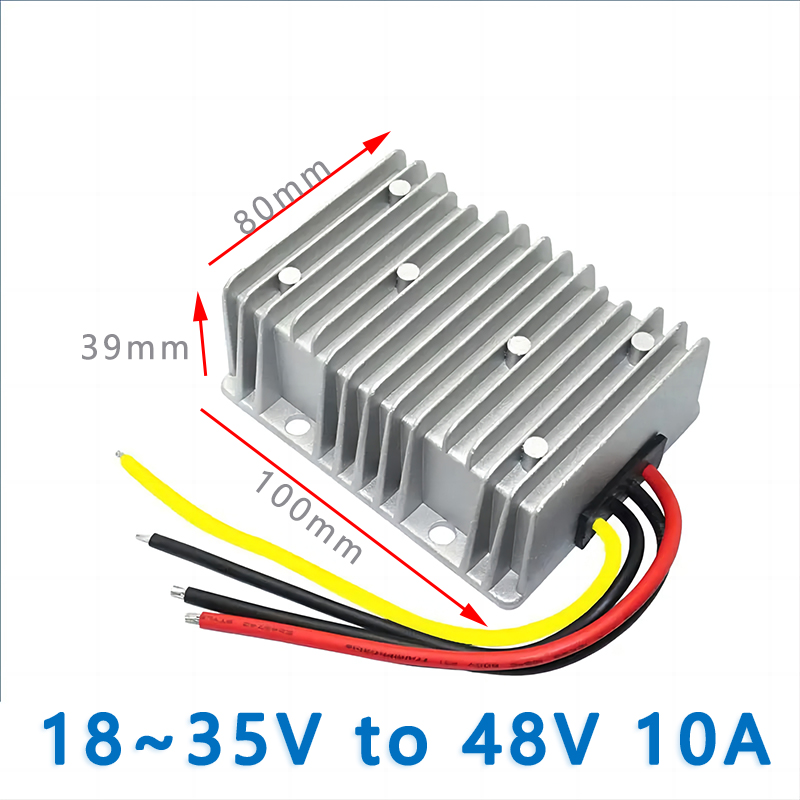

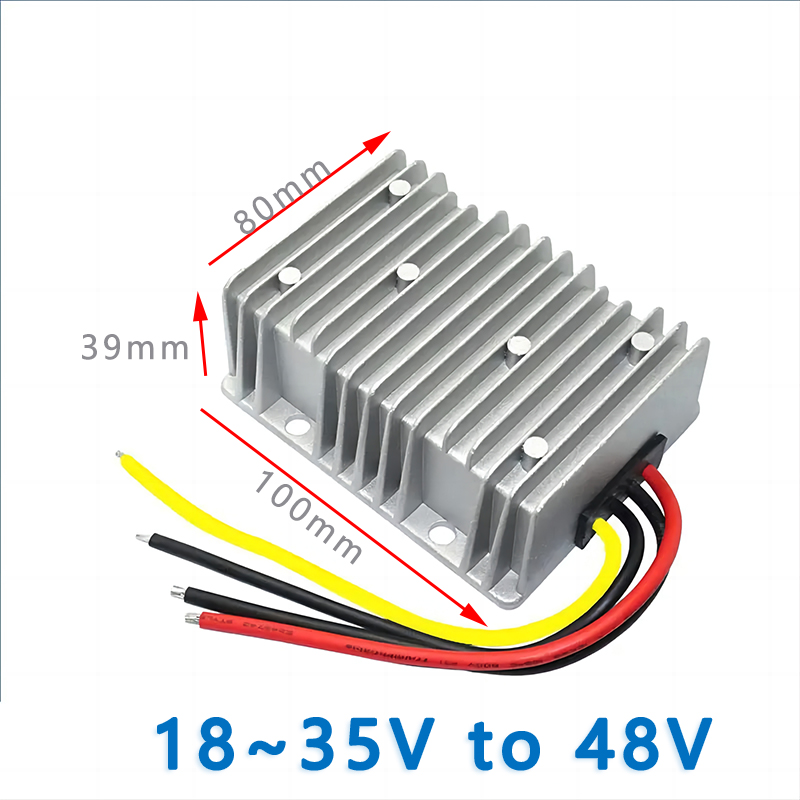

Product Size (L x W x H) |
100*80*39mm |
|
|
Product Weight |
500g |
|
|
Warranty |
12 months, lifetime up to 100,000 hours |
|
|
Cooling Way |
Free air convection |
|
|
OEM&ODM Service |
Accept | |
