Fulree Input DC 48V 36V 24V (20-60V) to Output DC 12V 1A 2A 3A DC TO DC Converter Voltage Step Down Buck Car Truck Vehicle Power
Fulree Input DC 48V 36V 24V (20-60V) to Output DC 12V 1A 2A 3A DC TO DC Converter Voltage Step Down Buck Car Truck Vehicle Power
Product Description
|
Product Name
|
Fulree DC DC Converter 20-60V to 12V 1A 2A 3AMax
|
|
Brand
|
Fulree
|
|
Model No.
|
F60J12V1A1S / F60J12V2A1S / F60J12V3A1S
|
|
Module Properties
|
non-isolated BUCK module
|
|
Rectification
|
synchronous rectification
|
|
Input (13-14cm)
|
|
Input Voltage
|
DC 24V 36V 48V
|
|
Input Voltage Range
|
DC 20-60V
|
|
Output (13-14cm)
|
|
Output Voltage
|
DC 12V
|
|
Output Current
|
1A / 2A / 3A Max
|
|
Output Power
|
12W / 24W / 36W Max
|
|
Conversion Efficiency
|
>93% |
|
Voltage regulation
|
±1%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
< 150mV
|
|
No-load current
|
<100mA
|
|
Working Temperature
|
-40~80℃
|
|
Waterproof Rating
|
IP68
|
|
Protection
|
Over-current protection
|
|
Overheat protection
|
|
Output Short-circuit protection
|
|
Application
|
Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts |
|
Certification
|
CE/RoHS
|
|
Case Material
|
ABS Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on
|
|
Product Size (L x W x H)
|
46*27*14mm
|
|
Product Weight
|
40g
|
|
Warranty
|
12 months, lifetime up to 100,000 hours
|
|
Cooling Way
|
Free air convection
|
|
OEM&ODM Service
|
Accept |

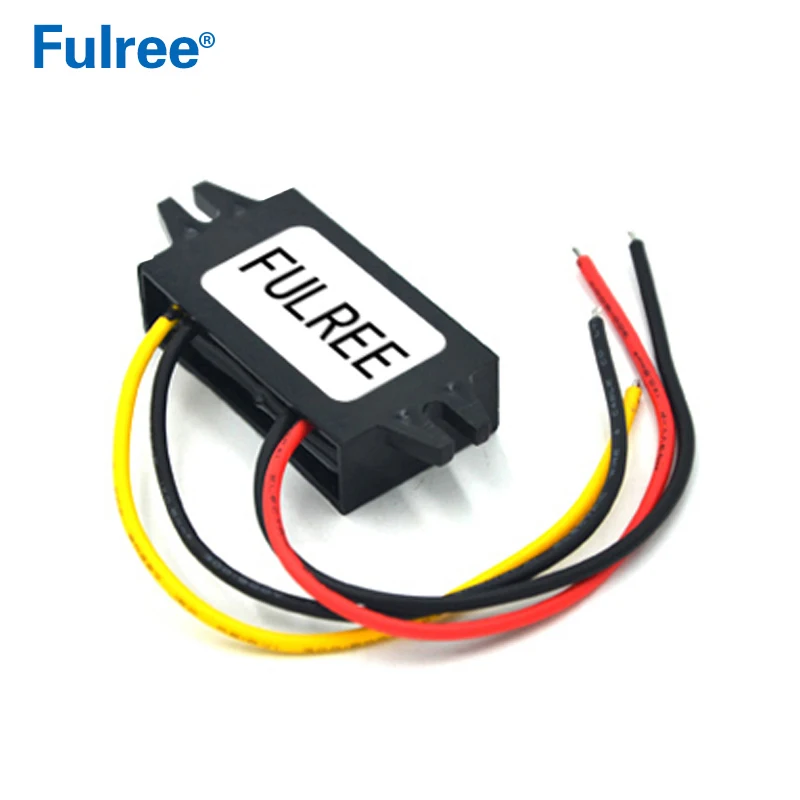

Product Picture
