Input DC 12V 24V（ 8-35V） to Output DC 5V 3A 5A 8A 10A Max Step Down Voltage Transformer Electric Vehicle Car Ebike Power DC to DC Converter
Product Description
|
Product Name
|
Fulree DC DC Converter 12V 24V to 5V 3A / 5A / 8A / 10A
|
|
Brand
|
Fulree
|
|
Model No.
|
F35J5V*A2S |
|
Module Properties
|
non-isolated buck module
|
|
Rectification
|
synchronous rectification
|
|
Input
|
|
Input Voltage
|
DC 12V 24V
|
|
Input Voltage Range
|
DC 8-35V
|
|
Output
|
|
Output Voltage
|
DC 5V
|
|
Output Current
|
3A / 5A / 8A / 10A Max
|
|
Output Power
|
15W / 25W / 40W / 50W Max
|
|
Conversion Efficiency
|
>90%,95% max
|
|
Voltage regulation
|
±3%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
< 150mV
|
|
No-load current
|
< 100mA
|
|
Working Temperature
|
-40~85℃
|
|
Waterproof Rating
|
IP68
|
|
Protection
|
Over-current protection
|
|
Overheat protection
|
|
Short circuit protection
|
|
Input/Output Reverse Polarity Protection
|
No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive. If you need this function, please contact with us to customize it.
|
|
Application
|
Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts
GPS Navigation, Monitoring, Air conditioning
LED car display, DVD, LED bulb lights
Wind Power System, Solar Panel Power System
Electrical appliances, water pumps, industrial equipment, telecommunications and so on.
|
|
Certification
|
CE/RoHS/FCC
|
|
Case Material
|
Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on
|
|

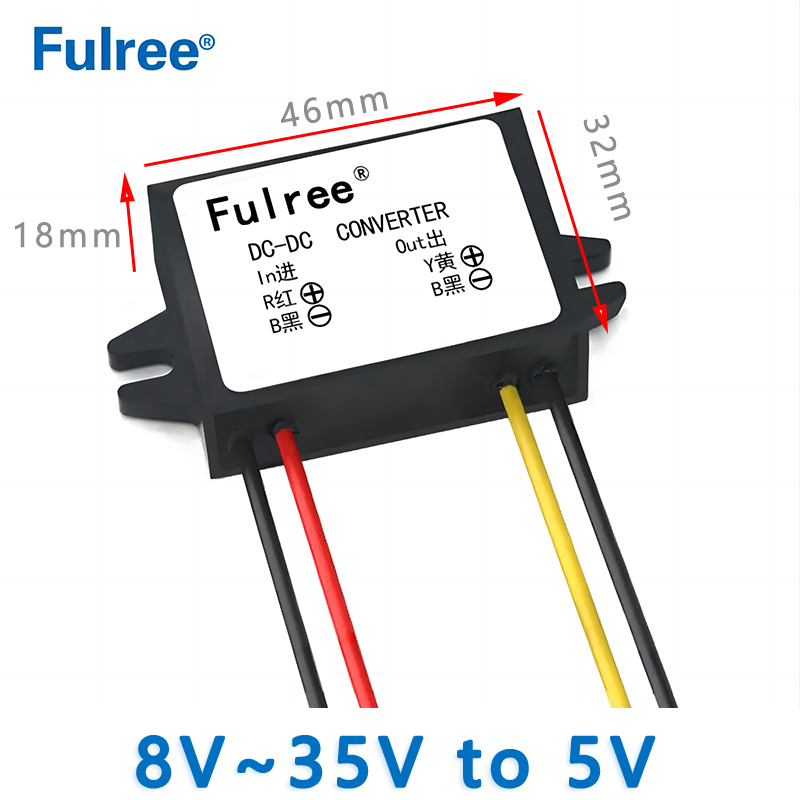

Product Size (L x W x H)
|
46*32*18mm
|
|
Installation Cable Length
|
13-14cm
|
|
Product Weight
|
65g
|
|
Warranty
|
12 months, lifetime up to 100,000 hours
|
|
Cooling Way
|
Free air convection
|
|
OEM Service
|
Accept OEM logo/label/manual/packing box, Contact Fulree Now!
|
|
Customized Service
|
Accept customized converter such as input/output voltage, cable, interface and etc, Contact Fulree Now!
|
Product Picture
Packaging & Delivery
1. We pack each item with OPP bag individually, then put all items in export cartons (around 50-300pcs per carton). The export cartons will be taped to protect the parcel from water stains or something others, it's not easy to break or damage during the shipment by air or sea.
2. We make shipment between 3-15 days for normal order and 3 to 5 days for samples.
3. We can offer you express like FedEx, DHL, UPS & TNT when you make a relatively small order like samples. The ocean shipping is also available when you place a big order. The customers can use their own freight forwarder account.
4. If you need some special request on shipment, please note us before placing order.
Why Choose Fulree?
Service ......... RMA(24/7 Technical Support), OEM, ODM
Quality...........100% full inspection before delivery, Less than 0.5% of failure rate!
Warranty....... Up to 12 months!
Price..................Competitive Factory Price!
Professional......Produce security DC DC converter for 8 years in China!
Reliable.............One of the largest power supply business manufacturers in China!
Assurance.........Any problem of quality, Fulree would refund the payment!
Payment.............T/T bank wire transfer, Escrow, West Union and Paypal!
Delivery...............Fast! After receive payment 3-15 days for normal small orders!
Privacy …….....Protect your sales area, designs, ideas and all your private information!
Fulree................Your best DC DC Converter Solution Choice! We Design and support!
