Product Name |

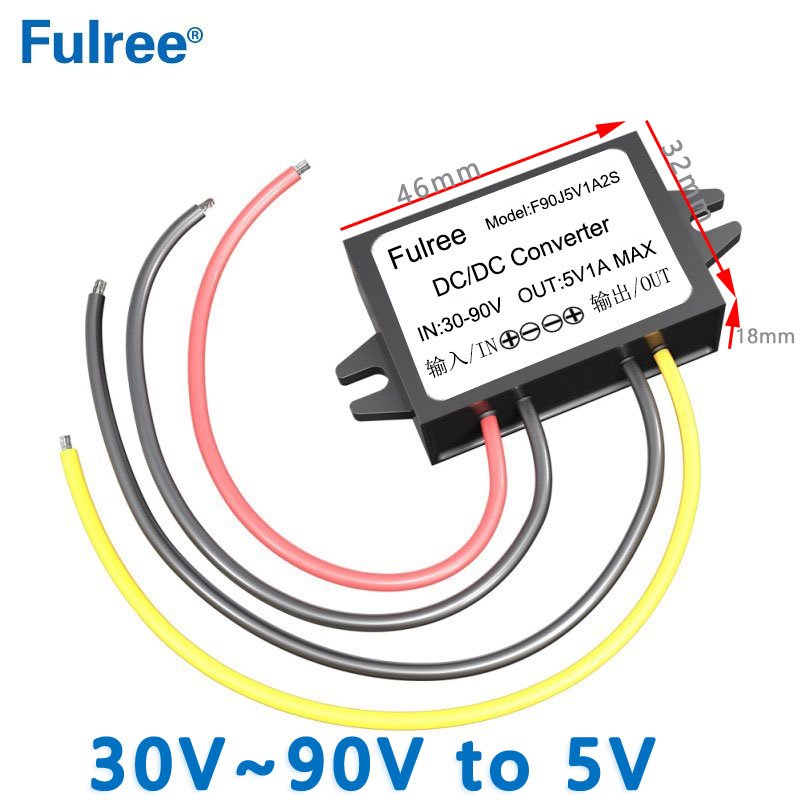

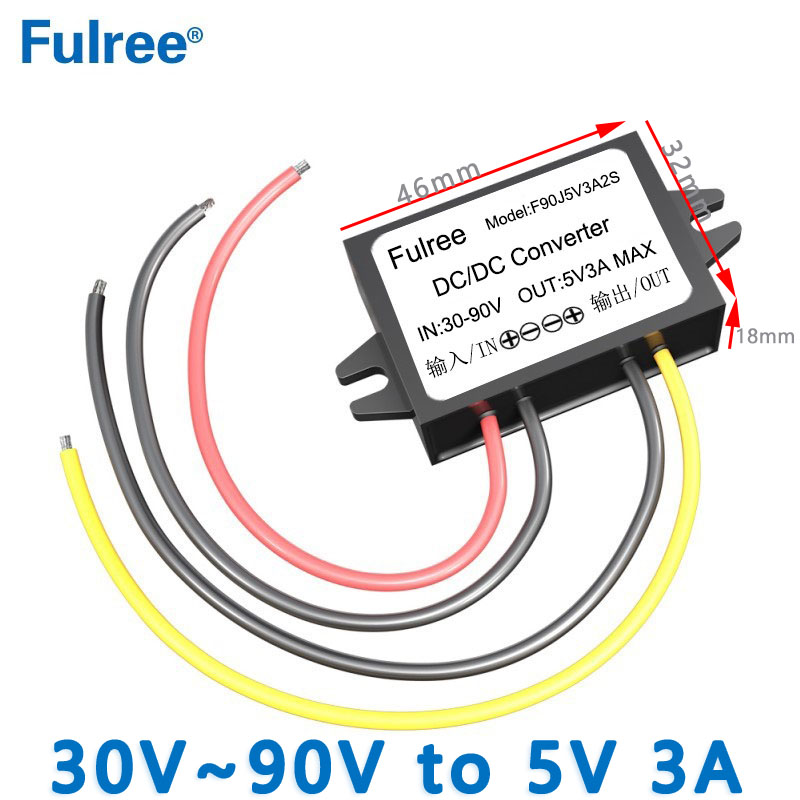

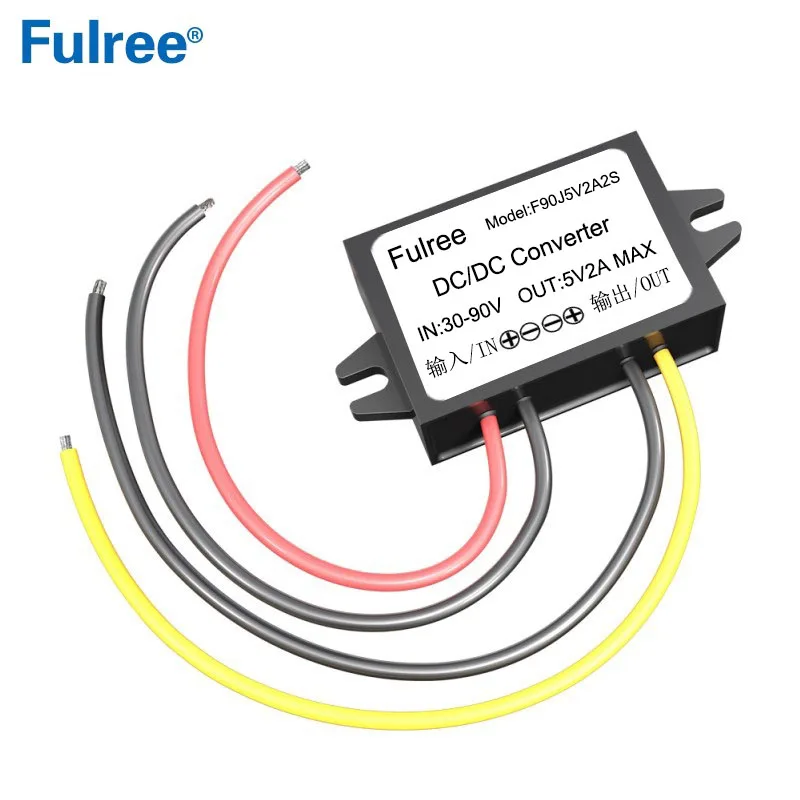

Fulree DC DC Converter 36V 48V 60V 72V to 5V |
|
|
Brand |
Fulree |
|
|
Model No. |
F**J5V*A2S | |
|
Module Properties |
non-isolated buck module |
|
|
Rectification |
synchronous rectification |
|
|
Input |
||
|
Input Voltage |
DC 36V 48V 60V 72V |
|
|
Input Voltage Range |
DC30-90V |
|
|
Output |
||
|
Output Voltage |
DC 5V |
|
|
Output Current |
auto-adaption 1A / 2A / 3A Max |
|
|
Output Power |
5W / 10W / 15W Max |
|
|
Conversion Efficiency |
>90%,95% max |
|
|
Voltage regulation |
±3% |
|
|
Load regulation |
± 2% |
|
|
Ripple (Full load test) |
< 150mV |
|
|
No-load current |
< 100mA |
|
|
Working Temperature |
-40~85℃ |
|
|
Waterproof Rating |
IP68 |
|
|
Protection |
Over load protection |
|
|
Short circuit protection |
||
|
Full waterproof potting |
||
|
Input/Output Reverse Polarity Protection |
No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive If you need this function, please contact with us to customize it. |
|
|
Application |
Electric motors, fans, Audio, Trucks, Golf Carts Wind Power System, Solar Panel Power System, Photo voltaic energy Electrical appliances, water pumps, industrial equipment, telecommunications and so on. |
|
|
Certification |
CE/RoHS |
|
|
Case Material |
Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on |
|
|
Product Size (L x W x H) |
46*32*18mm |
|
|
Installation Cable Length |
13-14cm |
|
|
Product Weight |
65g |
|
|
Warranty |
12 months, lifetime up to 100,000 hours |
|
|
Cooling Way |
Free air convection |
|
|
OEM Service |
Accept OEM logo/label/manual/packing box, Contact Fulree Now! |
|
|
Customized Service |
Accept customized converter such as input/output voltage, cable, interface and etc, Contact Fulree Now! |
|
