| Model | 12240560 |
| Input rated voltage | DC 12V 24V |
| Input voltage range | DC 10V-36V |
| Efficiency | 91% at 12V input testing |
| Output voltage | DC 5V |
| Output current | 60A Max |
| Output rated power | 300W Max |
| Voltage regulation | < 3% |
| Load regulation | < 2% |
| Working temperature | -40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Module Properties | non-isolated buck module |
| Rectification | synchronous rectification |
| Waterproof rating | IP68 |
| Full load temperature rise: | 50°c |
| Protection | Over-current, Over-voltage,Over-temperature, Short-circuit protection, waterproof IP68 design, anti-shock protection |
| Input/Output Installation | INPUT---------Input Positive“+” GND------Input/Output Negative "-" OUTPUT------Output Positive "+" |
| NW | 1.65kg |

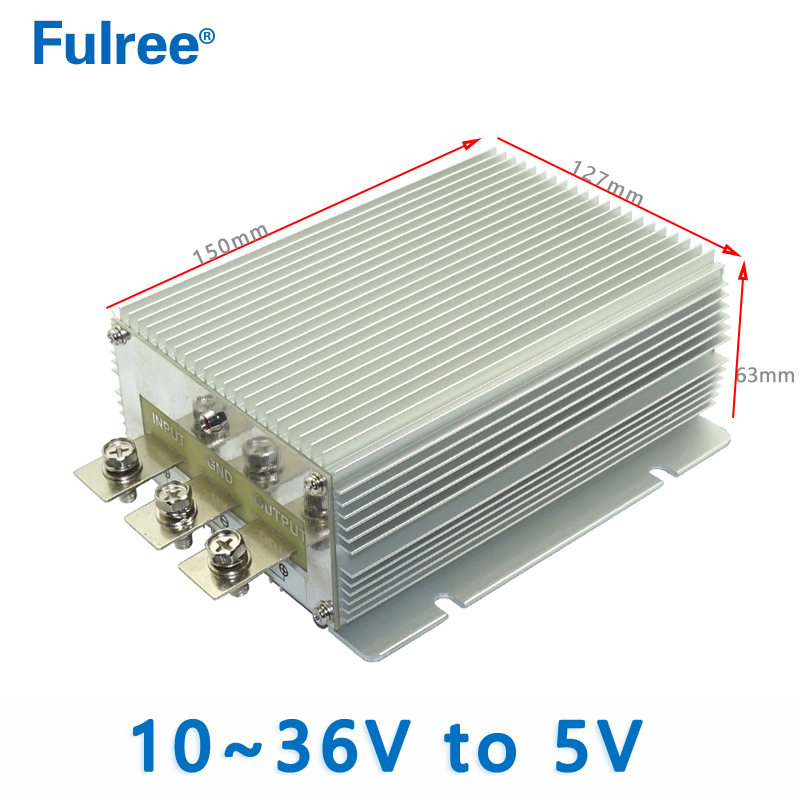

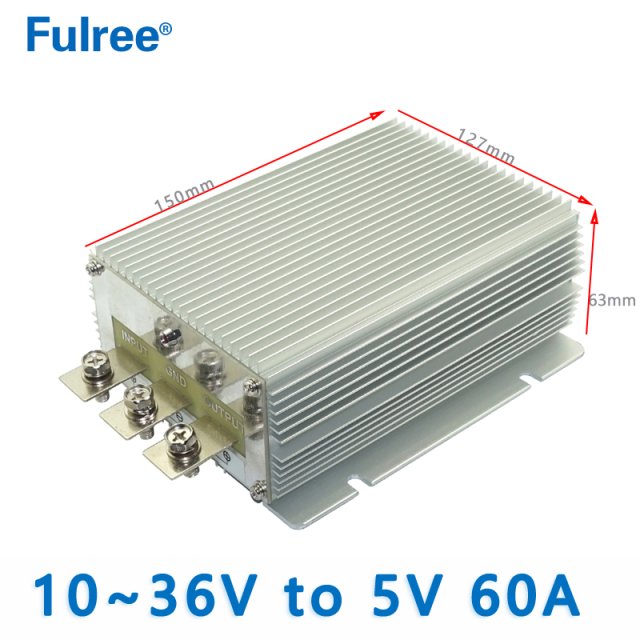

| Product size | 150*127*63mm |
Other output current available | 5A/10A/15A/20A/30A/40A/50A (pls contact with our sales manager if need) |
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged | |
