Input DC 12V 24V(10V-36V) to Output DC 5V 40A 50A 60A DC to DC Step Down Buck Converter Voltage Transformer LED Display Power Supply Module
Waterproof Input DC 24V 12V( 10V-36V) to Output DC 5V 40A 50A DC DC Step Down Buck Power Converter Voltage Regulator for Car LED Screen Display
| Model |
F36J5V40A6L / F36J5V50A6L(Old:12240540 / 12240550) |
| Input rated voltage |
DC 12V 24V |
| Input voltage range |
DC 10V-36V |
| Efficiency |
96% |
| Output voltage |
DC 5V |
| Output current |
40A / 50A Max |
| Output rated power |
200W / 250W Max |
| Voltage regulation |
< 3% |
| Load regulation |
< 2% |
| Working temperature |
-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use,
or to enhance heat dissipation)
|
| Module Properties |
non-isolated buck module
|
| Rectification |
synchronous rectification |
| Waterproof rating |
IP68 |
| Full load temperature rise: |
50°c |
| Protection |
Over-current, Over-voltage,Over-temperature, Short-circuit protection,
waterproof IP68 design, anti-shock protection
|
| Input Reverse Polarity Protection |
NONE( (Please Series diode at the input port.) |
| NW |
500g |

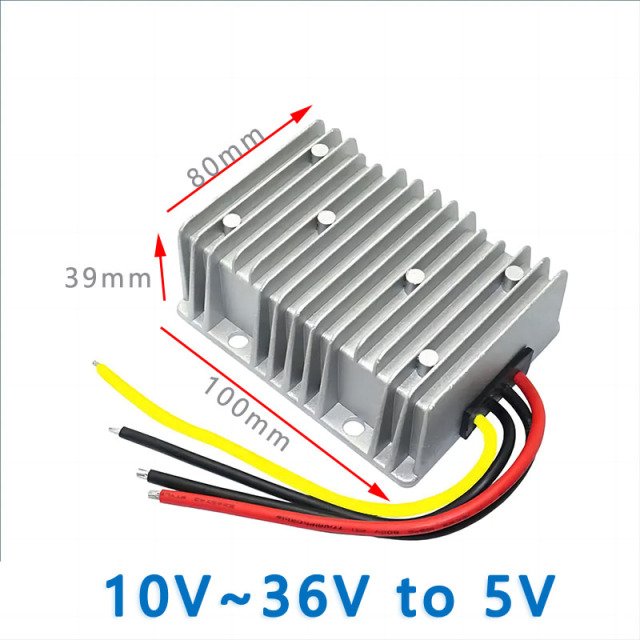

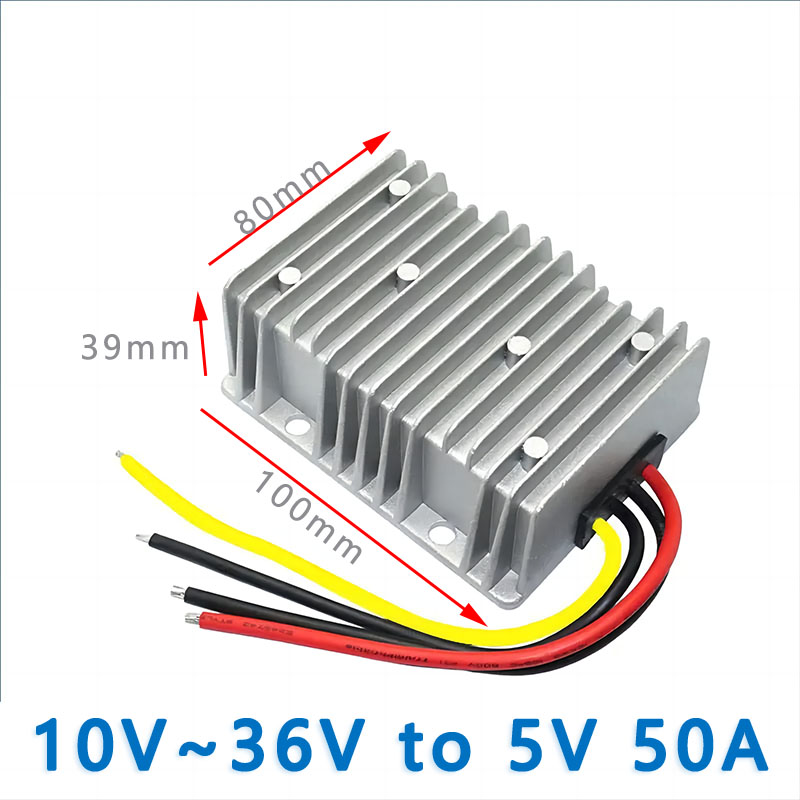

| Product size |
100*80*39mm |
|
Other output current available
|
5A/10A/15A/20A/30A/50A/60A
(pls contact with our sales manager if need)
|
|
Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
|

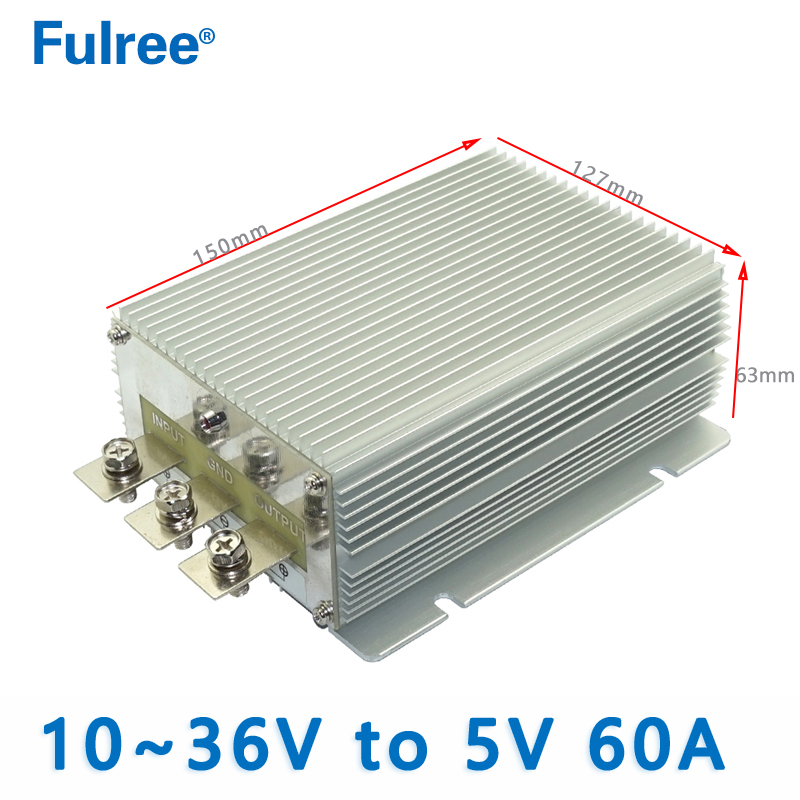

Input DC 12V 24V(10V-36V) to Output DC 5V 60A Max 300W DC to DC Step Down Buck Converter Voltage Transformer LED Display Power Supply Module
| Model |
12240560 |
| Input rated voltage |
DC 12V 24V |
| Input voltage range |
DC 10V-36V |
| Efficiency |
91% at 12V input testing |
| Output voltage |
DC 5V |
| Output current |
60A Max |
| Output rated power |
300W Max |
| Voltage regulation |
< 3% |
| Load regulation |
< 2% |
| Working temperature |
-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use,
or to enhance heat dissipation)
|
| Module Properties |
non-isolated buck module
|
| Rectification |
synchronous rectification |
| Waterproof rating |
IP68 |
| Full load temperature rise: |
50°c |
| Protection |
Over-current, Over-voltage,Over-temperature, Short-circuit protection,
waterproof IP68 design, anti-shock protection
|

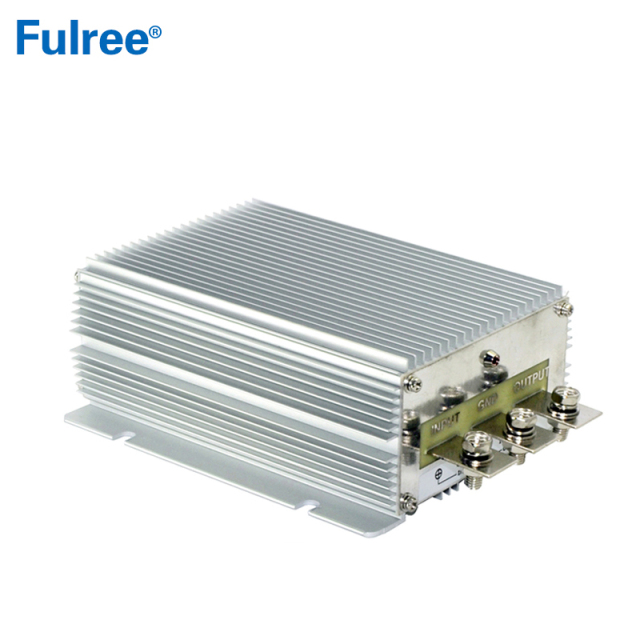

| Input/Output Installation |
INPUT---------Input Positive“+”
GND------Input/Output Negative "-"
OUTPUT------Output Positive "+" |
| NW |
1.65kg |

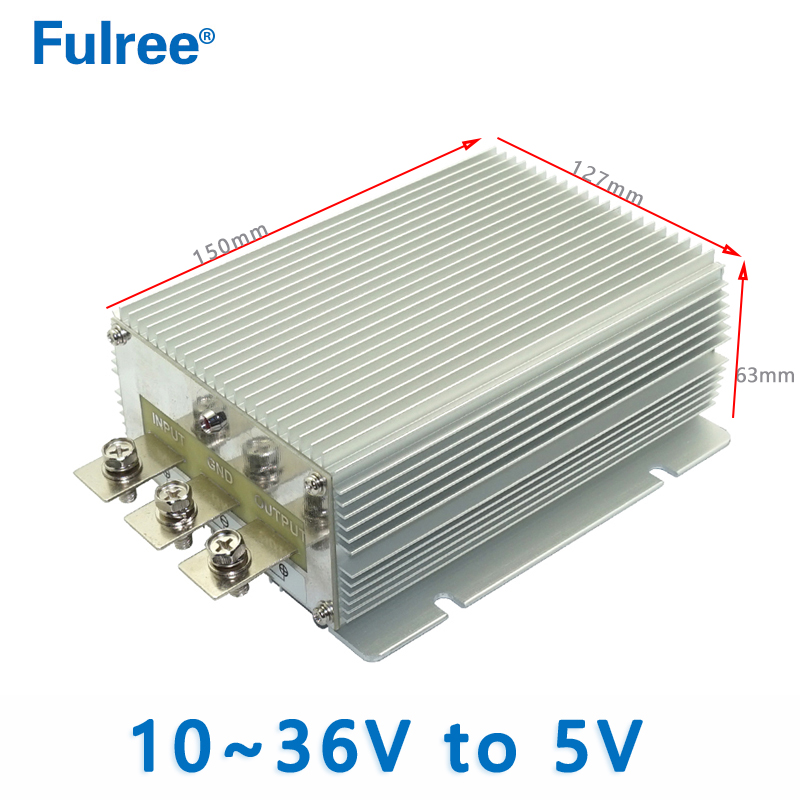

| Product size |
150*127*63mm |
|
Other output current available
|
5A/10A/15A/20A/30A/40A/50A
(pls contact with our sales manager if need)
|
|
Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
|
