Product Name

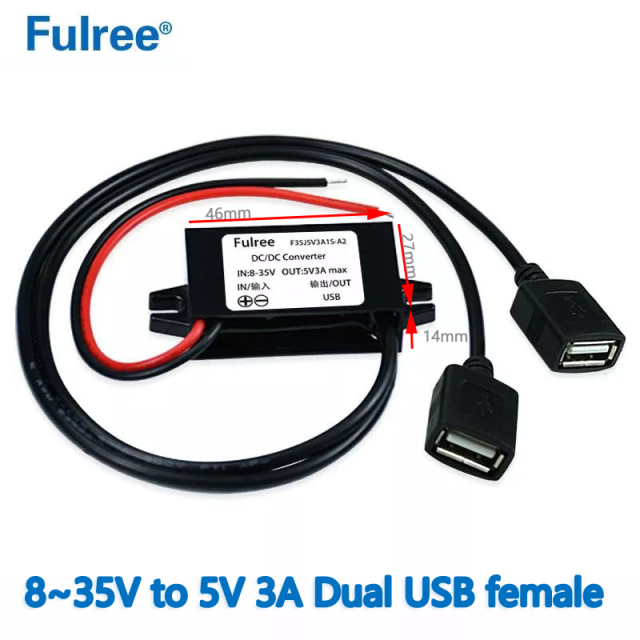

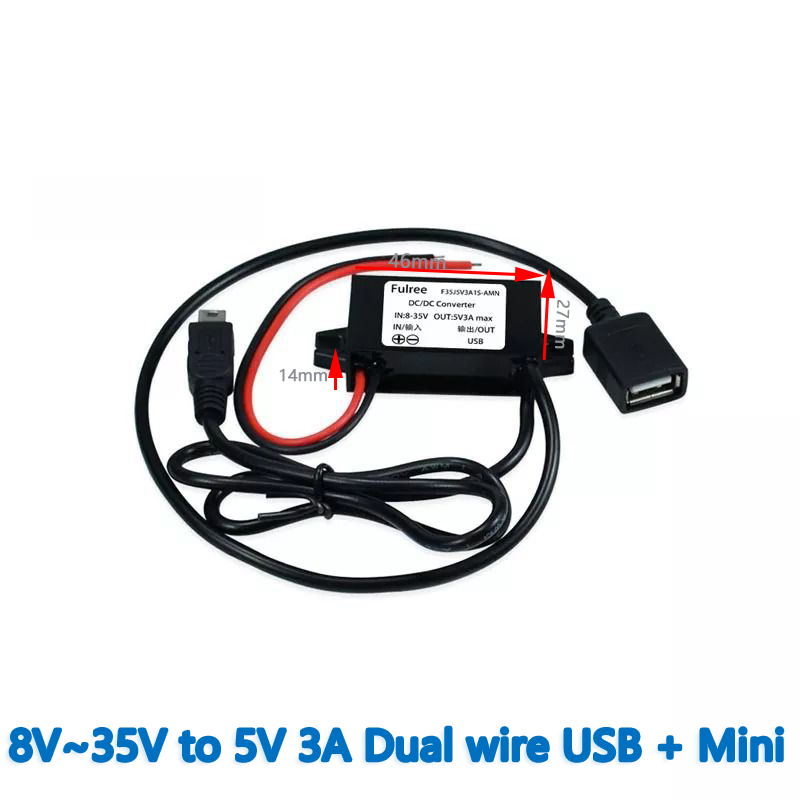

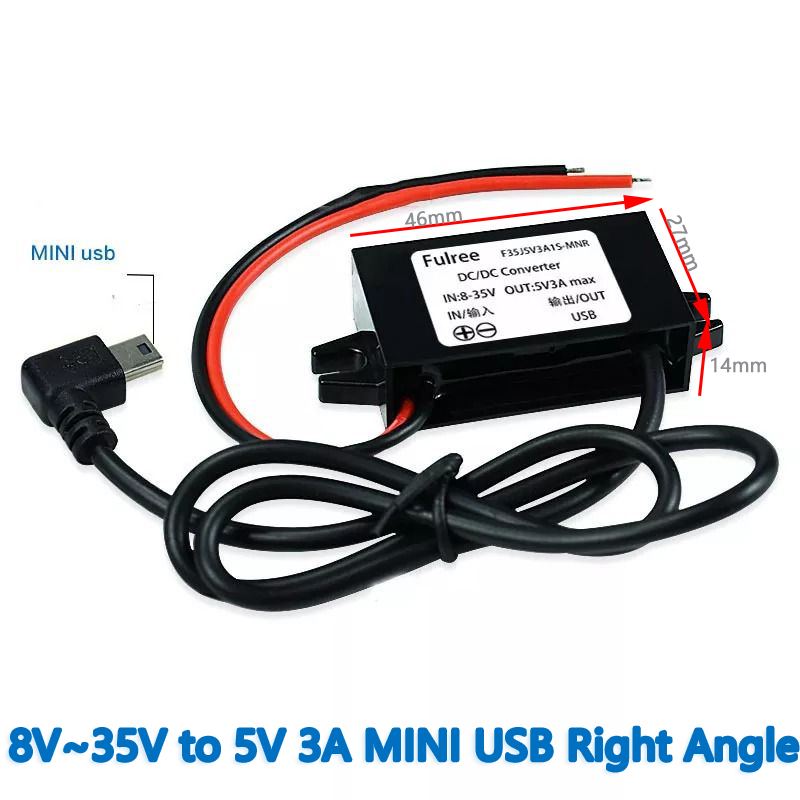

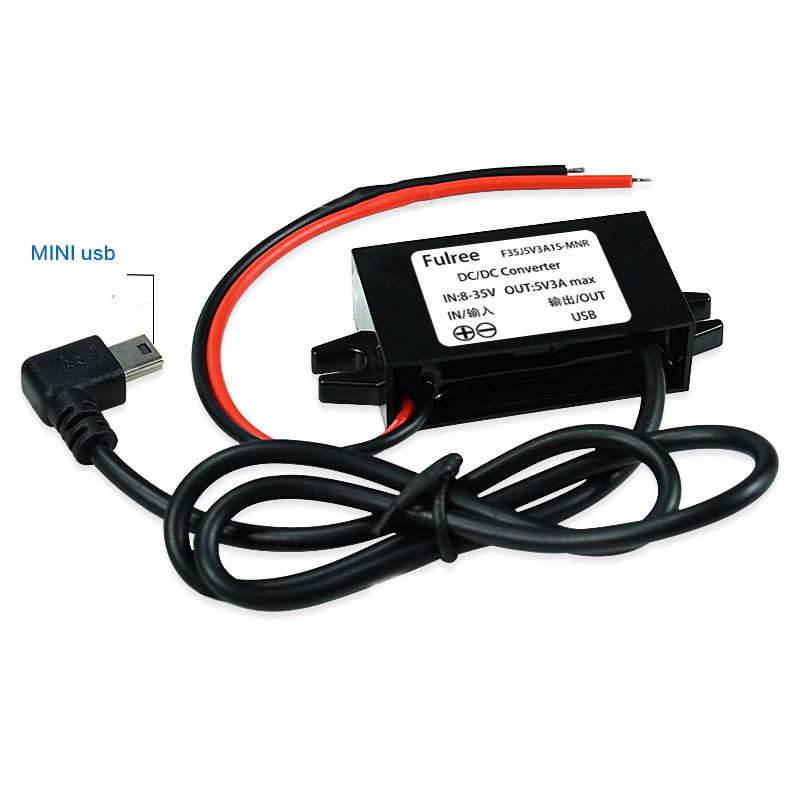

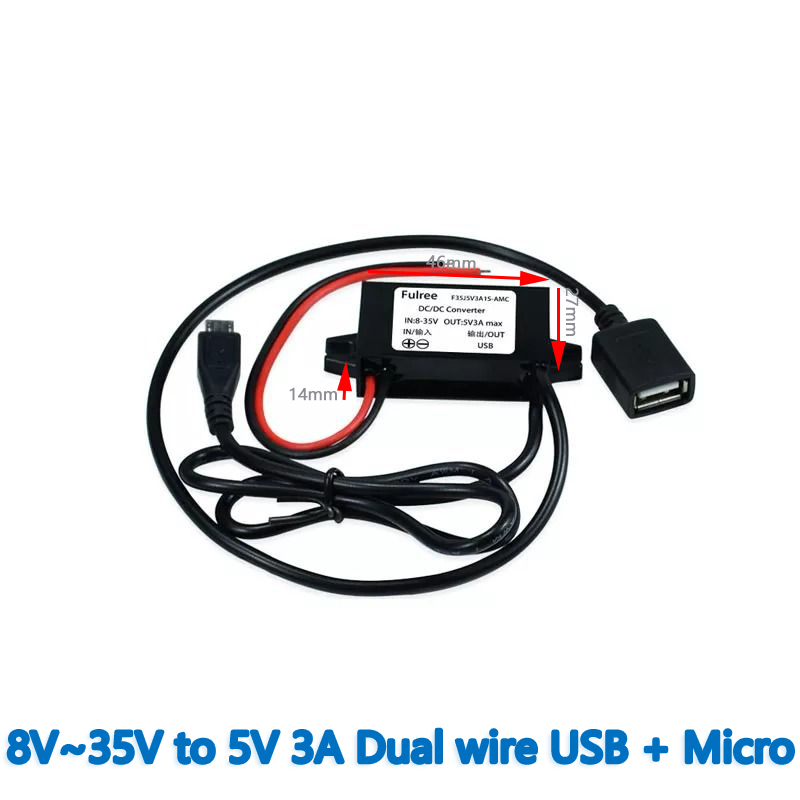

DC DC Converter 12V 24V to 5V Type C USB output

Brand

Fulree

Model No.

Module Properties

non-isolated buck module

Rectification

synchronous rectification

Input

Input Voltage

DC 12V 24V

Input Voltage Range

DC 8-35V

Output

Output Voltage

DC 5V

Output Current

3A, auto-adaption

Output Power

15W Max

Conversion Efficiency

85-90%,95% Max

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 150mV

No-load current

< 100mA

Working Temperature

-25~60℃

Waterproof Rating

IP68

Protection

Over-current protection

Overheat protection

Short-circuit protection

Reverse Polarity Protection

Application

GPS Navigation, Monitoring, MP3/MP4

DVD,LED bulb lights,Smart phones including iPhone

Electrical appliances, industrial equipment, telecommunications and so on.

Certification

CE/RoHS

  Case Material

Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on

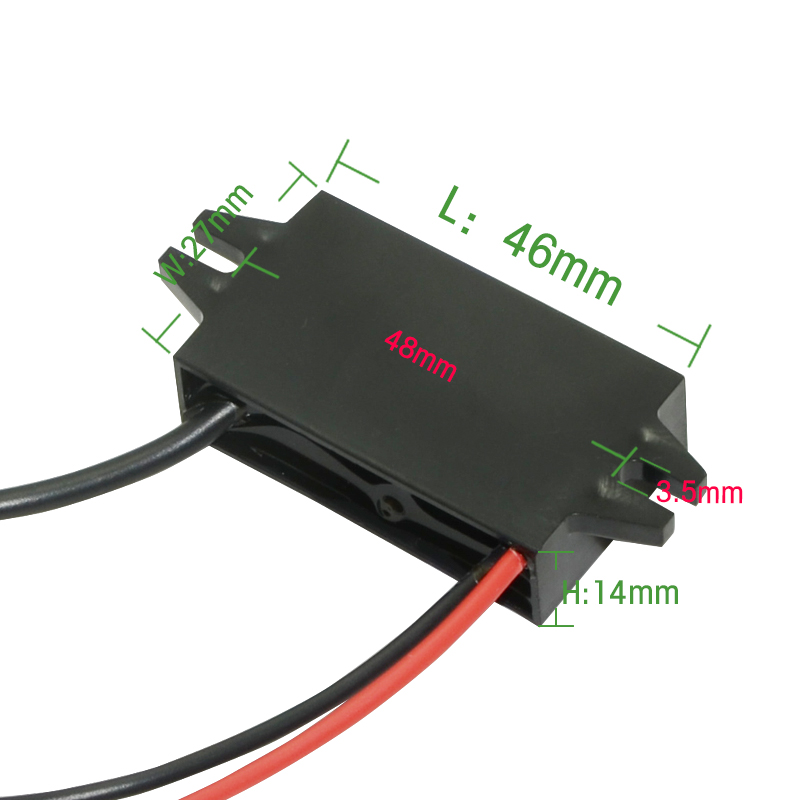

  Product Size (L x W x H)

46*27*14mm

Installation Cable Length

 Input 13-14cm / Output 35cm

Product Weight

 55-65g

Warranty

12 months, lifetime up to 100,000 hours

Cooling Way

Free air convection
