Home > USB Converter Car Charger > Input DC 12V（8-22V） to Output DC 5V 3A Max 15w USB Mobile Phone Charging Charger Circuit PCB Board DC DC Step Down Buck Converter
  • Input DC 12V（8-22V） to Output DC 5V 3A Max 15w USB Mobile Phone Charging Charger Circuit PCB Board DC DC Step Down Buck Converter
  • 12V to 5V 3A 15W USB Mobile Phone Charging Charger Circuit PCB Board DC DC Step Down Buck Converter 12 Volt to 5 Volt
  • Input DC 12V（8-22V） to Output DC 5V 3A Max 15w USB Mobile Phone Charging Charger Circuit PCB Board DC DC Step Down Buck Converter
  • Input DC 12V（8-22V） to Output DC 5V 3A Max 15w USB Mobile Phone Charging Charger Circuit PCB Board DC DC Step Down Buck Converter
  • 12V to 5V 3A 15W USB Mobile Phone Charging Charger Circuit PCB Board DC DC Step Down Buck Converter 12 Volt to 5 Volt
  • Input DC 12V（8-22V） to Output DC 5V 3A Max 15w USB Mobile Phone Charging Charger Circuit PCB Board DC DC Step Down Buck Converter
1/1
Share:

Input DC 12V（8-22V） to Output DC 5V 3A Max 15w USB Mobile Phone Charging Charger Circuit PCB Board DC DC Step Down Buck Converter

4.5 (74)
$2.49 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Discount
  • 3% OFF WITH PURCHASE OVER 10 UNITS
  • 6% OFF WITH PURCHASE OVER 50 UNITS
  • 10% OFF WITH PURCHASE OVER 100 UNITS
    Please select the information you want X
  • MODEL:
    8~22V-5V-3A
Quantity:
Availability: In Stock
  • Description

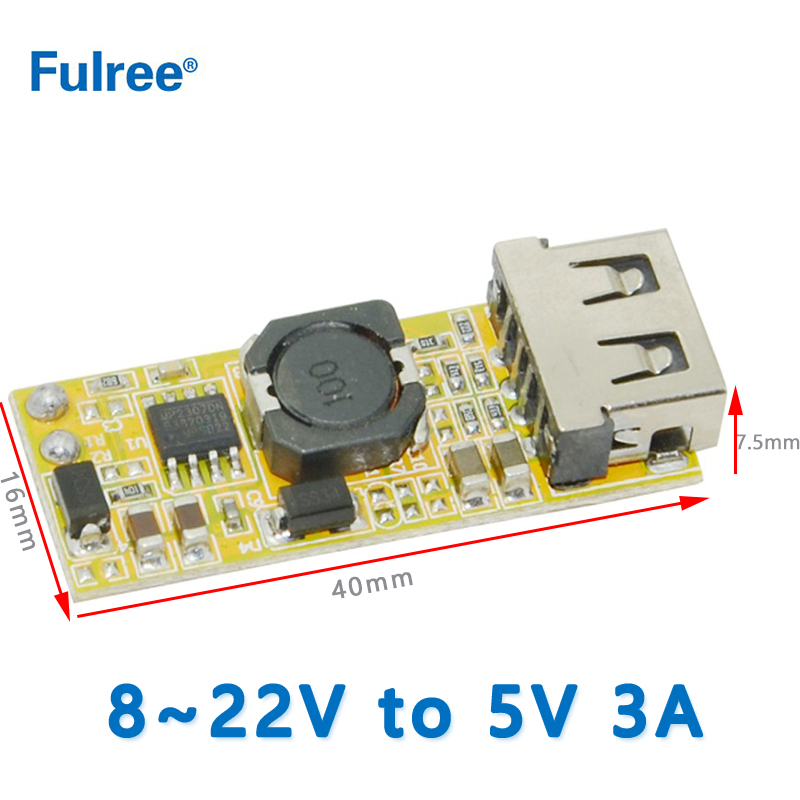

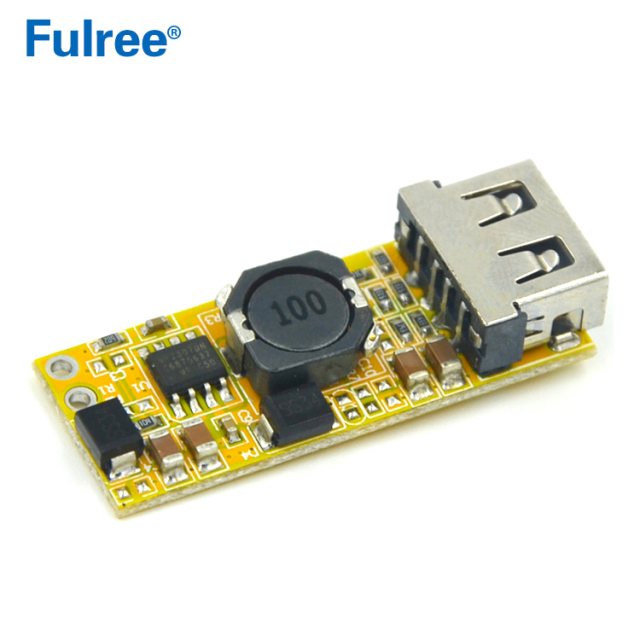

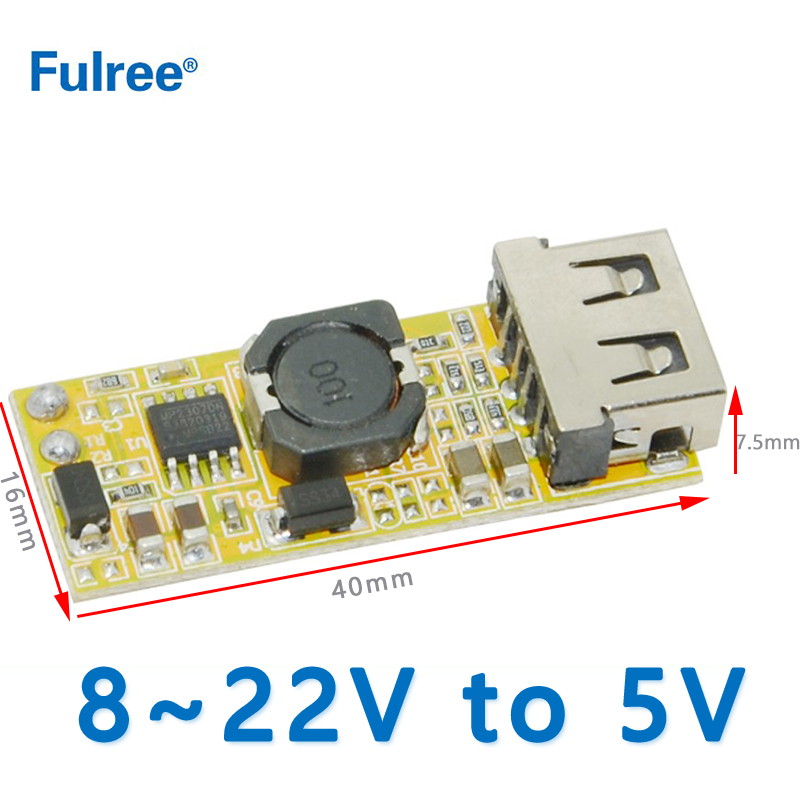

Input DC   12V（8-22V）    to  Output DC 5V 3A Max  15w    USB Mobile Phone Charging Charger Circuit PCB Board DC DC Step Down Buck Converter

Model F22J5V3AL-A
Input rated voltage DC 12V
Input voltage range DC 8-22V
Efficiency 93% (half load), 91% (full load)
Output voltage DC 5V
Output current 3A Max
Output rated power 15W Max
Voltage regulation < 3%
Load regulation < 2%
Working temperature

-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use,

or to enhance heat dissipation)
Module Properties

non-isolated buck module(buck)
Rectification synchronous rectification
Full load temperature rise: 40°c
Protection Over-current, Over-temperature,  Short-circuit protection,Input Reverse Polarity Protection
NW 20G
Product size  40*16*7.5mm

Attention:

>Pls install according to the the label strictly
>To assure this converter has the sufficient voltage and power, pls make sure the voltage and power input is enough.





12V to 5V 3A 15W USB Mobile Phone Charging Charger Circuit PCB Board DC DC Step Down Buck Converter 12 Volt to 5 Volt12V to 5V 3A 15W USB Mobile Phone Charging Charger Circuit PCB Board DC DC Step Down Buck Converter 12 Volt to 5 Volt
