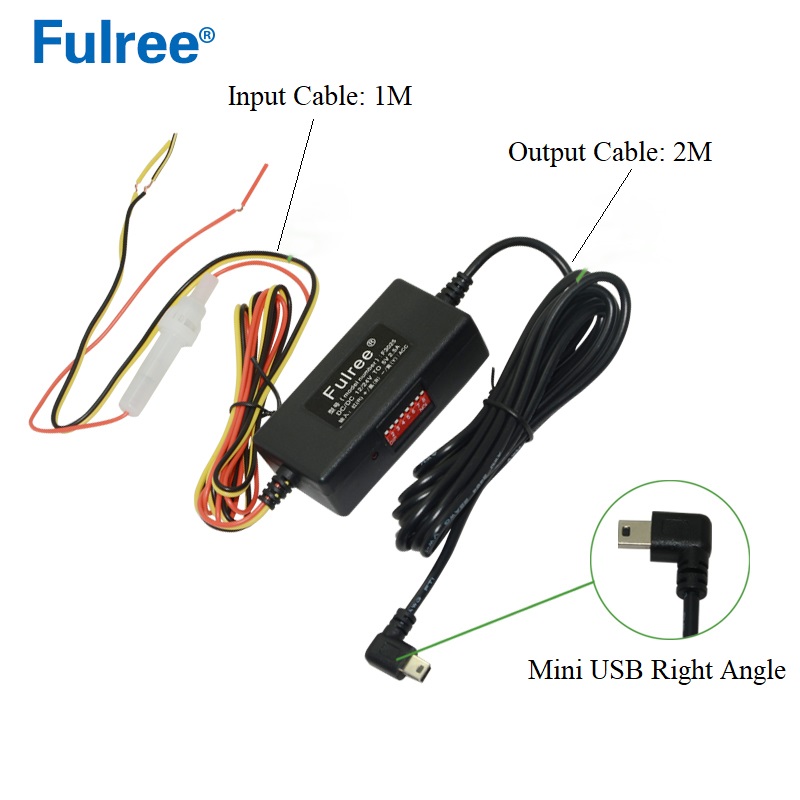

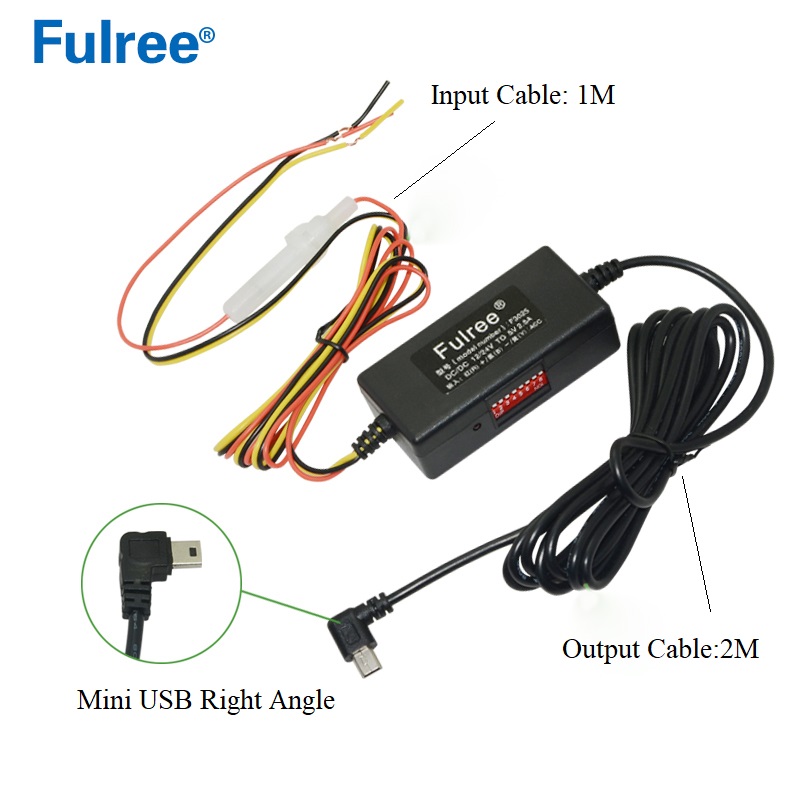

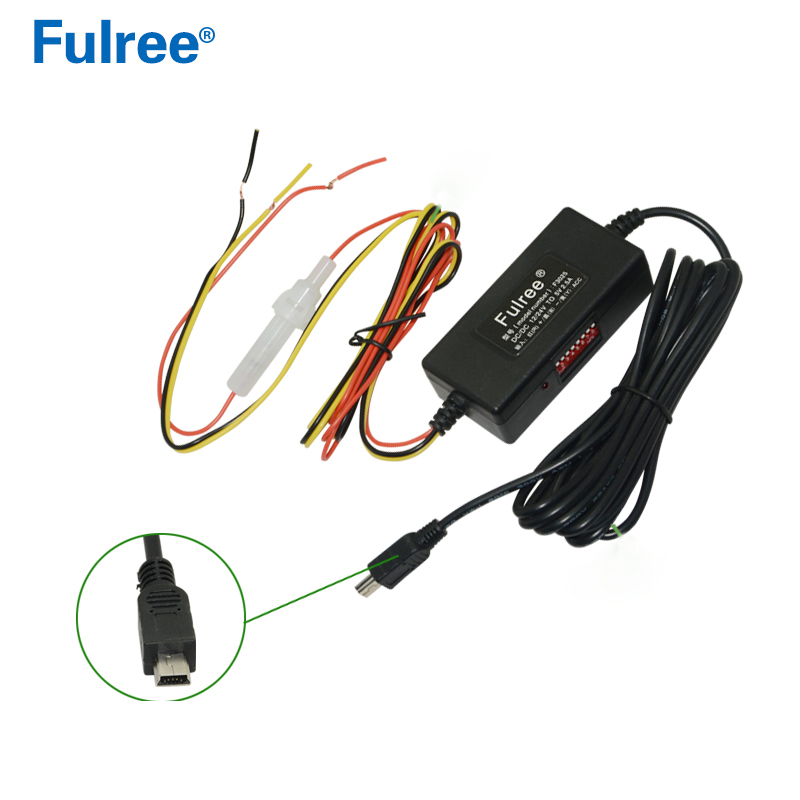

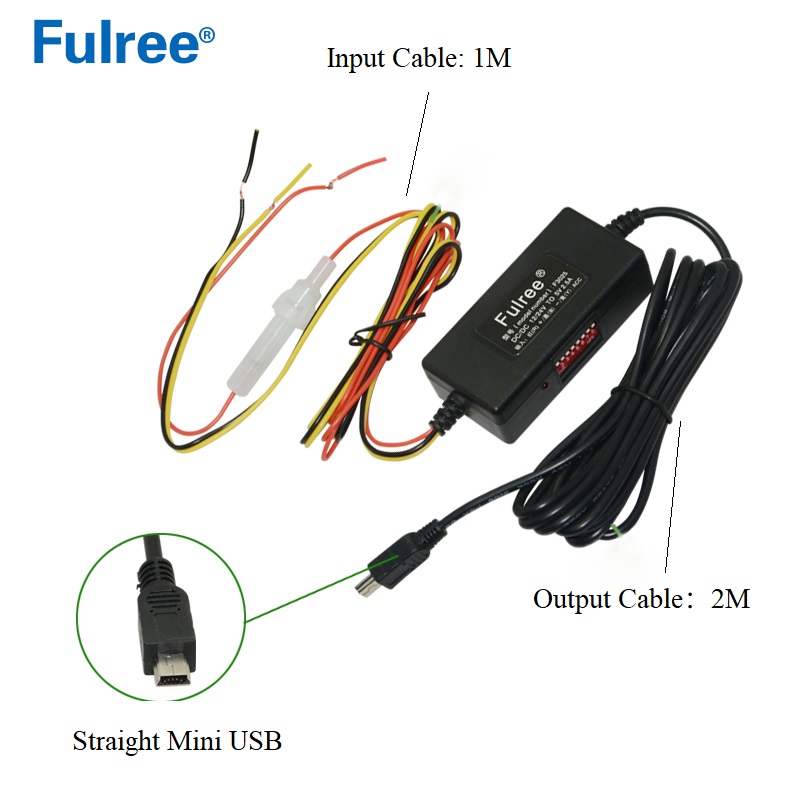

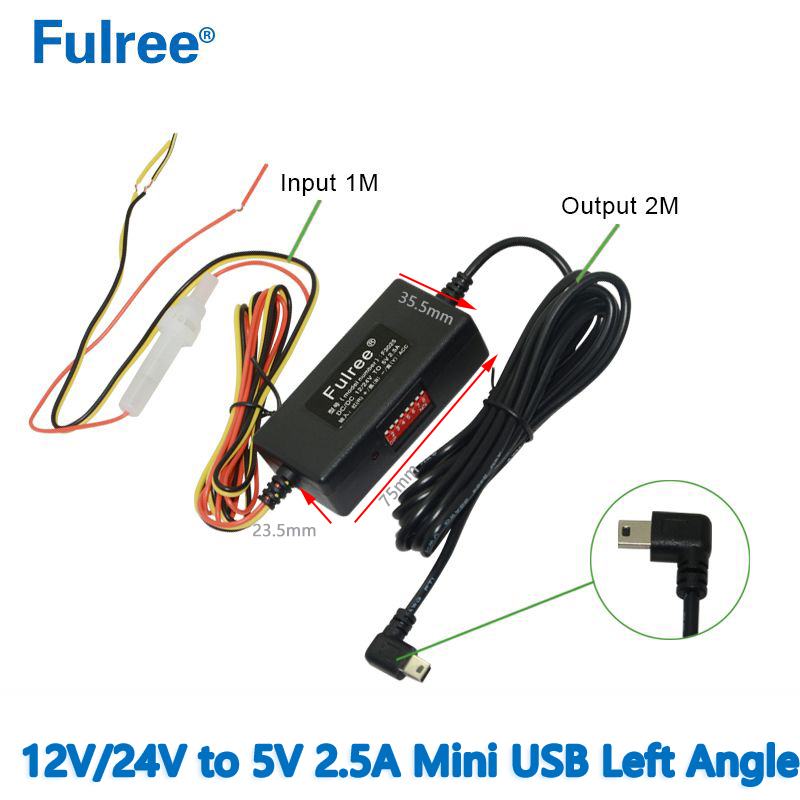

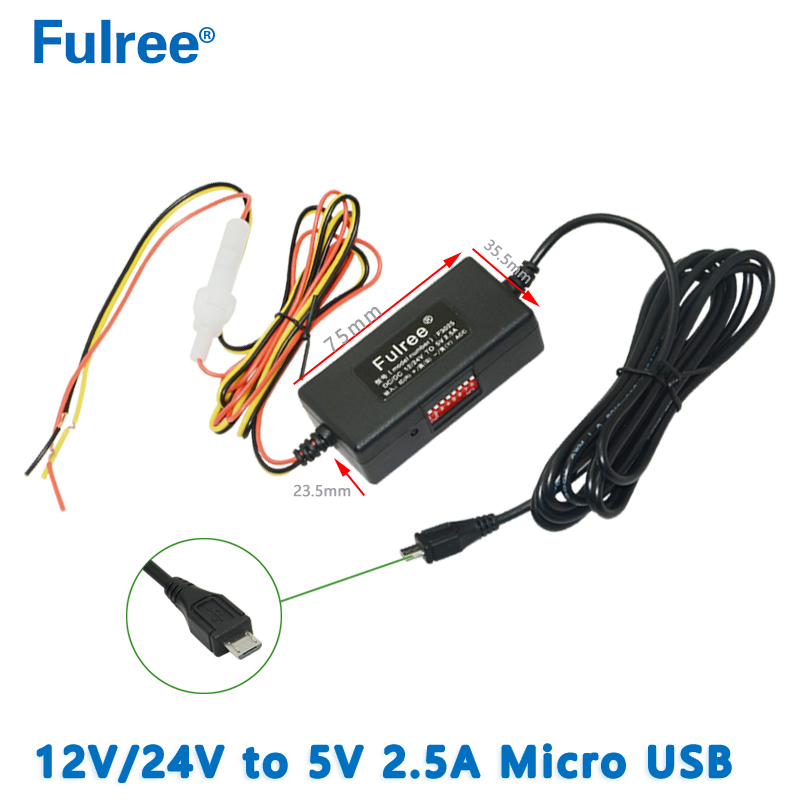

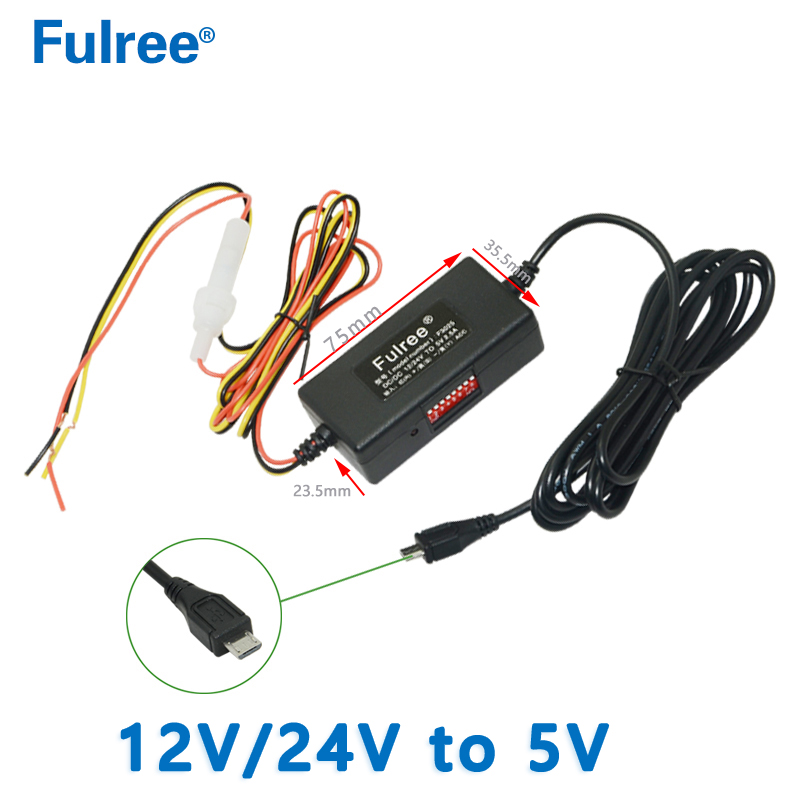

Mini Micro USB Input DC 12V/24V to   Output DC 5V 2.5A  DC to DC converter for Car Dashcam Camera 24 Hours Parking Monitoring

>Input voltage: DC 12V/24V (8V-30V)

 >Output voltage: 5V

>Output current: 2.5A

>Output Power: 12.5W

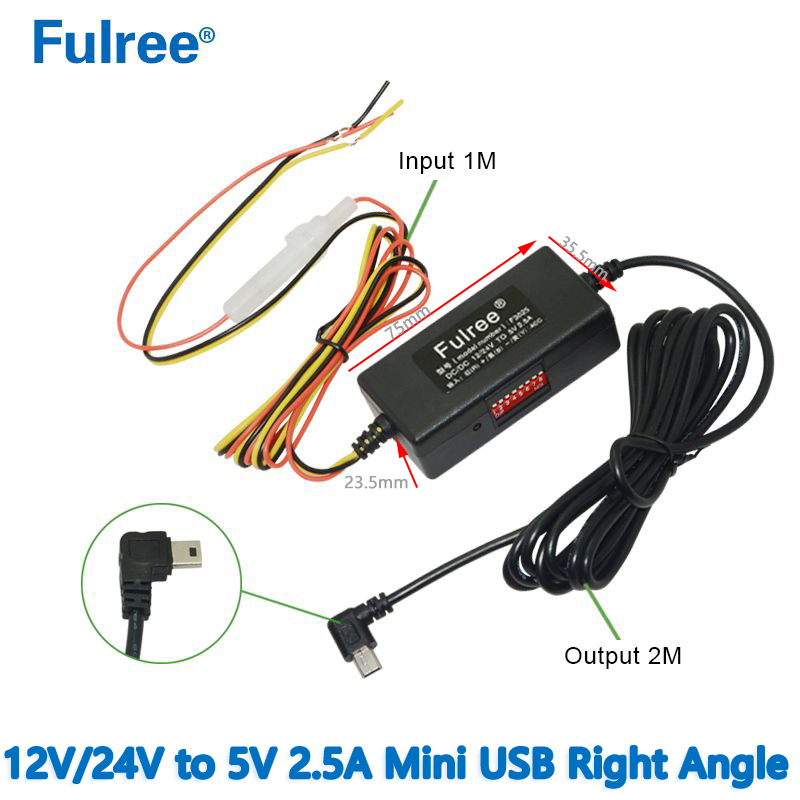

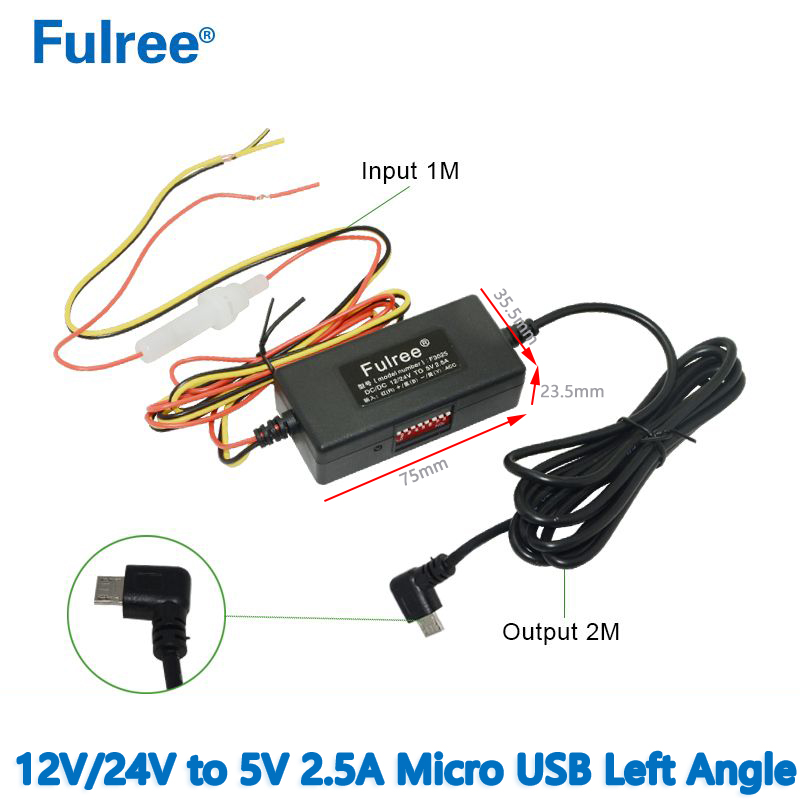

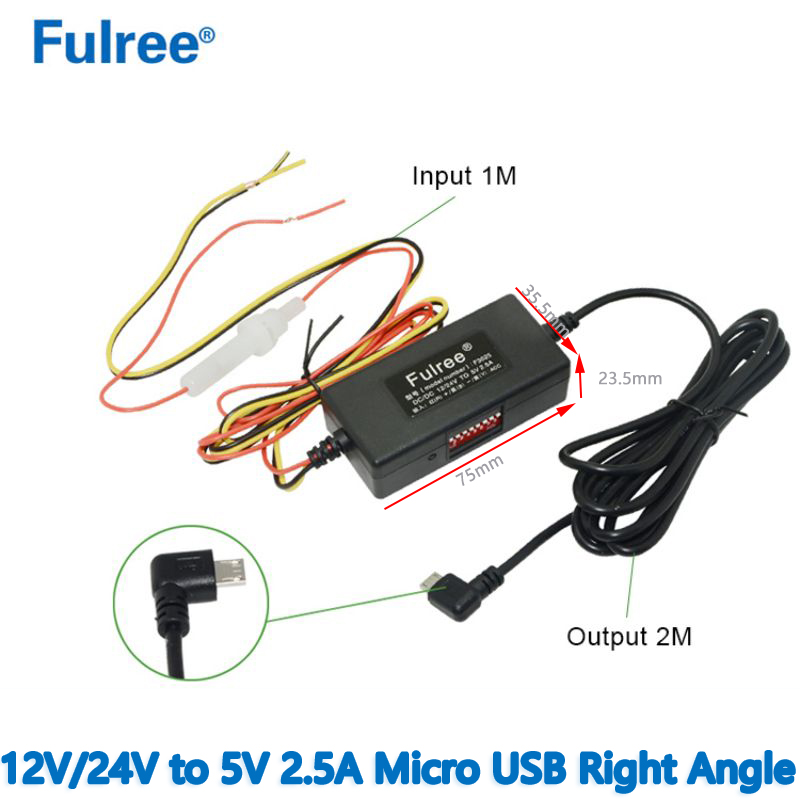

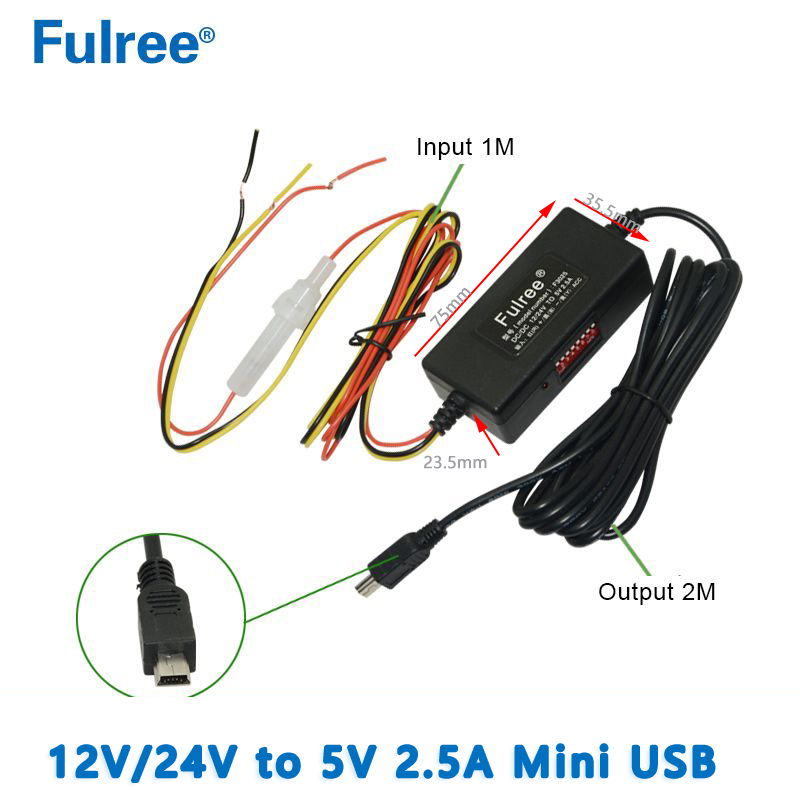

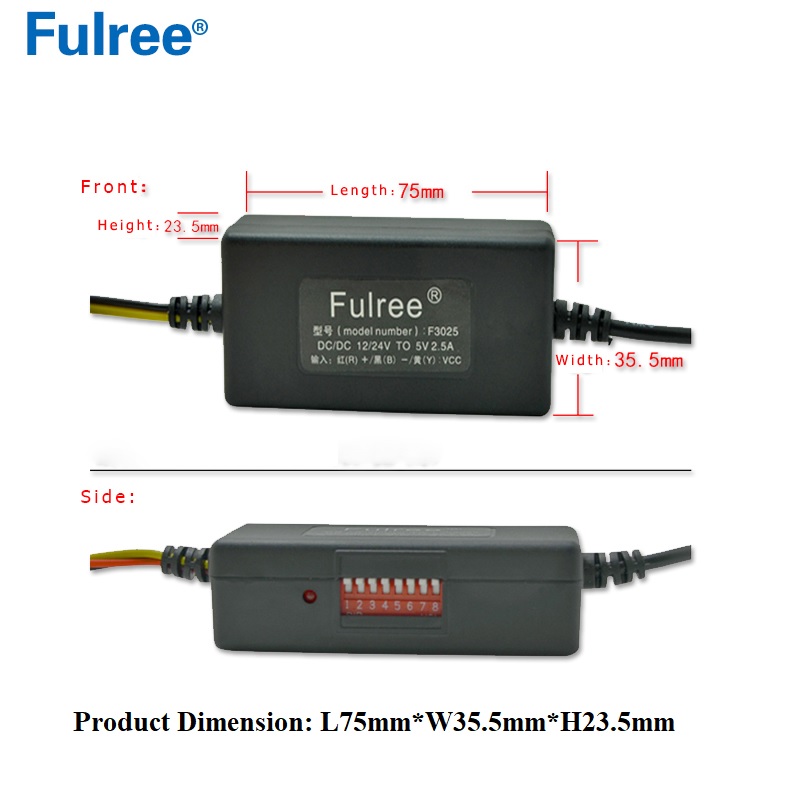

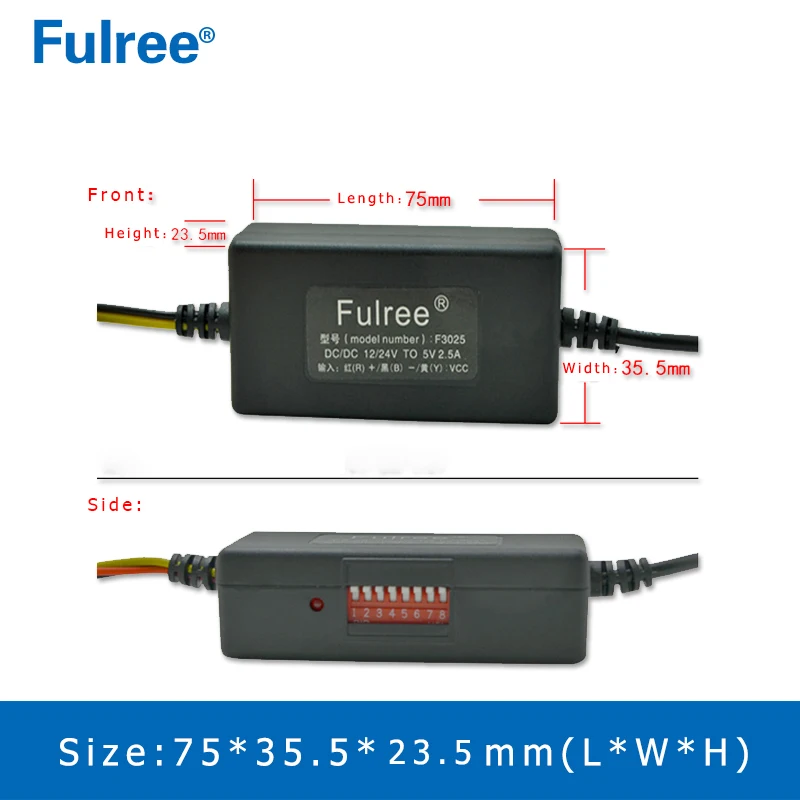

>Size: L75mm*W35.5mm*H23.5mm(not include the cable)

Benifits:   Ideal power solution for driving recorder & nagivator ETC.

Specifications:

 • Module Properties: non-isolated buck module (BUCK)

 • Rectification: synchronous rectification • Minimum pressure difference: 3V

 • Conversion efficiency: 90% • Soft-start time: 500mS • Output ripple: 50mV (MAX) 20M-

bandwidth

 • Full load temperature rise: 50°c

 • Load regulation: ± 1%

 • Voltage regulation: ± 2%

 • Dynamic response speed: 5% 200uS • Operating Temperature: Industrial (-25°c to +65°c) ( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)

Feature:

Over-Current 2.5A protection

Over-Voltage 5.6V Protection

Low Voltage Protection

Short-circuit protection

Input Reverse Polarity Protection

Intelligent Controller

1.Delay Start : Automactive delay 12 Seconds to start the power to avoid the restarting under some unstable voltage condition.For example,  the voltage may be unstable when the user start the car.

2.Keep working 30 Seconds for low voltage suddenly: the power can continue working for 30 seconds as long as input voltage is higher than 8V and ACC is till powering when the voltage drop low suddenly during the converter is working, this is also apply even the user setted the Minimum start voltage, the converter will continue working if the input voltage can revive to normal within 30 seconds, or it will be closed! For example, the Driving recorder can still keep working under this function if the voltage was dropped when the user turn on the headlight suddenly.

3. Low Voltage Protection: Protect voltage and monitor time can be selected by different number buttons as below. Ideal Power Solution for GPS nagivator,Car Driving DVR recorder,Mobile Phone and Car related consumer Electroincs.

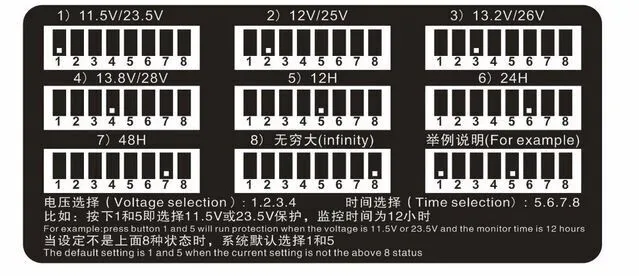

Voltage selection button:
1.(11.5V/23.5V)
2. (12V/25V)
3.(13.2V/26V)
4.(13.8V/28V)

Monitor Time selection:
5.(12H)
6.(24H)
7.(48H)
8.infinity

For example: press button 1 and 5 will run protection when the voltage is 11.5V or 23.5V and the monitor time is 12 hours. It means that the input voltage is lower than 11.5V or 23.5V,then the output is not available, the power will be closed after working 12 hours normally.The default setting is 1 and 5 when the current setting is not the above 8 status.
