Product Name
|
Fulree DC DC Converter 24V to 12V 25A 300W 30A 360W
|
|
Brand
|
Fulree
|
|
Model No.
|
F**J12V**A6L |
|
Module Properties
|
non-isolated buck module
|
|
Rectification
|
synchronous rectification
|
|
Input ( Cable:16CM 12AWG )
|
|
Input Voltage
|
DC 24V / 36V
|
|
Input Voltage Range
|
DC 15-48V
|
|
Output ( Cable:16CM 12AWG )
|
|
Output Voltage
|
DC 12V
|
|
Output Current
|
25A / 30A optional
|
|
Output Power
|
300W / 360W optional
|
|
Conversion Efficiency
|
96% (half load), 95.5% (full load) |
|
Voltage regulation
|
±1%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
< 150mV
|
|
No-load current
|
<100mA
|
|
Working Temperature
|
-40~80℃
|
|
Waterproof Rating
|
IP68
|
|
Protection
|
Over-current protection
|
|
Over-voltage protection
|
|
Overheat protection
|
|
Short-circuit protection
|
|
Input/Output Reverse Polarity Protection
|
No, please follow label instructions wiring strictly: red for input positive, black is negative, white for output positive.
|
|
Certification
|
CE/RoHS
|
|
Case Material
|
Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on
|
|

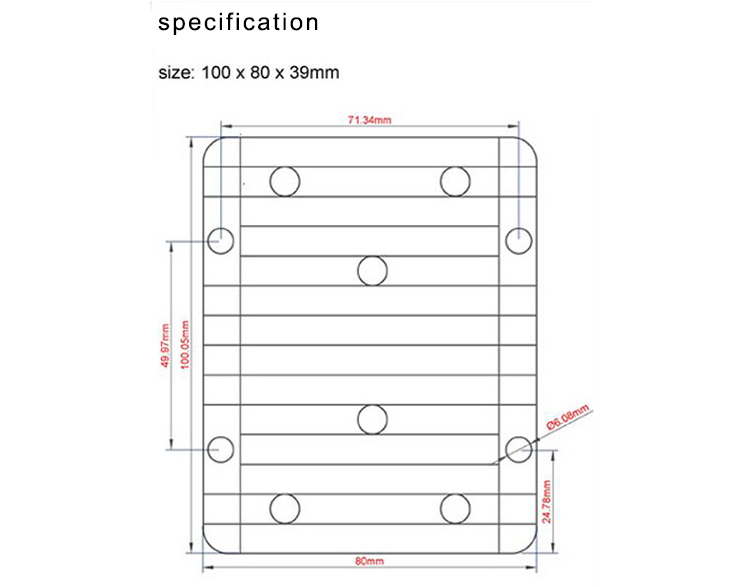

Product Size (L x W x H)
|
100*80*39mm
|
|
Product Weight
|
500g
|
|
Packing Information
|
30PCS/CTN, Carton Size:42.5*21*20.5CM, G.W 16.50KG/CTN
|
|
Warranty
|
12 months, lifetime up to 100,000 hours
|
|
Cooling Way
|
Free air convection
|
