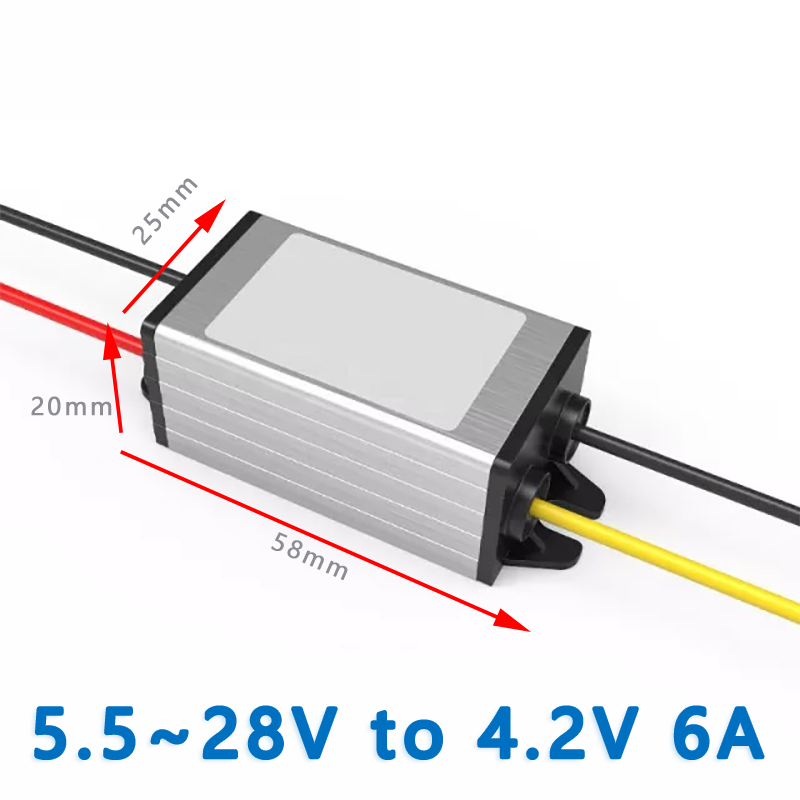

DC-DC converter DC12V/24V to DC(3.3-9V) 6A (20W-54W)
Product Classification: 3.3V6A 3.7V6A 4.2V6A 9V6A 7.5V6A 5V6A 6V6A
Other voltages 10 Order: 12V / 24V switch 5V / 3.3V / 3.7V / 4.2V / 5V / 6V / 7.5V / 9V 6A
Details:
1, the first this baby is a variety of voltage can be selected; shell and wire are the same; but, depending on the output voltage, the internal arrangement of different components, see the following details of the specific parameters. Please parents who choose their own voltage need to take.
2. All components are imported, synchronous rectification, aluminum alloy shell, waterproof, shock, moisture and dust. Full power, the performance is very stable.
3. Conversion rate: more than 93% Operating temperature: -40 ℃ ~ + 85 ℃ (Industrial Temperature)
4. Enter the high-voltage transient protection, output overcurrent protection, output short circuit protection, chip overheating protection.
5, for a voltage range of appliances: electric motors, audio, navigation, surveillance, LED car display, air conditioning, fans, solar energy, photovoltaic energy, DVD, LED lights, motors, pumps, electrical appliances and industrial equipment, and so on.
6, water supply: normal shelf life of six months.
Note Description: This baby maximum input voltage 28V, suitable for 12V small car, if your car is a voltage of 24V; please choose another shop a wide input voltage baby. Because the car will be greater than 24V voltage fluctuations above 30V.

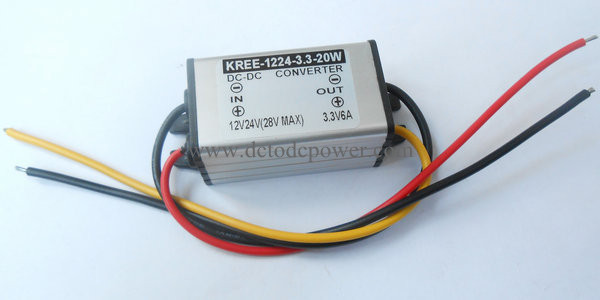

Power Model: KREE-1224-3.3-20W
Input voltage: DC12V / 24V (Wide Voltage 5.5V-28V)
Output voltage: DC3.3V
Output Current: 6A
Output Power: 20W

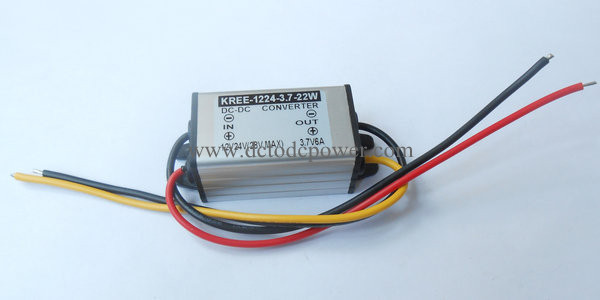

Power Model: KREE-1224-3.7-22W
Input voltage: DC12V / 24V (Wide Voltage 6V-28V)
Output voltage: DC3.7V
Output Current: 6A
Output Power: 22W

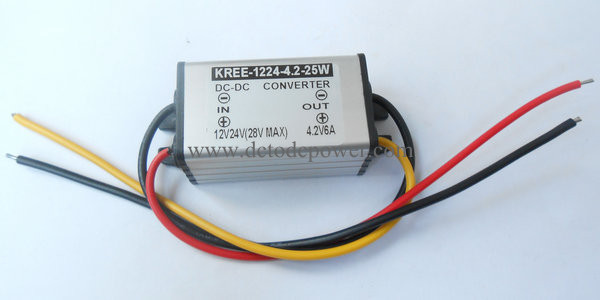

Power Model: KREE-1224-4.2-25W
Input voltage: DC12V / 24V (Wide Voltage 6V-28V)
Output voltage: DC4.2V
Output Current: 6A
Output Power: 25W

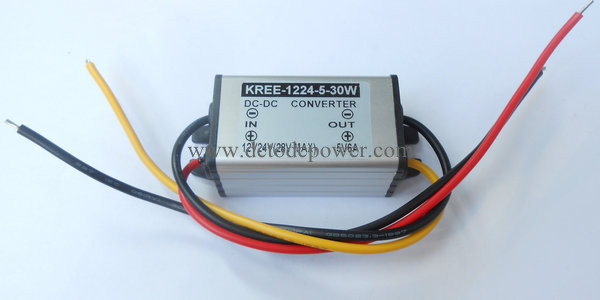

Power Model: KREE-1224-5-30W
Input voltage: DC12V / 24V (wide voltage 7V-28V)
Output voltage: DC5V
Output Current: 6A
Output Power: 30W

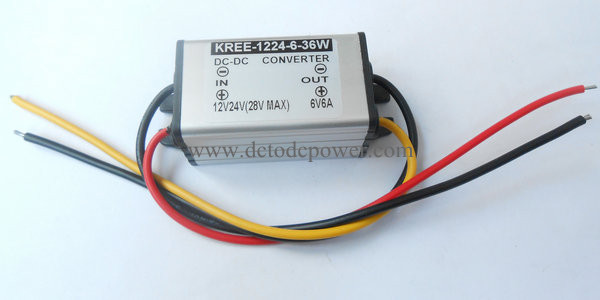

Power Model: KREE-1224-6-36W
Input voltage: DC12V / 24V (wide voltage 8V-28V)
Output voltage: DC6V
Output Current: 6A
Output Power: 36W

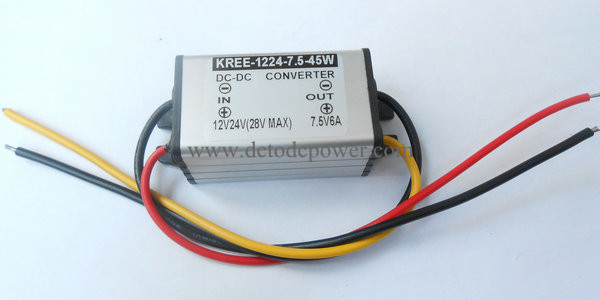

Power Model: KREE-1224-7.5-30W
Input voltage: DC12V / 24V (wide voltage 9V-28V)
Output voltage: DC7.5V
Output Current: 6A
Output Power: 45W

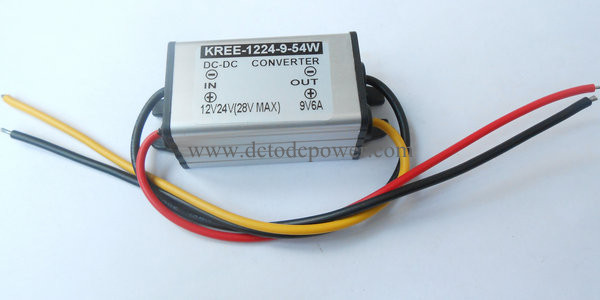

Power Model: KREE-1224-9-54W
Input voltage: DC12V / 24V (wide voltage 11V-28V)
Output voltage: DC9V
Output Current: 6A
Input Power: 54W
| Model |
|
| Input rated voltage |
DC12/24V |
| Input voltage range |
5.5V-28V |
| Efficiency |
more than 93% |
| Output voltage |
DC 3.3V/3.7V/4.2V/5V/6V/7.5V/9V |
| Output current |
6A |
| Output rated power |
20-54 Watts |
| Voltage regulation |
< 1% |
| Load regulation |
< 2% |
| Ripple |
|
| Working temperature |
-40℃ to +80℃(Industrial Temperature) |
| Waterproof rating |
IP68 |
| Over-voltage protection |
YES |
| Over-current protection |
YES |
| Over-temperature protection |
YES |
| Short-circuit protection |
NO |
| Item size |
46 * 32 * 18MM |
| N. Weight |
53g |
| Cooling way |
Free air convection |
