Input DC 9V-36V to Output DC 12V 1A 2A 3A 4A 5A 6A 8A 10A 15A 20A 25A DC to DC Converter

5.0 (29)

$8.50

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

3% OFF WITH PURCHASE OVER 10 UNITS
6% OFF WITH PURCHASE OVER 50 UNITS
10% OFF WITH PURCHASE OVER 100 UNITS

Please select the information you want X

MODEL:

(9V~36V)-12V-1A-plastic shell

(9V~36V)-12V-2A-plastic shell

(9V~36V)-12V-3A-plastic shell

(9V~36V)-12V-4A-plastic shell

(9V~36V)-12V-5A-plastic shell

(9V~36V)-12V-1A-medium aluminum shell

(9V~36V)-12V-2A-medium aluminum shell

(9V~36V)-12V-3A-medium aluminum shell

(9V~36V)-12V-4A-medium aluminum shell

(9V~36V)-12V-5A-large aluminum shell

(9V~36V)-12V-6A-large aluminum shell

(9V~36V)-12V-8A-large aluminum shell

(9V~36V)-12V-10A-large aluminum shell

(9V~36V)-12V-12A-large aluminum shell

(9V~36V)-12V-15A-enlarged aluminum shell

(9V~36V)-12V-20A-enlarged aluminum shell

(9V~36V)-12V-25A-enlarged aluminum shell

Quantity:

Availability: In Stock

Description

Input DC 9V-36V to Output DC 12V 1A 2A 3A 4A 5A 6A 8A 10A 15A 20A 25A DC to DC Converter

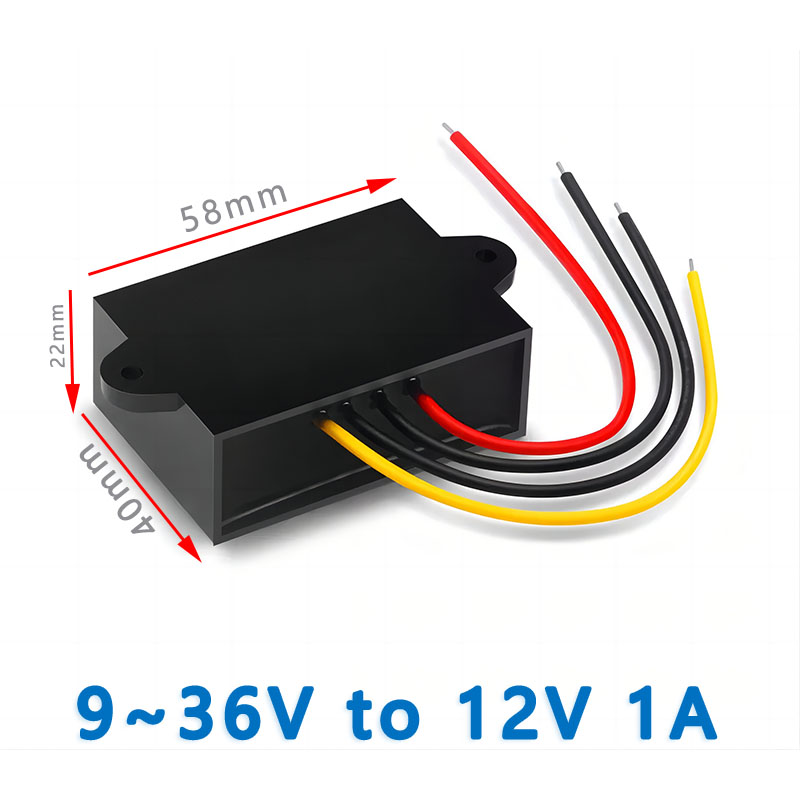

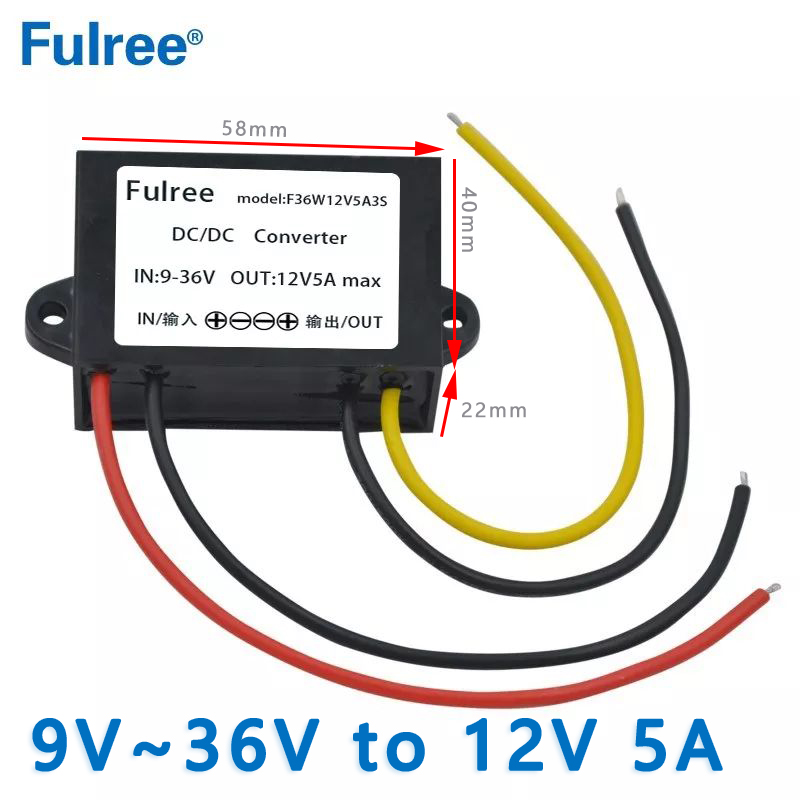

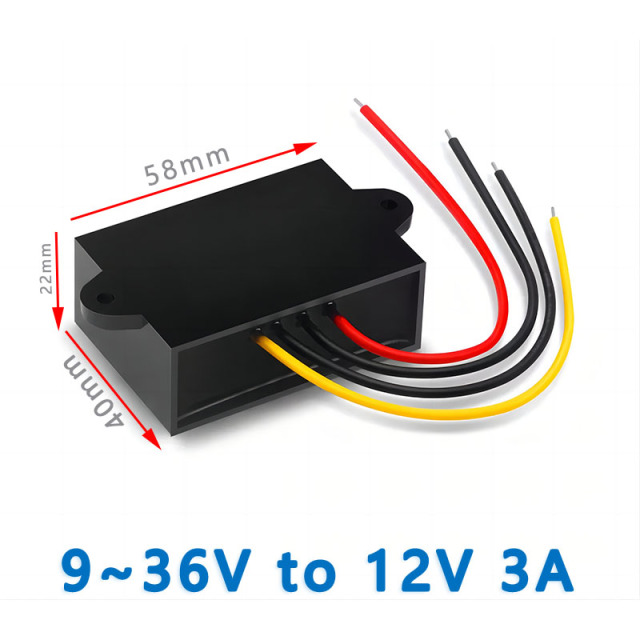

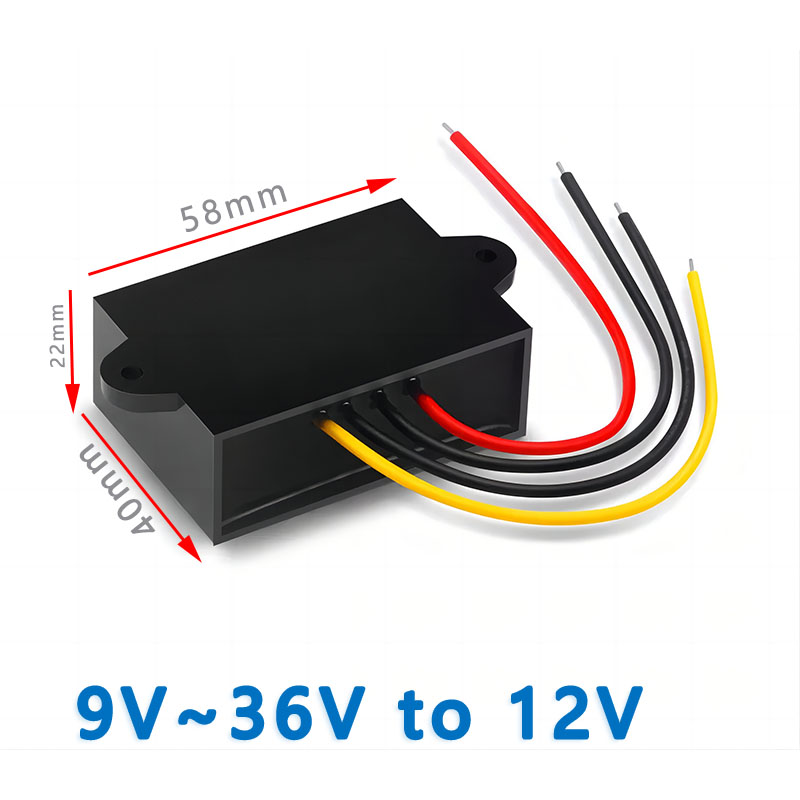

Input DC 9V-36V to Output DC 12V 1A 2A 4A 5A plastic shell DC converter

Product Name	Input DC 9V-36V to Output DC 12V 1A 2A 3A 4A 5A plastic shell DC converter
Input rated voltage	DC 9V-36V
Input voltage range	9V-36V
Efficiency	93% (half load), 91% (full load)
Output voltage	DC12V
Output current	1A / 2A 3A 4A 5A Max
Output rated power	14W 28W 36W 48W 60W Max
Voltage regulation	< 1%
Load regulation	< 2%
Working temperature	-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Module Properties	non-isolated boost module
Rectification	synchronous rectification
Waterproof rating	IP68
Full load temperature rise:	50°c
Protection	Over-current, Over-temperature,Instant absorption of high voltage protection waterproof IP68 design, anti-shock protection
Short-circuit protection	NO, if need pls add fuse on the positive pole on input
Input Reverse Polarity Protection	None (Please Series diode at the input port.)
NW	100G
Product size	584022MM
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged >To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.

DC 5V 6V 7V 8V 9V 10V 11V to DC 12V 1A 2A 3A Boost Step Up Converter 5 6 7 8 9 10 11 Volt to 12 Volt Booster Module

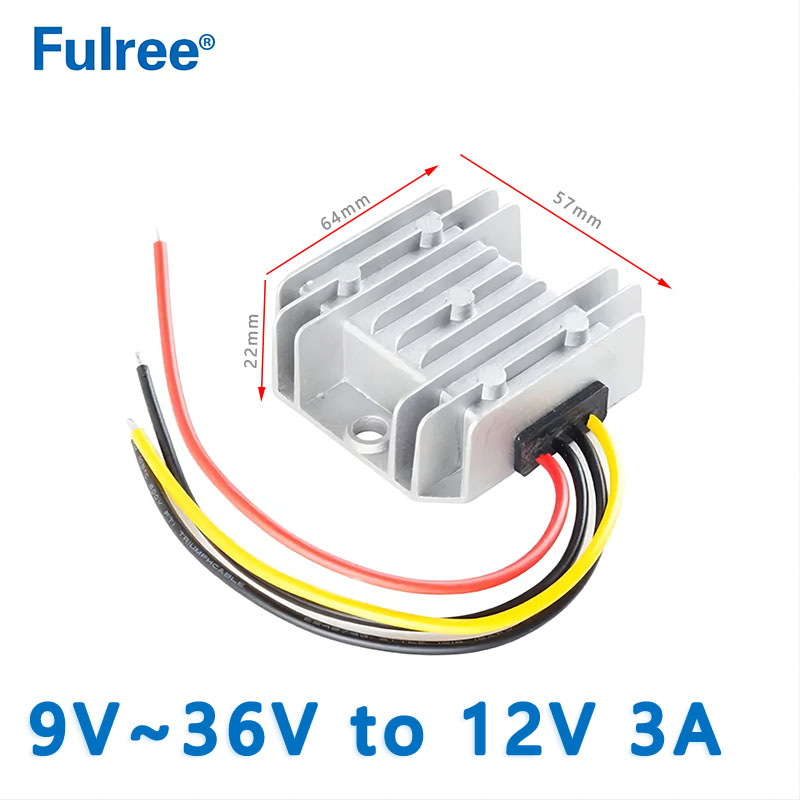

Input DC 9V-36V to Output DC 12V 1A 2A 3A 4A medium aluminum shell DC converter

Input DC 9V-36V to Output DC 12V 1A 2A 3A 4A medium aluminum shell DC converter
Input voltage range	9V-36V
output voltage	12V
Output current	1A 2A 3A 4A
output power	12~48w
Shell material	Die cast aluminum
potting material	epoxy resin
Waterproof grade	IP68
conversion efficiency	95%
Static power consumption	10~15ma
Wire length	13-14cm
Net weight	120g
Product size	666022mm

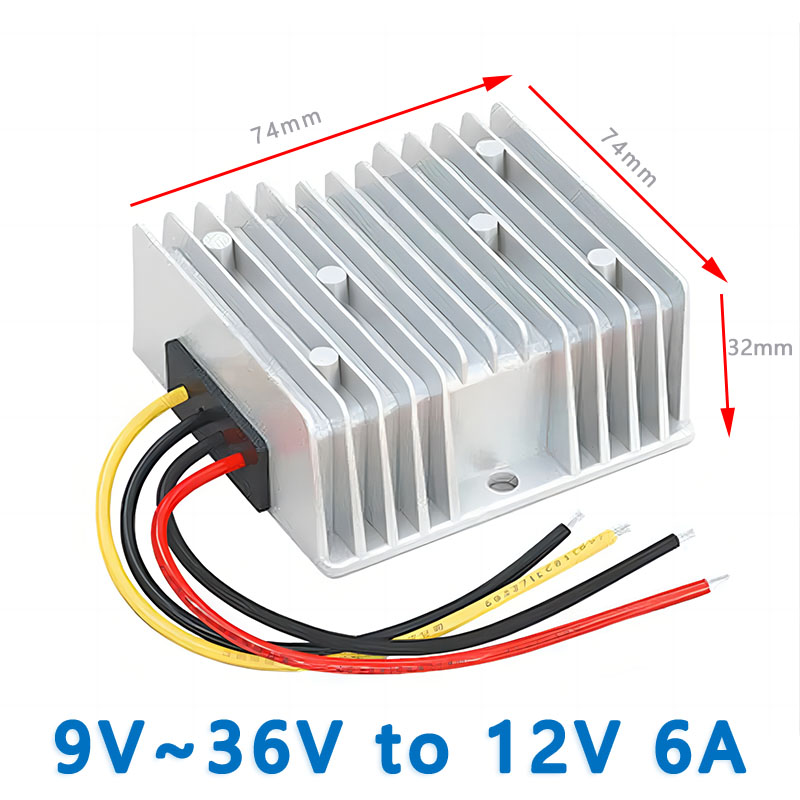

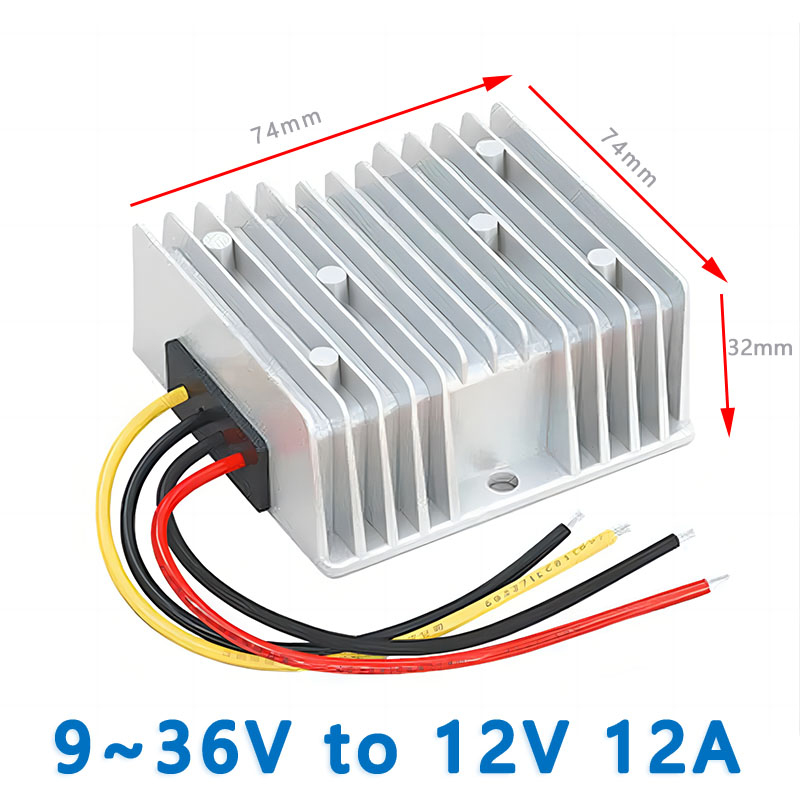

Input DC 9V-36V to Output DC 12V 5A 6A 8A 10A 12A large aluminum shell DC converter

DC 9V-36V to DC 12V 5A 6A 8A 10A 12A large aluminum shell DC converter
Input voltage range	DC 9V-36V
output voltage	12V
Output current	5A 6A 8A 10A 12A
output power	60W~144W
Shell material	Die cast aluminum
potting material	epoxy resin
Waterproof grade	IP68
conversion efficiency	95%
Net weight	0.25KG
Product size	747432MM

48vdc to 24vdc dc to dc converters, 48v 24v step down transformer 500W buck power supply

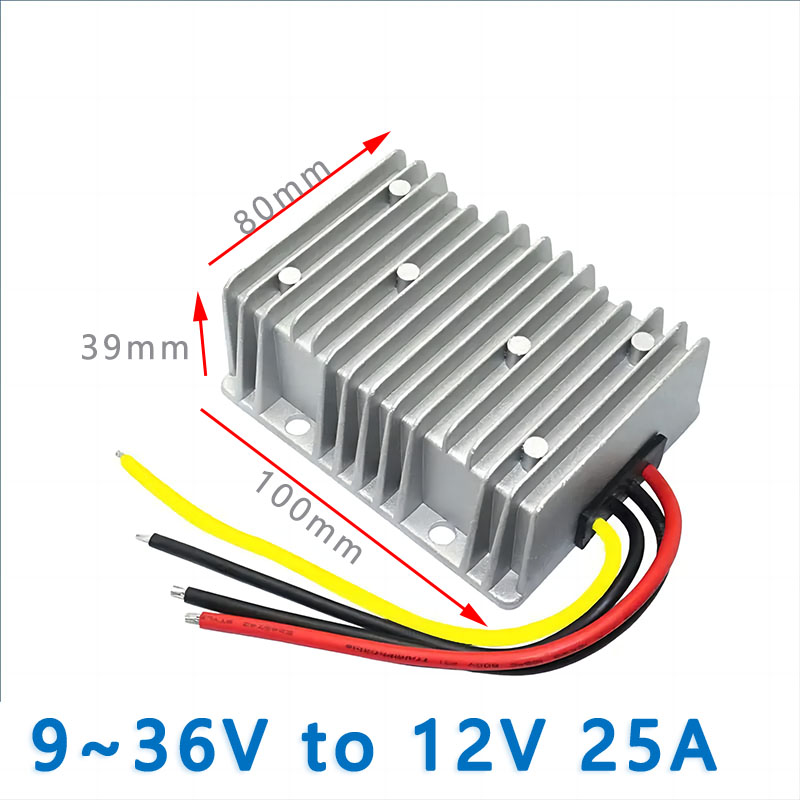

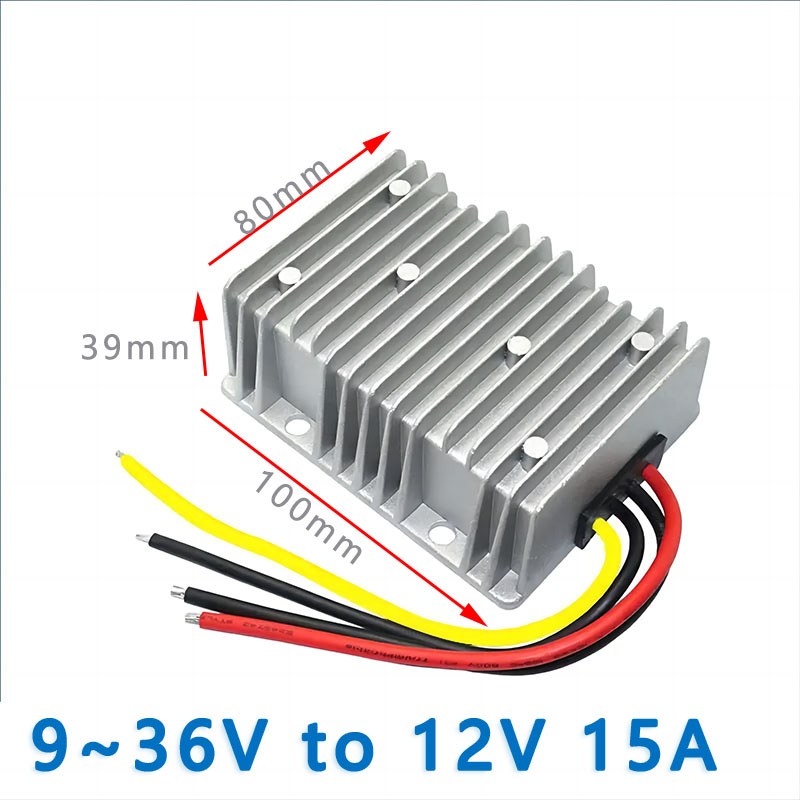

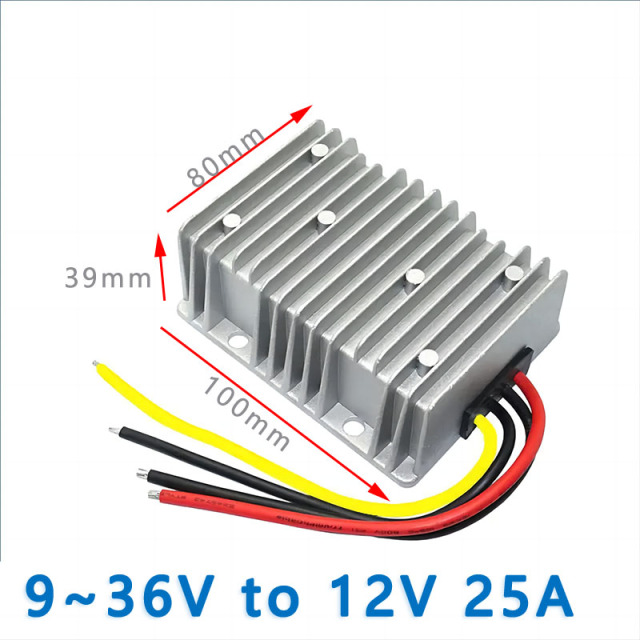

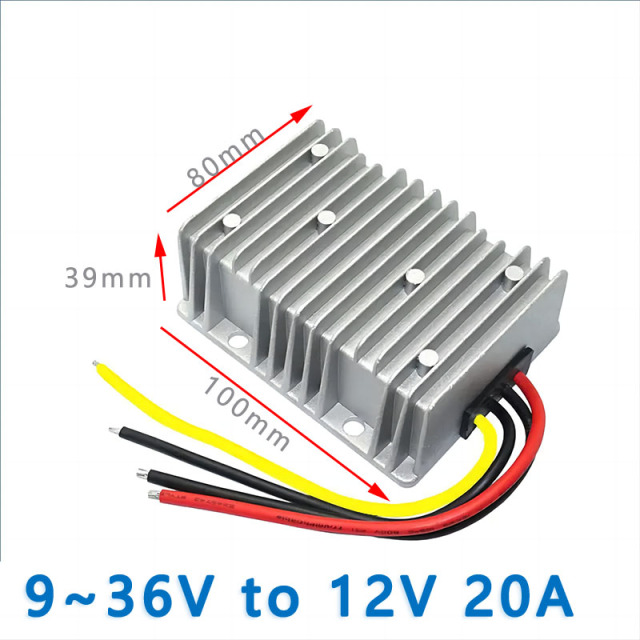

Input DC 9V-36V to Output DC 12V 15A 20A 25A enlarged aluminum shell DC converter

Input DC 9V-36V to Output DC 12V 15A 20A 25A enlarged aluminum shell DC converter
Input voltage range	9V-36V
output voltage	12V
Output current	15A 20A 25A
output power	180w~300w
Shell material	Die cast aluminum
potting material	epoxy resin
Waterproof grade	IP68
conversion efficiency	95%
Net weight	0.56KG
size	1008039mm
