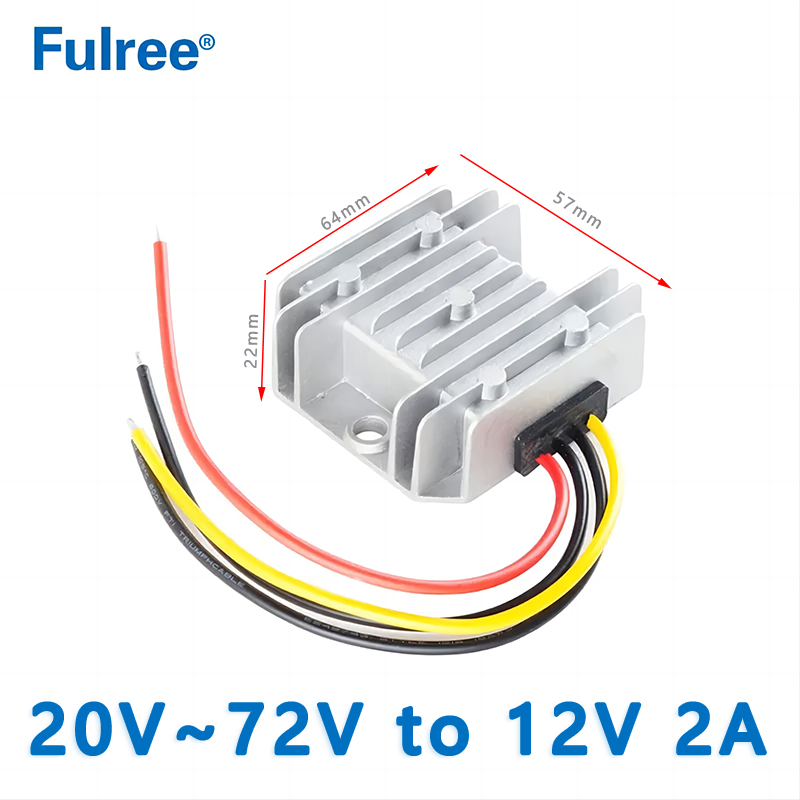

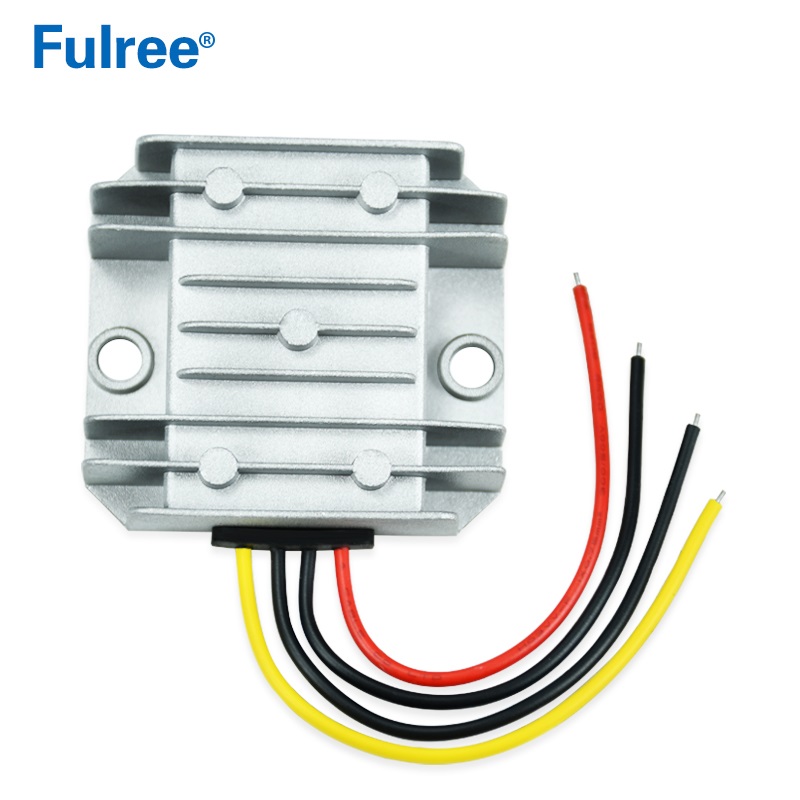

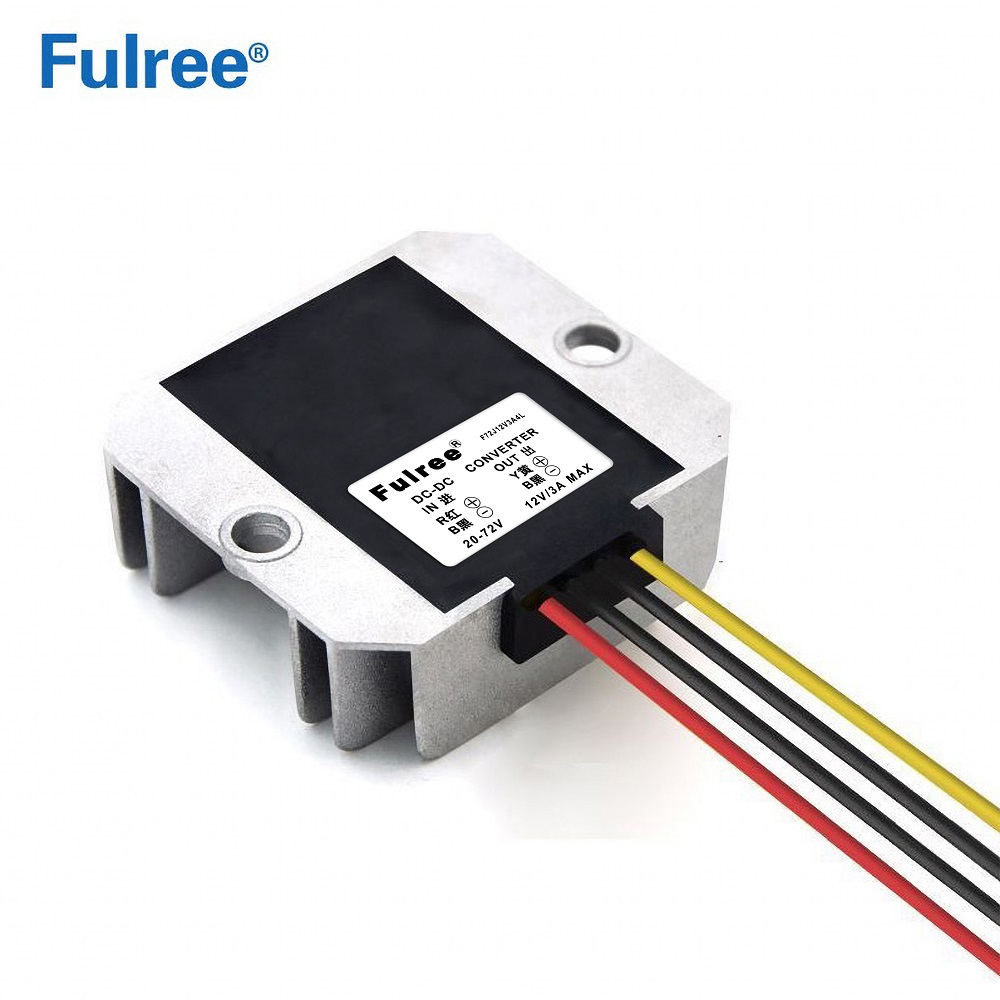

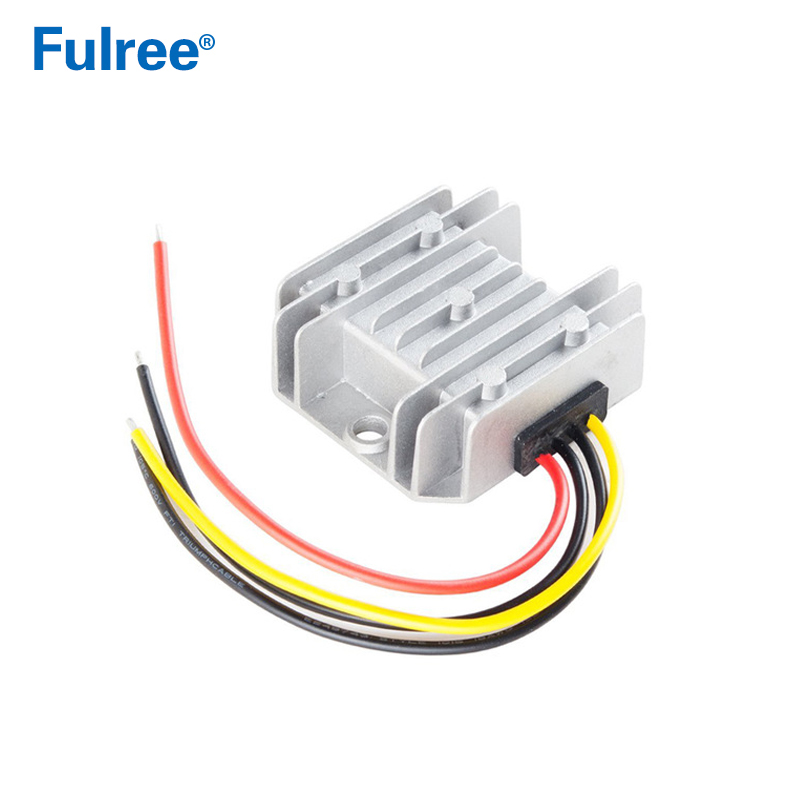

Input DC 36V 48V 60V (20-72V) to Output DC 12V 1A 2A 3A 5A 6A 8A DC DC Car Step Down Converter Buck Power Supply

0.0 (0)
$5.59 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Discount
  • 3% OFF WITH PURCHASE OVER 10 UNITS
  • 6% OFF WITH PURCHASE OVER 50 UNITS
  • 10% OFF WITH PURCHASE OVER 100 UNITS
    Please select the information you want X
  • model:
    (20-72V)-12V-1A
    (20-72V)-12V-2A
    (20-72V)-12V-3A
    (20-72V)-12V-5A
    (20-72V)-12V-6A
    (20-72V)-12V-8A
Quantity:
Availability: In Stock
  • Description

Input  DC   36V 48V 60V (20-72V) to Output DC   12V 1A 2A 3A 5A  6A 8A DC DC Car Step Down Converter  Buck Power Supply

Product name DC DCConverter 20-72Vto 12V
Model F**J12V*A4L
Type DC DC Converter
Input rated voltage 24V 36V 48V 60V DC
Input voltage range  20-72V DC
Efficiency 90%
Output voltage 12V
Output current  1A    /  2A     /  3A   /  5A  / 6A / 8A    Max
Output rated power 12W /  24W /  36W / 60W /  72W / 96W  Max
Voltage regulation < 1%
Load regulation < 2%
Working temperature

-40°c ~+85°c( If ambient temperature exceeds 40°c, lower power use,

or to enhance heat dissipation)

Module Properties

non-isolated buck module(buck)

Rectification synchronous rectification
Waterproof rating IP68
Full load temperature rise: 50°c
Protection Over-current, Short-circuit protection, Over-temperature,

waterproof IP68 design, anti-shock protection

Input Reverse Polarity Protection None (Please Series diode at the input port.)
NW 65G
Product size  46*32*18MM(case only)/63*32*18MM including install holes



 Attention:

>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.







36V 48V 60V (20-72V) to 12V 3A 5A 8A DC DC Car Step Down Converter 36Vdc 48Vdc 60Vdc to 12Vdc Buck Power Supply36V 48V 60V (20-72V) to 12V 3A 5A 8A DC DC Car Step Down Converter 36Vdc 48Vdc 60Vdc to 12Vdc Buck Power Supply
