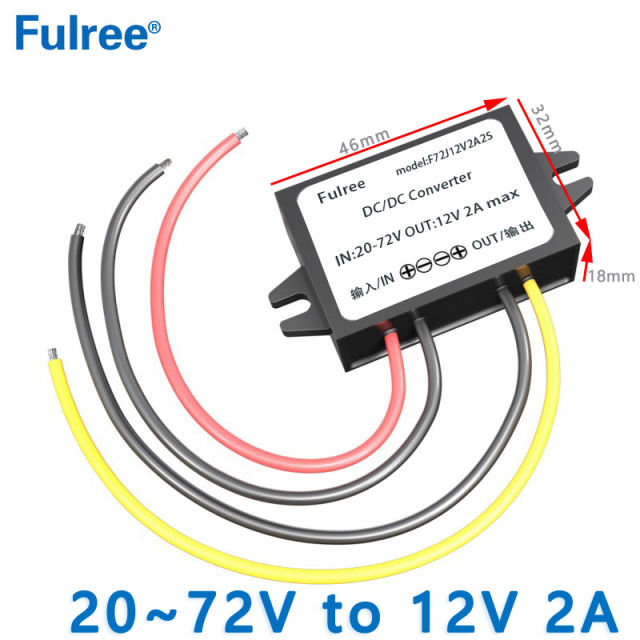

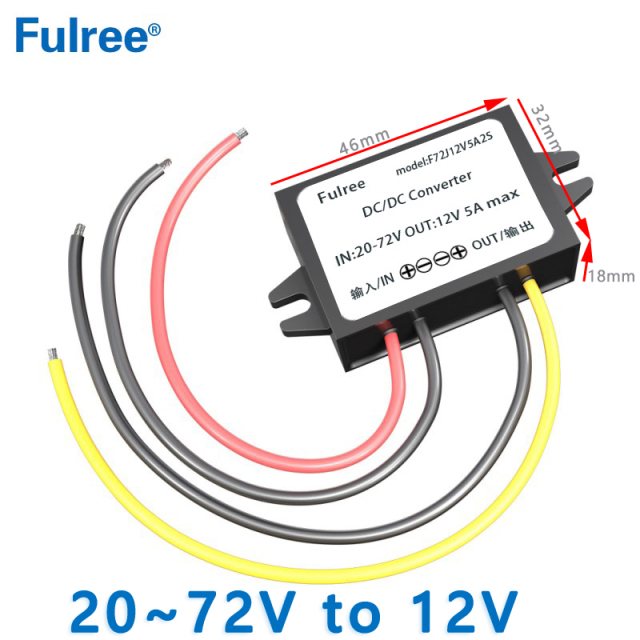

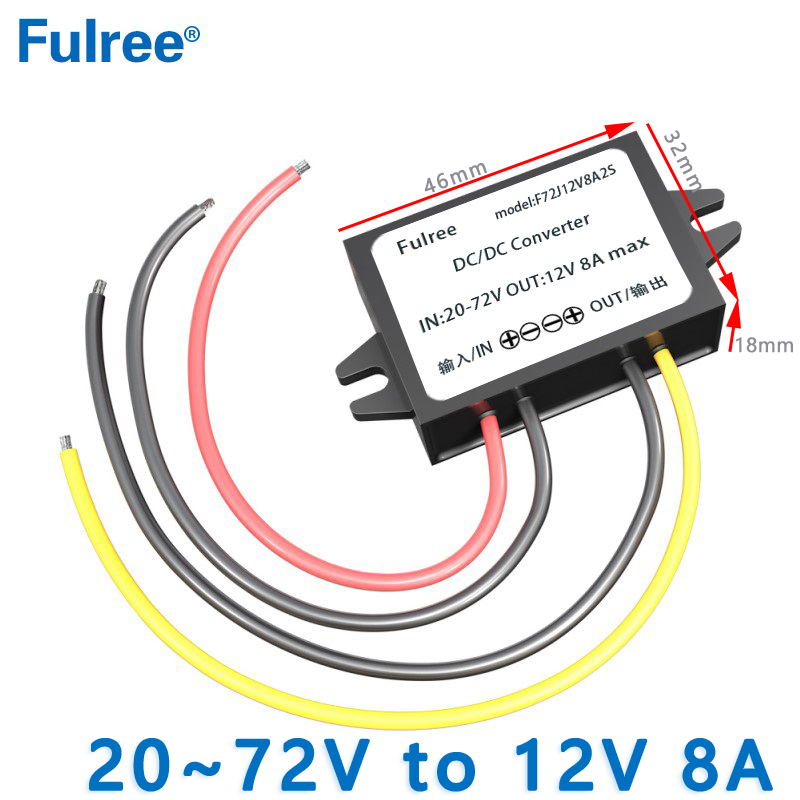

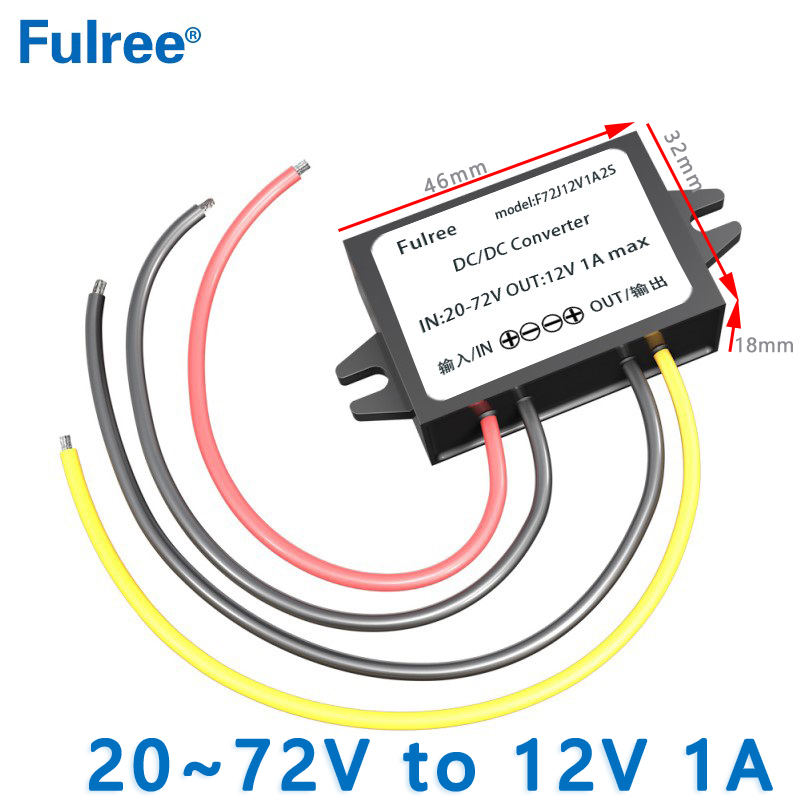

Input DC 24V 36V 48V 60V (20-72V )to Output DC 12V 1A 2A 3A 5A 6A 8A 10A 15A 20A 25A DC to DC Buck Power Converter
Input DC 24V 36V 48V 60V (20-72V ) to Output DC 12V 1A 2A 3A 5A 6A 8A 10A 15A 20A 25A DC to DC Buck Power Converter
|
Product name
|
DC DCConverter 20-72V to 12V
|
|
Model
|
F72J12V*A2S
|
|
Type
|
DC DC Converter
|
|
Input rated voltage
|
24V 36V 48V 60V DC
|
|
Input voltage range
|
20-72V DC
|
|
Efficiency
|
90%
|
|
Output voltage
|
12V
|
|
Output current
|
1A / 2A / 3A / 5A / 8A Max
|
|
Output rated power
|
12W / 24W / 36W / 60W / 96W Max
|
|
Voltage regulation
|
< 1%
|
|
Load regulation
|
< 2%
|
|
Working temperature
|
-40°c ~+85°c( If ambient temperature exceeds 40°c, lower power use,
or to enhance heat dissipation)
|
|
Module Properties
|
non-isolated buck module(buck)
|
|
Rectification
|
synchronous rectification
|
|
Waterproof rating
|
IP68
|
|
Full load temperature rise:
|
50°c
|
|
Protection
|
Over-current, Short-circuit protection, Over-temperature,
waterproof IP68 design, anti-shock protection
|
|
Input Reverse Polarity Protection
|
None (Please Series diode at the input port.)
|
|
NW
|
65G
|
|
Product size
|
46*32*18MM(case only)/63*32*18MM including install holes
|
|
Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
|

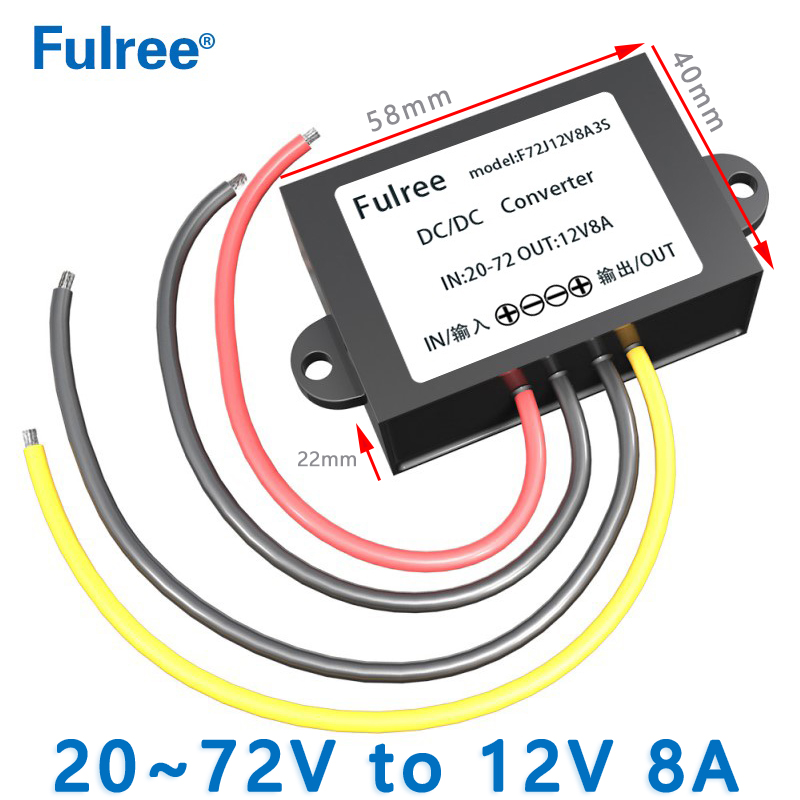

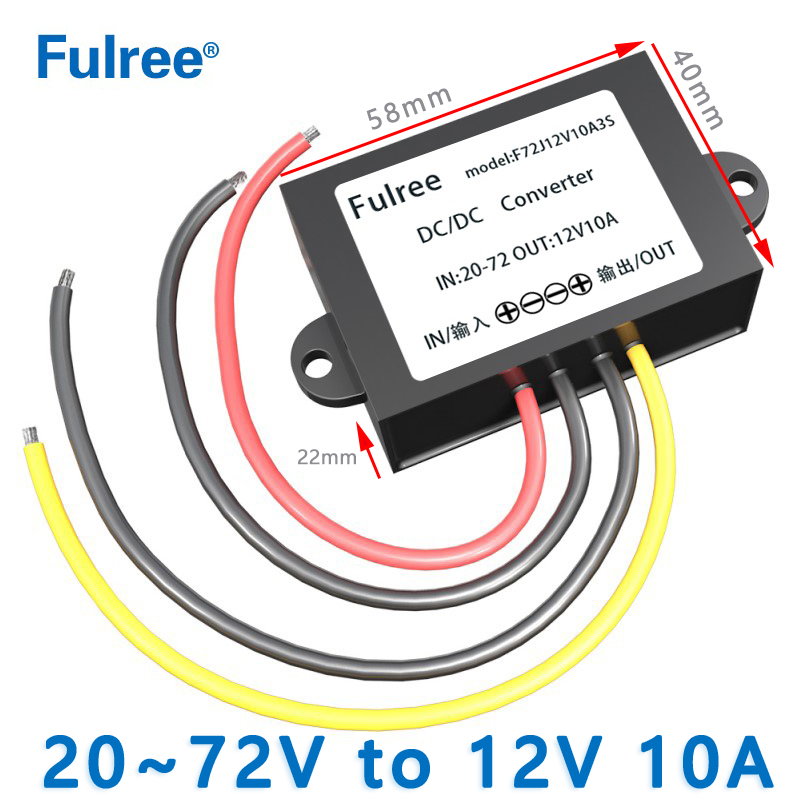

Input DC 36V 48V 60V（20-72V ）TO Output DC 12V 6A 8A 10A Max DC to DC Step Down Switching Converter
Product Description
|
Product Name
|
Fulree DC DC Converter 20-72V to 12V
|
|
Brand
|
Fulree
|
|
Model No.
|
F72J12*A3S
|
|
Module Properties
|
non-isolated buck module
|
|
Rectification
|
synchronous rectification
|
|
Input
|
|
Input Voltage
|
DC 36V 48V 60V
|
|
Input Voltage Range
|
DC 20-72V
|
|
Output
|
|
Output Voltage
|
DC 12V
|
|
Output Current
|
6A / 8A /10A Max
|
|
Output Power
|
72W / 96W / 120W Max
|
|
Conversion Efficiency
|
92%
|
|
Voltage regulation
|
±1%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
< 100mV
|
|
No-load current
|
<100mA
|
|
Working Temperature
|
-40~80℃
|
|
Waterproof Rating
|
IP68
|
|
Protection
|
Over-current protection
|
|
Overheat protection
|
|
Short-circuit protection
|
|
Application
|
12V DC Car Fan CD Speaker Player and etc
|
|
Certification
|
CE/RoHS
|
|
Case Material
|
ABS Plastic
|
|
Product Size (L x W x H)
|
58*40*22MM excluding install holes
|
|
Product Weight
|
105g
|
|
Warranty
|
12 months, lifetime up to 100,000 hours
|
|
Cooling Way
|
Free air convection
|
|
OEM&ODM Service
|
Accept
|

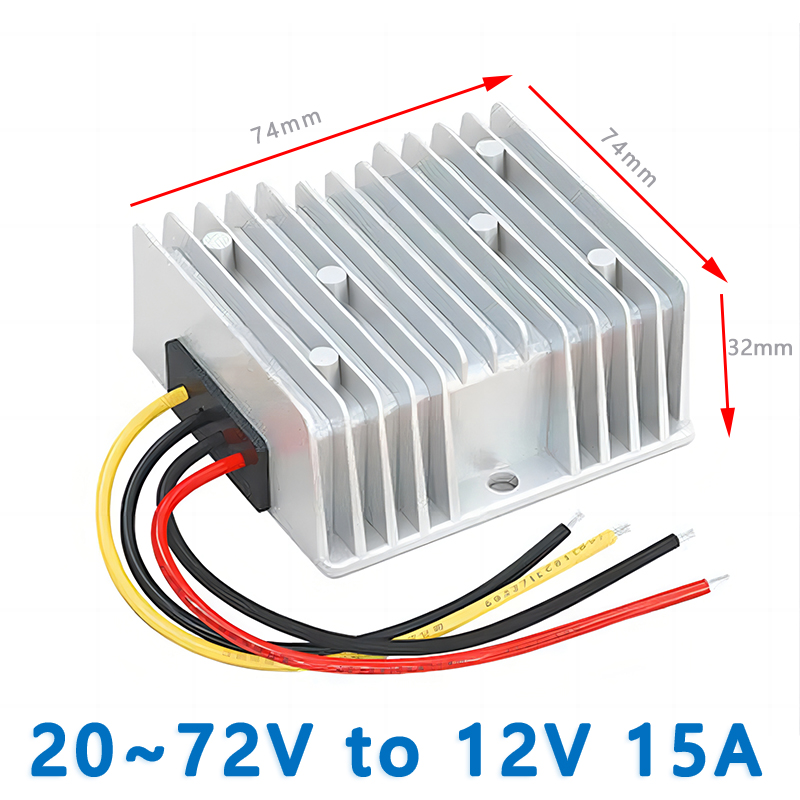

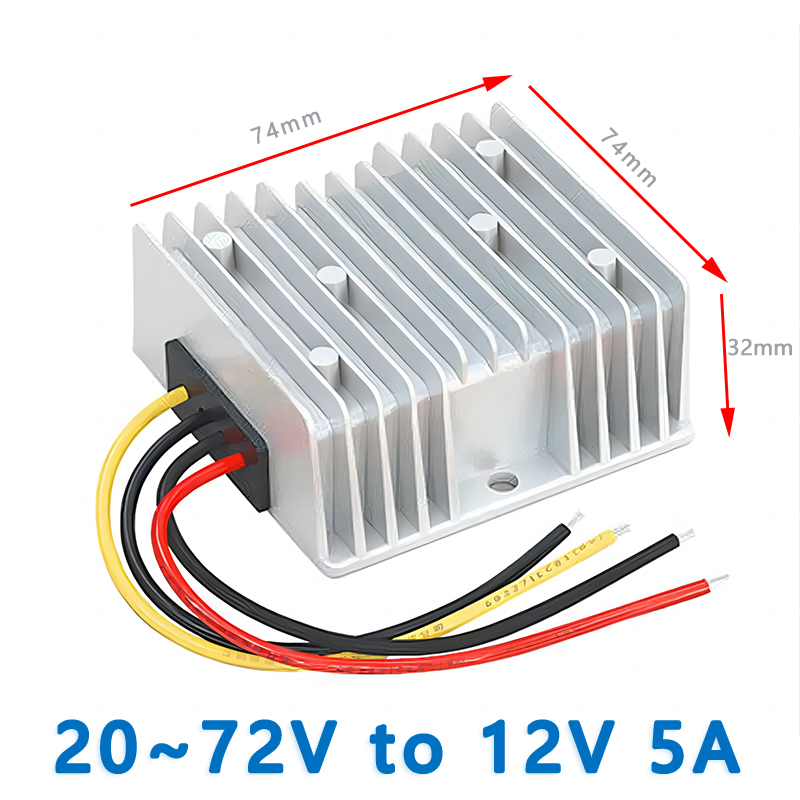

Input DC 24V 36V 48V 60V 72V( 30-90V / 20-72V / 20-60V / 15-40V) to Output DC 12V 5A 10A 15A 20A DC to DC Converter ACC Enable Cable
Product Description
|
Product Name
|
24V 36V 48V 60V 72V to 12V DC DC Converter with ACC
|
|
Brand
|
Fulree
|
|
Module Properties
|
non-isolated buck module
|
|
Rectification
|
synchronous rectification
|
|
Input
|
|
Input Voltage
|
DC 24V 36V 48V 60V 72V
|
|
Input Voltage Range
|
DC 20-72V
|
|
Output
|
|
Output Voltage
|
DC 12V
|
|
Output Current
|
5A / 8A / 10A / 15A / 20A Max
|
|
Output Power
|
60W / 96W / 120W / 180W / 240W Max
|
|
Conversion Efficiency
|
92%
|
|
Voltage regulation
|
±1%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
< 100mV
|
|
No-load current
|
<100mA
|
|
Working Temperature
|
-40~80℃
|
|
Waterproof Rating
|
IP68
|
|
Protection
|
Over-current protection
|
|
Overheat protection
|
|
Short-circuit protection
|
|
Application
|
12V speaker,audio,stereo and etc load device
|
|
Certification
|
CE/RoHS
|
|
Case Material
|
Aluminum
|
|
Product Size (L x W x H)
|
74*74*32mm excluding cable
|
|
Product Weight
|
280g
|
|
Warranty
|
12 months, lifetime up to 100,000 hours
|
|
Cooling Way
|
Free air convection
|
|
OEM&ODM Service
|
Accept
|
Product Picture

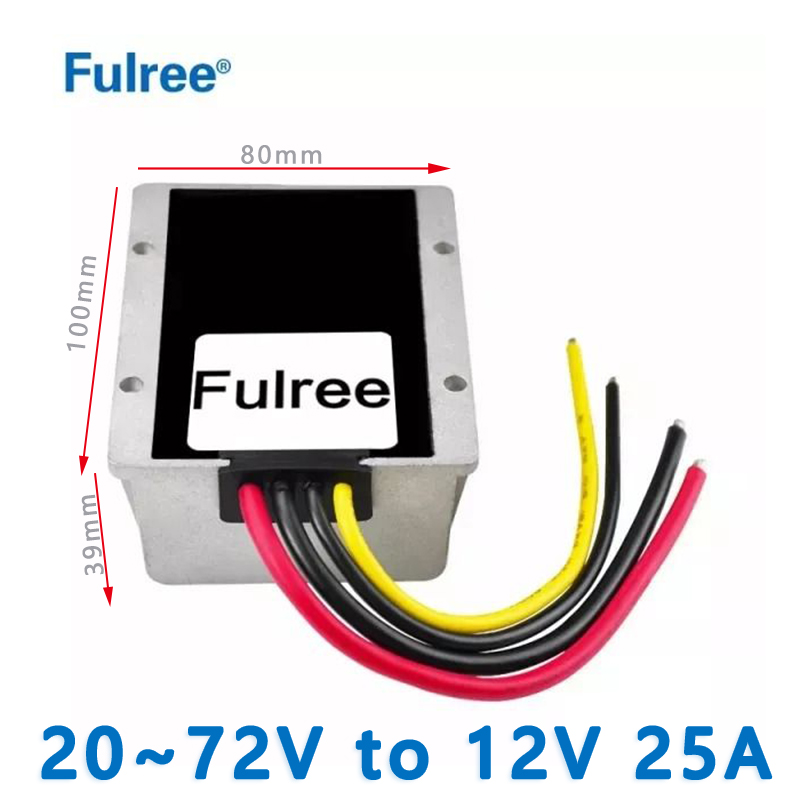

Input DC 24V 36V 48V 60V( 20-72V) to Output DC 12V 20A 25A DC DC Step Down Voltage Converter
Product Description
|
Product Name
|
DC DC Converter 12V 24V 36V 48V 60V to 12V 20A 25A
|
|
Brand
|
Fulree
|
|
Model No.
|
F**J12V**A6L
|
|
Module Properties
|
non-isolated buck module
|
|
Rectification
|
synchronous rectification
|
|
Input ( Cable:16CM 12AWG )
|
|
Input Voltage
|
DC 24V 36V 48V 60V
|
|
Input Voltage Range
|
DC 20-72V
|
|
Output ( Cable:16CM 12AWG )
|
|
Output Voltage
|
DC12V
|
|
Output Current
|
20A / 25A Max optional
|
|
Output Power
|
120W / 300W Max optional
|
|
Conversion Efficiency
|
96% (half load), 95.5% (full load)
|
|
Voltage regulation
|
±1%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
< 150mV
|
|
No-load current
|
<100mA
|
|
Working Temperature
|
-40~80℃
|
|
Waterproof Rating
|
IP68
|
|
Protection
|
Over-current protection
|
|
Over-voltage protection
|
|
Overheat protection
|
|
Short-circuit protection
|
|
Input/Output Reverse Polarity Protection
|
No, please follow label instructions wiring strictly: red for input positive, black is negative, white for output positive.
|
|
Certification
|
CE/RoHS
|
|
Case Material
|
Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on
|
|
Product Size (L x W x H)
|
100*80*39mm
|
|
Product Weight
|
500g
|
|
Packing Information
|
30PCS/CTN, Carton Size:42.5*21*20.5CM, G.W 16.50KG/CTN
|
|
Warranty
|
12 months, lifetime up to 100,000 hours
|
|
Cooling Way
|
Free air convection
|
Product Picture
