Fulree Input AC/DC 24V(AC 7-35V and DC 8-52V) to Output DC 5V 1A / 2A / 3A Max Buck Converter Step-Down Module
Product Description
|
Product Name
|
Fulree 12V 24V ac to 5V 1A 2A 3A DC Converter
|
|
Brand
|
Fulree
|
|
Model No.
|
FAD35J5V1A2S / FAD35J5V2A2S / FAD35J5V3A2S
(Old: AD050010B5/AD050020B5/AD050030B5)
|
|
Module Properties
|
non-isolated buck module
|
|
Rectification
|
synchronous rectification
|
|
Input
|
|
Input Voltage
|
AC/DC 24V
|
|
Input Voltage Range
|
AC 7-35V DC 8-52V
|
|
Output
|
|
Output Voltage
|
DC 5V
|
|
Output Current
|
1A / 2A / 3A Max
|
|
Output Power
|
5W / 10W / 15W Max
|
|
Conversion Efficiency
|
85%
|
|
Voltage regulation
|
±1%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
< 100mV
|
|
No-load current
|
< 100mA
|
|
Working Temperature
|
-25~60℃
|
|
Waterproof Rating
|
IP68
|
|
Protection
|
Over-current protection
|
| Overheat Protection |
|
Input Reverse Polarity Protection
|
|
Application
|
GPS Navigation, Monitoring, Motors
DVD,LED bulb lights,LED Display,Solar Panels System
Electrical appliances, industrial equipment, telecommunications and so on.
|
|
Certification
|
CE/RoHS/FCC
|
|
Case Material
|
Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on
|
|
Product Size (L x W x H)
|
46*32*18mm
|
|
Installation Cable Length
|
13-14cm
|
|
Product Weight
|
65g
|
|
Warranty
|
12 months, lifetime >20,000 hours
|
|
Cooling Way
|
Free air convection
|
|
OEM Service
|
Accept OEM logo/label/manual/packing box, Contact Fulree Now!
|
|
Customized Service
|
Accept customized converter such as input/output voltage, cable, interface and etc, Contact Fulree Now!
|

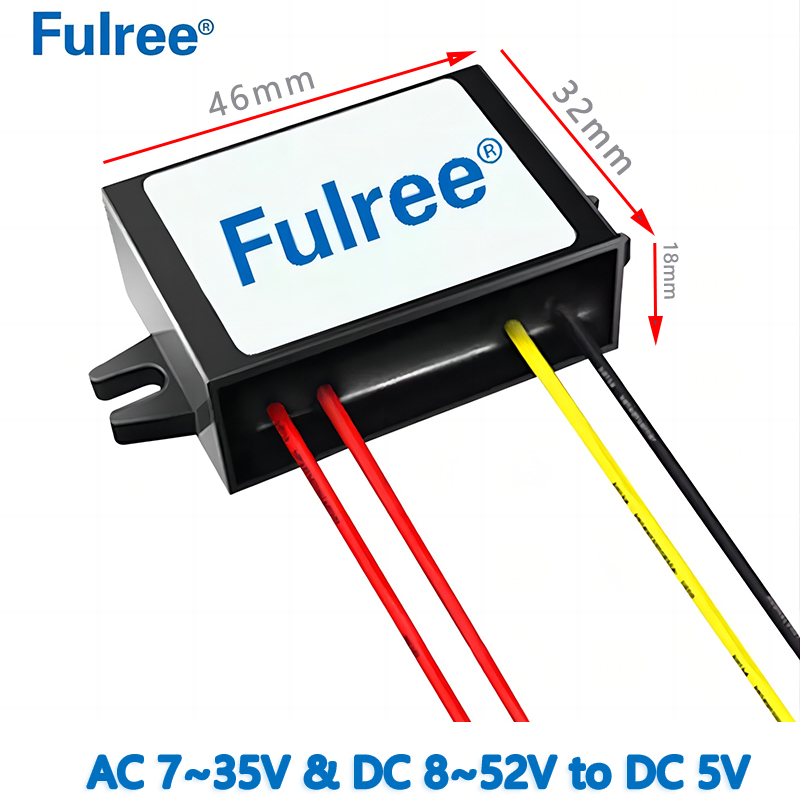

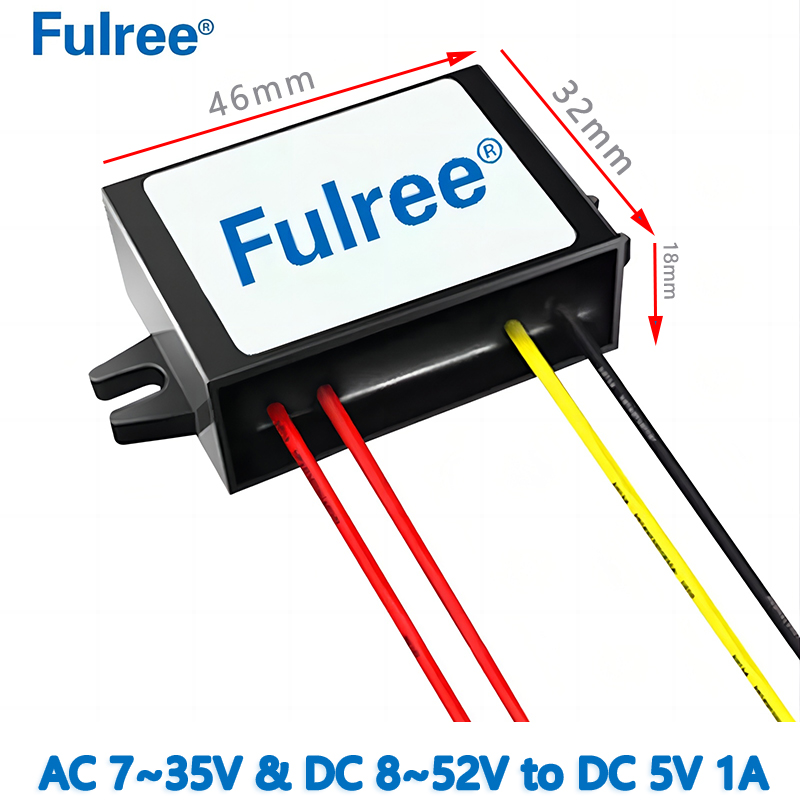

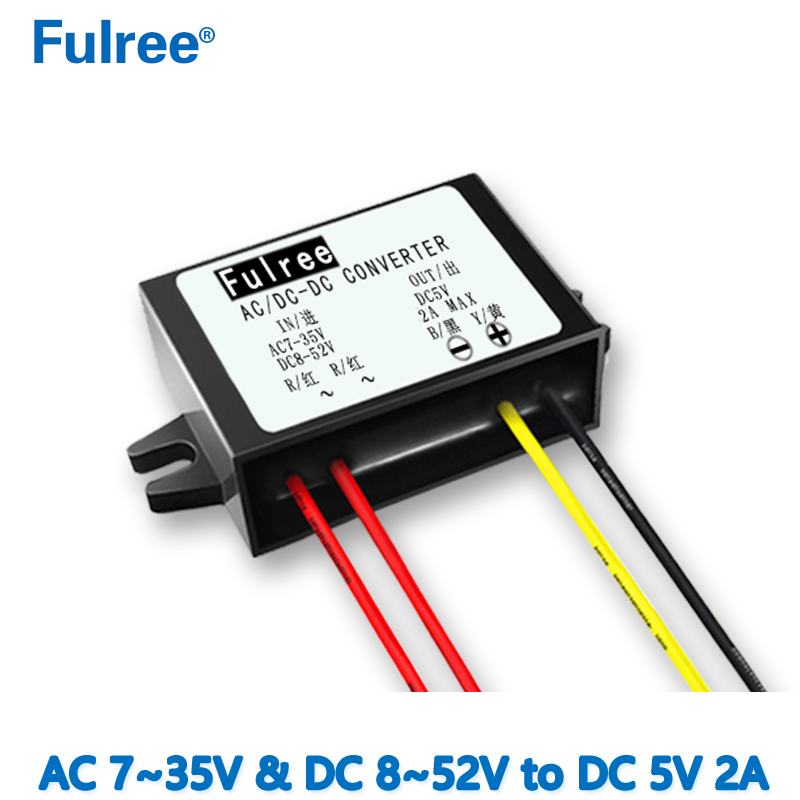

Product Picture
Packaging & Delivery
1. We pack each item with OPP bag individually, then put all items in export cartons (around 50-300pcs per carton). The export cartons will be taped to protect the parcel from water stains or something others, it's not easy to break or damage during the shipment by air or sea.
2. We make shipment between 3-15 days for normal order and 3 to 5 days for samples.
3. We can offer you express like FedEx, DHL, UPS & TNT when you make a relatively small order like samples. The ocean shipping is also available when you place a big order. The customers can use their own freight forwarder account.
4. If you need some special request on shipment, please note us before placing order.
5. In order to clear customs soon, please provide accurate receiving address including zip code and taxes number. The HS code is 8504401400.
