Input   AC 10-28V  and DC 8-40V   to       Output DC    5V  10A   MAX   AC/DC to DC converter  Car LED Display Screen Voltage Power Supply Step-Down Module

4.5 (81)
$13.49 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Discount
  • 3% OFF WITH PURCHASE OVER 10 UNITS
  • 6% OFF WITH PURCHASE OVER 50 UNITS
  • 10% OFF WITH PURCHASE OVER 100 UNITS
    Please select the information you want X
  • model:
    AC 8~28V & DC 8~40V-DC 5V-10A
Quantity:
Availability: In Stock
  • Description

Input   AC 10-28V  and DC 8-40V   to       Output DC    5V  10A   MAX   AC/DC to DC converter  Car LED Display Screen Voltage Power Supply Step-Down Module

Product Description



Product Name

 12V 24V AC to 5V DC Converter

Brand

Fulree

Model No.

 AD240510L

Module Properties

non-isolated buck module

Rectification

synchronous rectification

Input

Input Voltage

AC 24V

Input Voltage Range

AC 10-28V DC 8-40V

Output

Output Voltage

DC 5V

Output Current

10A Max

Output Power

50W Max

 Conversion Efficiency

 95%

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 180mV

No-load current

<100mA

Working Temperature

-40~85℃

Waterproof Rating

IP68

Protection

Over-current protection

Overheat protection

Short circuit protection

Application

Motor, audio, navigation, monitoring, LED display, air conditioning, electric fans, solar energy, photovoltaic energy, DVD lights, motors, pumps and industrial equipment

Certification

CE/RoHS

  Case Material

Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on

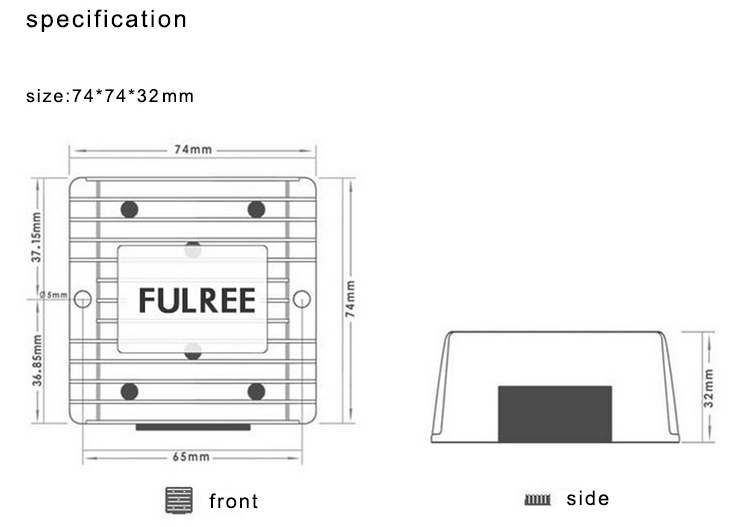

  Product Size (L x W x H)

74*74*32mm

Product Weight

 280g

Warranty

12 months

Cooling Way

Free air convection

OEM&ODM Service

  Accept

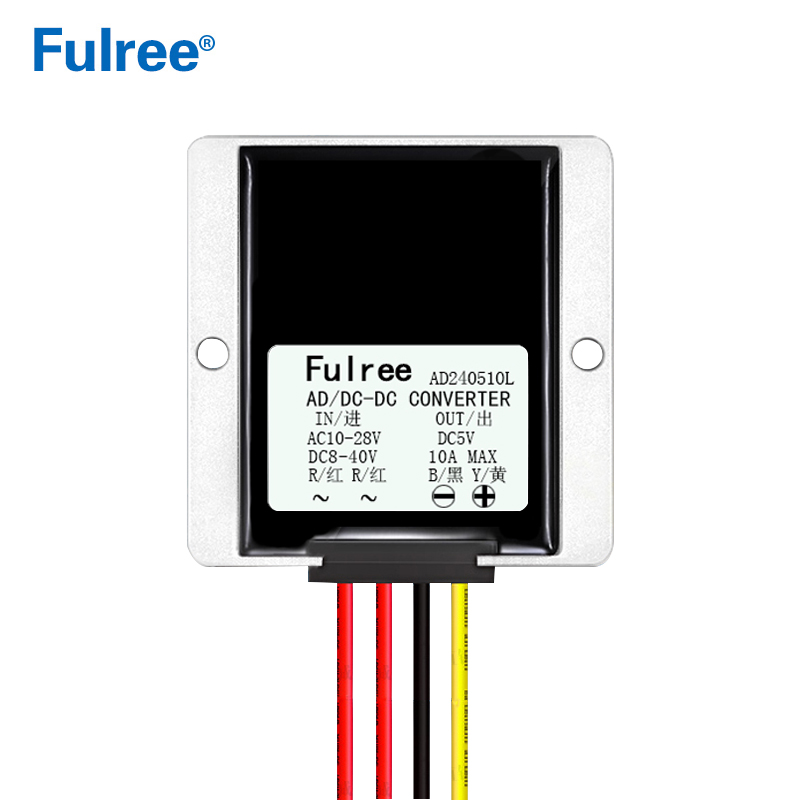

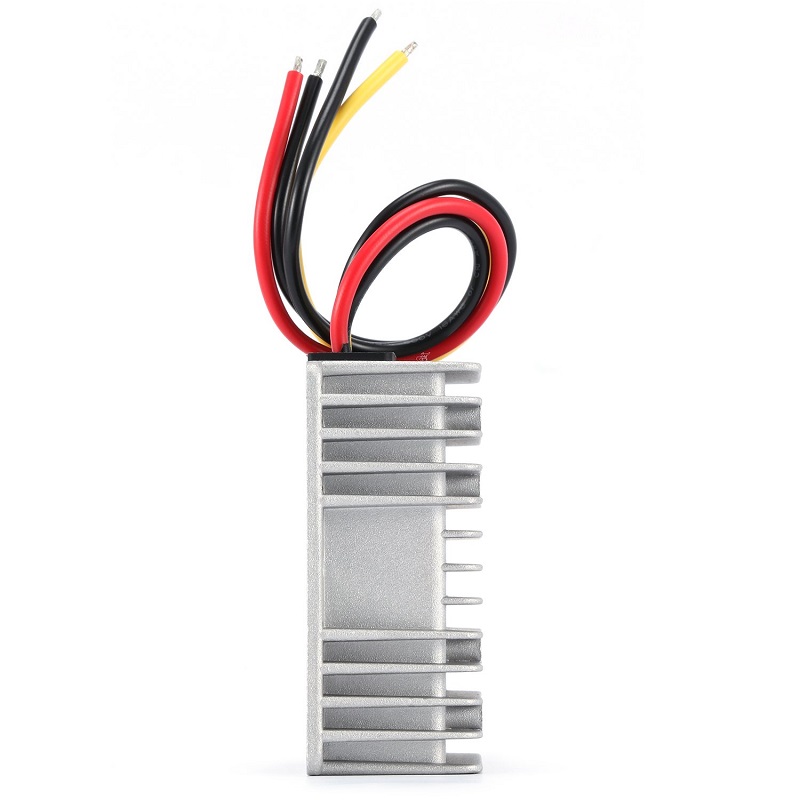

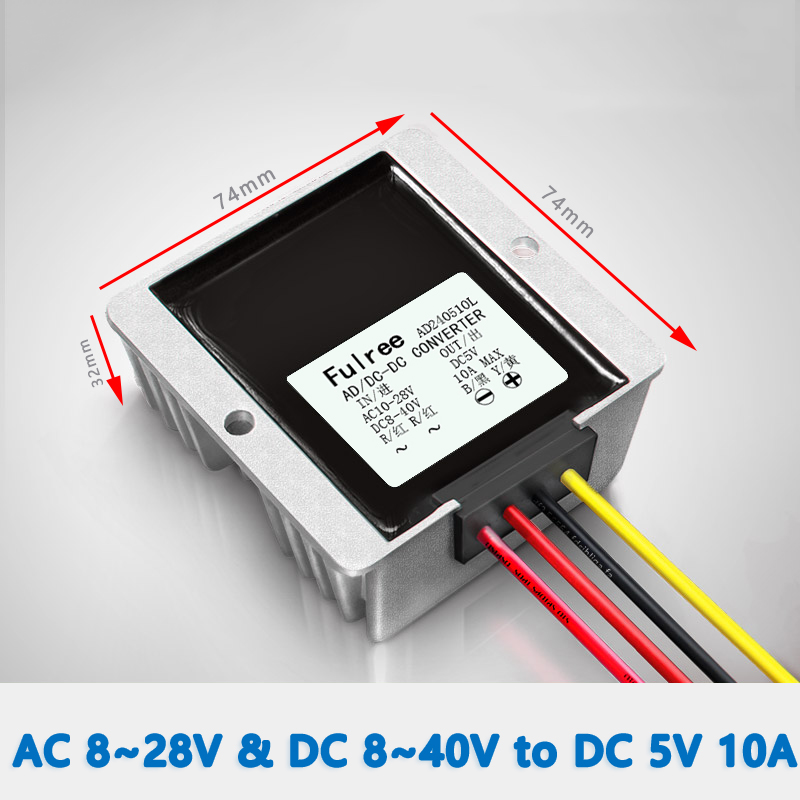

Product Picture

12V 24V AC to 5V DC 10A 50W Converter  Car Power Module for Audio

12Vac 24Vac to 5Vdc 10A 50W Converter 12V 24V AC to 5V DC Step Down Buck Car LED Display Screen Voltage Power Supply Module12Vac 24Vac to 5Vdc 10A 50W Converter 12V 24V AC to 5V DC Step Down Buck Car LED Display Screen Voltage Power Supply Module12Vac 24Vac to 5Vdc 10A 50W Converter 12V 24V AC to 5V DC Step Down Buck Car LED Display Screen Voltage Power Supply Module
