| Product Name |

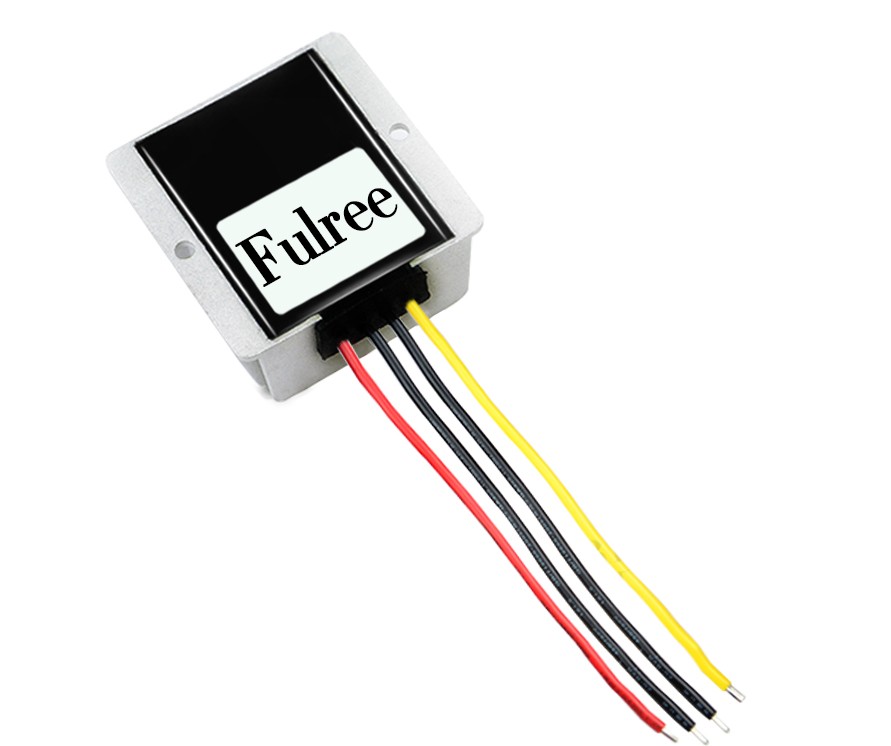

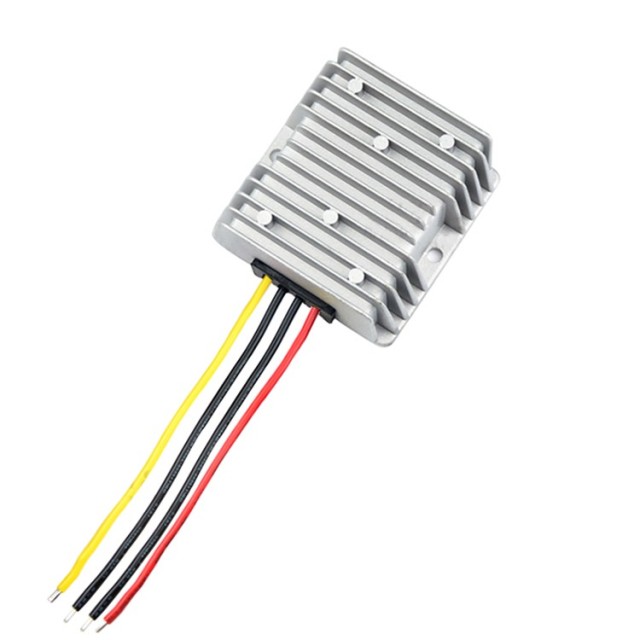

24V dc to 12V dc converter |
| Model |

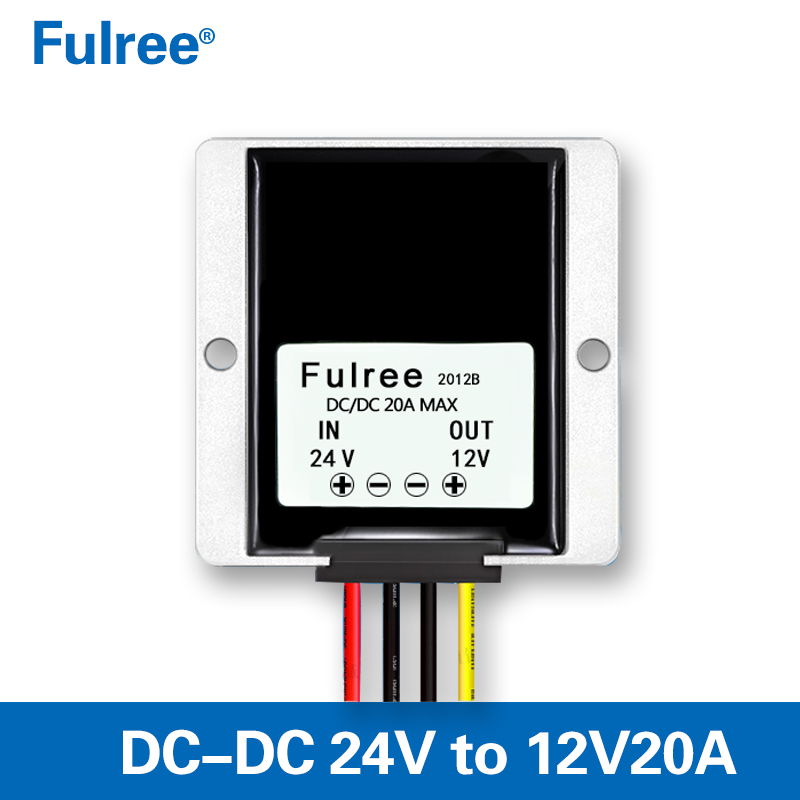

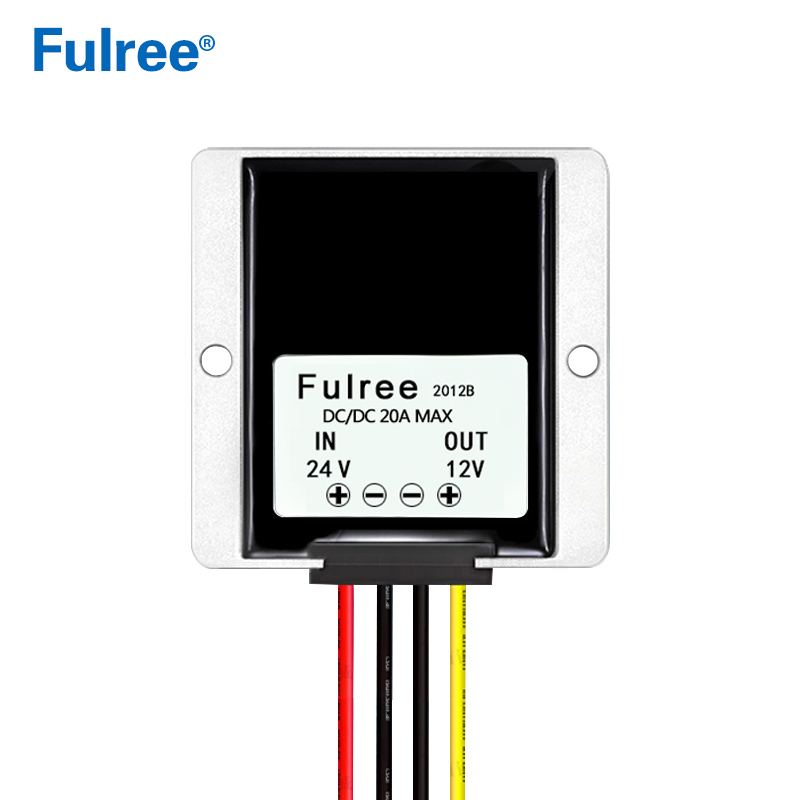

2012B |
| Input rated voltage |
24V DC |
| Input voltage range |
15-40V DC |
| Efficiency |
93% (half load), 91% (full load) |
| Output voltage |
12V |
| Output current |
10A 15A 20A 25A 30A MAX |
| Output rated power |
120W~360W |
| Voltage regulation |
< 1% |
| Load regulation |
< 2% |
| Working temperature |
-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use,
or to enhance heat dissipation)
|
| Module Properties |
non-isolated buck module(buck)
|
| Rectification |
synchronous rectification |
| Waterproof rating |
IP68 |
| Full load temperature rise: |
50°c |
| Protection |
Over-current, Short-circuit protection, Over-temperature,
Auto-recovery when device is back to normal operating,
waterproof IP68 design, anti-shock protection
|
| Input Reverse Polarity Protection |
None (Please Series diode at the input port.) |
| NW |
280G |

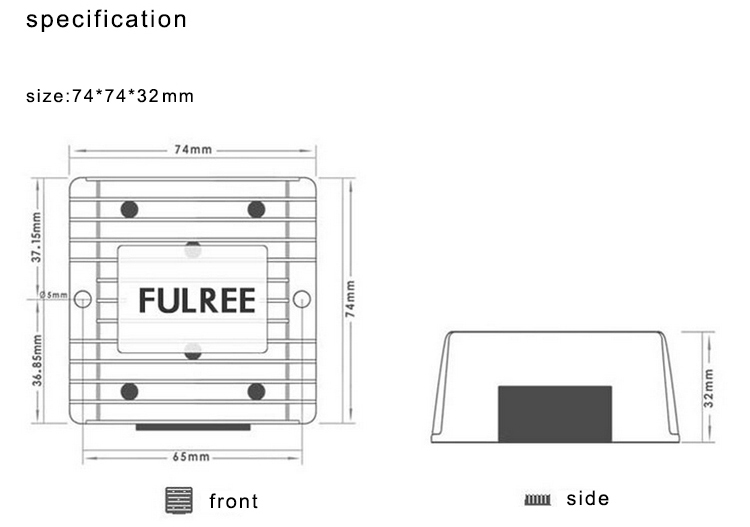

| Product size |

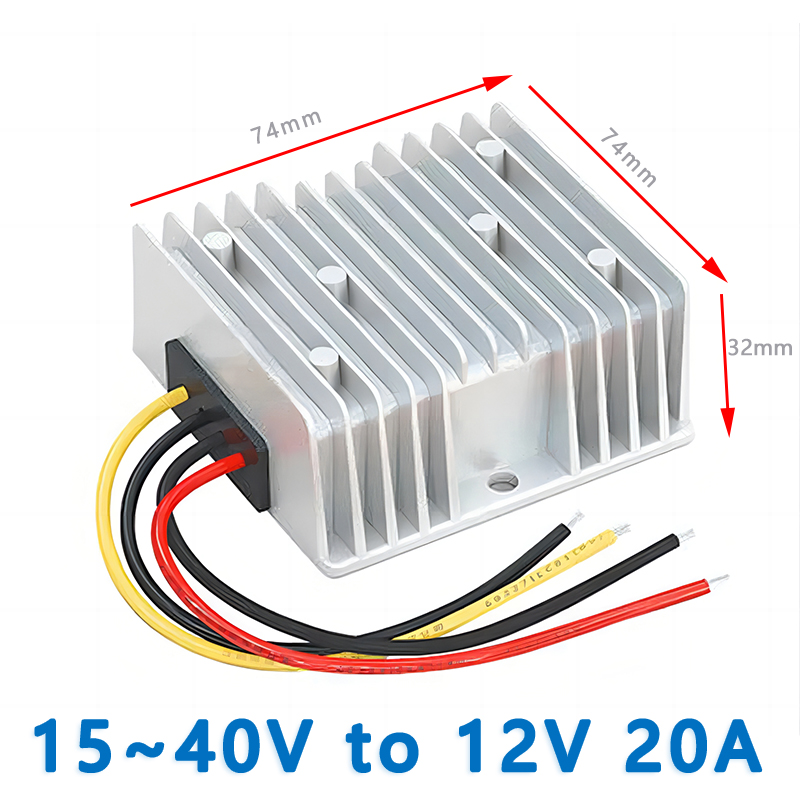

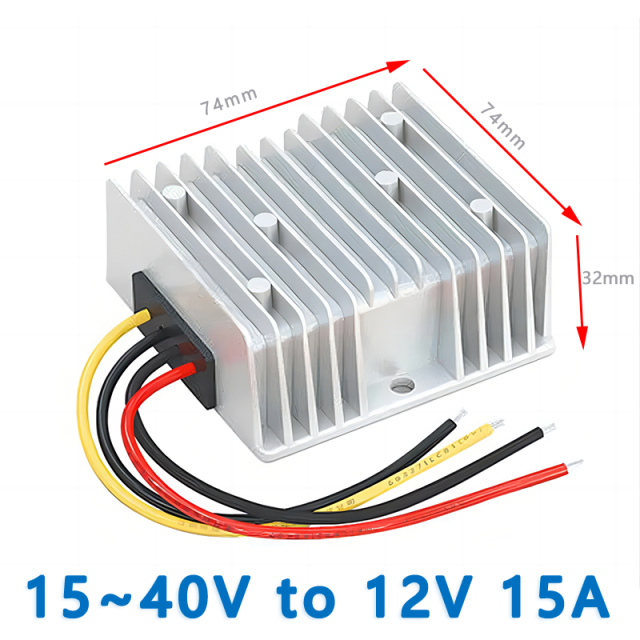

74*74*32MM |
| Packing Information |
50PCS/CTN, Carton Size: 35*19*23cm, G.W 13.50KG/CTN |
|

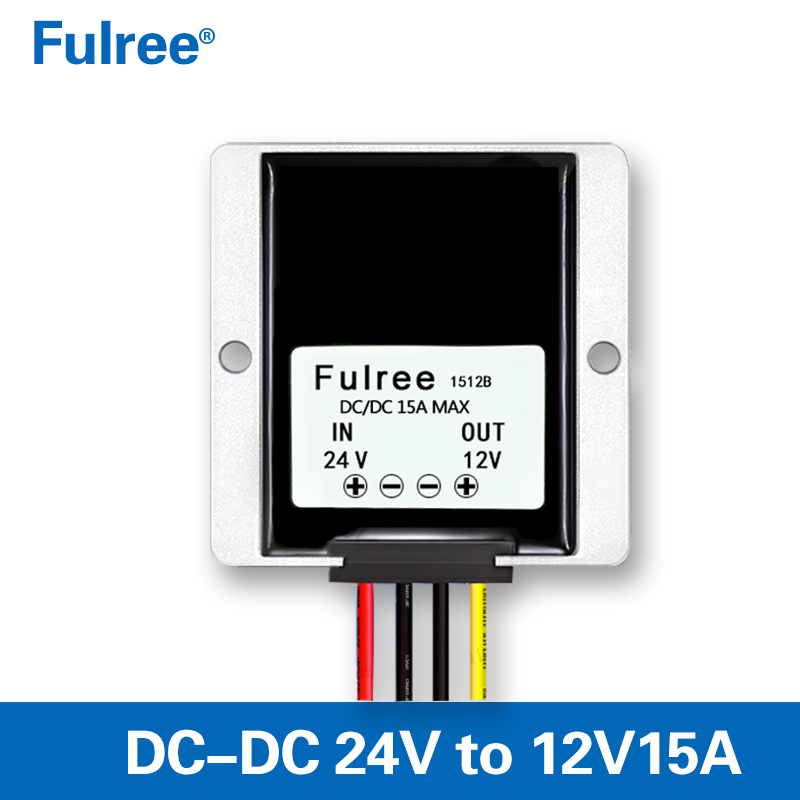

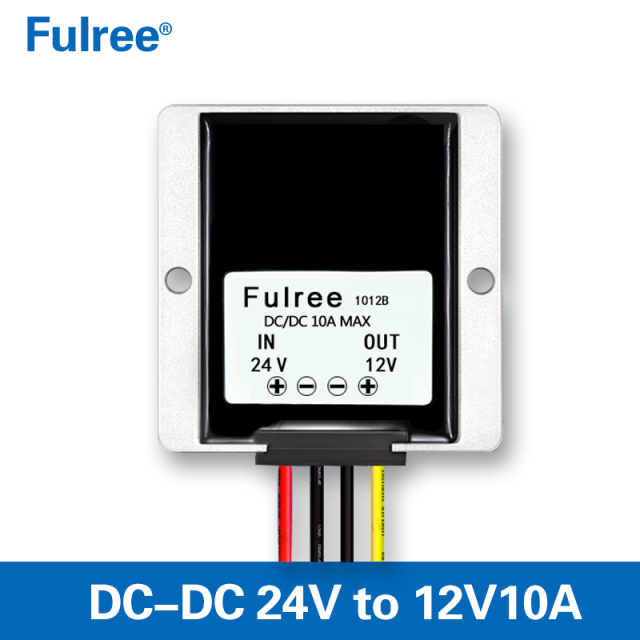

Other output current
option for 24V to 12V
|
1.5A, 3A, 5A 10A, 15A, 20A, 25A,30A(pls contact with our sales manager if need) |
|
Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
|
