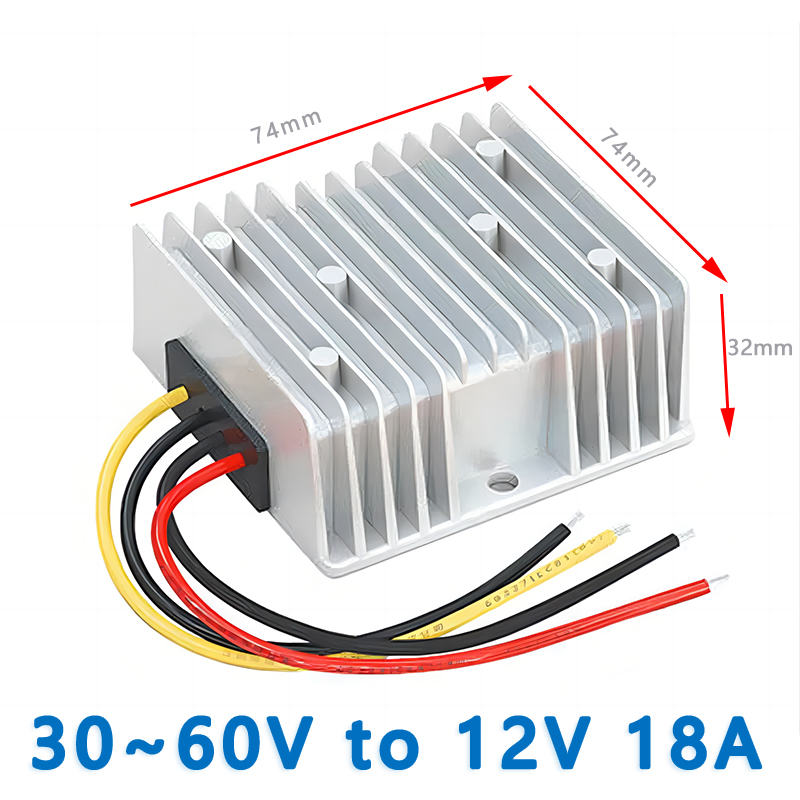

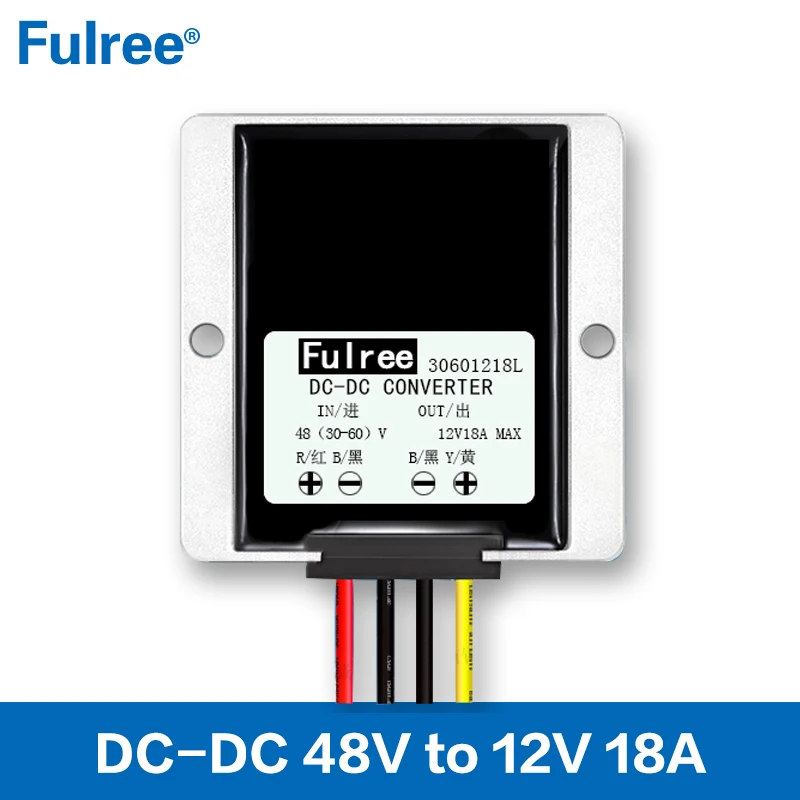

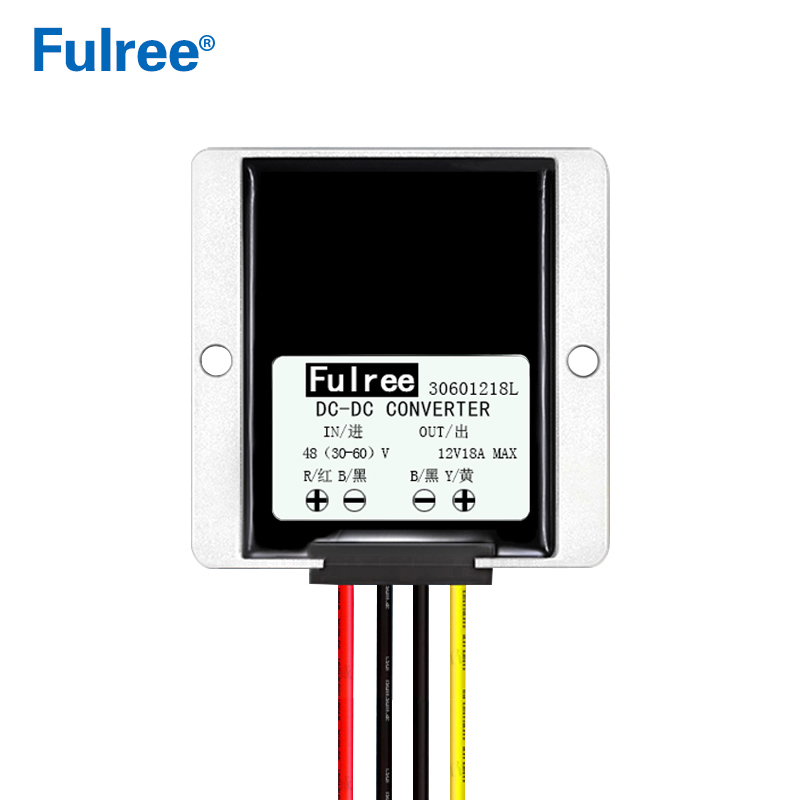

DC DC Step Down Converter Input DC 36V 48V( 30-60V ) to Output DC 12V 18A 30A Max Voltage Reducer Buck Volt Electric Motorcycle Scooter Parts
Product Description
DC DC Step Down Converter Input DC 36V 48V( 30-60V ) to Output DC 12V 18A 30A Max Voltage Reducer Buck Volt Electric Motorcycle Scooter Parts
|
Product Name
|
Fulree 48V to 12V 18A 216W Voltage Reducer
|
|
Brand
|
Fulree
|
|
Model No.
|
30601218L |
|
Module Properties
|
non-isolated buck module
|
|
Rectification
|
synchronous rectification
|
|
Input
|
|
Input Voltage
|
DC 48V
|
|
Input Voltage Range
|
DC 30-60V
|
|
Output
|
|
Output Voltage
|
DC 12V
|
|
Output Current
|
18A Max
|
|
Output Power
|
216W Max
|
|
Conversion Efficiency
|
>93% |
|
Voltage regulation
|
±1%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
< 150mV
|
|
No-load current
|
<100mA
|
|
Working Temperature
|
-40~80℃
|
|
Waterproof Rating
|
IP68
|
|
Protection
|
Over-current protection
|
|
Overheat protection
|
|
Short-circuit protection
|
|
Instant absorption of high voltage protection
|
|
Reverse Polarity Protection
|
No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive |
|
Application
|
Electric motors, Trucks, Golf Carts ,Forklifts,Solar Panel Power System
water pumps, industrial equipment and so on.
|
|
Case Material
|
Aluminum
|
|
Product Size (L x W x H)
|
74*74*32mm
|
|
Product Weight
|
280g
|
|
Warranty
|
12 months
|
|
Cooling Way
|
Free air convection
|
|
OEM&ODM Service
|
Accept |
Product Picture

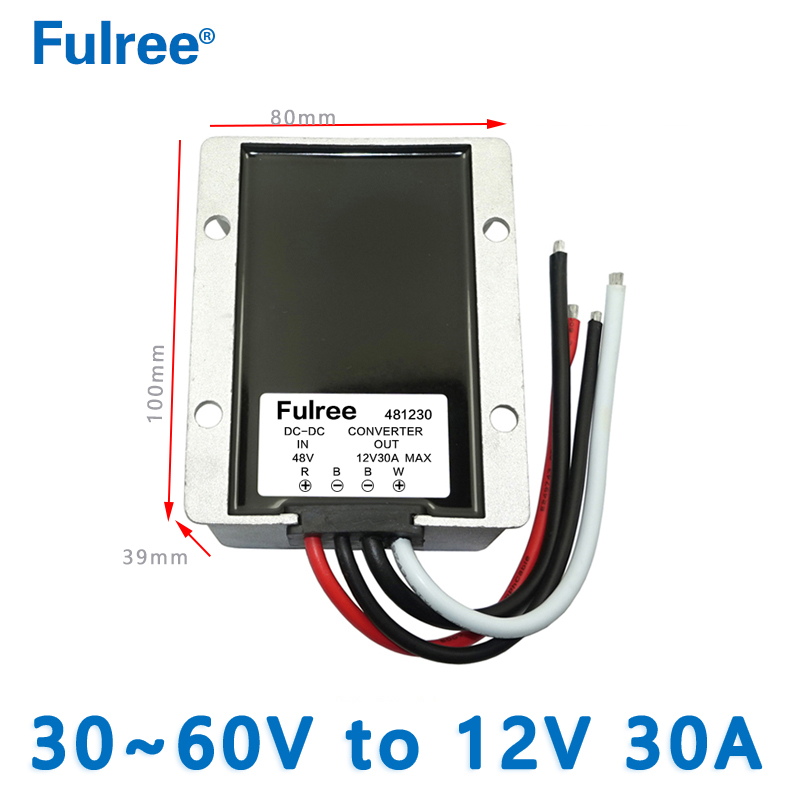

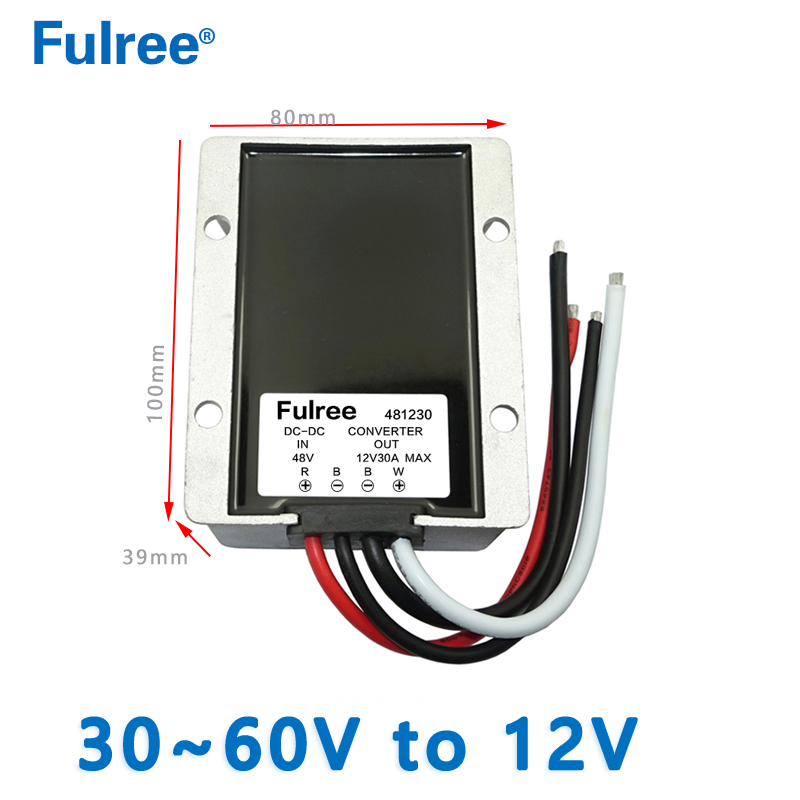

30A Golf Cart DC DC Converter Input DC 36V 48V （ 30-60V）to Output DC 12V 360W Max Step Down Voltage Reducer
Product Description
|
Product Name
|
DC DC Converter 36V 48V to 12V 30A 360W
|
|
Brand
|
Fulree
|
|
Model No.
|
481230 |
|
Module Properties
|
non-isolated buck module
|
|
Rectification
|
synchronous rectification
|
|
Input
|
|
Input Voltage
|
DC 48V
|
|
Input Voltage Range
|
DC 30-60V
|
|
Output
|
|
Output Voltage
|
DC 12V
|
|
Output Current
|
30A Max
|
|
Output Power
|
360W Max
|
|
Conversion Efficiency
|
97% (half load), 95% (full load) |
|
Voltage regulation
|
±1%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
< 120mV
|
|
No-load current
|
<50mA
|
|
Working Temperature
|
-40~80℃
|
|
Waterproof Rating
|
IP68
|
|
Protection
|
Over-current protection
|
|
Over-voltage protection
|
|
Overheat protection
|
|
Short-circuit protection
|
|
Reverse Polarity Protection
|
No, please follow label instructions wiring strictly: red for input positive, black is negative, white for output positive
|
|
Certification
|
CE/RoHS
|
|
Case Material
|
Aluminum
|
| Product Size (L x W x H) |
100*80*39mm
|
|
Product Weight
|
500g
|
|
Warranty
|
12 months, lifetime up to 100,000 hours
|
|
Cooling Way
|
Free air convection
|
|
OEM&ODM Service
|
Accept |
Product Picture
