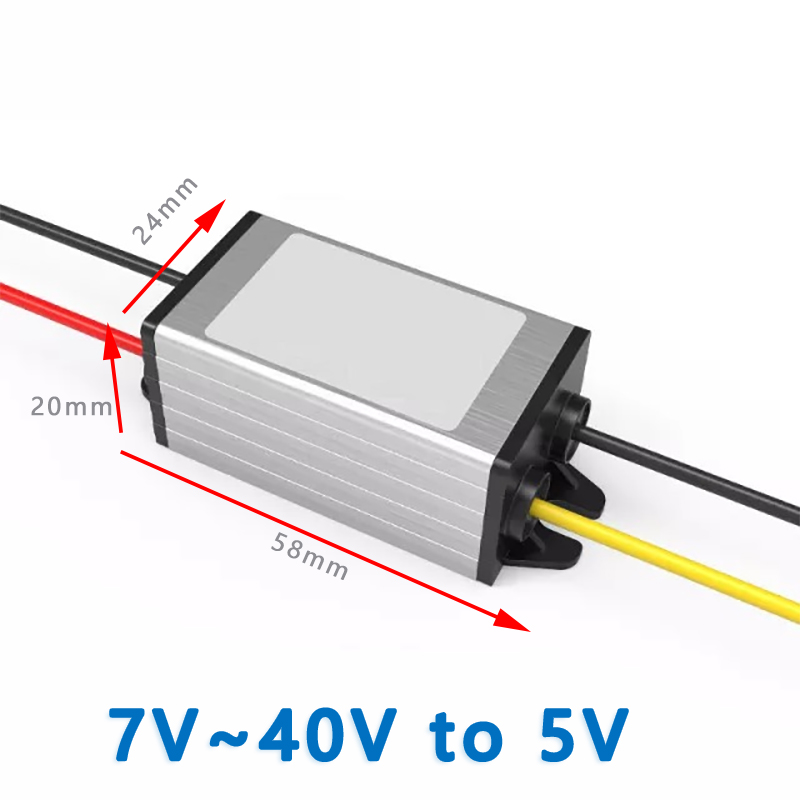

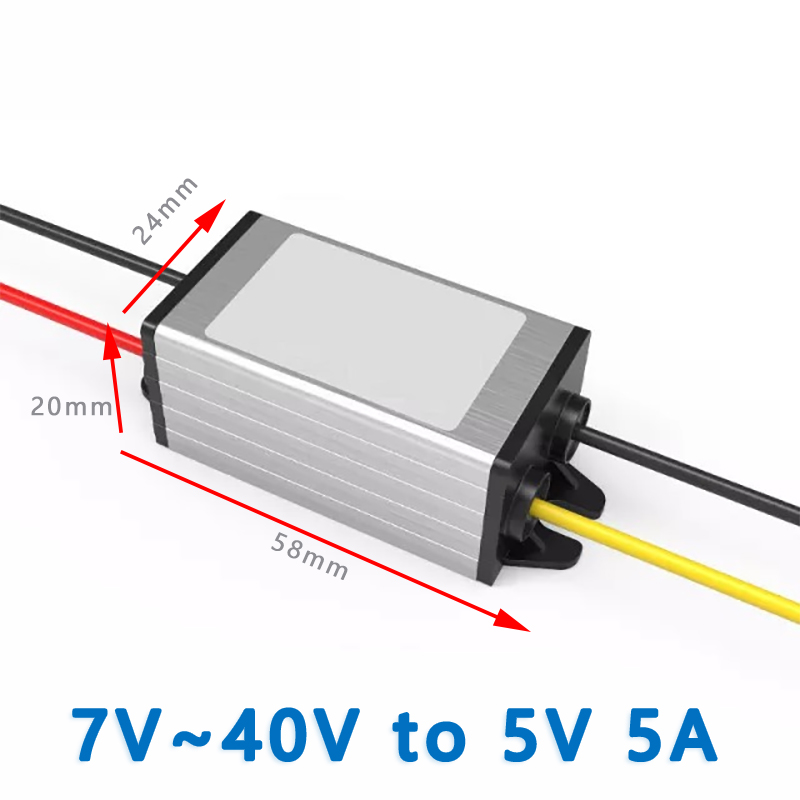

Input DC 7-40V to Output DC 5V 5A 25W DC-DC converter

DC-DC converter   Input  DC 7-40V  to Output DC  5V 5A 25W

Keywords: power converter

Product Type:YS-1224-5-25W

Parameters Table

Input voltage: (between DC7V-40V)

Output voltage: DC5V

Output Current: 5A MAX 5.5A peak

output power: 25W

Conversion efficiency: up to 96% of the output ripple: 50mV (MAX)

Operating temperature: Industrial grade (-40 ℃ to + 85 ℃)

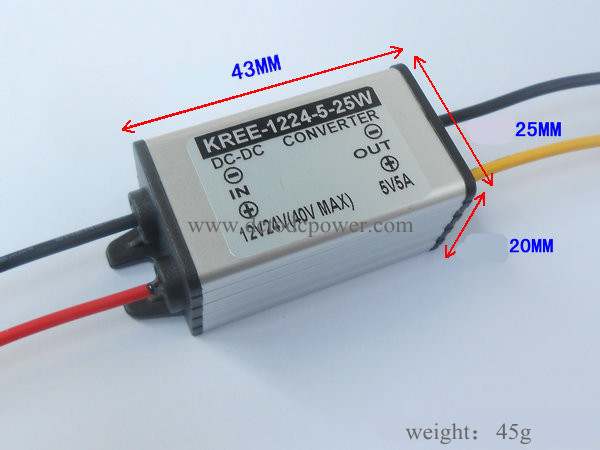

Volume: 43 * 25 * 20mm

Weight: 0.045KG / a

Features

1. Imported integrated switching regulator module manufacturing.

2. synchronous rectification, the conversion rate of 96% or more, very low heat.

3. reverse polarity protection, over-voltage, over-current, over-temperature, short circuit protection automatic braking function, and work in the conditions of recovery.

4. Aluminum alloy casing, epoxy potting, waterproof, shock, moisture and dust.

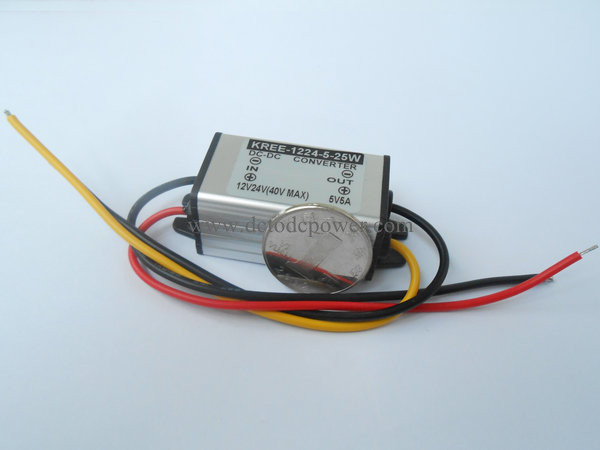

5. The line length is about 15CM, slim, small size, easy installation.

6. Connection: Enter the red (+) black line (-), the output of the yellow line (+) black (-).

7. Scope: bus, CMB, large trucks, motor car, solar power, bus display, taxi advertising screen, absolute taxi radio without interference, car audio, LCD TVs, LED, intercom and monitoring systems .

Note:

1. Power comes with reverse polarity protection, even in the absence of electronic basis can try the same. Pick the wrong answer it like a new turn, will not cause any harm to the power supply.

2. To ensure that the module can output enough voltage and power, make sure there is adequate input supply voltage and power.

3. Please average output of more output with load line, please hasty merger with load.

4. It should be noted the maximum current output value reached thermal power module (module to give the best to leave some of the current margin, which last longer, do not use the maximum possible)
