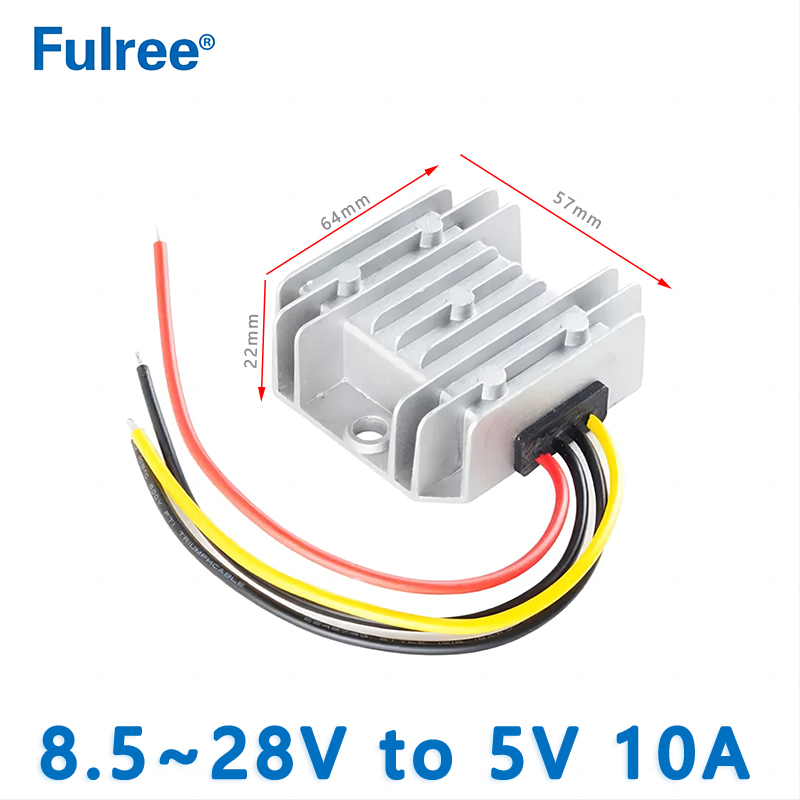

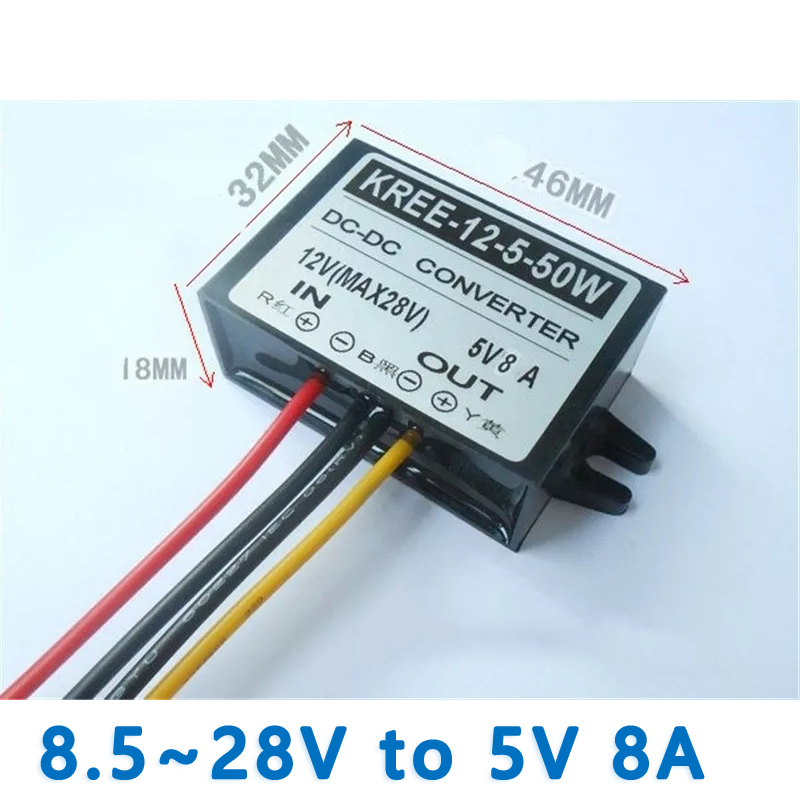

Input DC 12V(8.5-28V)to Output DC 5V 8A 10A DC-DC converter

DC-DC converter Input  DC   12V 24V(8.5-28V)to Output  DC  5V 10A 50W

Keywords: car display dedicated power supply 12V switch 5V buck module

Product Type: YS-12-5-50W

Modulation: FM pulse width modulation type

Connection: other / other

Function: Power transformer

Power Model: YS-12-5-50W

Parameters Table

Input voltage: DC12V24V (Wide Voltage 8.5V-28V)

Output voltage: DC5V

Output Current: 10A 20A peak

Output Power: 50W long-term work

Conversion rate: more than 96% Ripple: 80MV

Working temperature: -40 ℃ ~ + 85 ℃(Industrial Temperature)

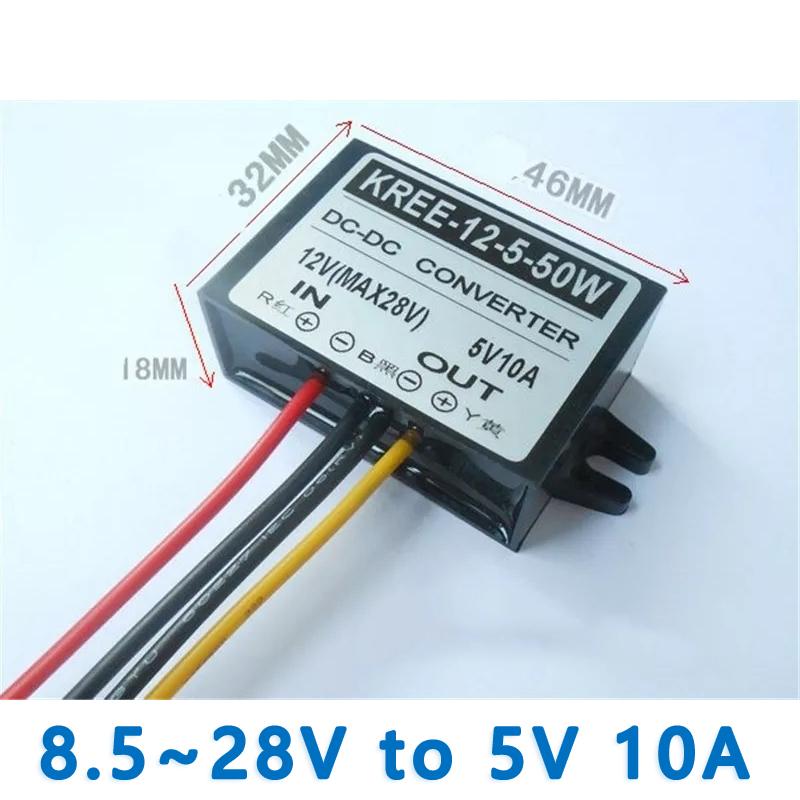

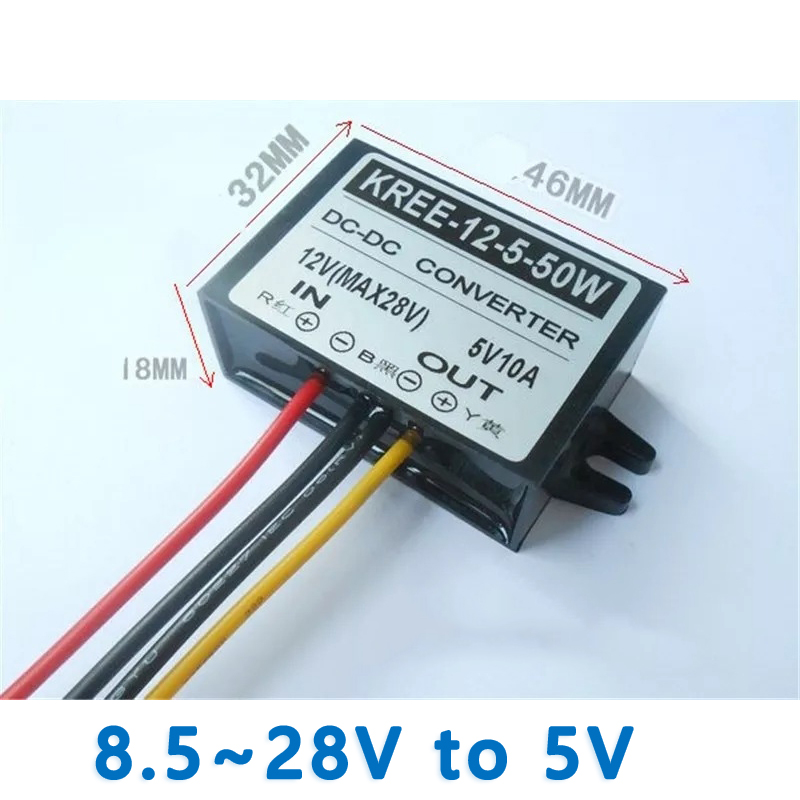

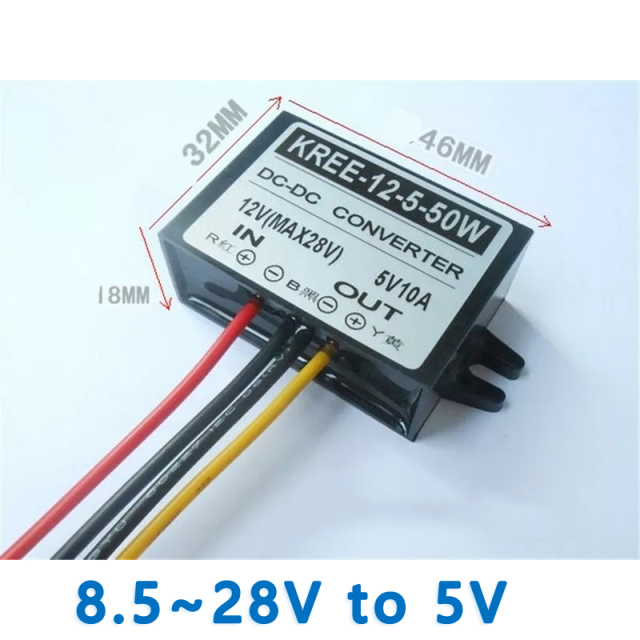

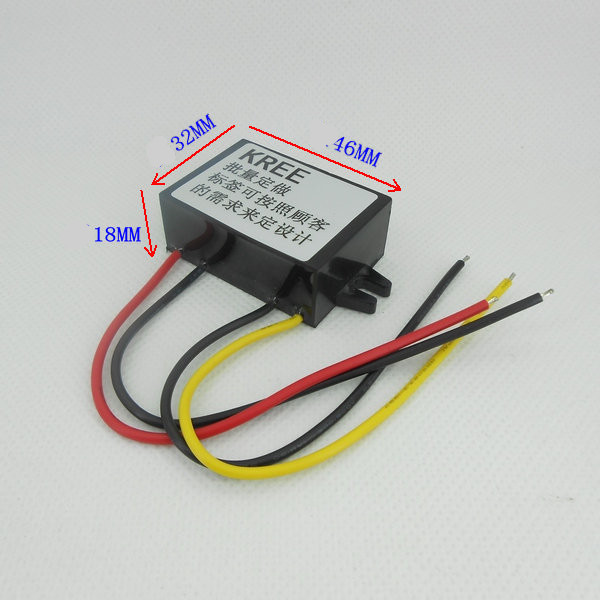

Volume Specifications: 46 * 32 * 18MM (L * W * H)

Weight: 53 g / month

Product advantages; slim volume, power foot, stable performance, all new imported components used, the whole network the lowest price.

Baby details:

1, any one of the input voltage between 8.5V-28V wide voltage can be accurately output 5V, voltage stability.

2, section 10A baby can work long-term, peak 20A, which means you can load device 50W or less long-term stability without adding any heat sink. Performance is very stable, full power enough.

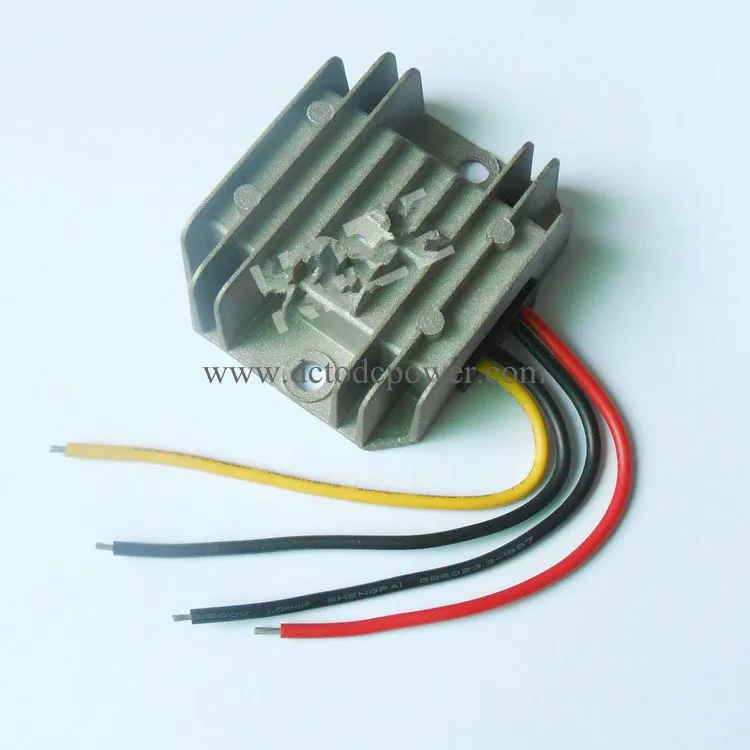

3, all the components are imported, synchronous rectification, aluminum alloy shell, waterproof, shock, moisture and dust.

4. Enter the high-voltage transient protection, output overcurrent protection, output short circuit protection, chip overheating protection.

5, for a voltage range of appliances: electric motors, audio, navigation, surveillance, LED car display, air conditioning, fans, solar energy, photovoltaic energy, DVD, LED lights, motors, pumps, electrical appliances and industrial equipment, and so on.

Note Note:

(Keep in mind, such as for LED car display, this power is an output, turn the power supply to the control card, and then received a card from the control panel unit that can take four monochrome (P10, P6, P7 .62, F3.75, F5.0 color halved) ease of use!

Note Note:

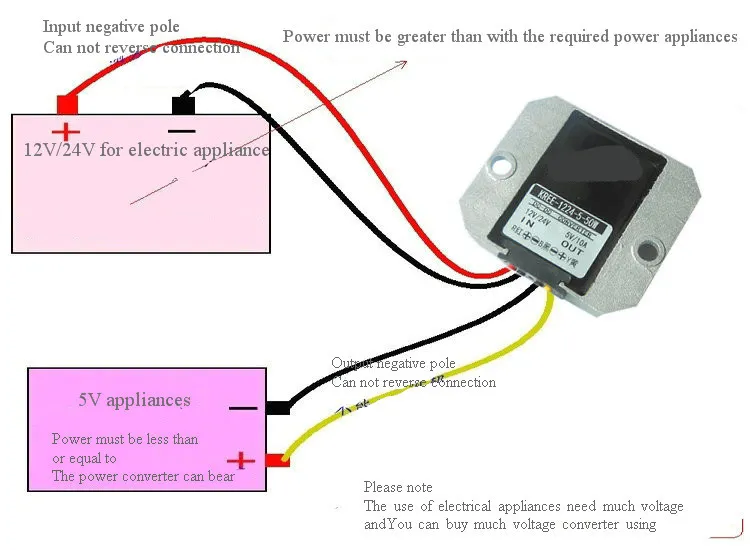

1, this section without the reverse power protection, the positive and negative input and output lines can not be reversed, please parents who must pay attention to.

2, many customers are concerned with 5A, 5A power can not be used in the following equipment will burn it?

A: No, because this power is our constant output current is adaptive output, the converter is based on your equipment to the output current demand, as long as your device can be used in the following 5A, 5A on the line does not exceed . Even if your device is also the same as the normal use of 0.5A contrary, the current needs of the smaller your device, and then you choose bigger power supply actually more secure. Such power has margin, no heat, more secure, more reliable! I hope reassure parents to buy!

3, waterproof power supply, normal use, preservation six months.
