Product Name

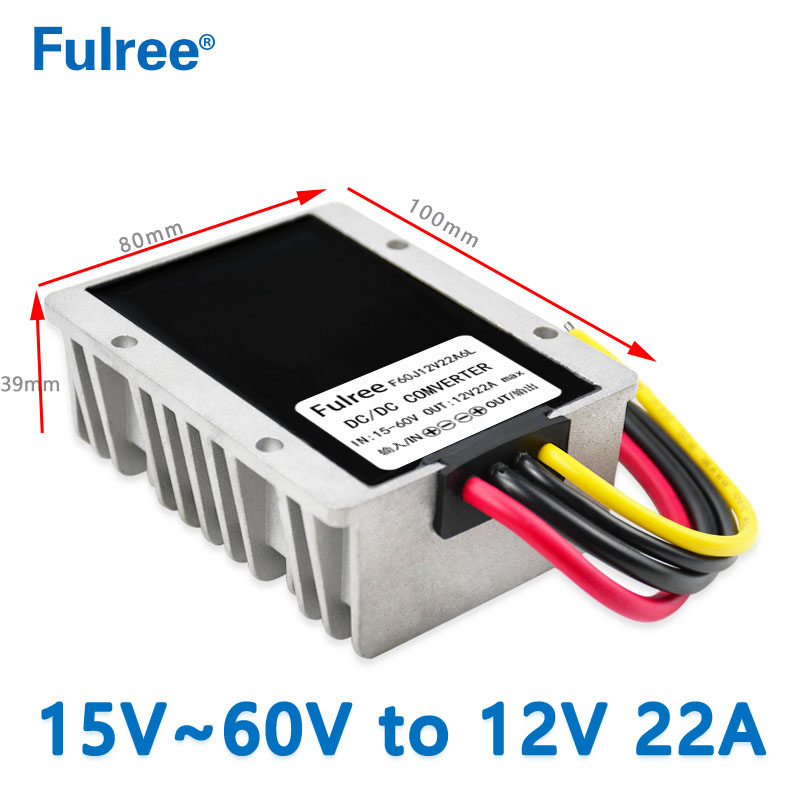

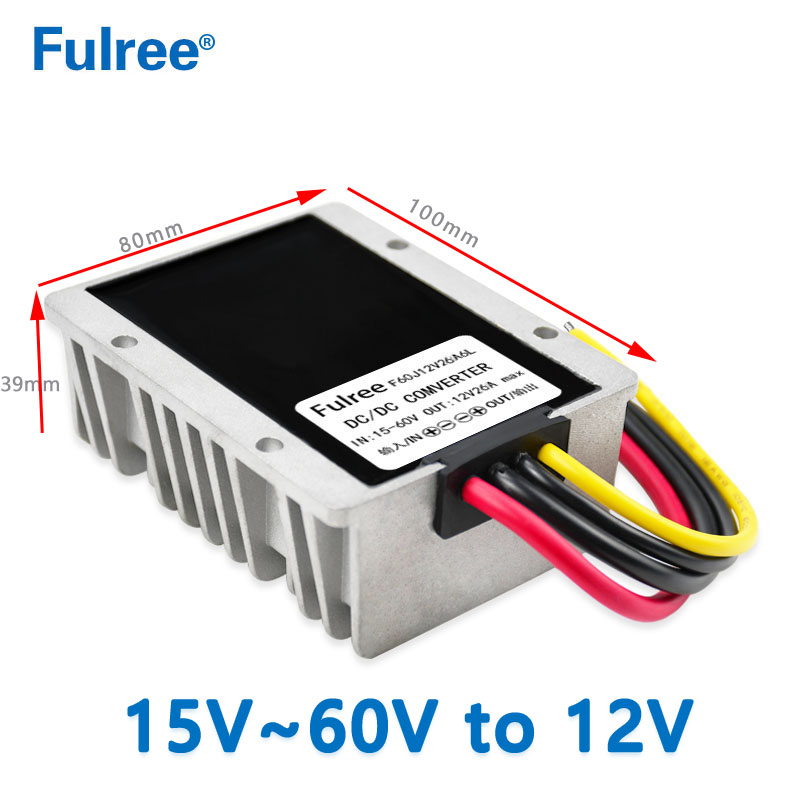

Fulree DC DC Converter 48V 60V to 12V 22A 264W 26A 312W

Brand

Fulree

Model No.

Module Properties

non-isolated buck module

Rectification

synchronous rectification

Input ( Cable:16CM 12AWG )

Input Voltage

DC 24V 36V 48V 60V 72V

Input Voltage Range

DC 15-60V / DC 30-80V

Output  ( Cable:16CM 12AWG )

Output Voltage

DC 12V

Output Current

22A / 26A Max optional

Output Power

264W / 312W Max optional

 Conversion Efficiency

Voltage regulation

±3%

Load regulation

± 2%

Ripple (Full load test)

< 150mV

No-load current

<100mA

Working Temperature

-40~80℃

Waterproof Rating

IP68

Protection

Over-current protection

Over-voltage protection

Overheat protection

Short-circuit protection

 Input/Output Reverse Polarity Protection

No, please follow label instructions wiring strictly: red for input positive, black is negative, white for output positive.

Certification

CE/RoHS

  Case Material

Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on

  Product Size (L x W x H)

100*80*39mm

Product Weight

500g

Packing Information

30PCS/CTN, Carton Size:42.5*21*20.5CM, G.W 16.50KG/CTN

Warranty

12 months, lifetime up to 100,000 hours

Cooling Way

Free air convection
