CPT INput DC 12V ( 8V -22V)Step Down to Output DC 5V 3A MAX Dual Micro Mini USB Car Power Technology DC DC Buck Converter Car Charger Cable for Smart Phones
Product Description
|
Product Name
|
Fulree DC DC Converter 8-22V 12V to 5V 3A 15W
|
|
Brand
|
Fulree
|
|
Model No.
|
C120503 |
|
Module Properties
|
non-isolated buck module
|
|
Rectification
|
synchronous rectification
|
|
Input
|
|
Input Voltage
|
DC 12V
|
|
Input Voltage Range
|
DC 8-22V
|
|
Output
|
|
Output Voltage
|
DC 5V
|
|
Output Current
|
3A, auto-adaption
|
|
Output Power
|
15W
|
|
Conversion Efficiency
|
85-90%,95% Max
|
|
Voltage regulation
|
±1%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
< 150mV
|
|
No-load current
|
< 100mA
|
|
Working Temperature
|
-25~60℃
|
|
Waterproof Rating
|
IP68
|
|
Protection
|
Over-current protection
|
|
Overheat protection
|
|
Short-circuit protection
|
|
Application
|
GPS Navigation, Monitoring, MP3/MP4
DVD,LED bulb lights,Solar Panels,Motors,Smart Phones including iPhone
Electrical appliances, industrial equipment, telecommunications and so on.
|
|
Certification
|
CE/RoHS/FCC
|
|
Case Material
|
Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on
|
|

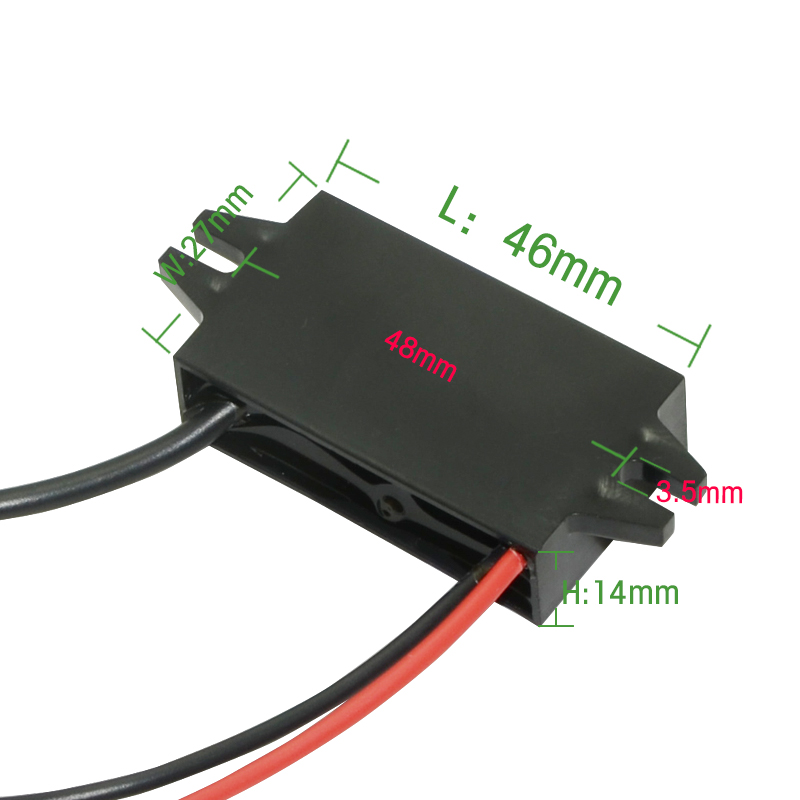

Product Size (L x W x H)
|
46*27*14mm
|
|
Installation Cable Length
|
Input 13-14cm / Output 35cm, accept customized length
|
|
Product Weight
|
50g
|
|
Warranty
|
12 months, lifetime up to 100,000 hours
|
|
Cooling Way
|
Free air convection
|
|
OEM Service
|
Accept OEM logo/label/manual/packing box, Contact Fulree Now!
|
|
Customized Service
|
Accept customized converter such as input/output voltage, cable, interface and etc, Contact Fulree Now!
|
Product Picture

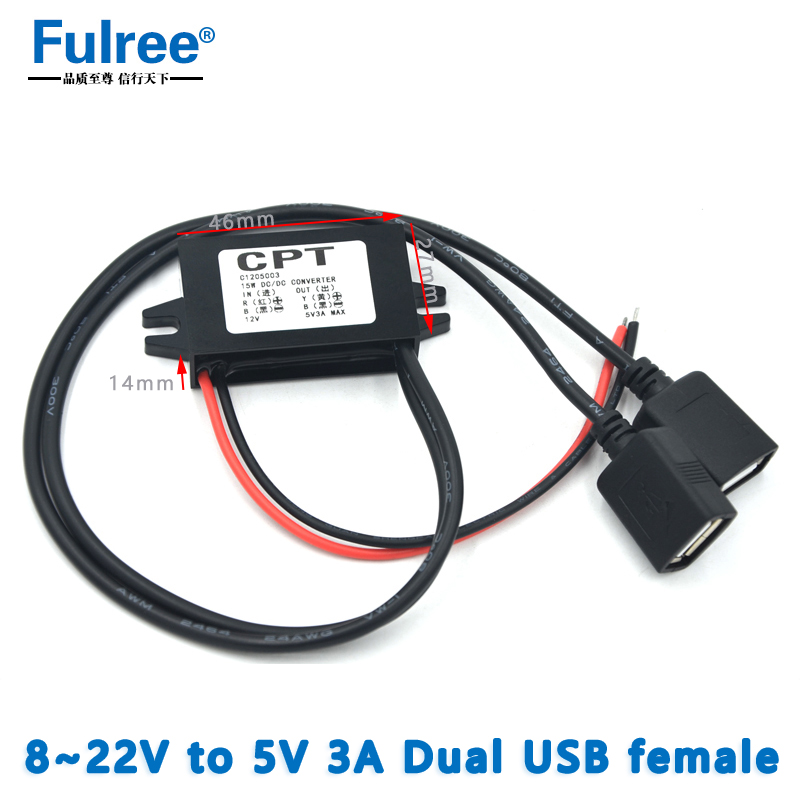

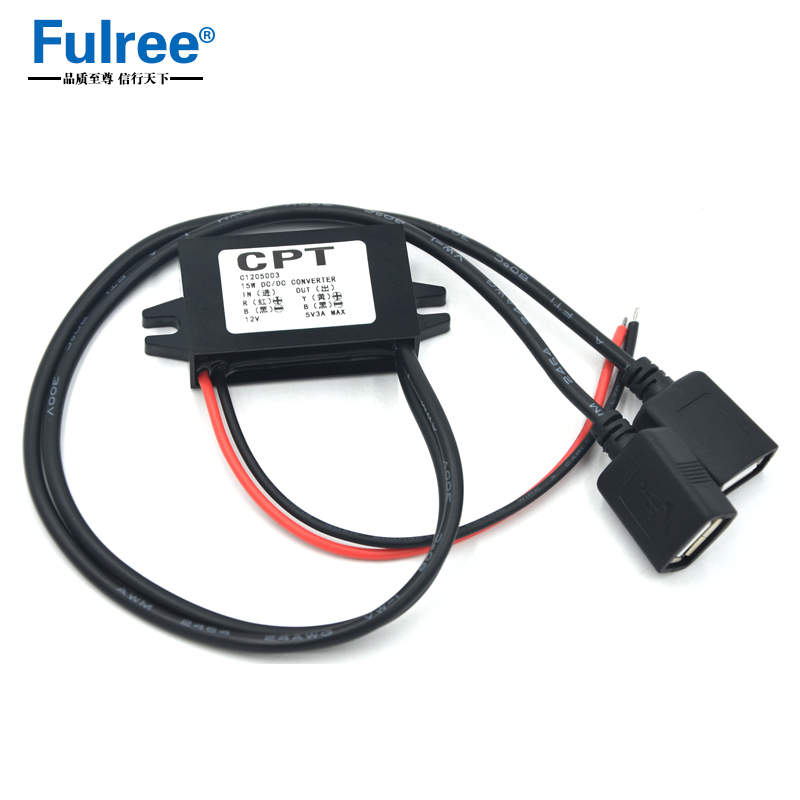

Output Dual Type A Female USB Port

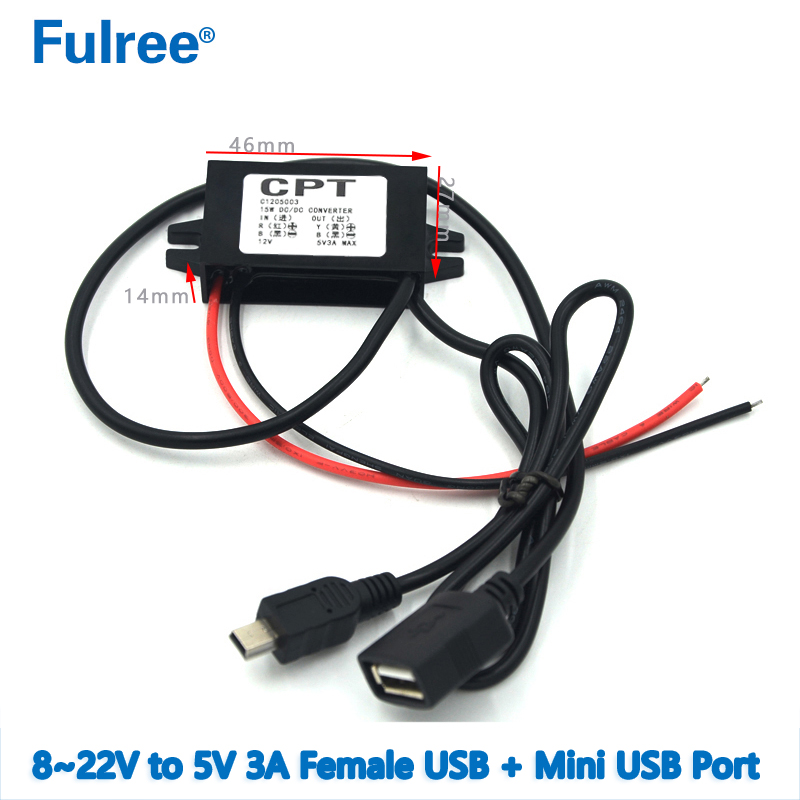

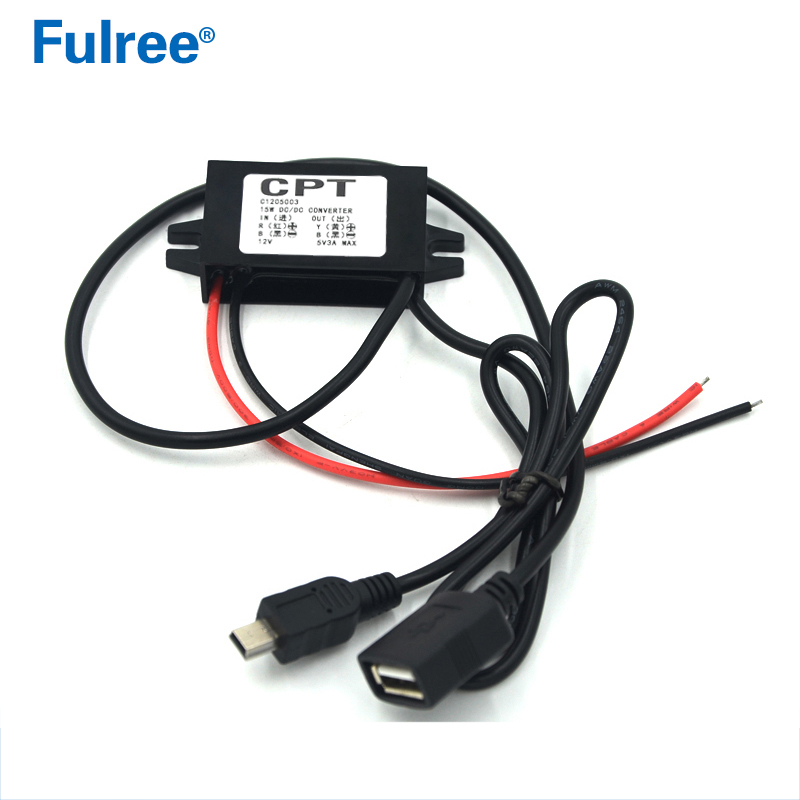

Output Type A Female USB + Mini USB Port

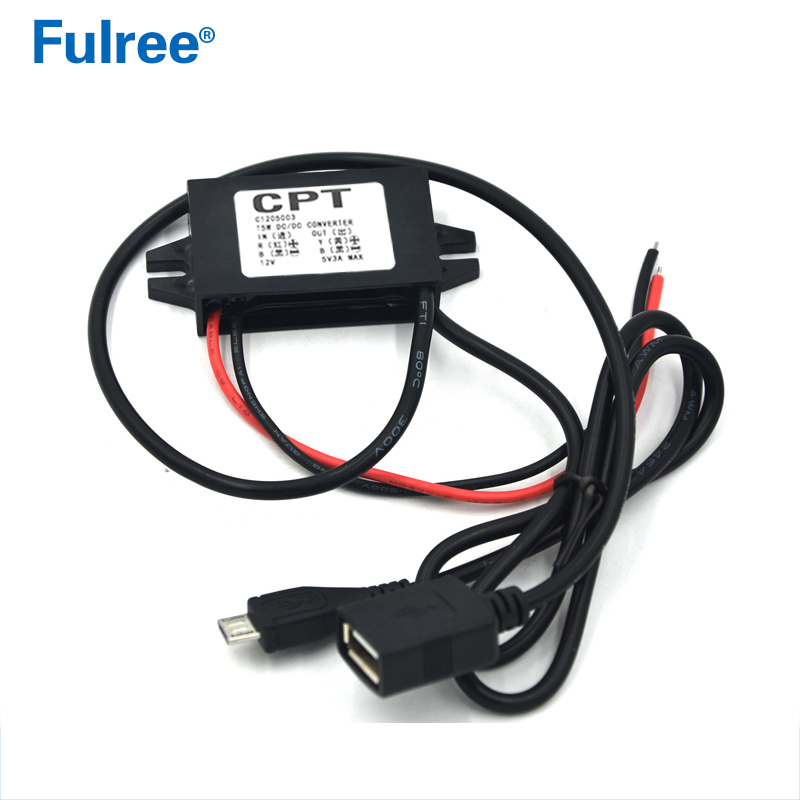

Output Micro USB + USB Port

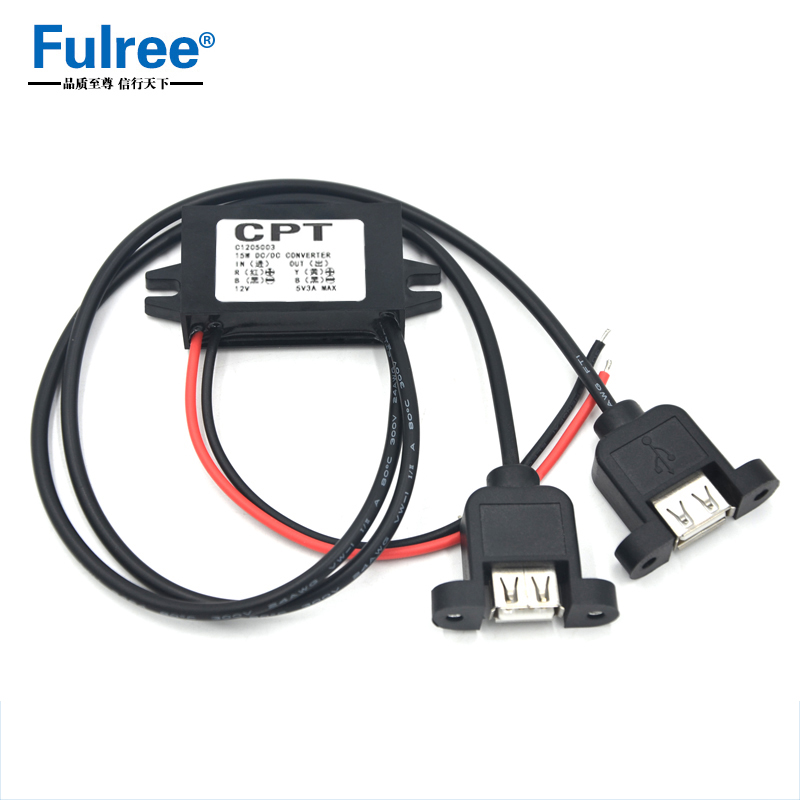

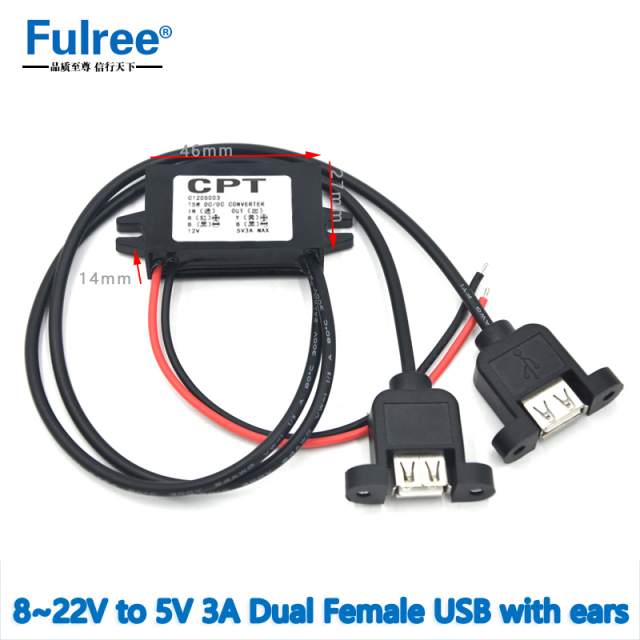

Output Dual Type A Female USB with ears Port
Packaging & Delivery

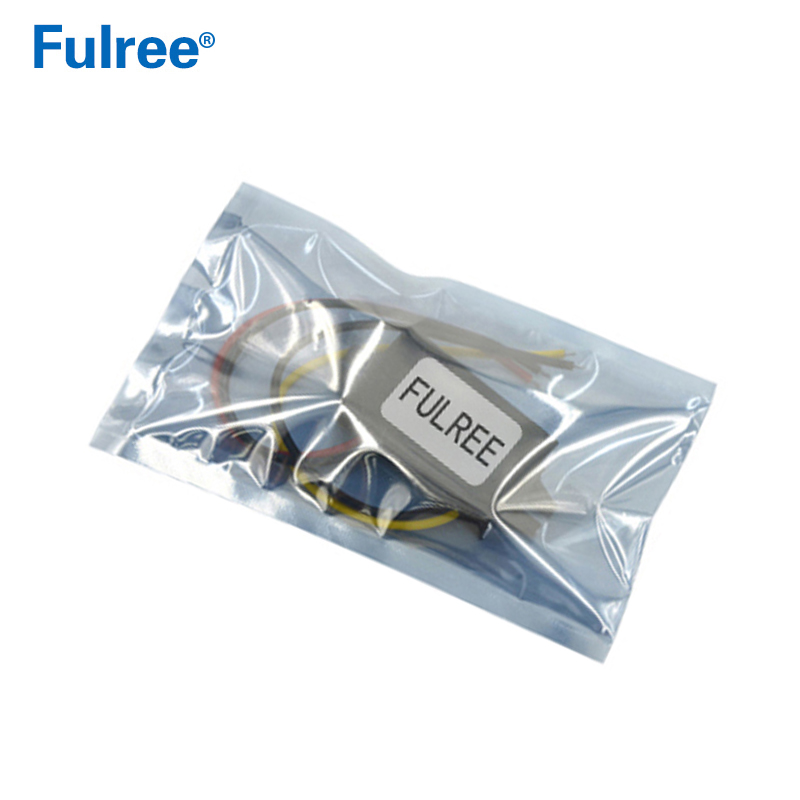

1. We pack each item with OPP bag individually, then put all items in export cartons (around 50-300pcs per carton). The export cartons will be taped to protect the parcel from water stains or something others, it's not easy to break or damage during the shipment by air or sea.
2. We make shipment between 3-15 days for normal order and 3 to 5 days for samples.
3. We can offer you express like FedEx, DHL, UPS & TNT when you make a relatively small order like samples. The ocean shipping is also available when you place a big order. The customers can use their own freight forwarder account.
4. If you need some special request on shipment, please note us before placing order.
5. In order to clear customs soon, please provide accurate receiving address including zip code and taxes number. The HS code is 8504401400.
