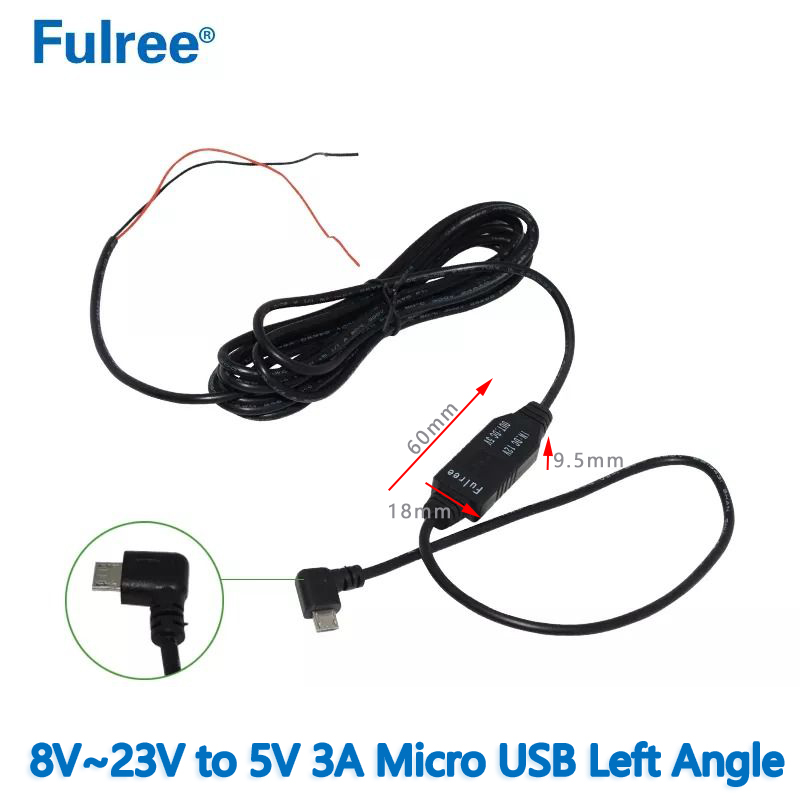

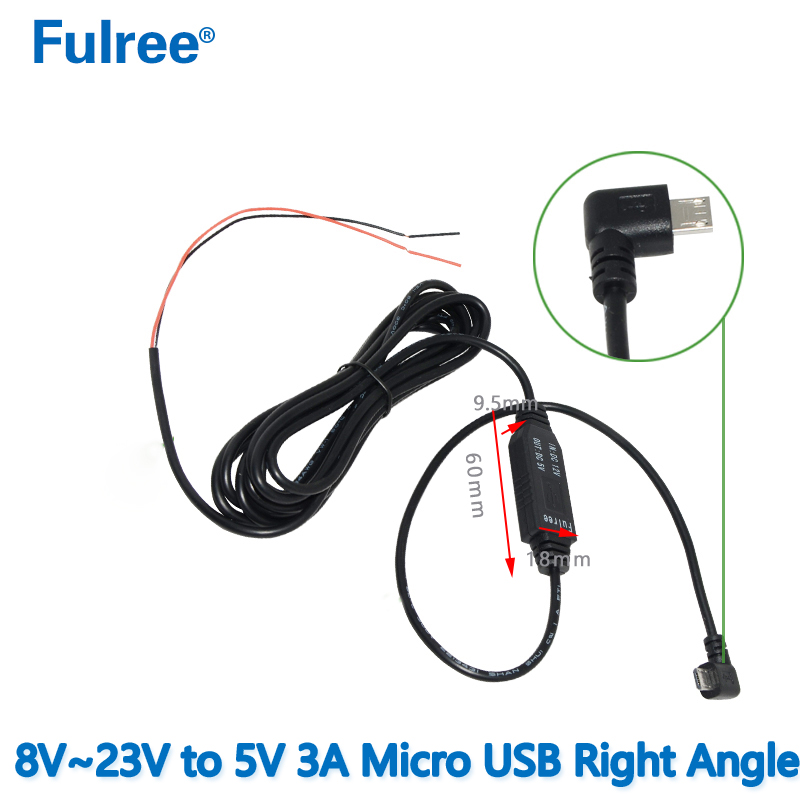

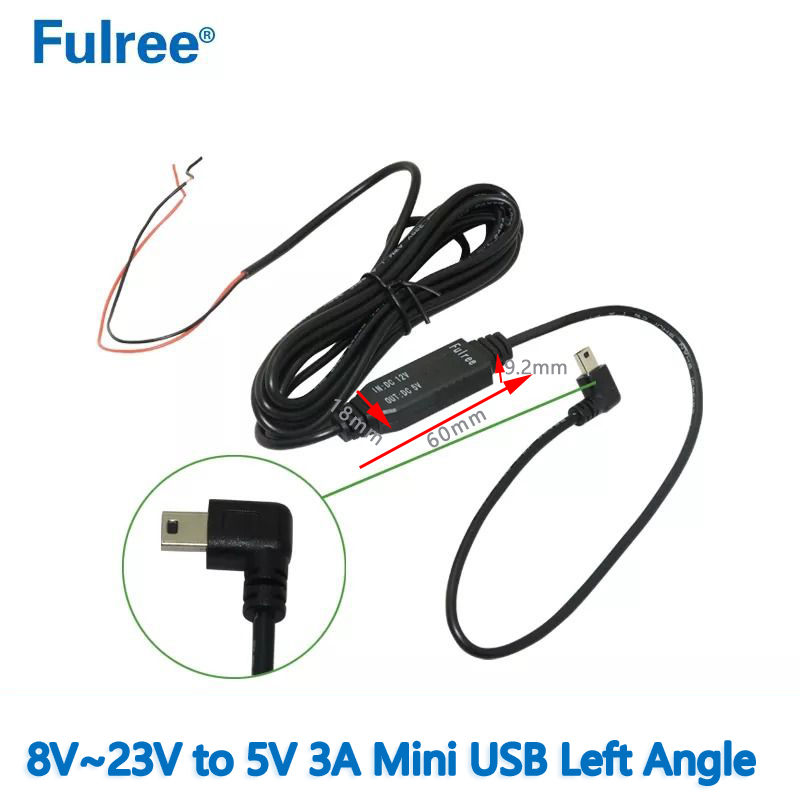

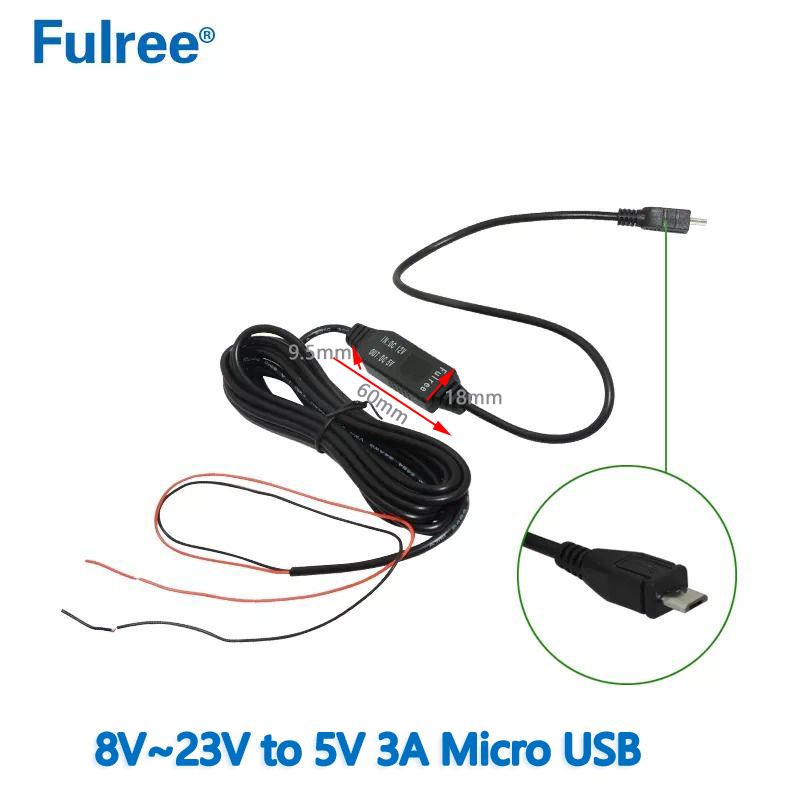

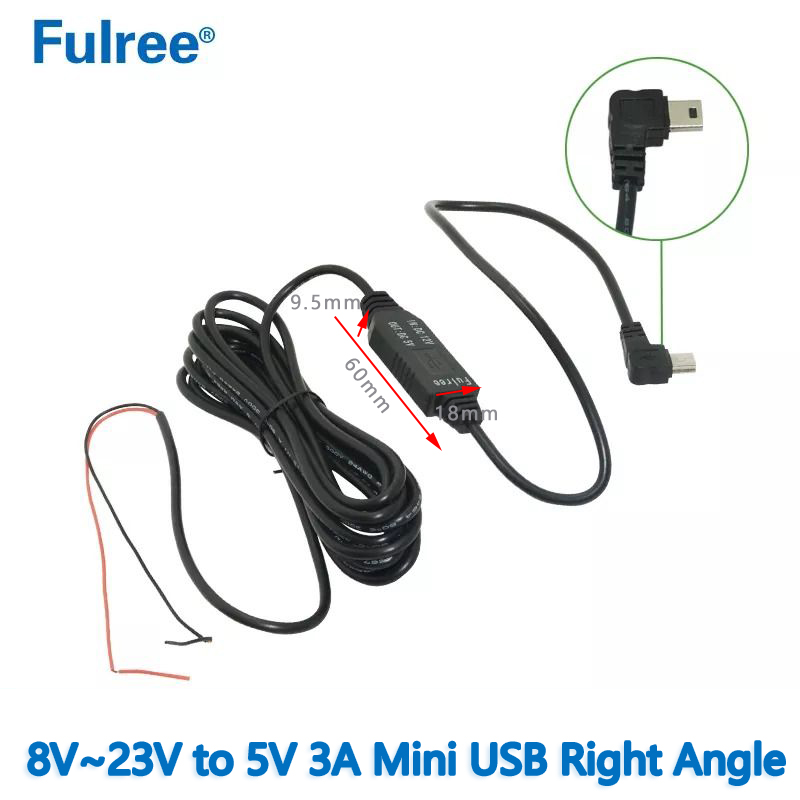

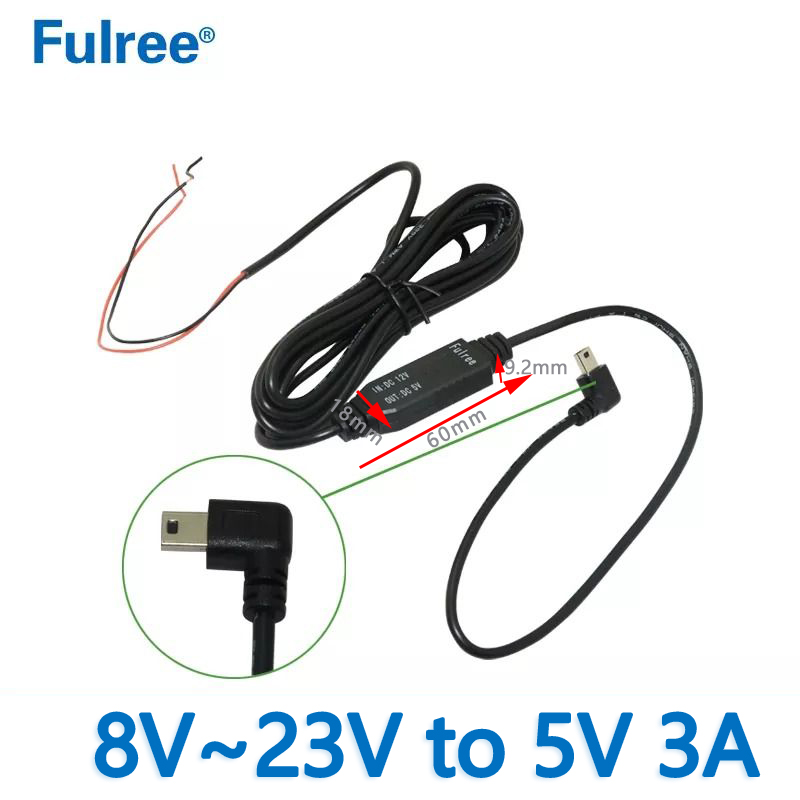

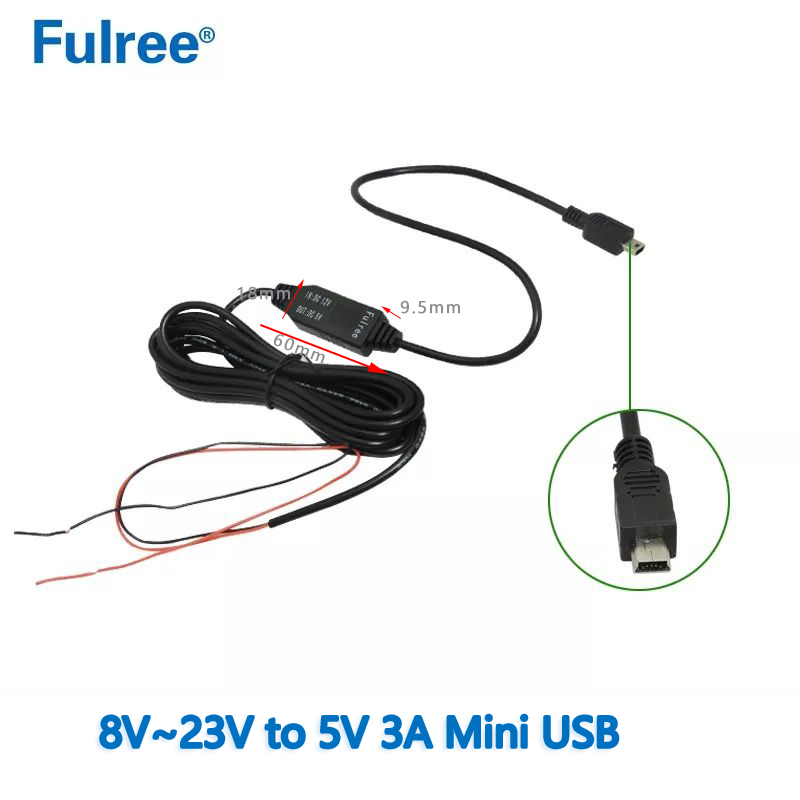

3M Input DC 12V (8-23V)  to  Output DC  5V 3A 15W Max  DC Step Down Buck Converter Straight Angled Curved Bend Mini Micro USB DVR GPS CCTV Monitor Camera Car Charger

>Item Name:DC DC Converter 12V to 5V 3A 15W Max

>Input voltage: DC 12V (8-23V)

>Output voltage: Constant DC 5V

>Output current: Auto-Adaptive 0~3A Max

>Output Power: 15W  Max

>Output Connector: Straight/Left Angled/Right Angled Micro/Mini USB

>Cable Length: Input 3M / Output 0.35M, custom length is accepted

>Size: L60mm*W18mm*H9.2mm(not include the cable)

>Weight:70G

>How to wire: Red for input positive / Black for input negative

Benifits: Ideal 12V to 5V Step Down DC Converter Car Charger Power Solution for CCTV DVR Dash Cam Camera Driving Recorder Navigator and etc.

Specifications:

 • Module Properties: non-isolated buck module (BUCK)

 • Rectification: synchronous rectification • Minimum pressure difference: 3V

 • Conversion efficiency: 90% • Soft-start time: 500mS • Output ripple: 50mV (MAX) 20M-

bandwidth

 • Full load temperature rise: 50°c

 • Load regulation: ± 1%

 • Voltage regulation: ± 2%

 • Dynamic response speed: 5% 200uS • Operating Temperature: Industrial (-25°c to +60°c) ( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)

Feature:

 • Overcurrent Protection • Overheat Protection • Short circuit Protection
