Product Name

Fulree DC DC Converter 24V to 12V 1A/1.5A

Brand

Fulree

Model No.

Module Properties

non-isolated buck module

Rectification

synchronous rectification

Input

Input Voltage

DC 24V

Input Voltage Range

DC 15-35V

Output

Output Voltage

DC 12V

Output Current

1A/1.5A, auto-adaption

Output Power

12W/18W

Conversion Efficiency

85%

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 150mV

No-load current

< 100mA

Working Temperature

-40~85℃

Waterproof Rating

IP68

Protection

Over-current protection

Overheat protection 150℃

Full waterproof potting

 Input/Output Reverse Polarity Protection

No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive. If you need this function, please contact with us to customize it.

Application

Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts

GPS Navigation, Monitoring, Air conditioning

LED car display, DVD, LED bulb lights

Wind Power System, Solar Panel Power System, Photo voltaic energy

Electrical appliances, water pumps, industrial equipment, telecommunications and so on.

Certification

CE/RoHS

  Case Material

Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on

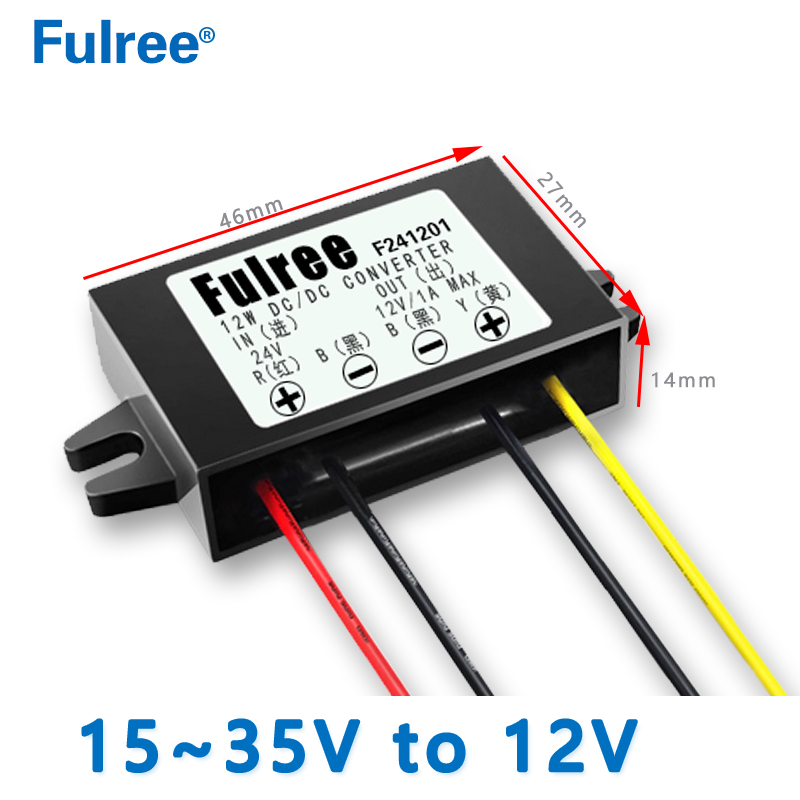

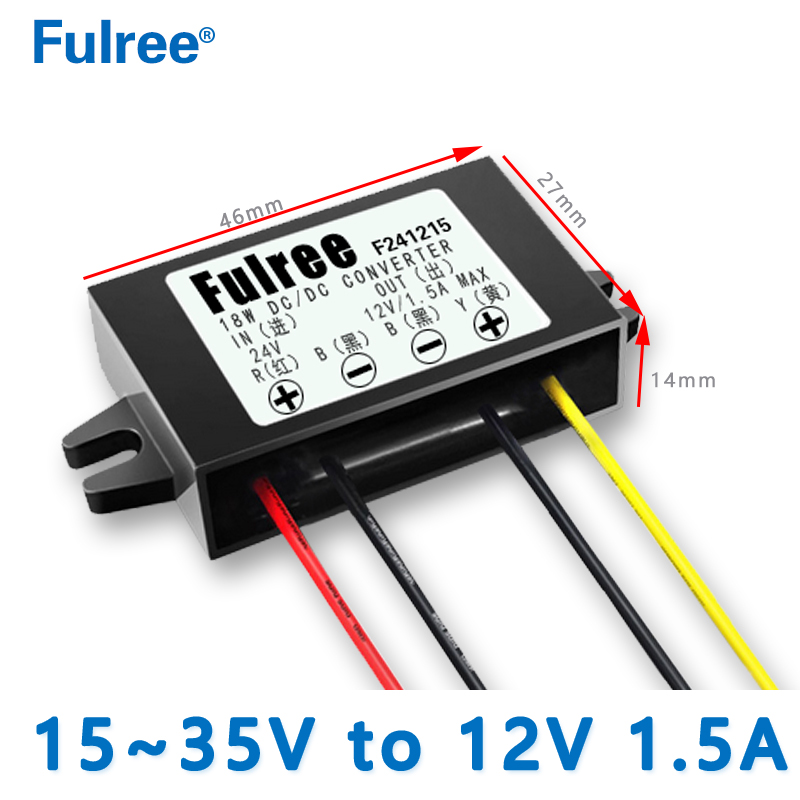

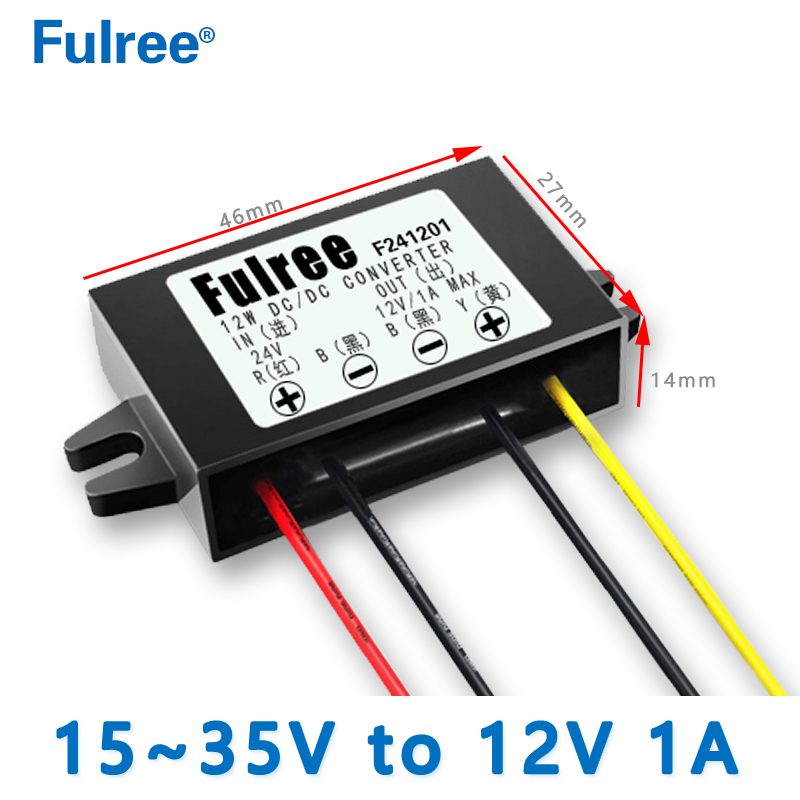

  Product Size (L x W x H)

46*27*14mm

Installation Cable Length

 13-14cm

Product Weight

 35g

Warranty

12 months, lifetime up to 100,000 hours

Cooling Way

Free air convection

OEM Service

Accept OEM logo/label/manual/packing box, Contact Fulree Now!

Customized Service

Accept customized converter such as input/output voltage, cable, interface and etc, Contact Fulree Now!

≥ 90%

-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use,

or to enhance heat dissipation)

non-isolated buck module(buck)

Auto-recovery when device is back to normal operating,

waterproof IP68 design, anti-shock protection

Other ouput voltage available

3.3V, 3.7V, 4.2V, 5V, 6V, 7.5V, 9V,12V

(pls contact with our sales manager if need)

 Attention:

>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.

Product Name

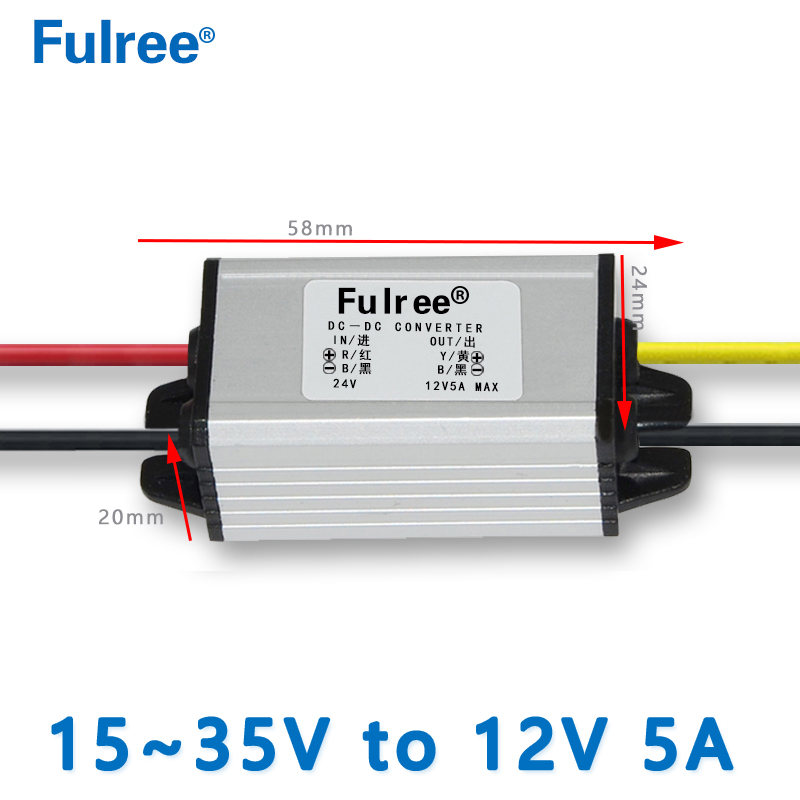

Fulree DC DC Converter 24V to 12V 5A 60W

Brand

Fulree

Model No.

Module Properties

non-isolated buck module

Rectification

synchronous rectification

Input

Input Voltage

DC 24V

Input Voltage Range

DC 15-35V

Output

Output Voltage

DC 12V

Output Current

5A Max, auto-adaption

Output Power

60W Max

Conversion Efficiency

96%

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 150mV

No-load current

< 100mA

Working Temperature

-40~85℃

Waterproof Rating

IP68

Protection

Over-current protection 6A

Overheat protection 150℃

Output Short-circuit protection

Full waterproof potting

 Input/Output Reverse Polarity Protection

No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive. If you need this function, please contact with us to customize it.

Application

Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts

GPS Navigation, Monitoring, Air conditioning

LED car display, DVD, LED bulb lights

Wind Power System, Solar Panel Power System, Photo voltaic energy

Electrical appliances, water pumps, industrial equipment, telecommunications and so on.

Certification

CE/RoHS/FCC

  Case Material

Aluminum Alloy/Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on

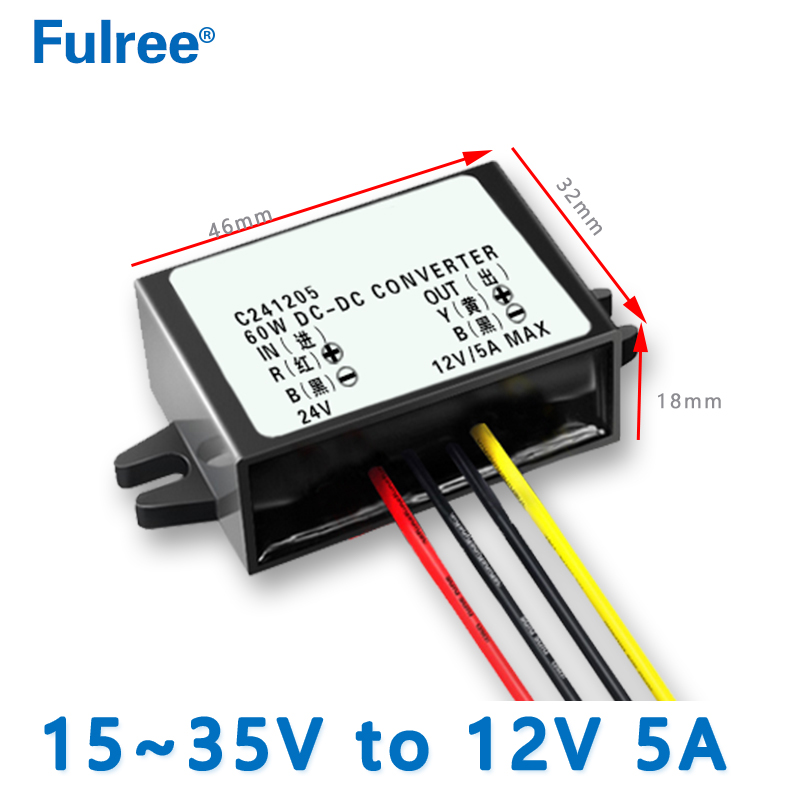

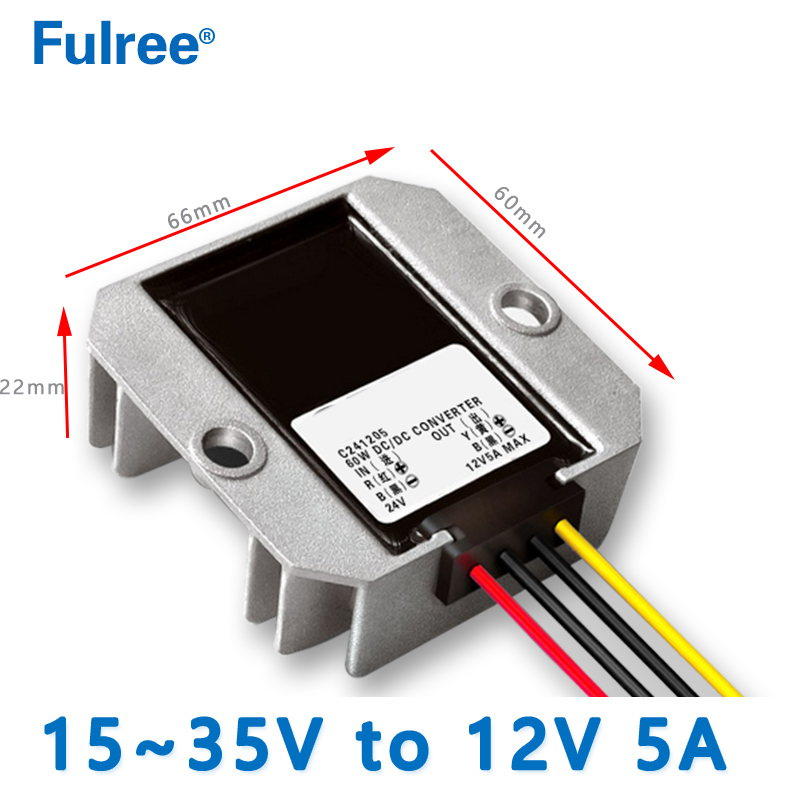

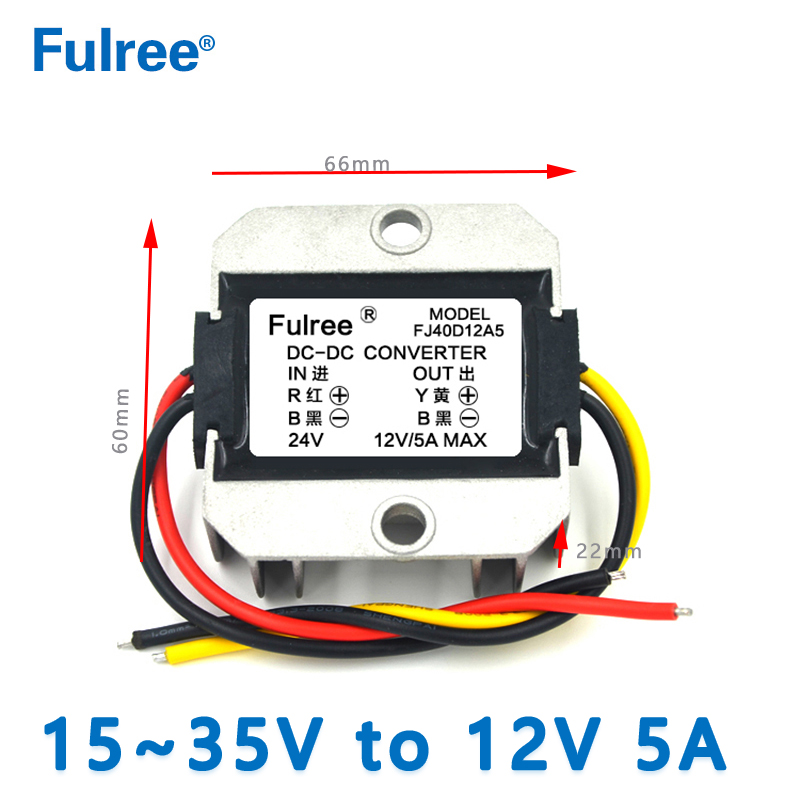

  Product Size (L x W x H)

Aluminum Case: 66*60*22mm/ Plastic Case: 46*32*18mm

Installation Cable Length

 13-15cm

Product Weight

Aluminum Case: 100g / Plastic Case: 65g

Warranty

12 months, lifetime up to 100,000 hours

Cooling Way

Free air convection

OEM Service

Accept OEM logo/label/manual/packing box, Contact Fulree Now!

Customized Service

Accept customized converter such as input/output voltage, cable, interface and etc, Contact Fulree Now!
