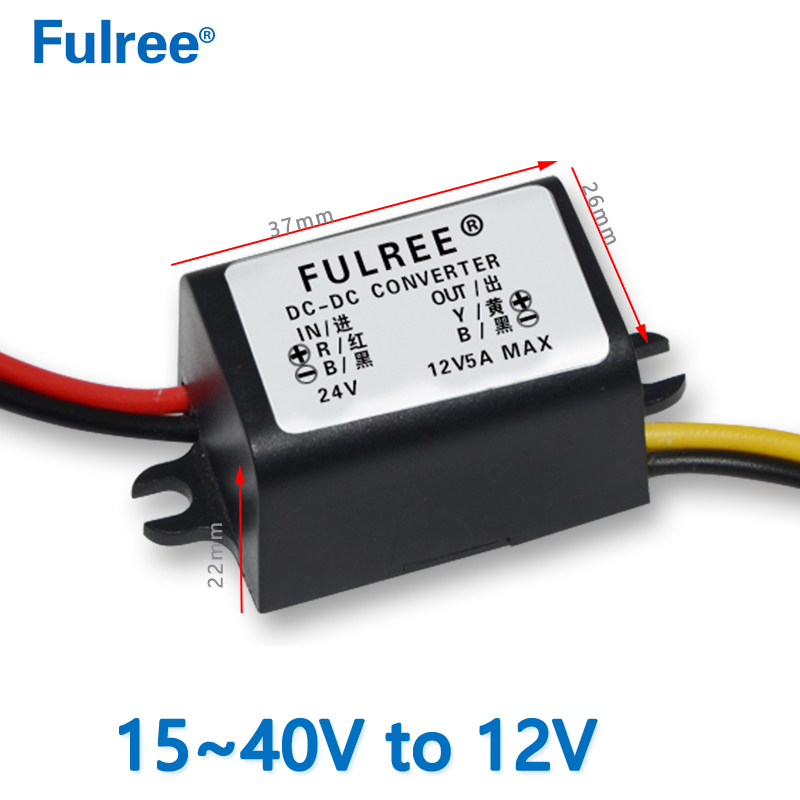

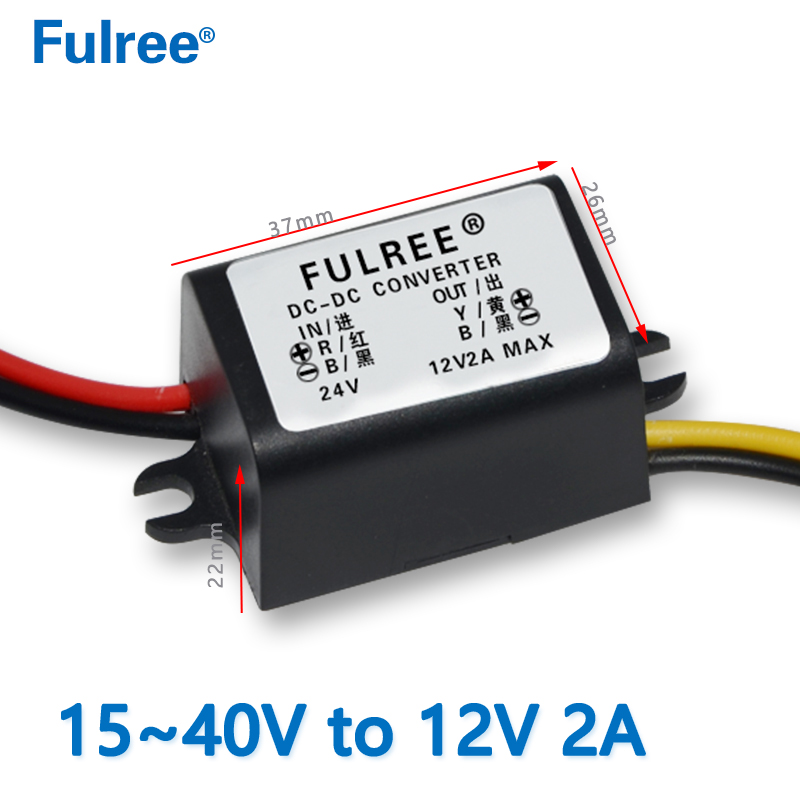

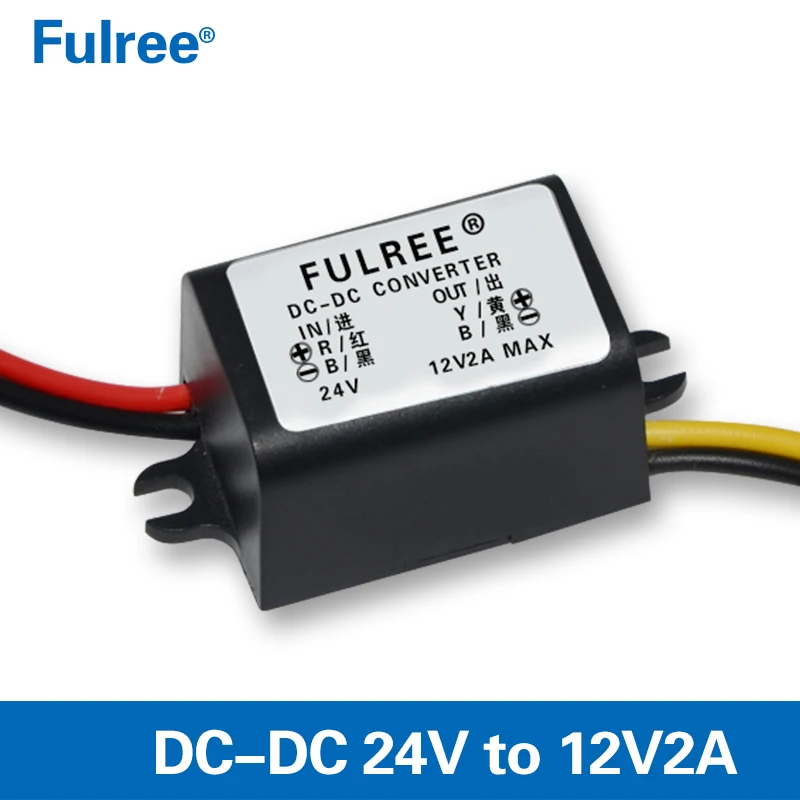

Input DC 24V( 15-40V) to Output DC 12V 1.5A 2A 3A 5A Max DC to DC Power Converter Step Down Voltage Regulator Module
| Item Name |
24v to 12v step down converter |
| Brand |
Fulree |
| Input rated voltage |
DC 24V |
| Input voltage range |
DC 15-40V |
| Efficiency |
>90% |
| Output voltage |
DC 12V |
| Output current |
1.5A / 2A / 3A / 5A Max |
| Output rated power |
18W / 24W / 36W / 60W Max |
| Output peak power |
21W / 28W / 43W /72W |
| Voltage regulation |
< 1% |
| Load regulation |
< 2% |
| Working temperature |
-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use,
or to enhance heat dissipation)
|
| Module Properties |
non-isolated buck module(buck)
|
| Rectification |
synchronous rectification |
| Waterproof rating |
IP68 |
| Full load temperature rise: |
50°c |
| Protection |
Over-current, Over-temperature, Output Short circuit protection |
| NW |
45G |
| Product size |
36*27*22mm |
|
Other output current
option for 24V to 12V
|
8A, 10A,12A, 15A, 20A, 25A,30A(pls contact with our sales manager if need) |
|
Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
|

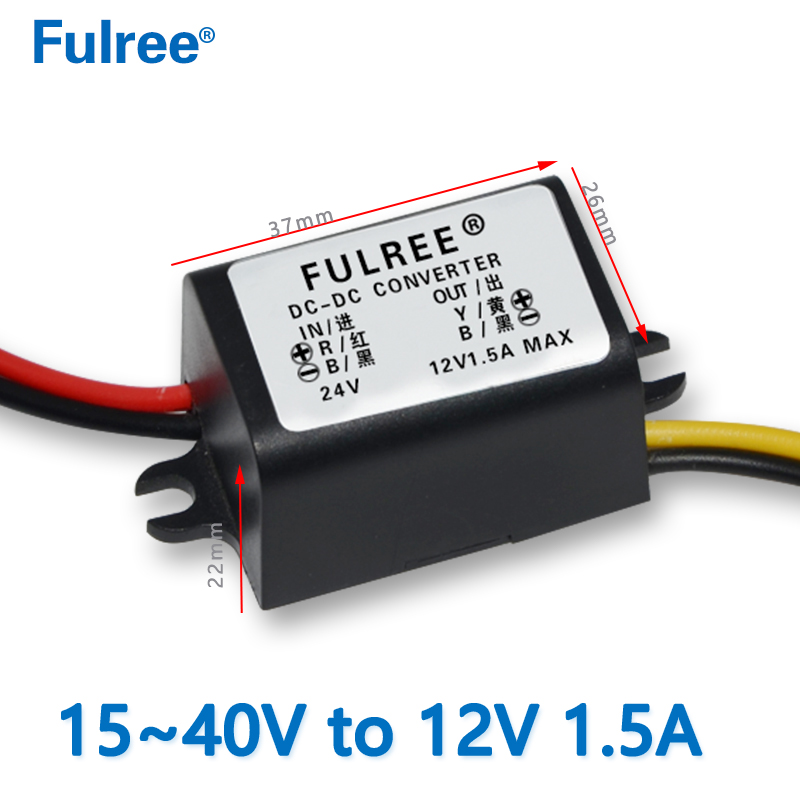

DC DC Power Converter 24V to 12V 1.5A Buck Module

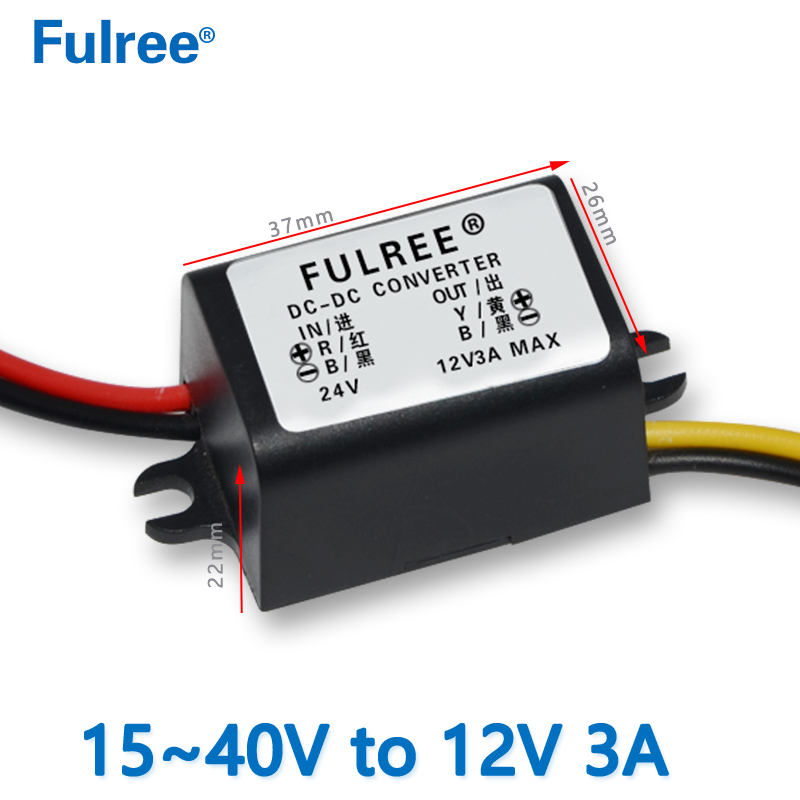

DC DC Power Converter 24V to 12V 3A Step Down Converter
DC24V to DC12V 3A Step Down Converter

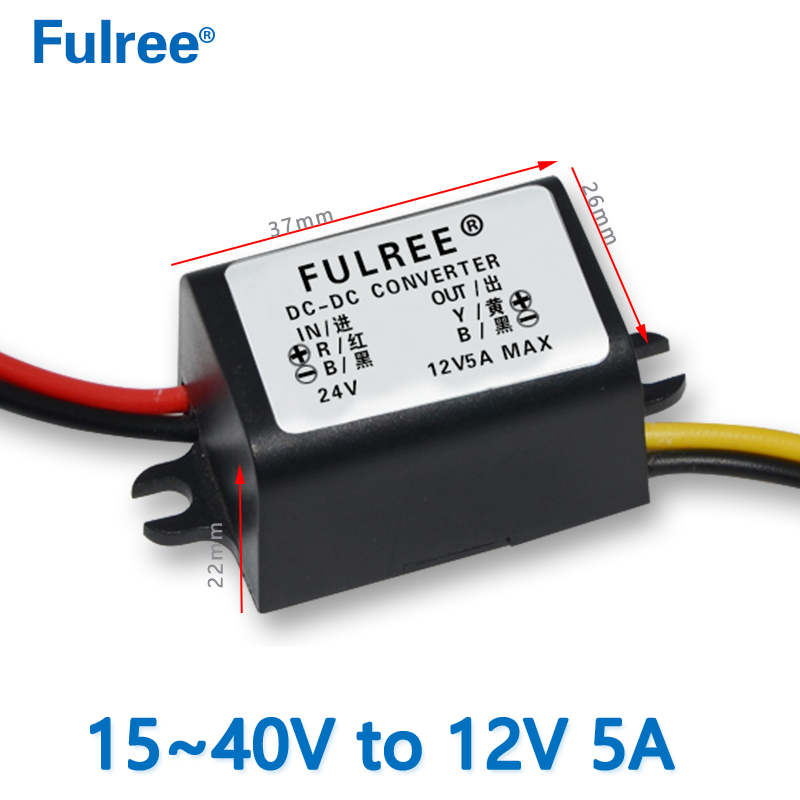

DC 24V to 12V 5A Step Down Converter
DC 24V to 12V 5A Step Down Converter
