Input DC 24V (15-40V) to Output DC 13.8V 10A 12A 15A 20A Max DC to DC Converter for Lithium Lead-acid Li-ion Battery Charger

4.0 (57)
$11.78 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Discount
  • 3% OFF WITH PURCHASE OVER 10 UNITS
  • 6% OFF WITH PURCHASE OVER 50 UNITS
  • 10% OFF WITH PURCHASE OVER 100 UNITS
    Please select the information you want X
  • model:
    24V (15-40V)-13.8V-10A
    24V (15-40V)-13.8V-12A
    24V (15-40V)-13.8V-15A
    24V (15-40V)-13.8V-20A
Quantity:
Availability: In Stock
  • Description

Input DC  24V (15-40V) to  Output DC 12V 12.6V 13.8V 10A 12A 15A 20A Max DC to DC Converter for Lithium Lead-acid Li-ion Battery Charger

Product Description



Product Name

Fulree DC DC Converter 24V to 13.8V

Brand

Fulree

Model No.

 F40J13.8V*A5L-C

Module Properties

non-isolated buck module

Rectification

synchronous rectification

Input

Input Voltage

DC 24V

Input Voltage Range

DC 15-40V

Output

Output Voltage

DC 13.8V

(Customized 12.6V or other 12-20V output is accepted)

Output Current

Constant Current 10A / 12A / 15A / 20A Max

Output Power

 138W / 165.6W / 207W / 276W Max

 Conversion Efficiency

 92%

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 100mV

No-load current

<100mA

Working Temperature

-40~80℃

Waterproof Rating

IP68

Protection

Over-current protection

Overheat protection

Short-circuit protection

Application

 charging 13.8V li-ion battery

Certification

CE/RoHS

  Case Material

Aluminum

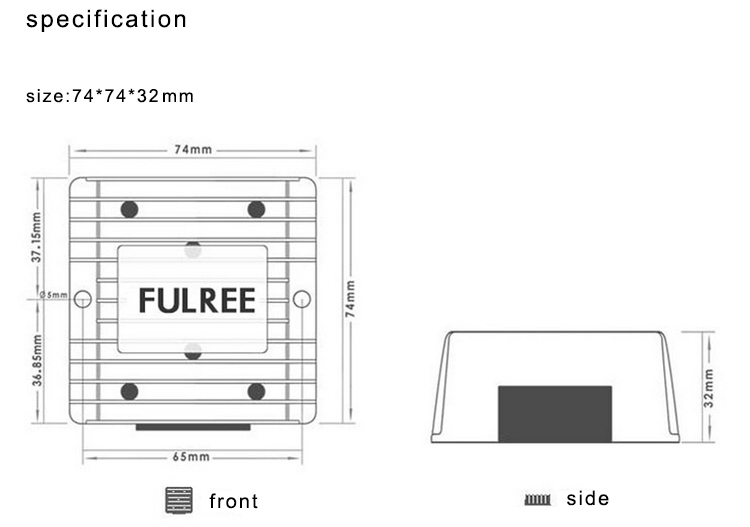

  Product Size (L x W x H)

74*74*32mm

Product Weight

280g

Warranty

12 months, lifetime up to 100,000 hours

Cooling Way

Free air convection

OEM&ODM Service

  Accept

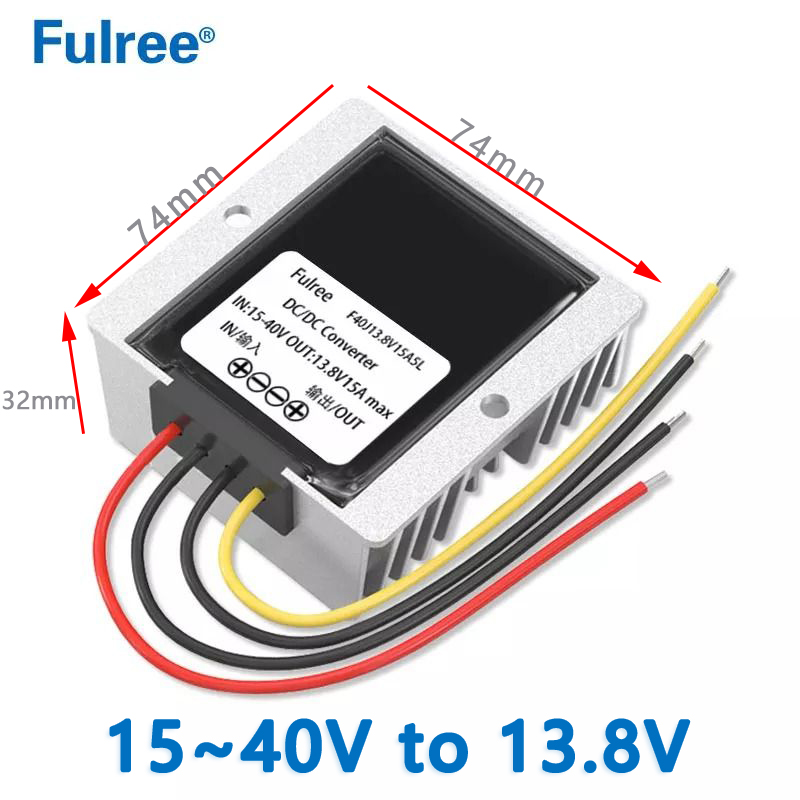

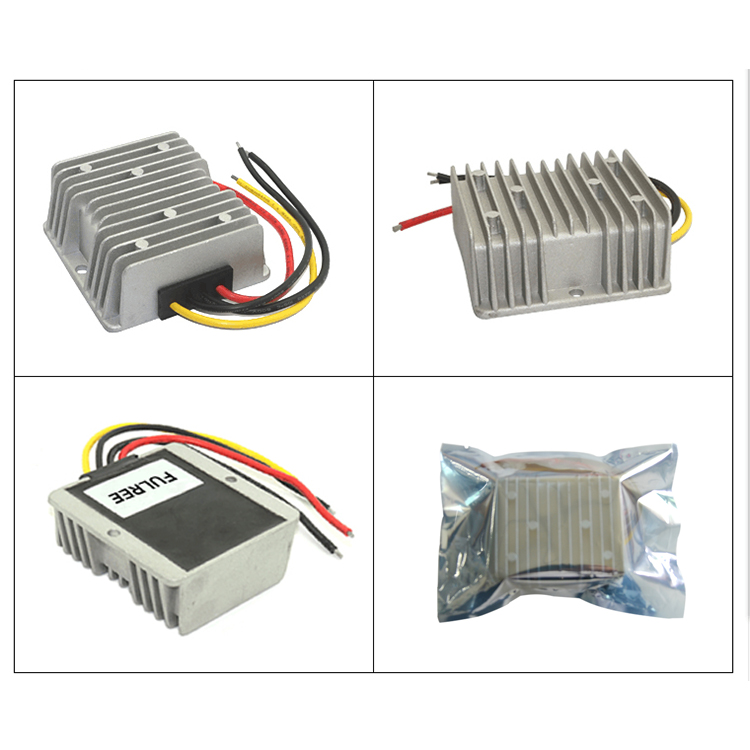

Product Picture

24V to 12V 12.6V 13.8V 10A 12A 15A 20A DC DC Step Down Constant Current Converter for Lithium Lead-acid Li-ion Battery Charger24V to 12V 12.6V 13.8V 10A 12A 15A 20A DC DC Step Down Constant Current Converter for Lithium Lead-acid Li-ion Battery Charger
24V to 12V 12.6V 13.8V 10A 12A 15A 20A DC DC Step Down Constant Current Converter for Lithium Lead-acid Li-ion Battery Charger
