| Product Name |

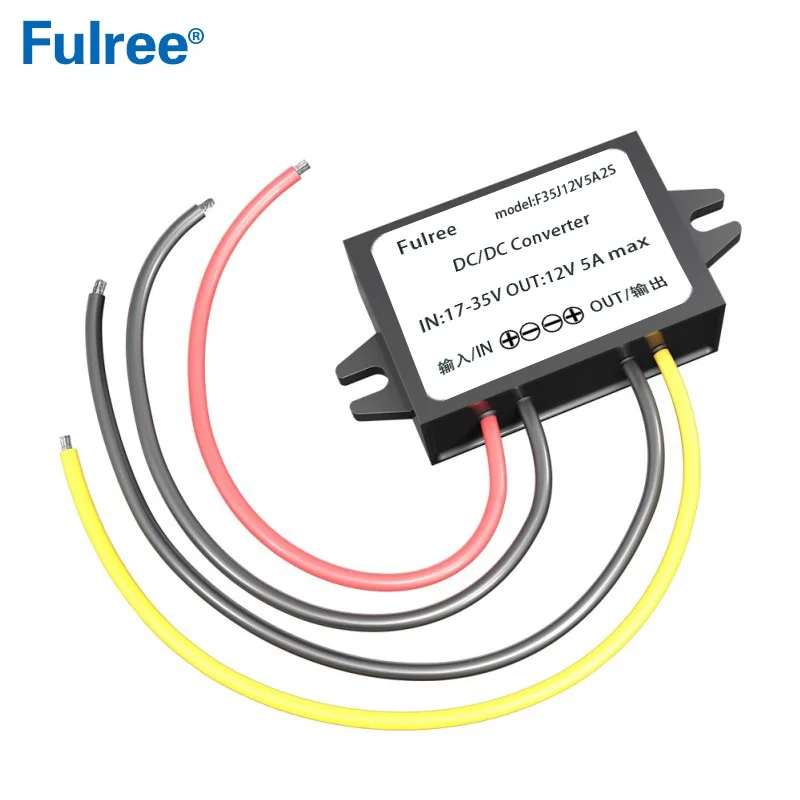

24V DC to 12V DC Converter |
| Model |
F35J12V*A2S |
| Input rated voltage |
DC 24V |
| Input voltage range |
DC 17-35V |
| Efficiency |
>90% |
| Output voltage |
DC 12V |
| Output current |
1A / 2A / 3A / 5A / 8A /10A Max |
| Output rated power |
12W / 24W / 36W / 60W / 96W / 120W Max |
| Voltage regulation |
< 3% |
| Load regulation |
< 2% |
| Working temperature |
-40°c ~+85°c( If ambient temperature exceeds 40°c, lower power use,
or to enhance heat dissipation)
|
| Module Properties |
non-isolated buck module(buck)
|
| Rectification |
synchronous rectification |
| Waterproof rating |
IP68 |
| Full load temperature rise: |
50°c |
| Protection |
Over-current, Over-temperature,Short circuit protection, Reverse Polarity Protection |
| NW |
65G |

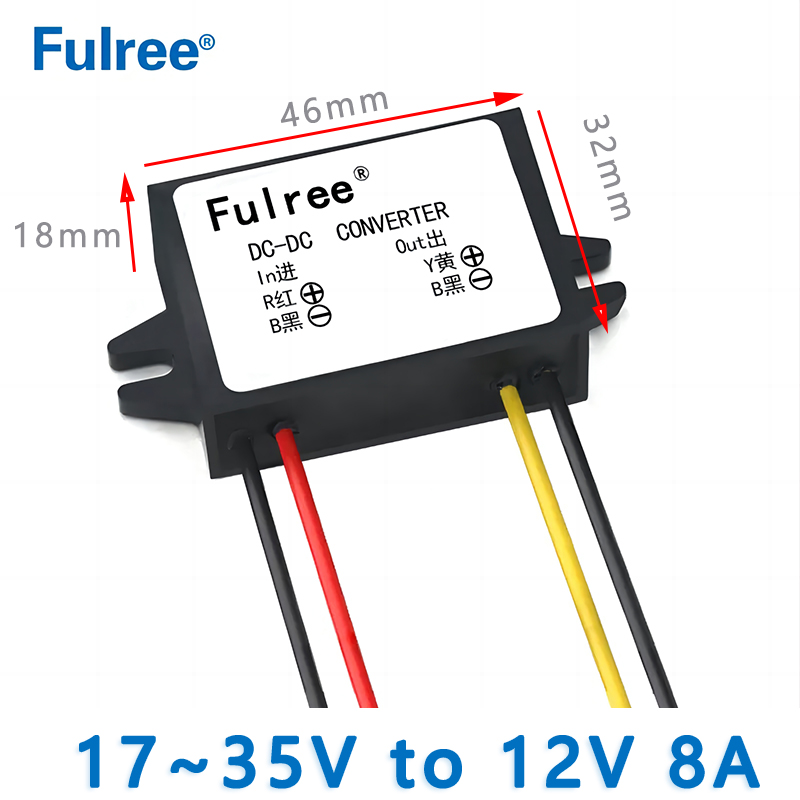

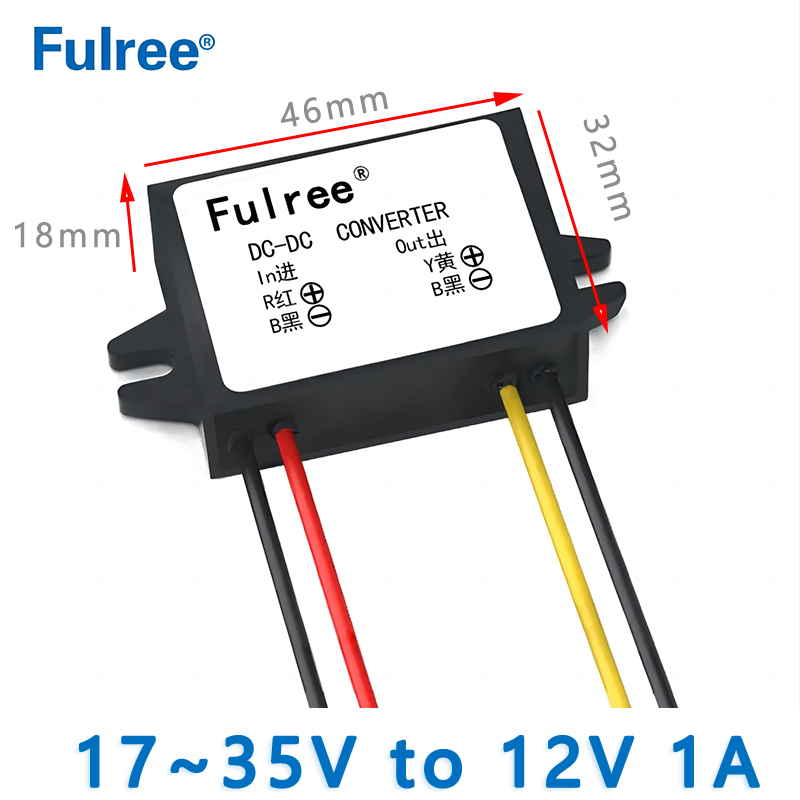

| Product size |
46*32*18mm |
|
Other output current
option for 48V to 12V
|
5A, 10A, 15A, 20A, 25A(pls contact with our sales manager if need) |
|
Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
|
