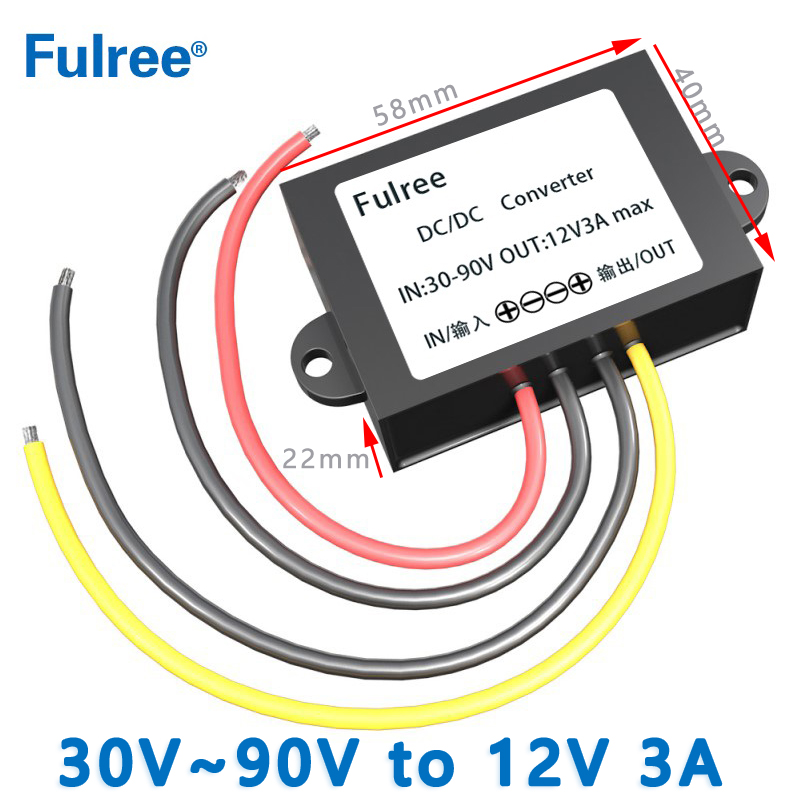

Input DC 36V 48V 60V 72V( 30-90V) to Output DC 12V 3A 5A 8A 10A 12A 15A 20A DC to DC Converter ACC Enable Cable
Input DC 36V 48V 60V 72V( 30-90V) to Output DC 12V 3A 5A 8A 10A DC DC Converter Step Down Buck Voltage Power Supply
| Product Name |
DC DC Converter 36V 48V 60V 72V( 30-90V) to 12V 3A / 5A / 8A / 10A |
| Model |
F**J12V*A3S |
| Input rated voltage |
DC36V 48V 60V 72V( 30-90V) |
| Input voltage range |
DC 36V 48V 60V 72V( 30-90V) |
| Efficiency |
>95% |
| Output voltage |
12V |
| Output current |
3A / 5A / 8A / 10A Max |
| Output rated power |
36W / 60W / 96W / 120W Max |
| Voltage regulation |
< 3% |
| Load regulation |
< 2% |
| Working temperature |
-40°c ~+85°c( If ambient temperature exceeds 40°c, lower power use,
or to enhance heat dissipation)
|
| Module Properties |
non-isolated buck module(buck)
|
| Rectification |
synchronous rectification |
| Waterproof rating |
IP68 |
| Full load temperature rise: |
50°c |
| Protection |
Over-current, Over-temperature,Short-circuit protection |
| NW |
100G |
| Product size |
58*40*22MM |
|
Other output current
option for 48V to 12V
|
15A, 20A,25A(pls contact with our sales manager if need) |
|
Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
|

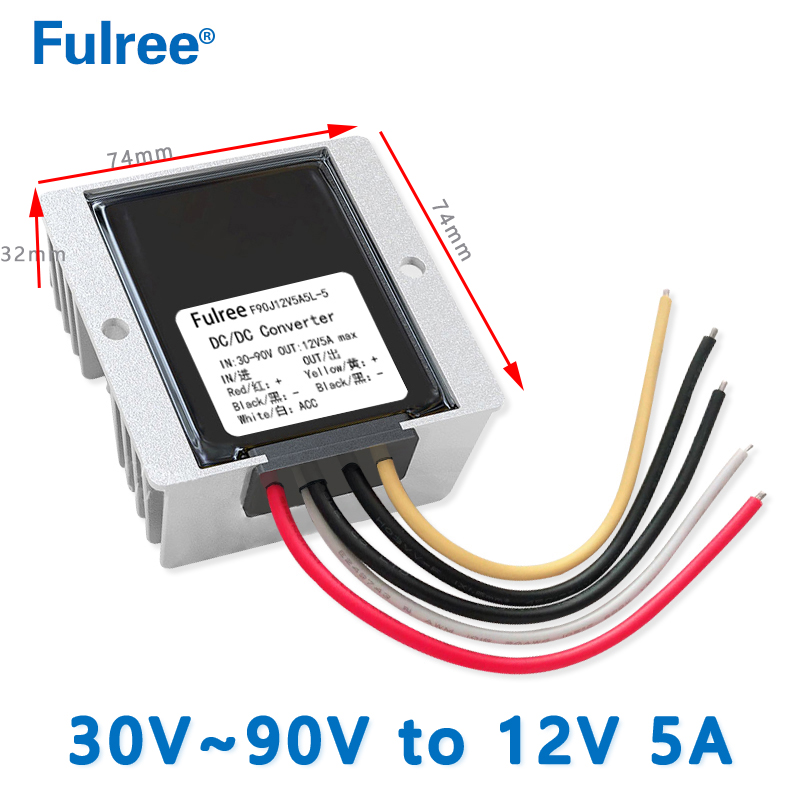

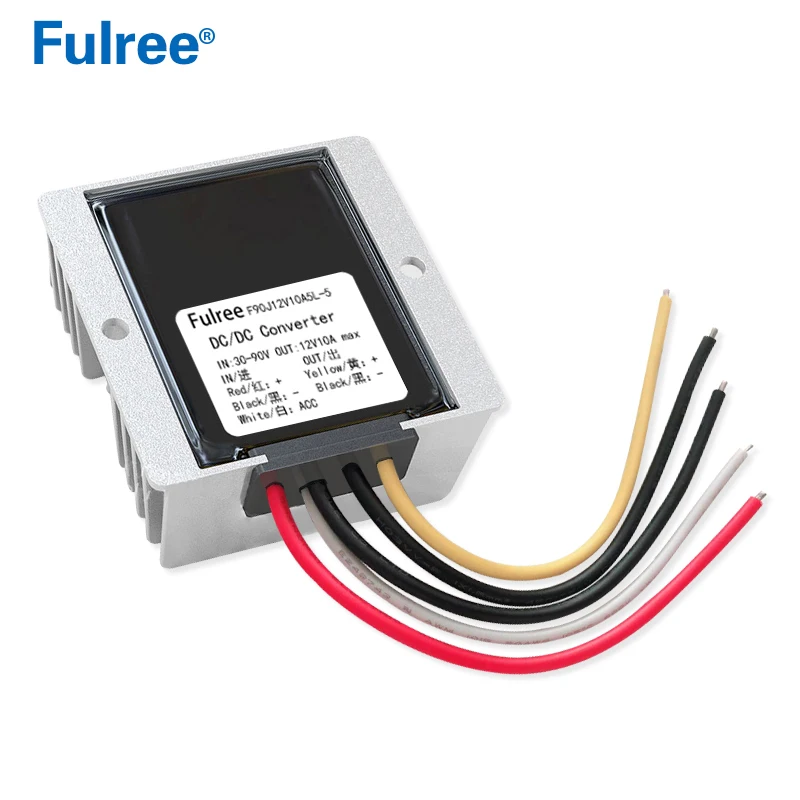

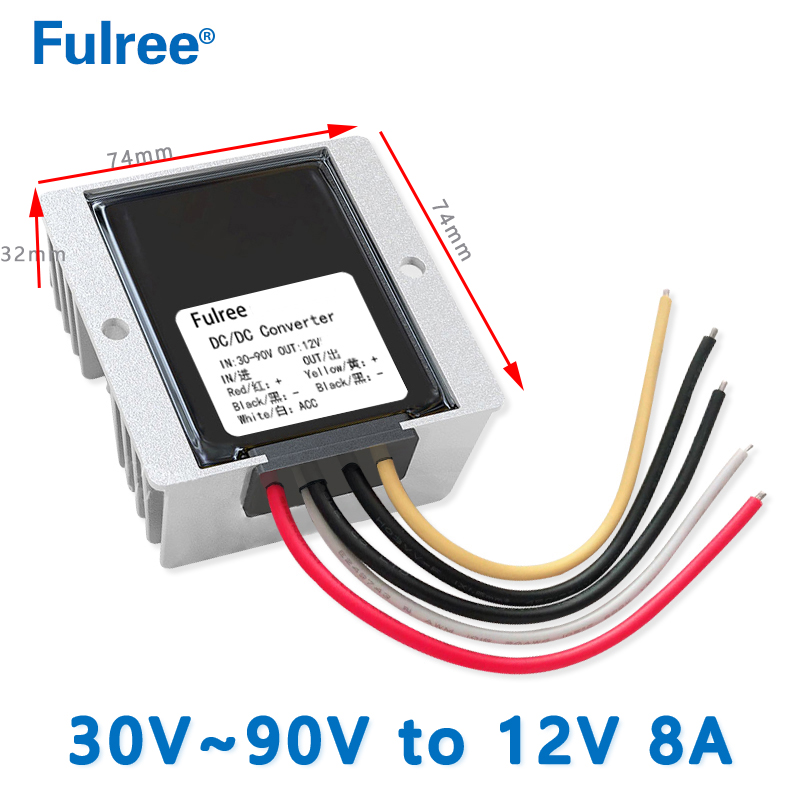

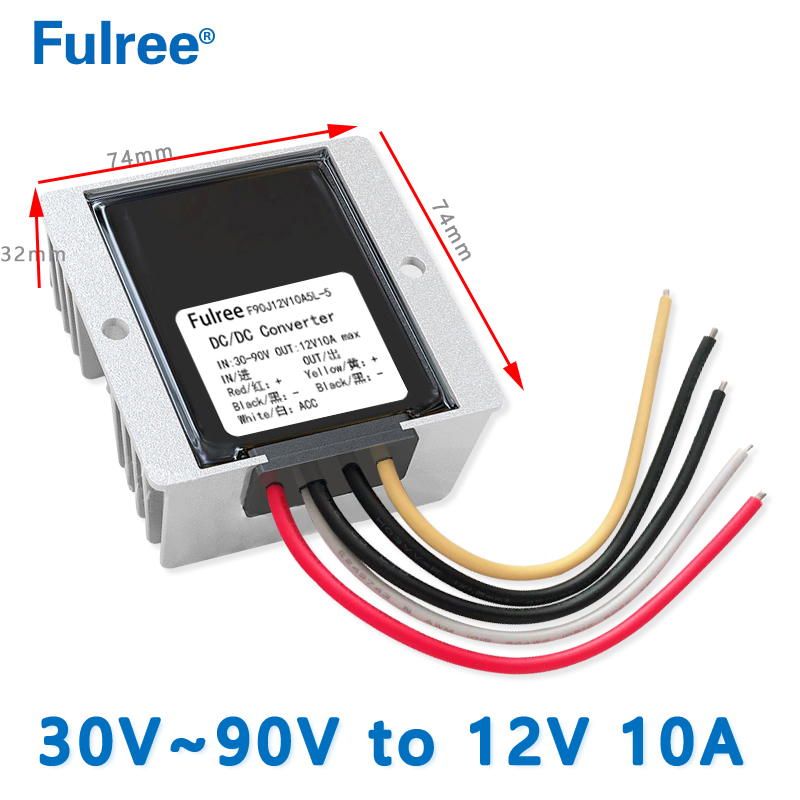

Input DC 36V 48V 60V 72V( 30-90V) to Output DC 12V 5A 8A 10A 12A 15A 20A DC to DC Converter ACC Enable Cable
Product Description
|
Product Name
|
24V 36V 48V 60V 72V to 12V DC DC Converter with ACC
|
|
Brand
|
Fulree
|
|
Model No.
|
F**J12V*A5L-ACC / F**J12V*A5L |
|
Module Properties
|
non-isolated buck module
|
|
Rectification
|
synchronous rectification
|
|
Input
|
|
Input Voltage
|
DC 36V 48V 60V 72V
|
|
Input Voltage Range
|
DC 30-90V
|
|
Output
|
|
Output Voltage
|
DC 12V
|
|
Output Current
|
5A / 8A / 10A / 12A / 15A / 20A Max
|
|
Output Power
|
60W / 96W / 120W / 144W / 180W / 240W Max
|
|
Conversion Efficiency
|
92% |
|
Voltage regulation
|
±1%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
< 100mV
|
|
No-load current
|
<100mA
|
|
Working Temperature
|
-40~80℃
|
|
Waterproof Rating
|
IP68
|
|
Protection
|
Over-current protection
|
|
Overheat protection
|
|
Short-circuit protection
|
|
Application
|
12V speaker,audio,stereo and etc load device |
|
Certification
|
CE/RoHS
|
|
Case Material
|
Aluminum
|
|
Product Size (L x W x H)
|
74*74*32mm excluding cable
|
|
Product Weight
|
280g
|
|
Warranty
|
12 months, lifetime up to 100,000 hours
|
|
Cooling Way
|
Free air convection
|
|
OEM&ODM Service
|
Accept |
Product Picture
