Product Name
|

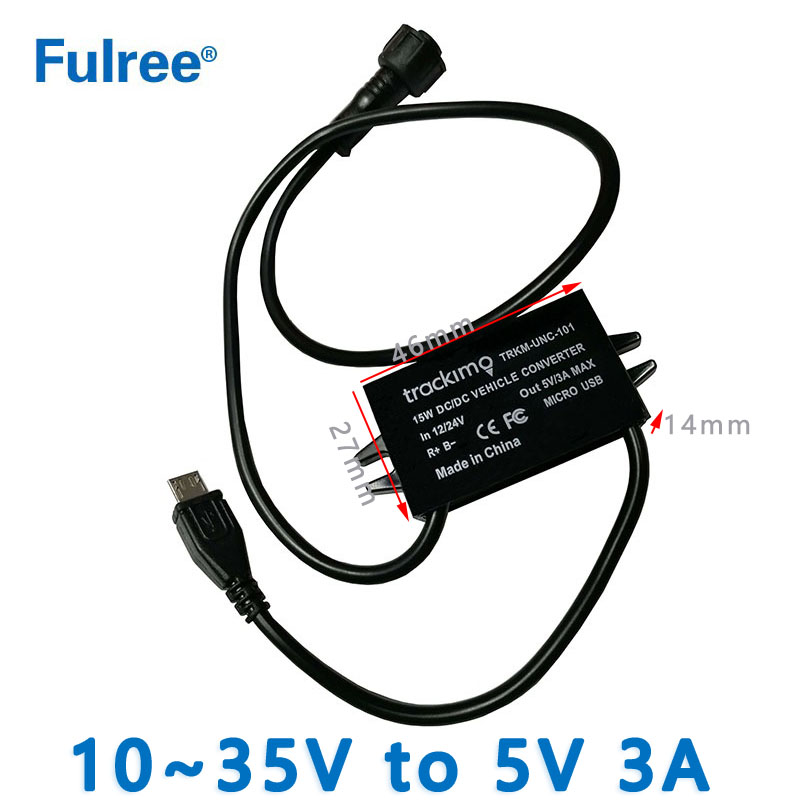

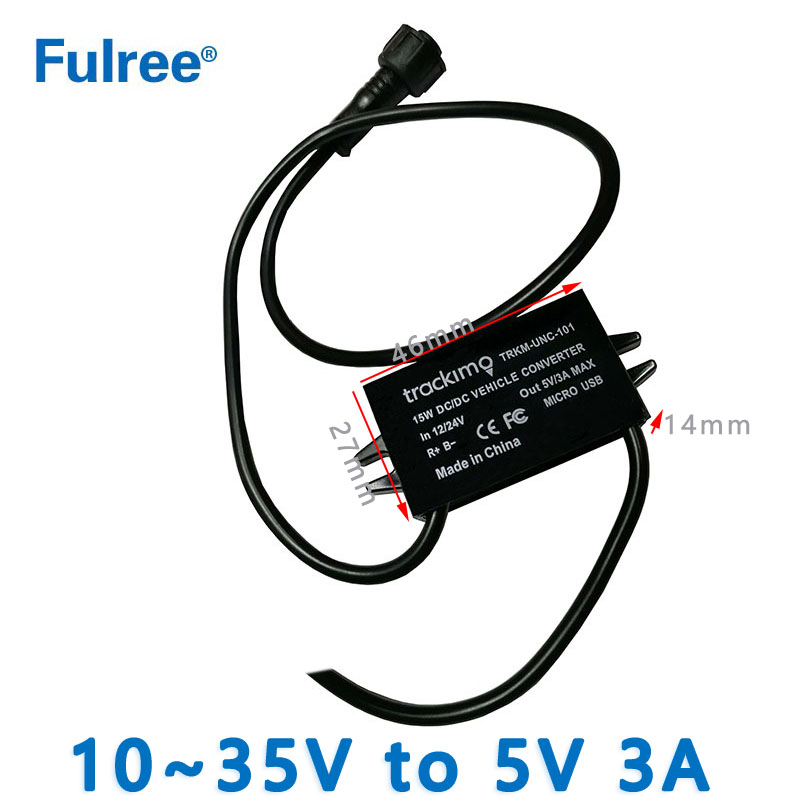

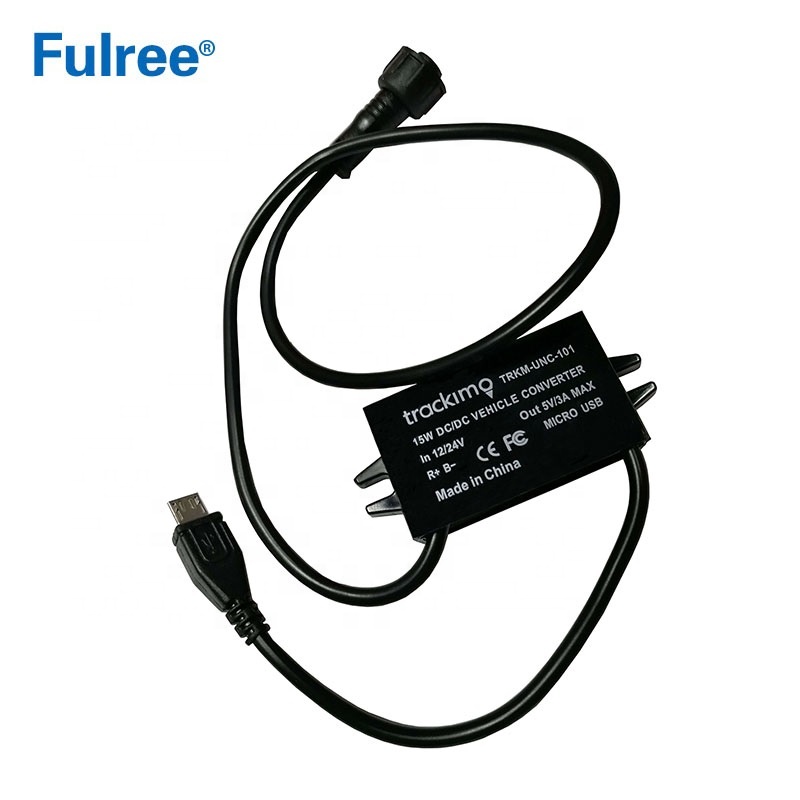

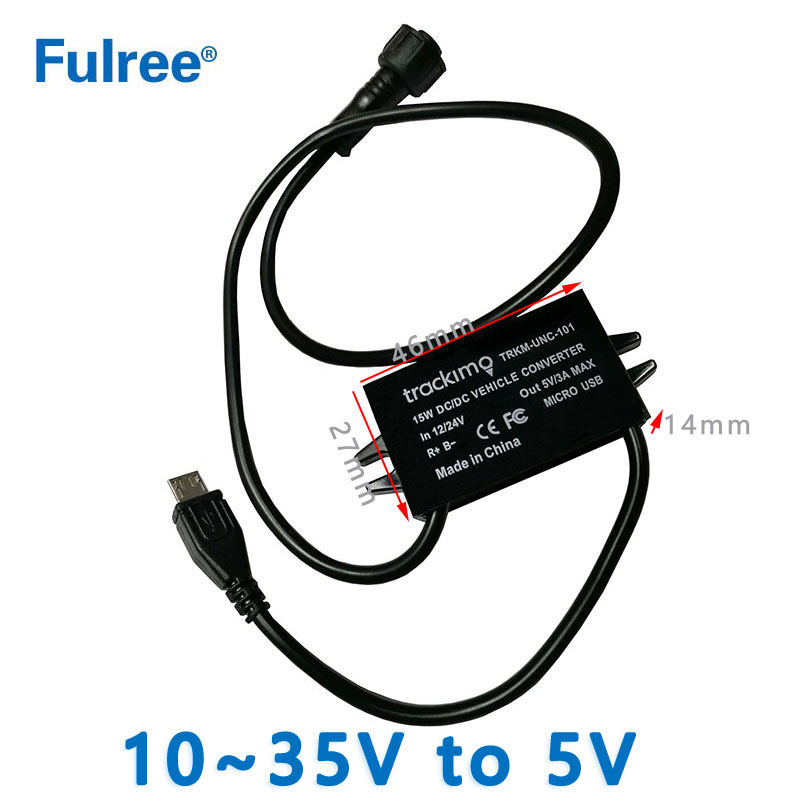

Fulree DC DC Converter 12V 24V to 5V 3A 15W Max
|
|
Brand
|
Fulree
|
|
Model No.
|
TRKM-UNC-101 |
|
Module Properties
|
non-isolated buck module
|
|
Rectification
|
synchronous rectification
|
|
Input
|
|
Input Voltage
|
DC 12V 24V
|
|
Input Voltage Range
|
DC 10-35V
|
|
Output
|
|
Output Voltage
|
DC 5V
|
|
Output Current
|
auto-adaptive 0~3A Max
|
|
Output Power
|
15W Max
|
|
Conversion Efficiency
|
90%
|
|
Voltage regulation
|
±1%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
< 150mV
|
|
No-load current
|
< 100mA
|
|
Working Temperature
|
-40~85℃
|
|
Waterproof Rating
|
IP68
|
|
Protection
|
Over-current protection
|
|
Over-voltage protection
|
|
Overheat protection
|
|
Output Short-circuit protection
|
|
Input/Output Reverse Polarity Protection
|
No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive. If you need this function, please contact with us to customize it.
|
|
Application
|
GPS Navigation, Monitoring, MP3/MP4
DVD,LED bulb lights
Electrical appliances, industrial equipment, telecommunications and so on.
|
|
Certification
|
CE/RoHS/FCC
|
|
Case Material
|
Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on
|
|

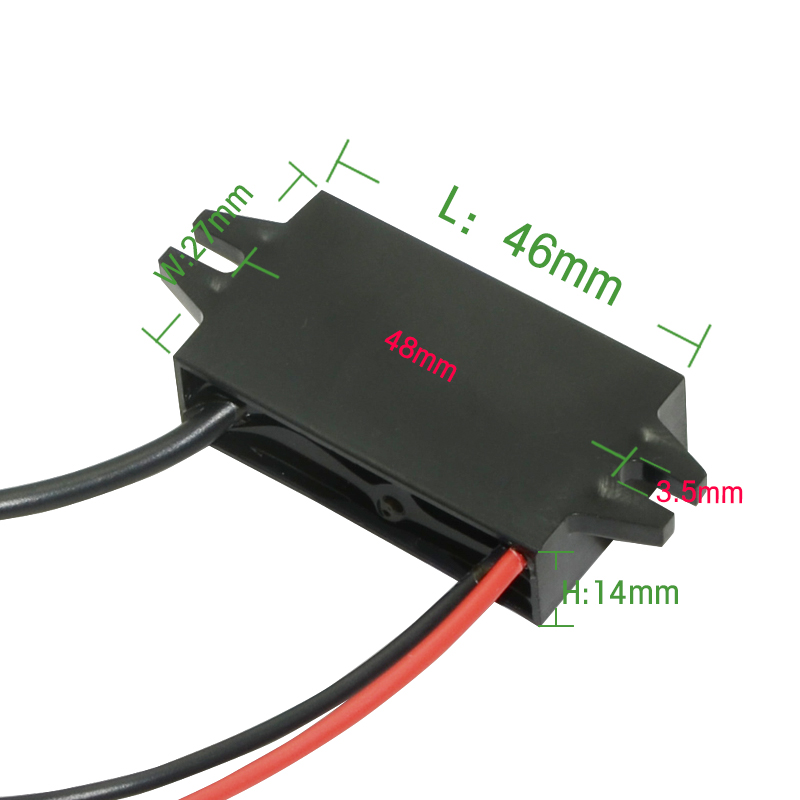

Product Size (L x W x H)
|
46*27*14mm
|
|
Installation Cable Length
|
Input / Output TBA
|
|
Product Weight
|
TBA
|
|
Warranty
|
12 months, lifetime up to 100,000 hours
|
|
Cooling Way
|
Free air convection
|
|
OEM Service
|
Accept OEM logo/label/manual/packing box, Contact Fulree Now!
|
|
Customized Service
|
Accept customized converter such as input/output voltage, cable, interface and etc, Contact Fulree Now!
|
