| Product name |
Voltage Stabilizer 12V 1A/2A/3A |
| Model |

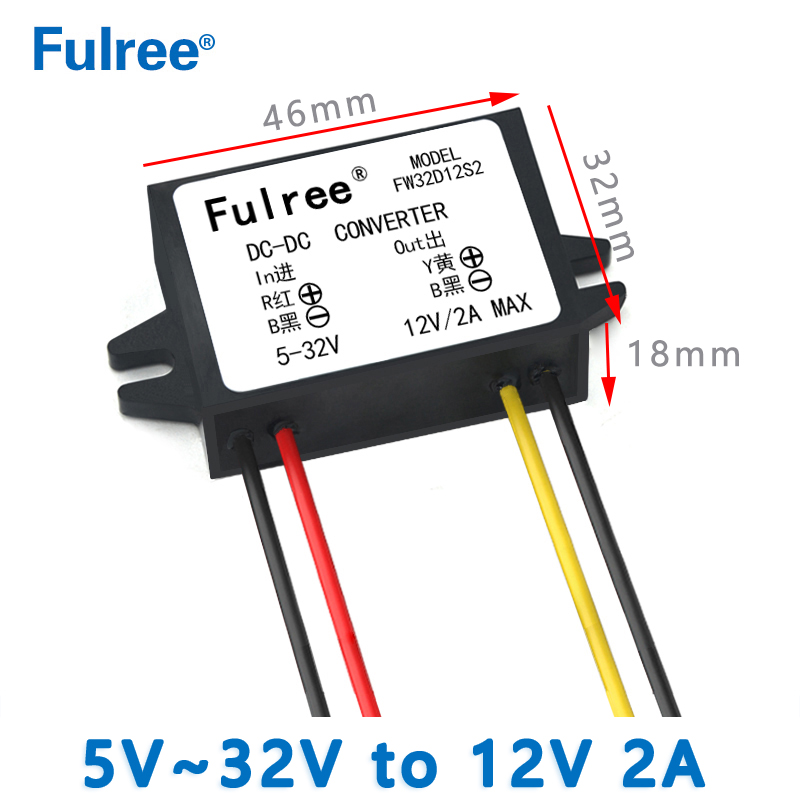

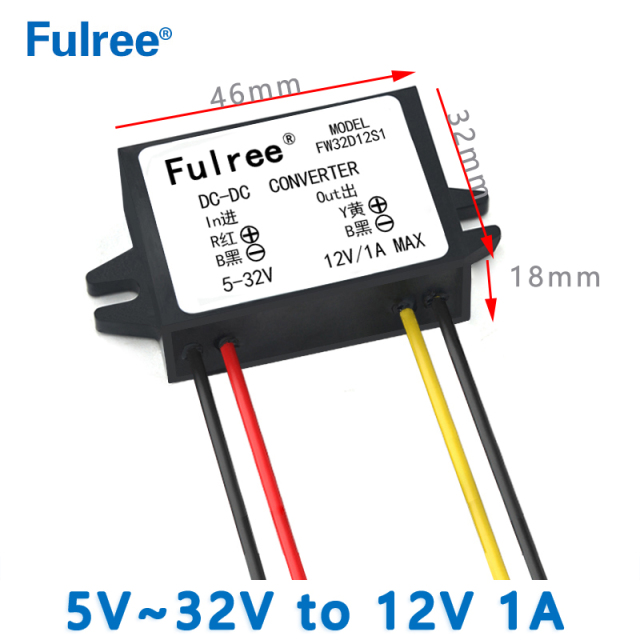

ABS Housing: FW32D12S1 / FW32D12S2 / FW32D12S3

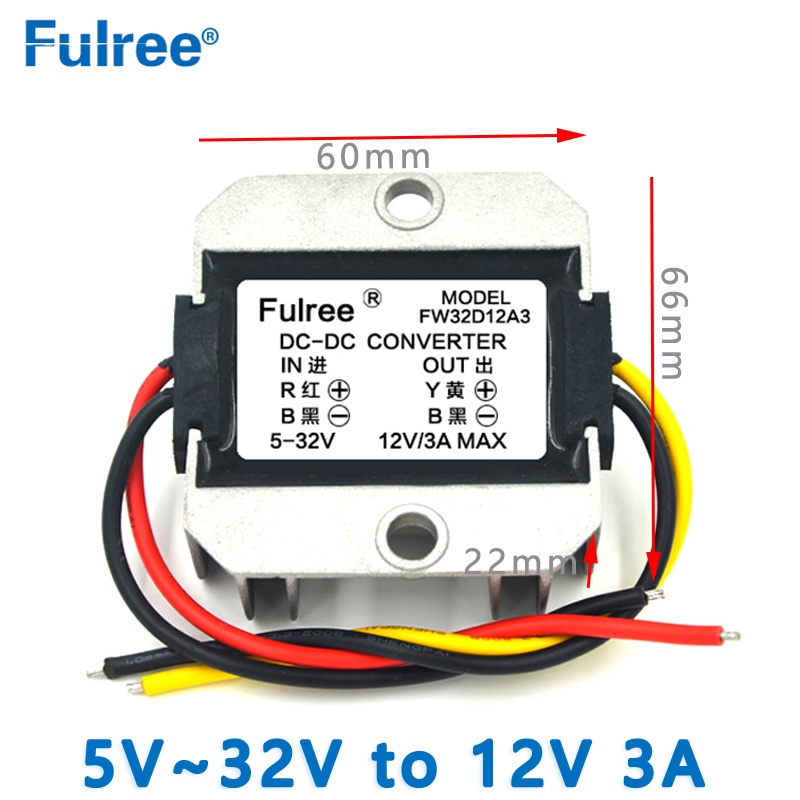

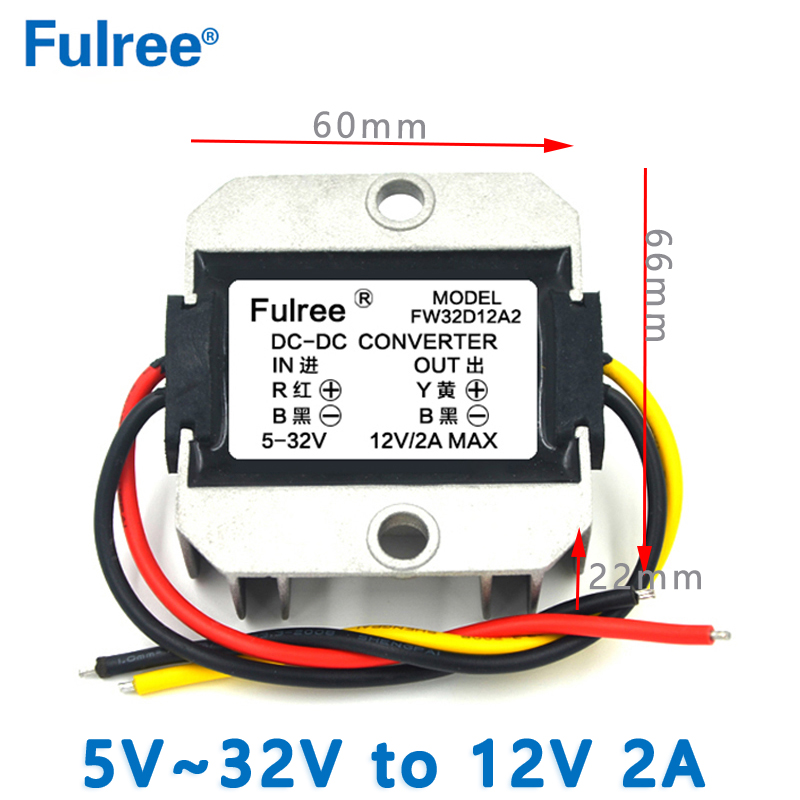

Aluminum Housing: FW32D12A1 / FW32D12A2 / FW32D12A3
|
| Input rated voltage |
12V DC |
| Input voltage range |
5-32V DC |
| Efficiency |
93% (half load), 91% (full load) |
| Output voltage |
12V |
| Output current |
1A / 2A / 3A MAX |
| Output rated power |
12W / 24W / 36W Max |
| Output peak power |
15W / 30W / 43W |
| Voltage regulation |
< 1% |
| Load regulation |
< 2% |
| Working temperature |
-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use,
or to enhance heat dissipation)
|
| Module Properties |
non-isolated module
|
| Rectification |
synchronous rectification |
| Waterproof rating |
IP68 |
| Full load temperature rise: |
50°c |
| Protection |
Over-current, Over-temperature, Instant absorption of high voltage protection
waterproof IP68 design, anti-shock protection
|
| Short-circuit protection |
NO, if need pls add fuse on the positive pole on input |
| Input Reverse Polarity Protection |
None (Please Series diode at the input port.) |
| NW |
ABS: 65G / Aluminum: 100G |
| Product size |
ABS: 46*32*18mm / Aluminum: 66*60*22mm |
|
Other output current
option for DC 12V TO 12V
|
1A, 3A, 4A,10A, 20A(pls contact with our sales manager if need) |
|
Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
|
