Input DC 12V （8-23V ）to Output DC 5V 3A 15W Max Micro USB 5Pin Male Plug Connector Adapter Car Phone Charger DC DC Converter DVR Dash Cam Power Supply
Product Description
|
Product Name
|
12v to 5v micro usb dc converter
|
|
Brand
|
Fulree / CPT
|
|
Model No.
|
F23J5V3A1S-xxx (Old: C1205003) |
|
Module Properties
|
non-isolated buck module
|
|
Rectification
|
synchronous rectification
|
|
Input
|
|
Input Voltage
|
DC 12V
|
|
Input Voltage Range
|
DC 8-23V
|
|
Output
|
|
Output Voltage
|
DC 5V
|
|
Output Current
|
auto-adaption 0~3A Max
|
|
Output Power
|
15W Max
|
|
Conversion Efficiency
|
85-90%,95% Max
|
|
Voltage regulation
|
±1%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
< 150mV
|
|
No-load current
|
< 100mA
|
|
Working Temperature
|
-25~60℃
|
|
Waterproof Rating
|
IP68
|
|
Protection
|
Over-current protection
|
|
Overheat protection
|
|
Short-circuit protection
|
|
Reverse Polarity Protection
|
|
Application
|
GPS Navigation, Monitoring, MP3/MP4
DVD,LED bulb lights,Smart phones including iPhone
Electrical appliances, industrial equipment, telecommunications and so on.
|
|
Certification
|
CE / RoHS
|
|
Case Material
|
Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on
|
|
Product Size (L x W x H)
|
46*27*14mm
|
|
Installation Cable Length
|
Input 13-14cm / Output 35cm
|
|
Product Weight
|
45g
|
|
Warranty
|
12 months, lifetime up to 100,000 hours
|
|
Cooling Way
|
Free air convection
|
|
OEM Service
|
Accept OEM logo/label/manual/packing box, Contact Fulree Now!
|
|
Customized Service
|
Accept customized converter such as input/output voltage, cable, interface and etc, Contact Fulree Now!
|

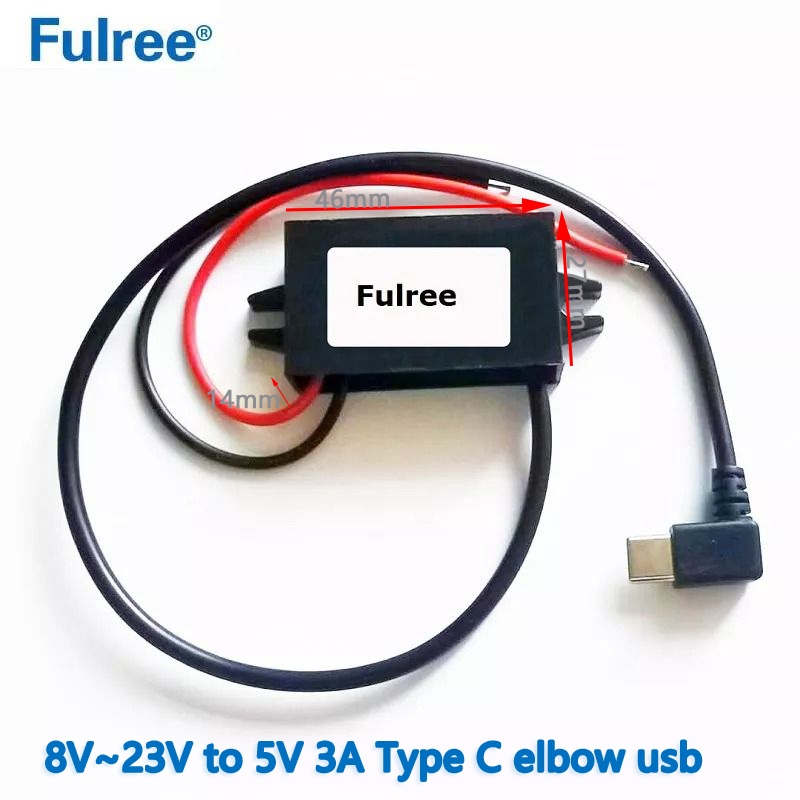

Product Picture

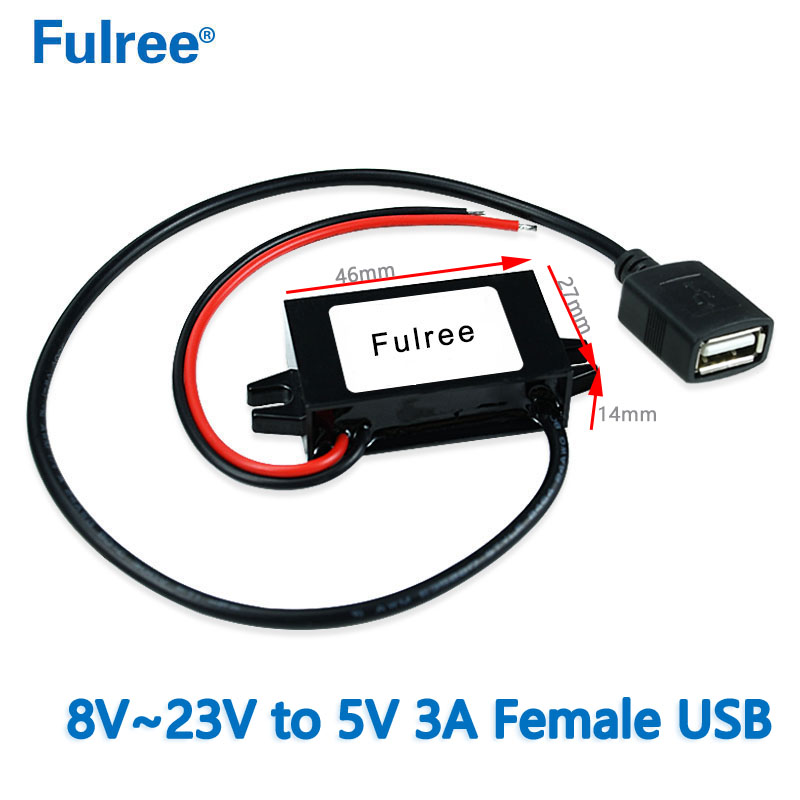

Output Single Type A Female USB Port

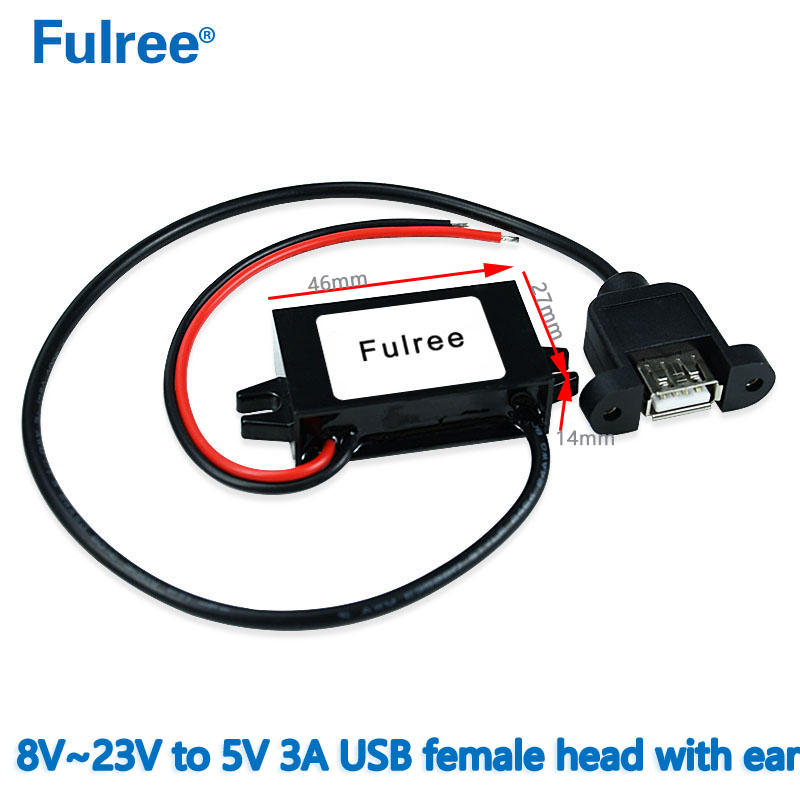

Output Single Type A Female USB with Ear Port

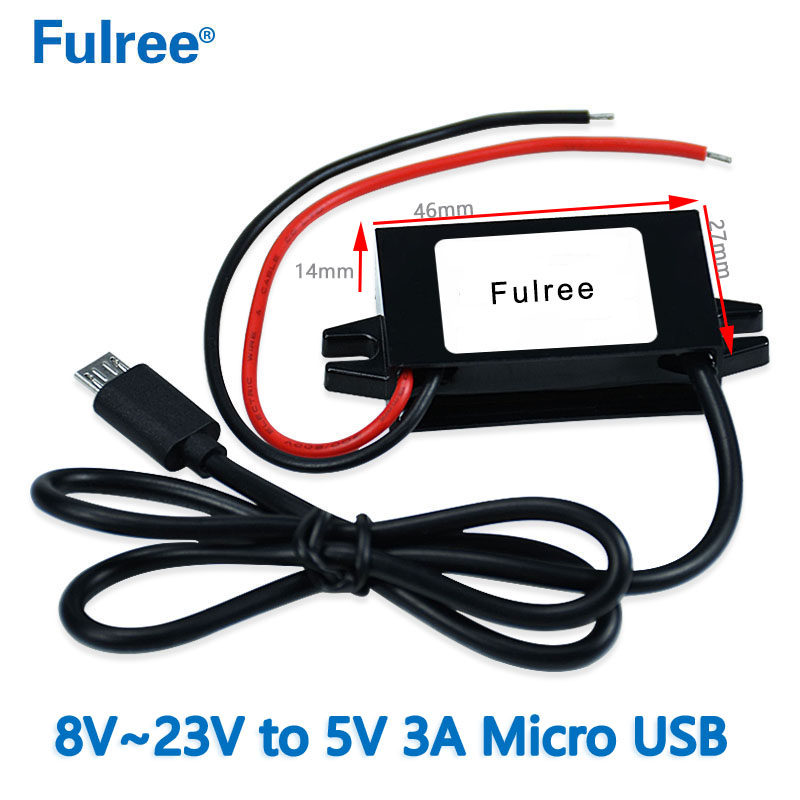

Output Micro USB Port

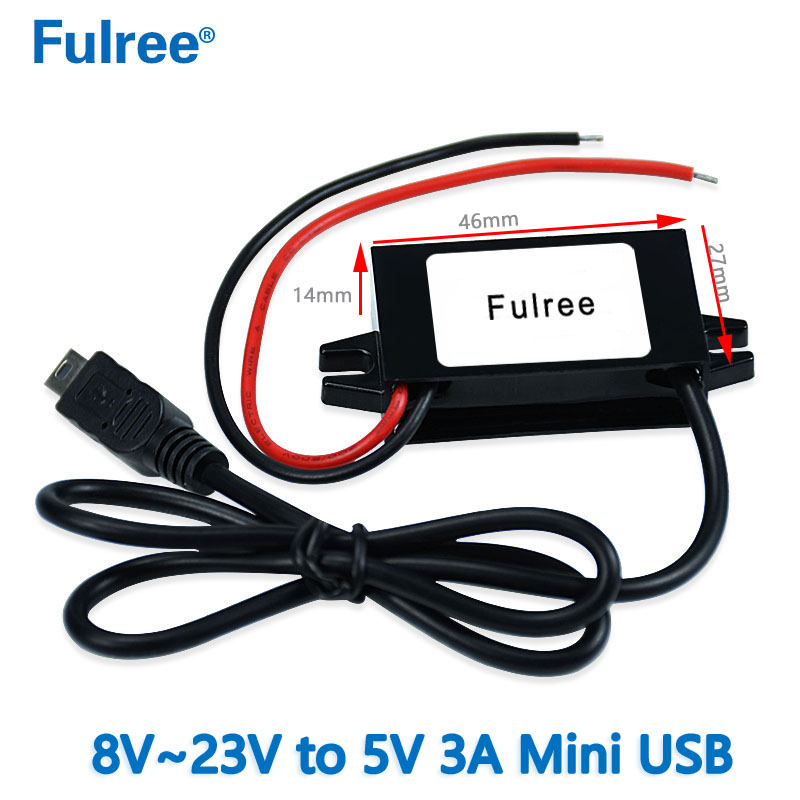

Output Mini USB Port

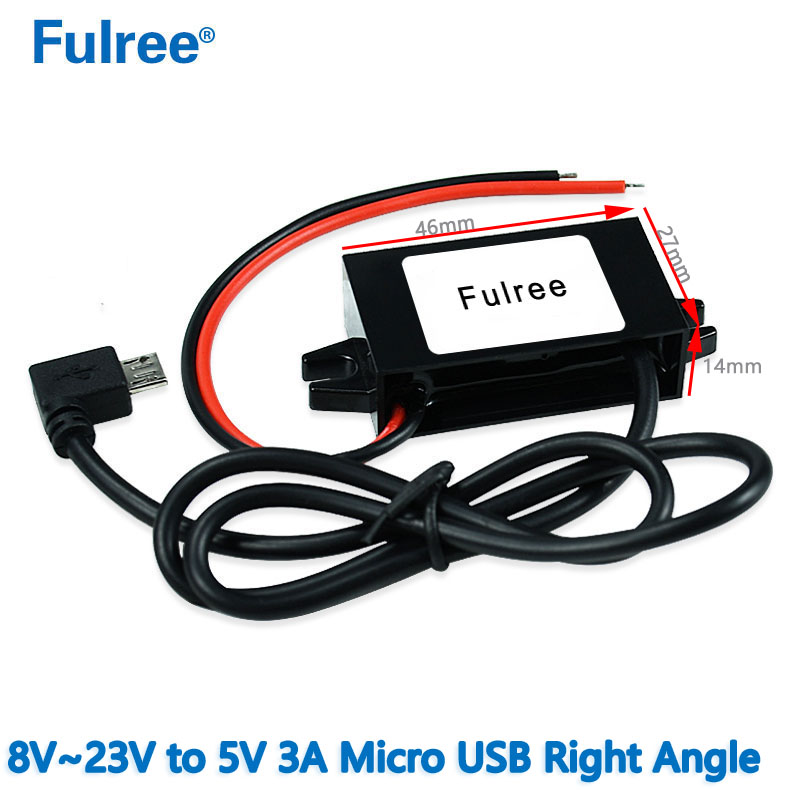

Output Micro USB Right Angle Port
Packaging & Delivery
1. We pack each item with OPP bag individually, then put all items in export cartons (around 50-300pcs per carton). The export cartons will be taped to protect the parcel from water stains or something others, it's not easy to break or damage during the shipment by air or sea.
2. We make shipment between 3-15 days for normal order and 3 to 5 days for samples.
3. We can offer you express like FedEx, DHL, UPS & TNT when you make a relatively small order like samples. The ocean shipping is also available when you place a big order. The customers can use their own freight forwarder account.
4. If you need some special request on shipment, please note us before placing order.
5. In order to clear customs soon, please provide accurate receiving address including zip code and taxes number. The HS code is 8504401400.
Why Choose Fulree?
Service ......... RMA(24/7 Technical Support), OEM, ODM
Quality...........100% full inspection before delivery, Less than 0.5% of failure rate!
Warranty....... Up to 12 months!
Price..................Competitive Factory Price!
Professional......Produce security DC DC converter for 8 years in China!
Reliable.............One of the largest power supply business manufacturers in China!
Assurance.........Any problem of quality, Fulree would refund the payment!
Payment.............T/T bank wire transfer, Escrow, West Union and Paypal!
Delivery...............Fast! After receive payment 3-15 days for normal small orders!
Privacy …….....Protect your sales area, designs, ideas and all your private information!
Fulree................Your best DC DC Converter Solution Choice! We Design and support!
