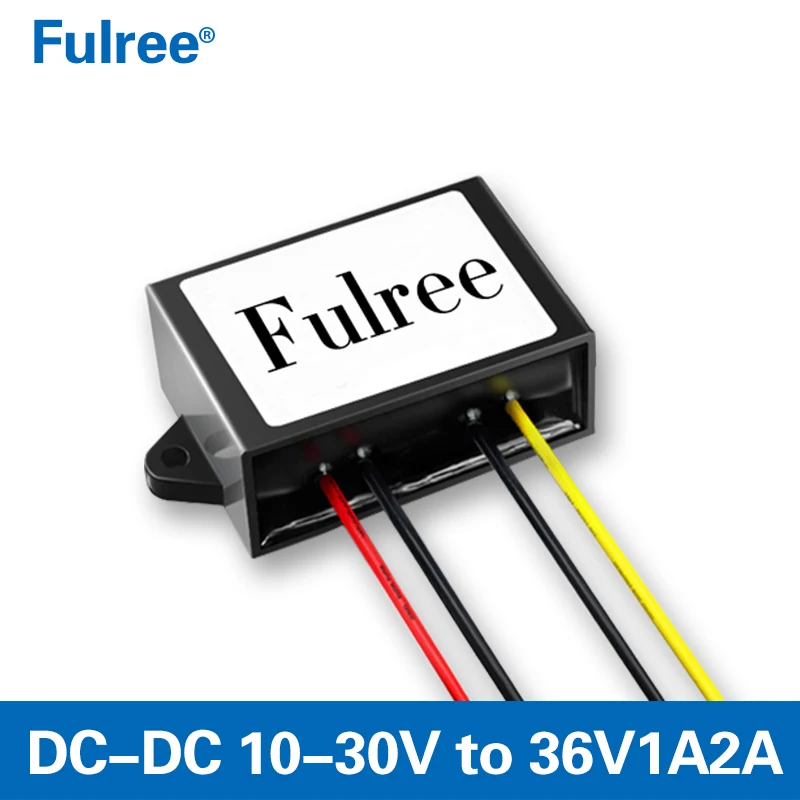

| Product Name |
DC 12V to 36V Converter 1A 2A |
| Model |
3601S / 3602S / F12S24V1A4L / F12S24V2A4L |
| Input rated voltage |
DC 12V |
| Input voltage range |
DC 10-30V |
| Efficiency |
>90% |
| Output voltage |
DC 36V |
| Output current |
1A / 2A Max |
| Output rated power |
36W / 72W Max |
| Voltage regulation |
< 1% |
| Load regulation |
< 2% |
| Working temperature |
-25°c ~+65°c( If ambient temperature exceeds 40°c, lower power use,
or to enhance heat dissipation)
|
| Module Properties |
non-isolated boost module
|
| Rectification |
synchronous rectification |
| Waterproof rating |
IP67 |
| Full load temperature rise: |
45°c |
| Protection |
Over-current,Over-temperature Protection |
| Short-circuit protection |
NO, if need pls add fuse on the positive pole on input |
| Input Reverse Polarity Protection |
None (Please Series diode at the input port.) |
| Net Weight |
97G / 100G |

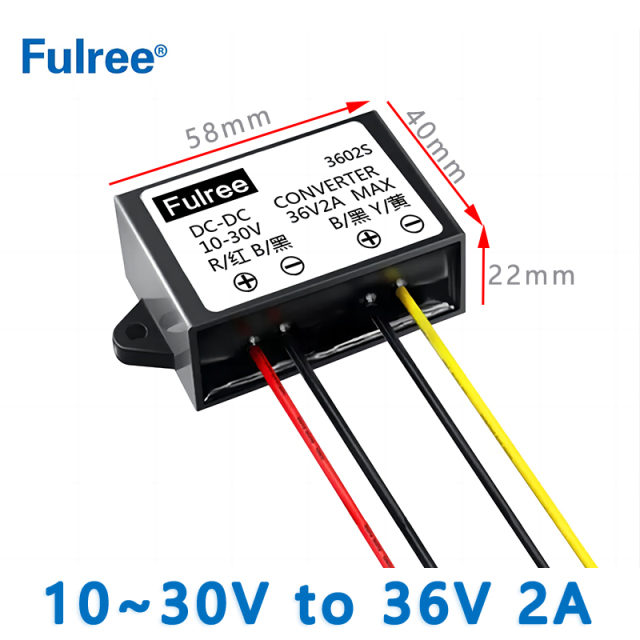

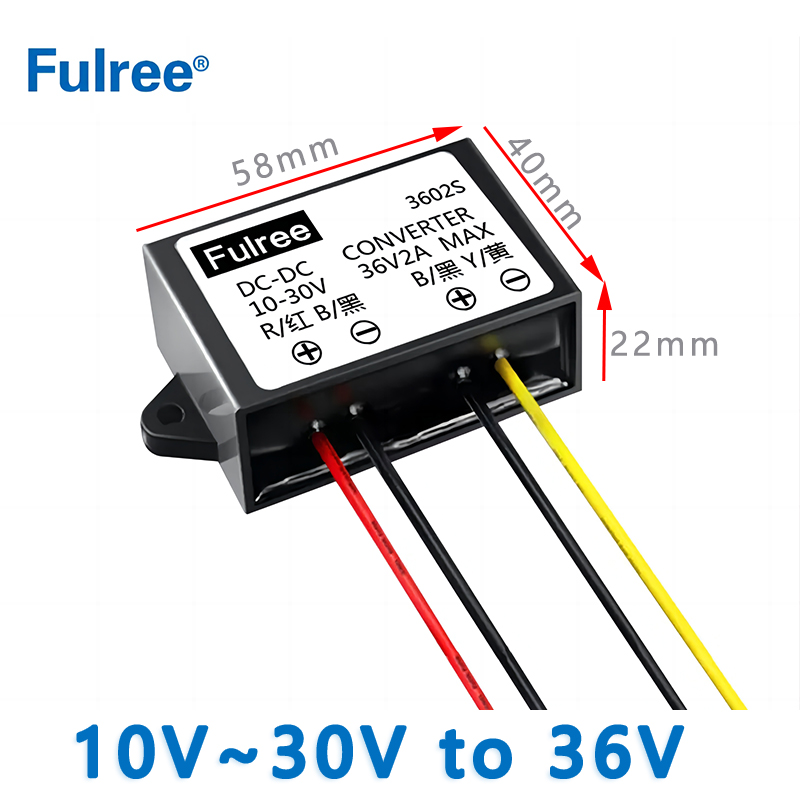

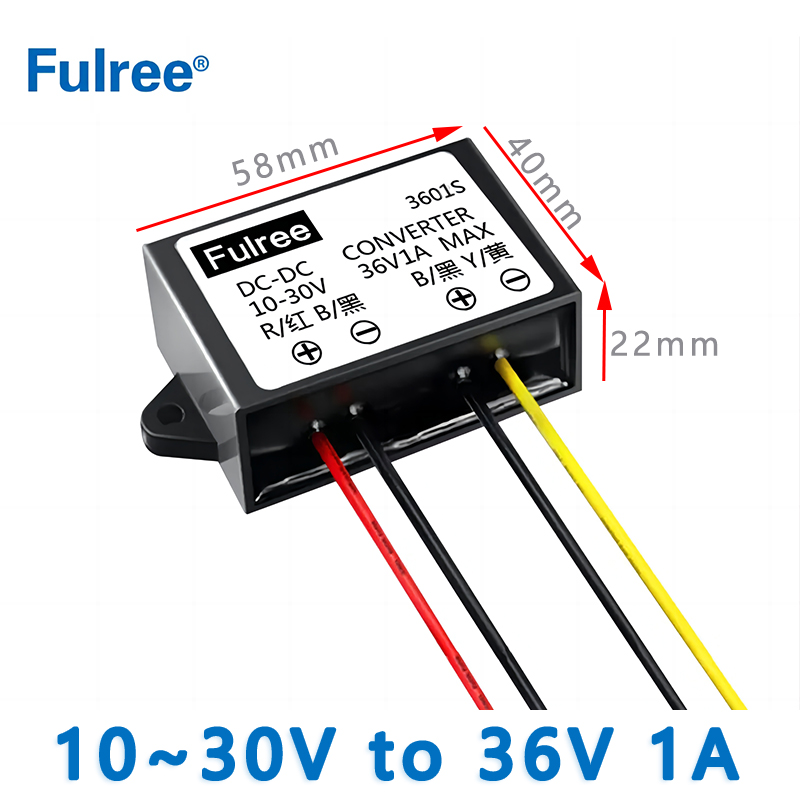

| Product size |

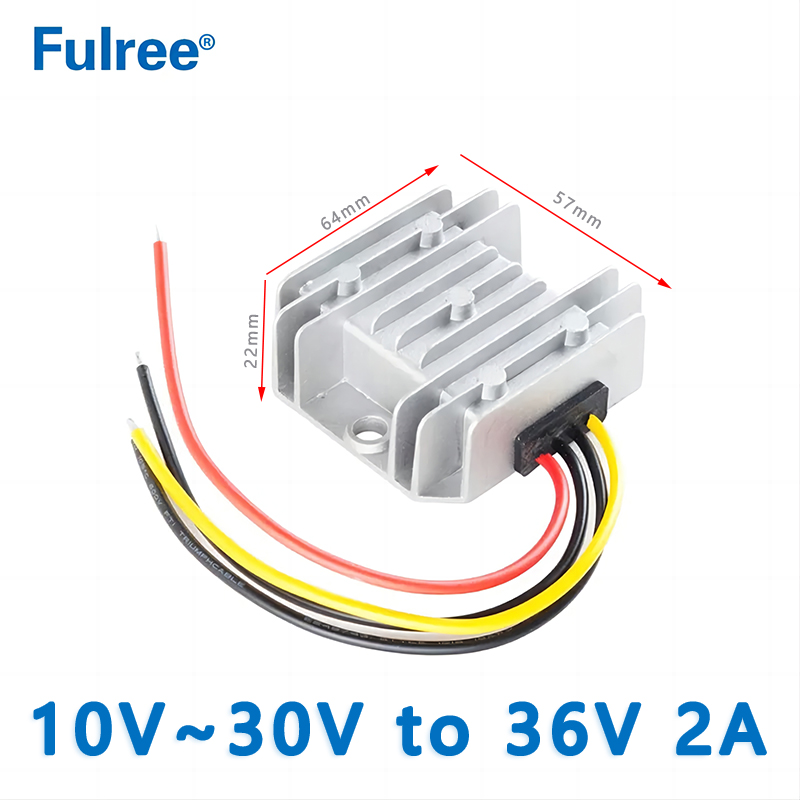

Plastic Case: 58*40*22MM / Aluminum Case: 64*57*22MM |
|
Other output current
option for DC 12V to 36V Converter
|
1A/3A/4A/5A/8A/10A, 20A/30A(pls contact with our sales manager if need) |
|
Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power, pls make sure the voltage and power input is enough.
|
