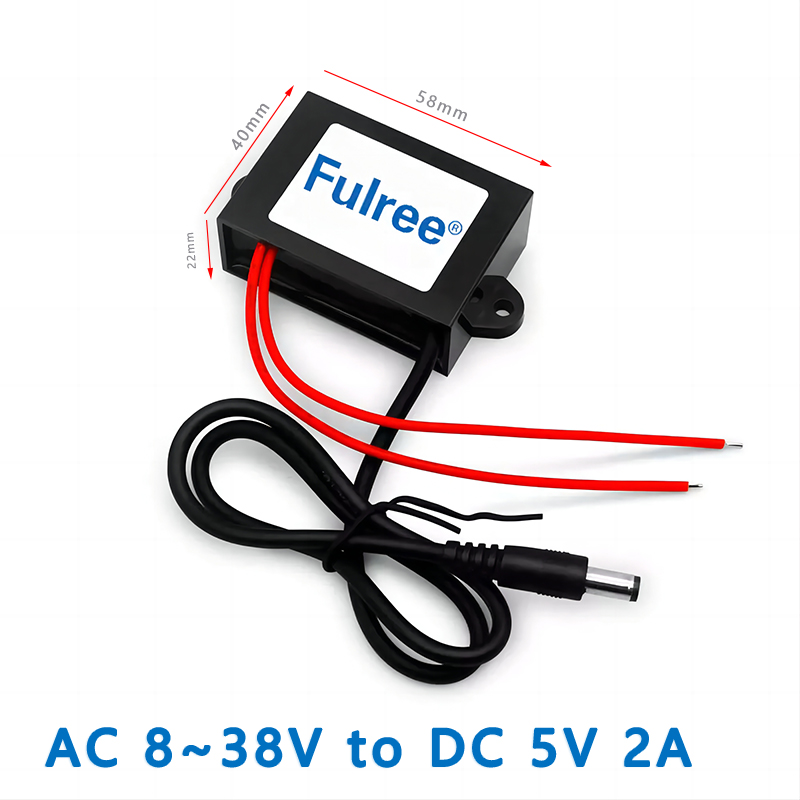

Product Name |
Fulree AC 36V (8~38V) to DC 5V |
|
|
Brand |
Fulree |
|
|
Module Properties |
non-isolated buck module |
|
|
Rectification |
synchronous rectification |
|
|
Input |
||
|
Input Voltage |
AC 36V (8~38V) |
|
|
Input Voltage Range |
AC 36V (8~38V) |
|
|
Output |
||
|
Output Voltage |
DC 5V |
|
|
Output Current |
1A 2A 3A Max |
|
|
Output Power |
5W 10W 15W Max |
|
|
Conversion Efficiency |
90% | |
|
Voltage regulation |
±1% |
|
|
Load regulation |
± 2% |
|
|
Ripple (Full load test) |
< 150mV |
|
|
No-load current |
< 100mA |
|
|
Working Temperature |
-40~80℃ |
|
|
Waterproof Rating |
IP68 |
|
|
Protection |
Over-current protection |
|
|
Overheat protection |
||
|
Short circuit protection |
||
|
Input/Output Reverse Polarity Protection |
No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive. If you need this function, please contact with us to customize it. |
|
|
Application |
Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts GPS Navigation, Monitoring, Air conditioning LED car display, DVD, LED bulb lights Wind Power System, Solar Panel Power System Electrical appliances, water pumps, industrial equipment, telecommunications and so on. |
|
|
Certification |
CE/RoHS |
|
|
Case Material |
Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on |
|
|
Product Size (L x W x H) |
58*40*22mm |
|
|
Installation Cable Length |
13-14cm |
|
|
Product Weight |
97g |
|
|
Warranty |
12 months, lifetime up to 100,000 hours |
|
|
Cooling Way |
Free air convection |
|
|
OEM Service |
Accept OEM logo/label/manual/packing box, Contact Fulree Now! |
|
|
Customized Service |
Accept customized converter such as input/output voltage, cable, interface and etc, Contact Fulree Now! |
|
